Inlaid Lock, with Ø 18 mm Cylinder, Backset 20 mm, Minilock 40

Product Details

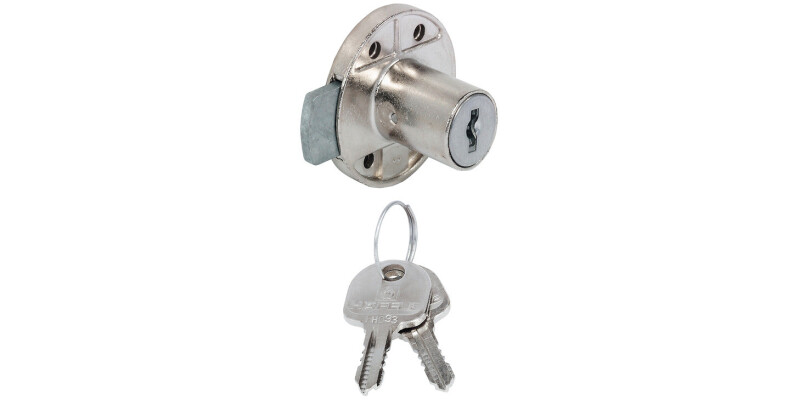

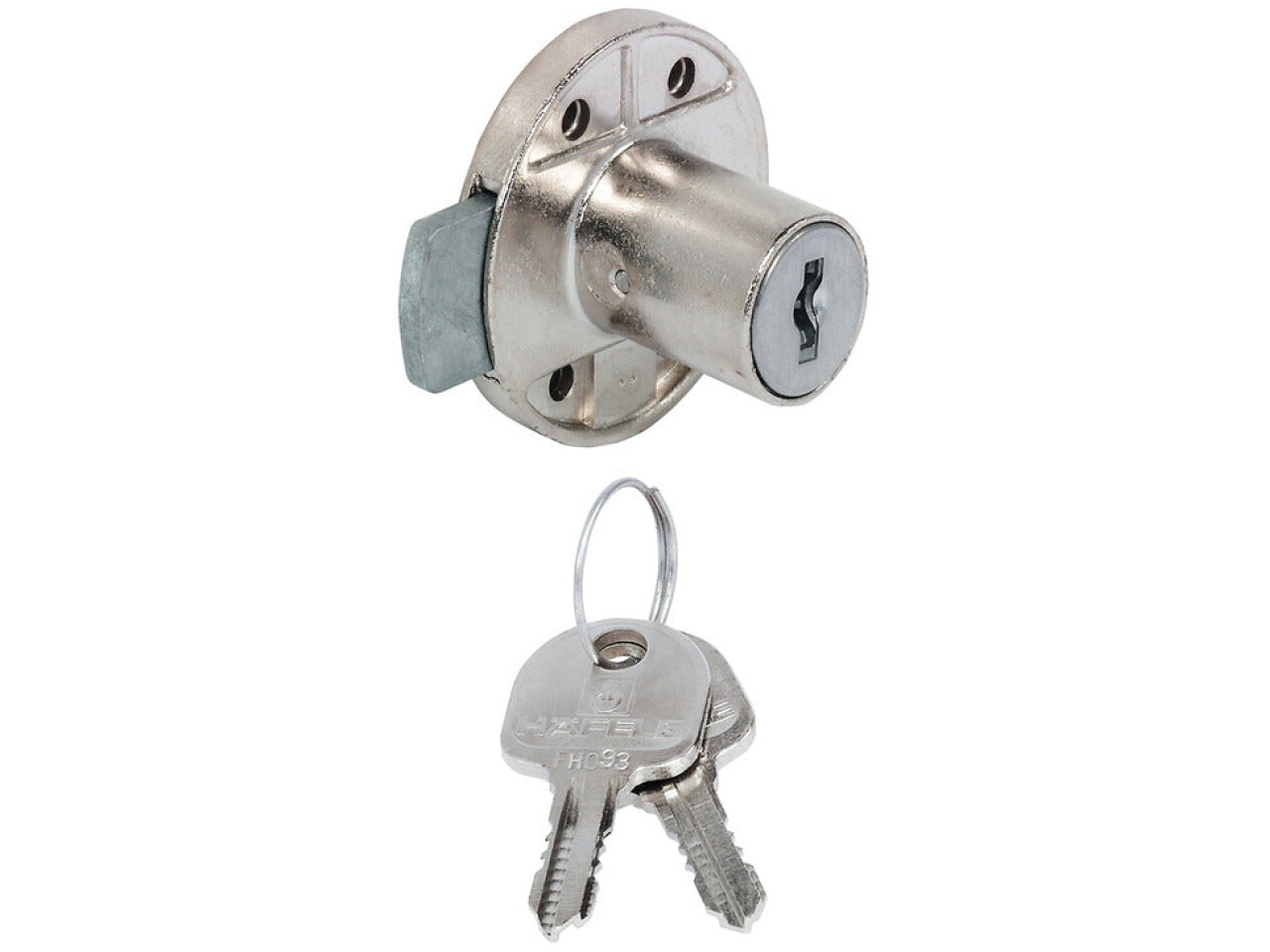

Inlaid Lock, with Ø 18 mm Cylinder, Backset 20 mm, Minilock 40. is a premium inlaid cabinet locking solution designed for reliable security and smooth everyday use. Built with a standard profile and supplied in a left hand version, this lock is ideal for furniture makers and homeowners upgrading cabinet hardware where a precise fit matters.

Featuring a robust locking mechanism with 5 plate levers, the Minilock40 helps deliver dependable performance while keeping access controlled. The lock case and cylinder are made from zinc alloy, combining strength and durability for long-lasting use. The deadbolt is crafted from aluminium, and a steel rear plate adds additional stability where it counts.

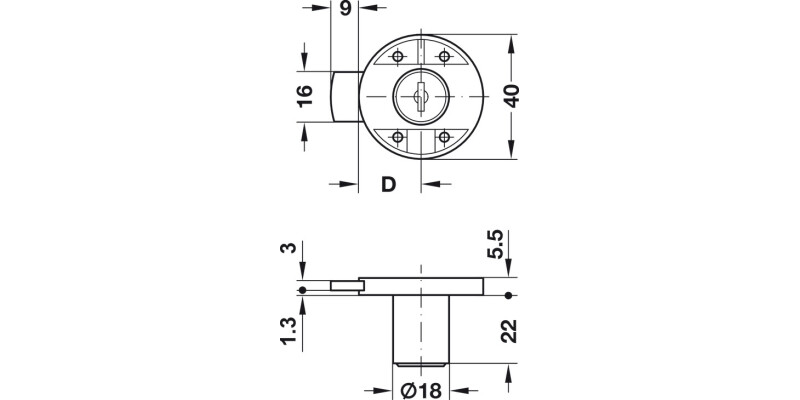

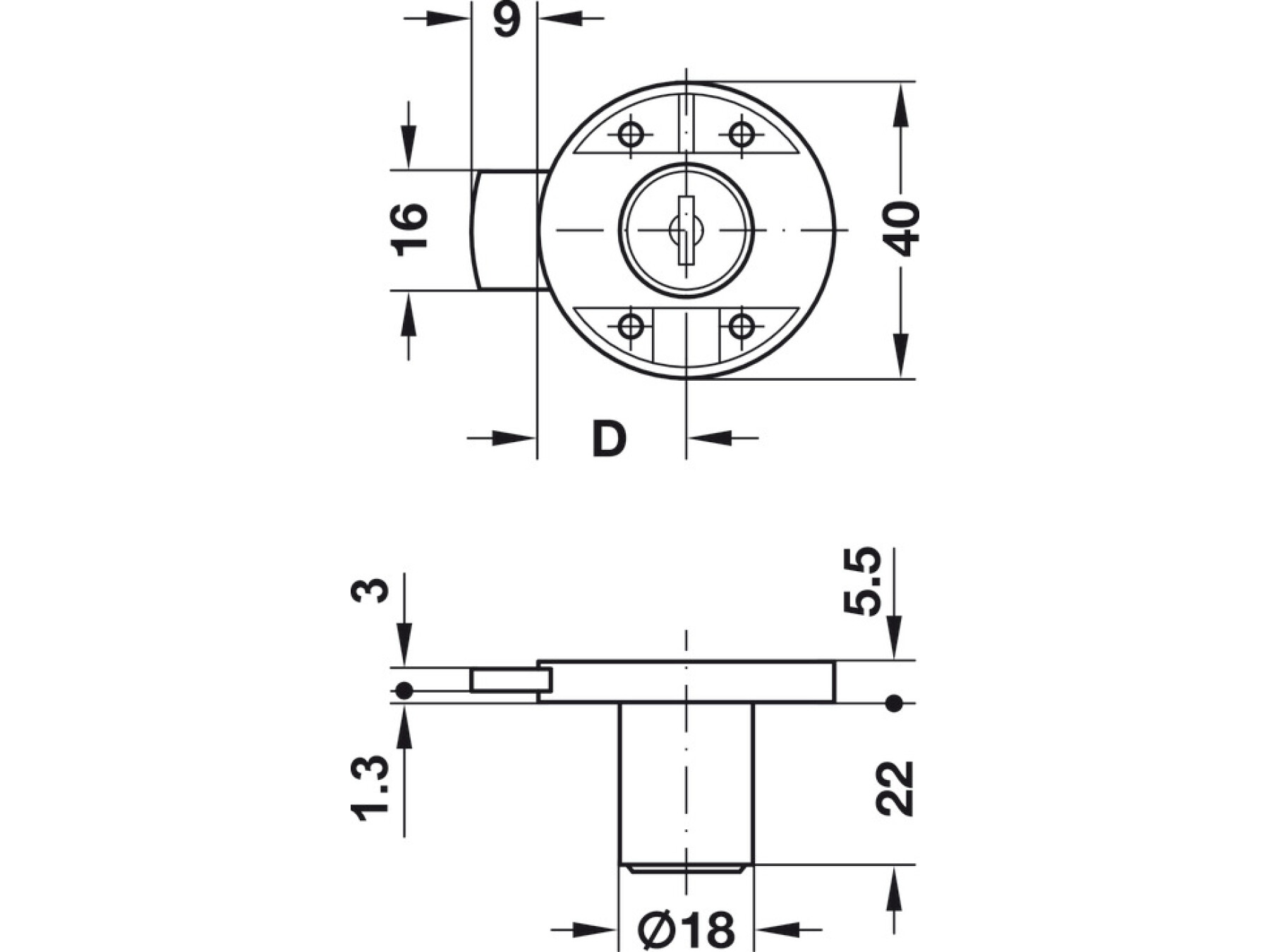

Engineered for correct alignment and a clean finish, the lock is designed with a forend type of 20.00 mm. The cylinder is a round cylinder with a cylinder diameter of 18.00 mm and a cylinder length of 22.00 mm. The lock is left hand and includes a key for immediate operation.

Product Part No: 230.12.704. This model is supplied with 1 inlaid lock and 2 keys.

Order reference note: To complete installation, the order cylinder rosette, spacer plate and Hospa Ø 3.0 mm screws separately. Choose the Minilock40 for a secure, professional cabinet finish—add this left hand rim lock to your cart today.

Order cylinder rosette, spacer plate and Hospa Ø 3.0 mm screws separately

1 Inlaid lock
2 Keys
