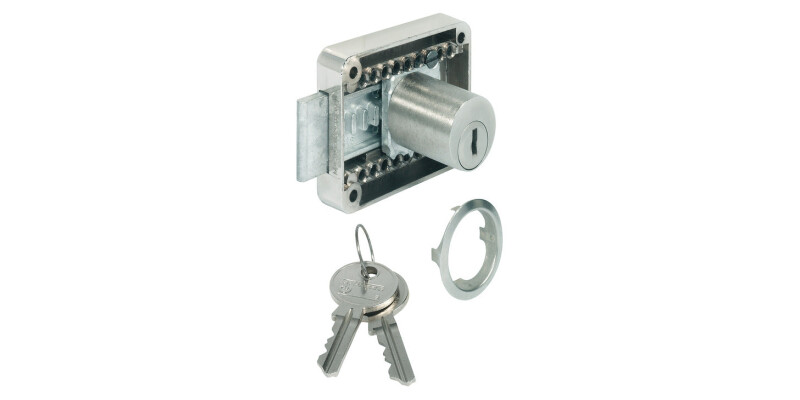

Rim Lock, with Ø 22 mm Cylinder, Adjustable Backset 15 - 40 mm

Product Details

Rim Lock, with Ø 22 mm Cylinder, Adjustable Backset 15 - 40 mm (Product Part No: 230.01.149) is a reliable choice for anyone upgrading cabinet security with a clean, professional look. Designed for everyday durability, this Standard profile rim lock features a zinc alloy body finished in matt nickel plated for a subtle, modern appearance that suits both living and commercial furniture.

One of the key benefits is the adjustable backset, letting you fine-tune installation to suit your existing setup. The backset is adjustable in steps of 5 mm, helping you achieve a proper fit for rim lock applications where measurements may vary. The lock is available in a practical mounting style—left, right or drawer version—so you can select the orientation that matches your furniture layout.

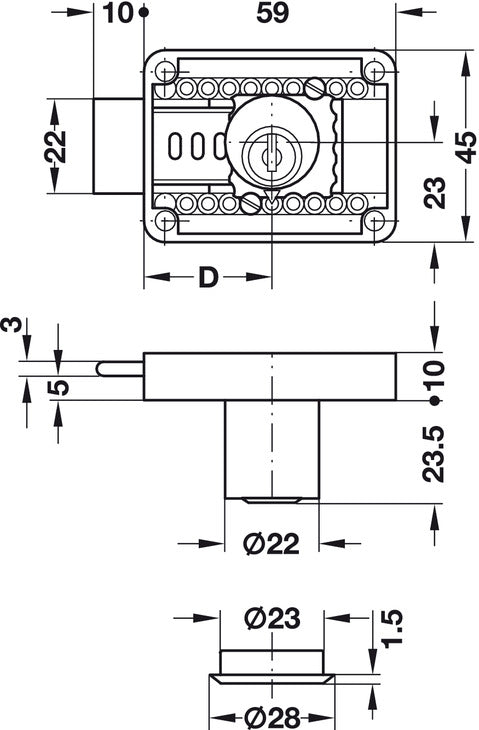

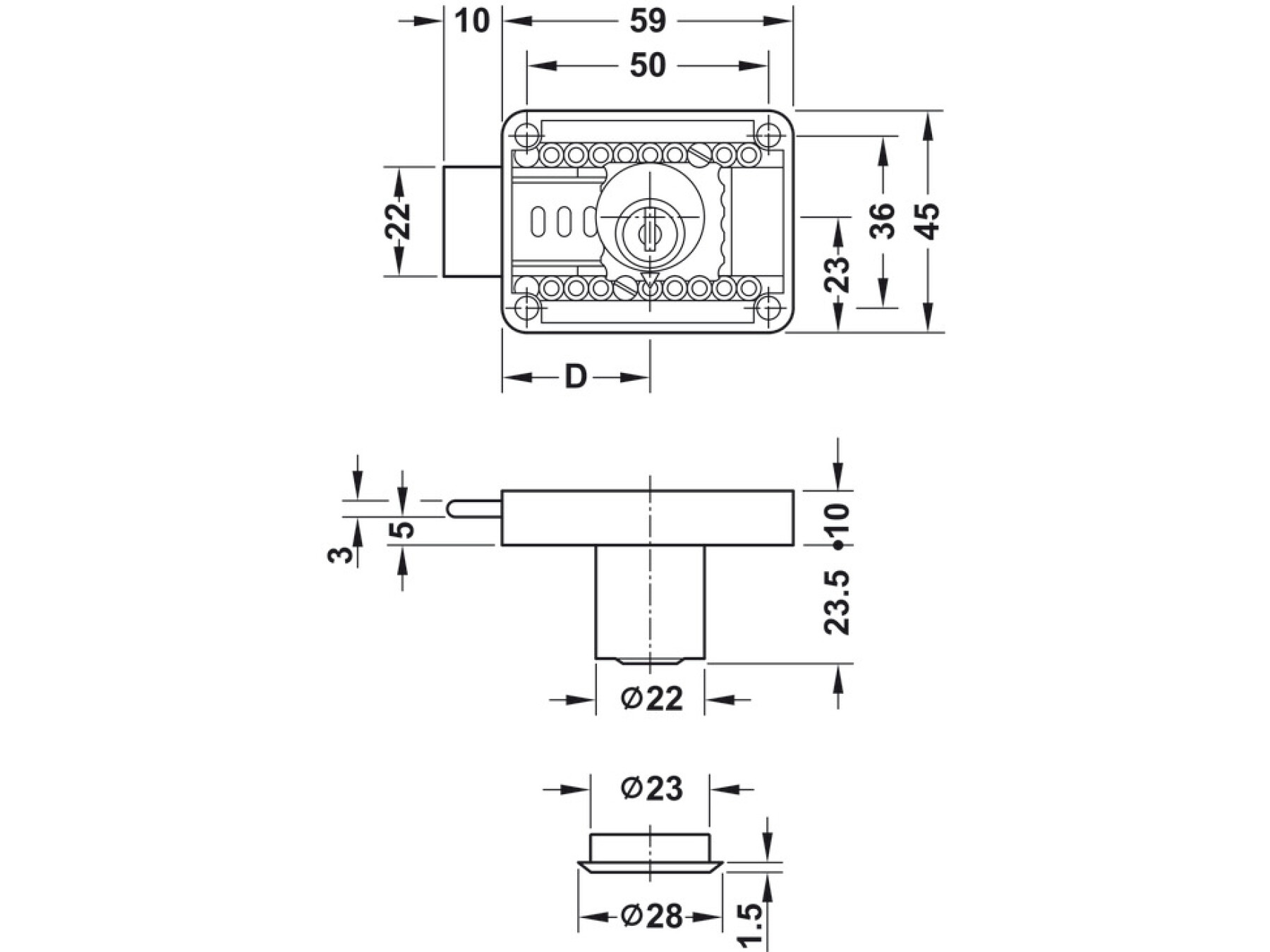

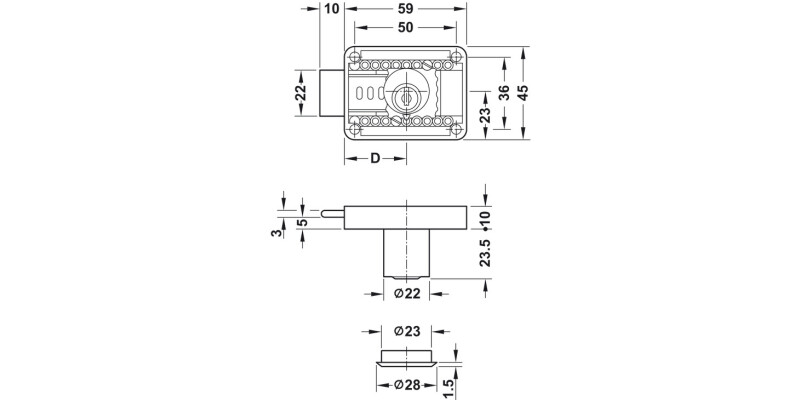

Built for smooth operation, the round cylinder is 22.00 mm in diameter with a cylinder housing length of 23.50 mm. Secure locking is provided by a standard profile mechanism with 5 plate levers and a deadbolt throw of 10.00 mm. Installation is straightforward with screw fixing and requires no master key functionality (no master key possible).

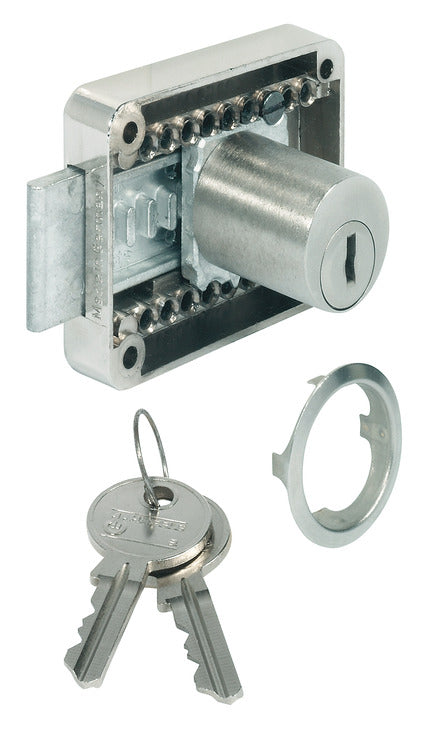

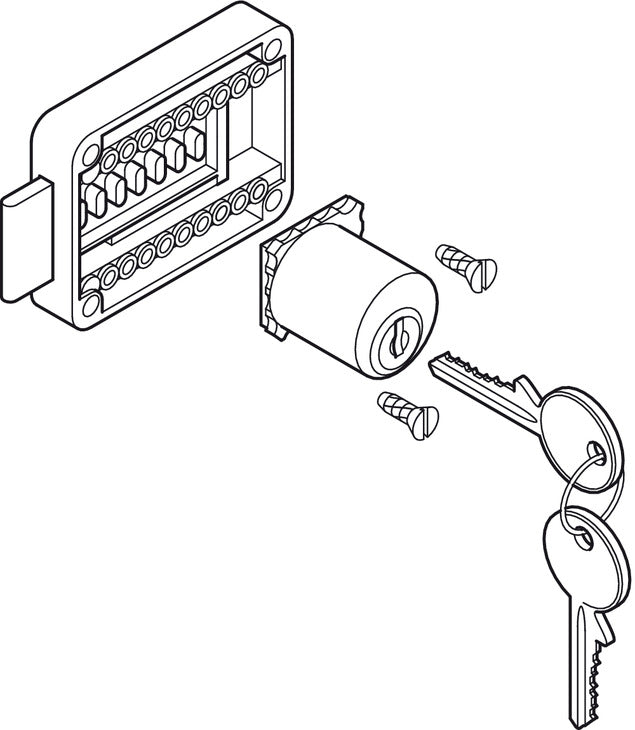

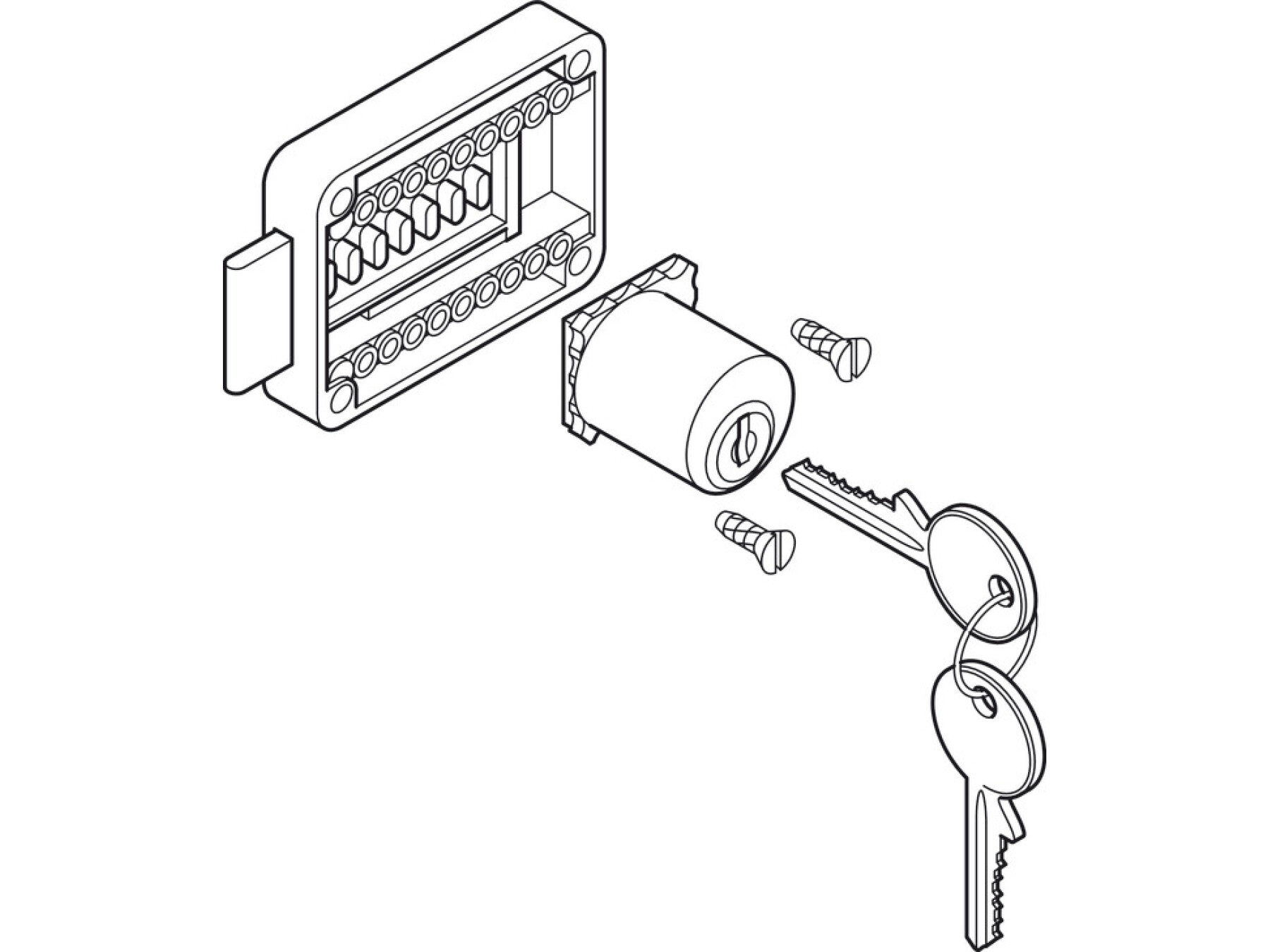

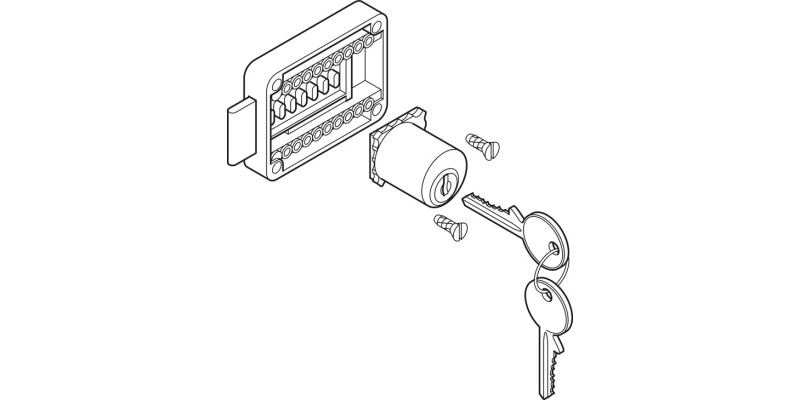

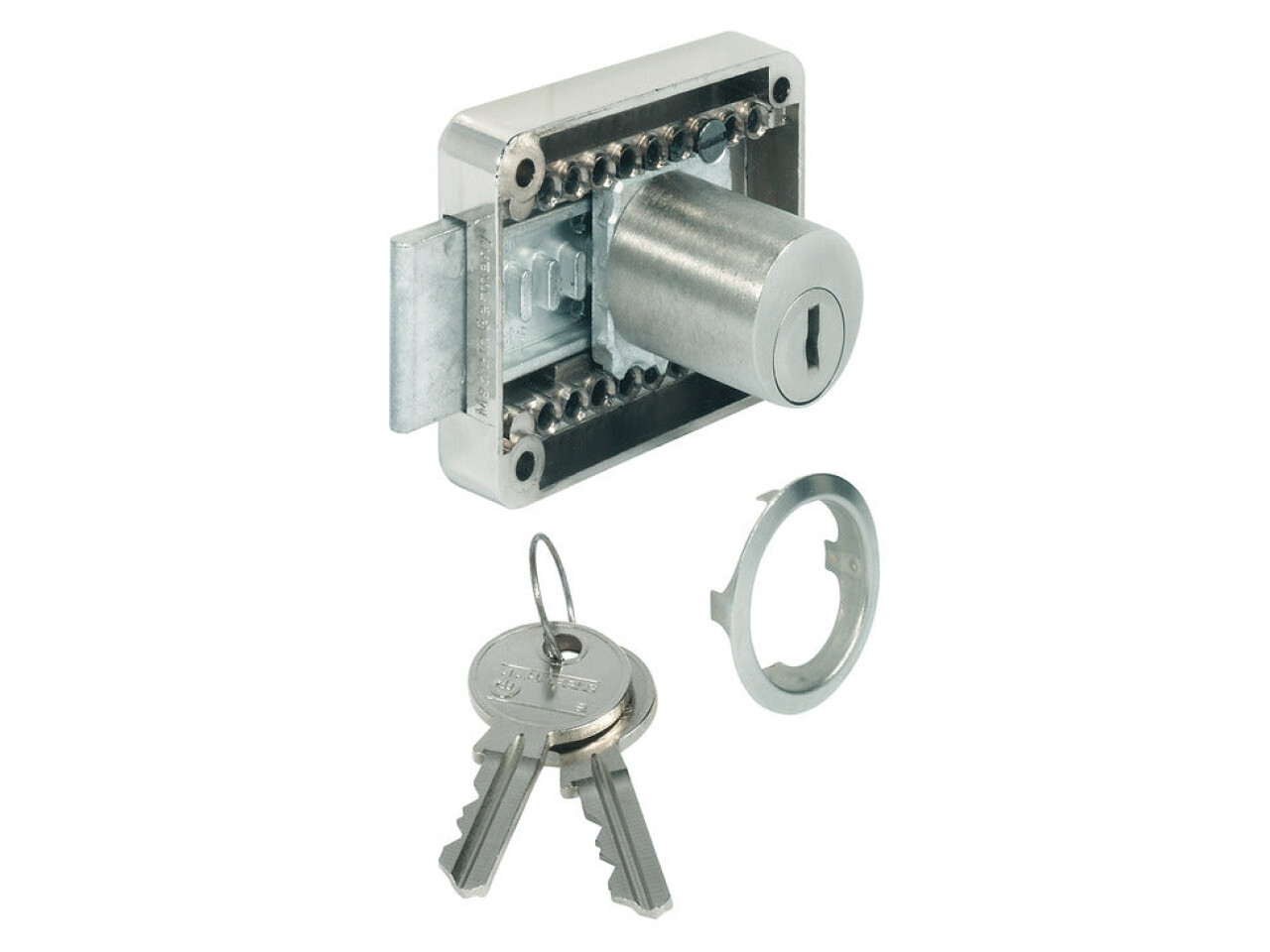

This pack includes 1 deadbolt rim lock, 2 keys, and 1 cylinder rosette. Please note: order the Ø 3.5 mm fixing screws separately. Choose the Rim Lock, with Ø 22 mm Cylinder, Adjustable Backset 15 - 40 mm for dependable locking performance and an elegant matt nickel finish.

Order Hospa Ø 3.5 mm screws separately

1 Deadbolt rim lock
2 Keys
1 Cylinder rosette
