Concealed Runners, Full Extension, Synchronised, Load Capacity 30 kg, Matrix Box

Product Details

Is the MX Slim A30 DrwRun Sync SC suitable for full extension drawer use?

Yes. This concealed drawer runner system is designed for full extension so the drawer travels fully out of the cabinet for easier access to the contents. It also features a synchronized running action to help both sides of the drawer move smoothly together.

How much weight can a pair of runners carry?

Up to 30 kg per pair when installed correctly. This makes it a strong option for everyday kitchen and utility drawers, where reliable movement and consistent support are important.

Do these runners close softly and automatically?

Yes. The system includes both soft close and self close comfort mechanisms. This helps the drawer slow down for a gentle shut and then draw it closed smoothly when pushed.

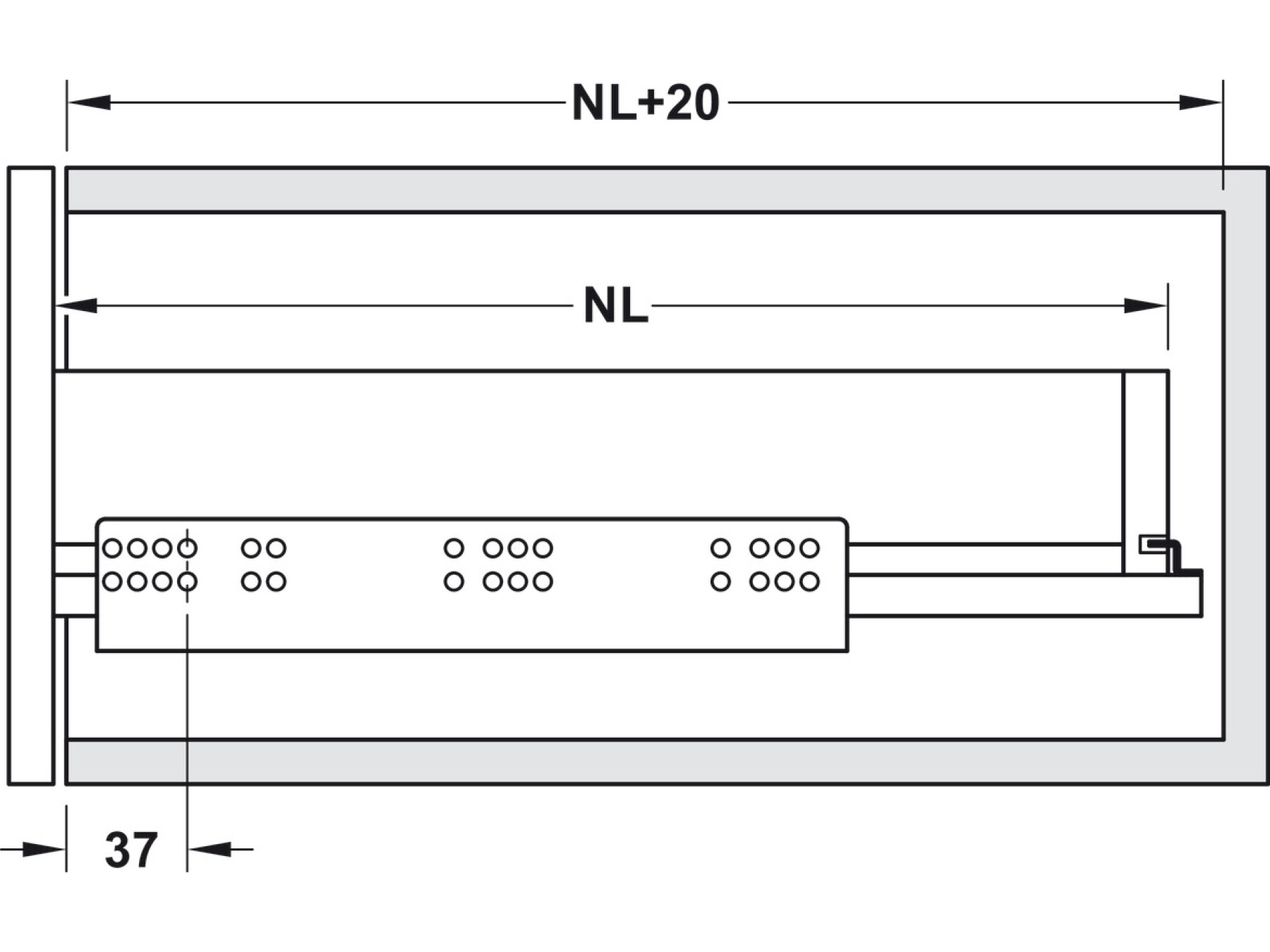

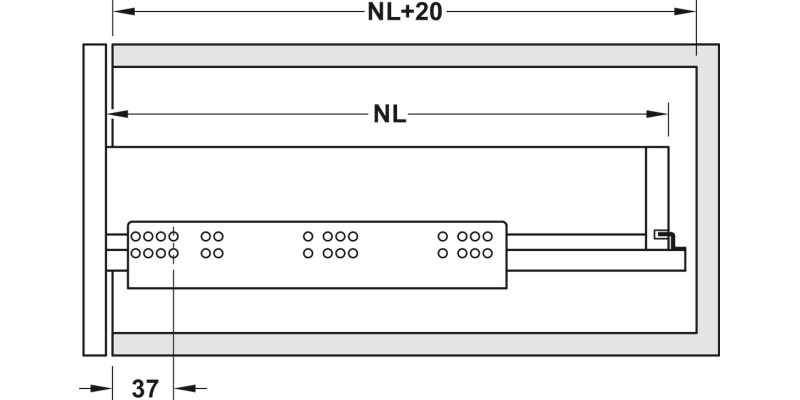

What drawer and cabinet dimensions do I need to plan around?

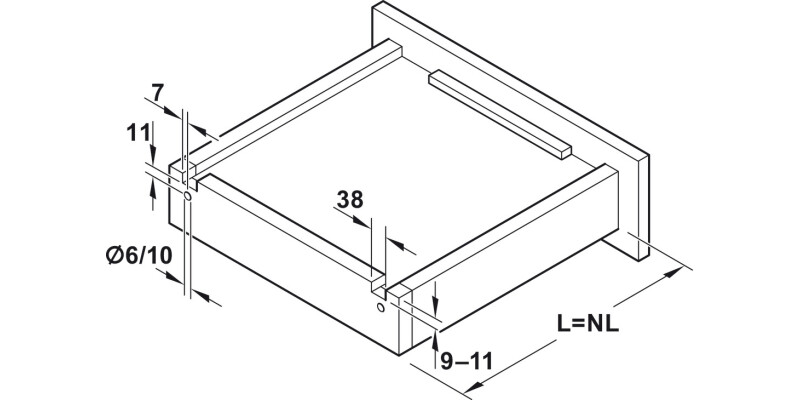

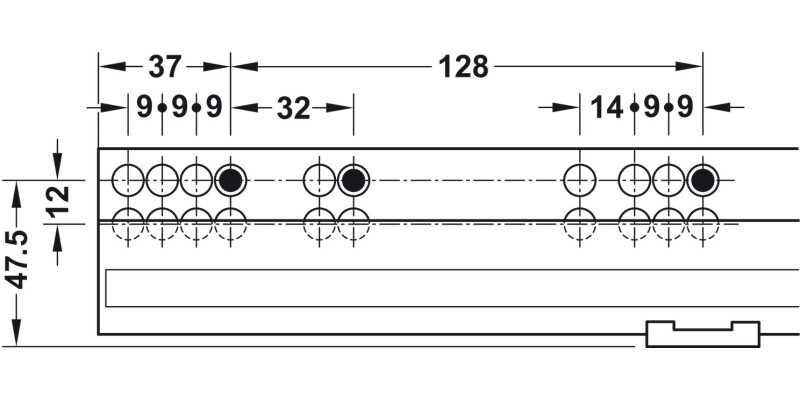

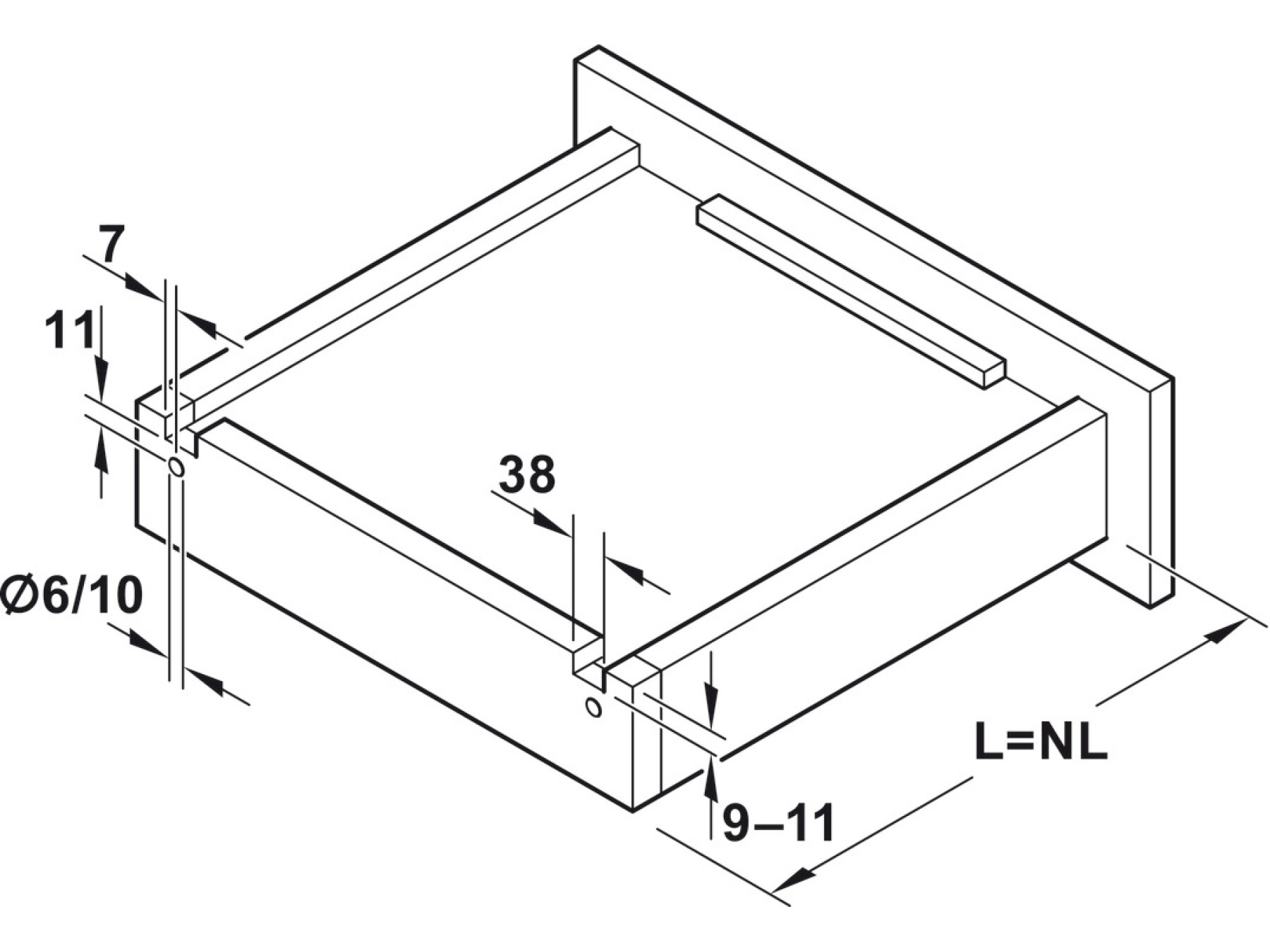

This runner set is specified for a drawer length of 400 mm, with a cabinet depth of 418 mm and an extension length of 383 mm. Matching these figures will help ensure the runner travel and alignment work as intended.

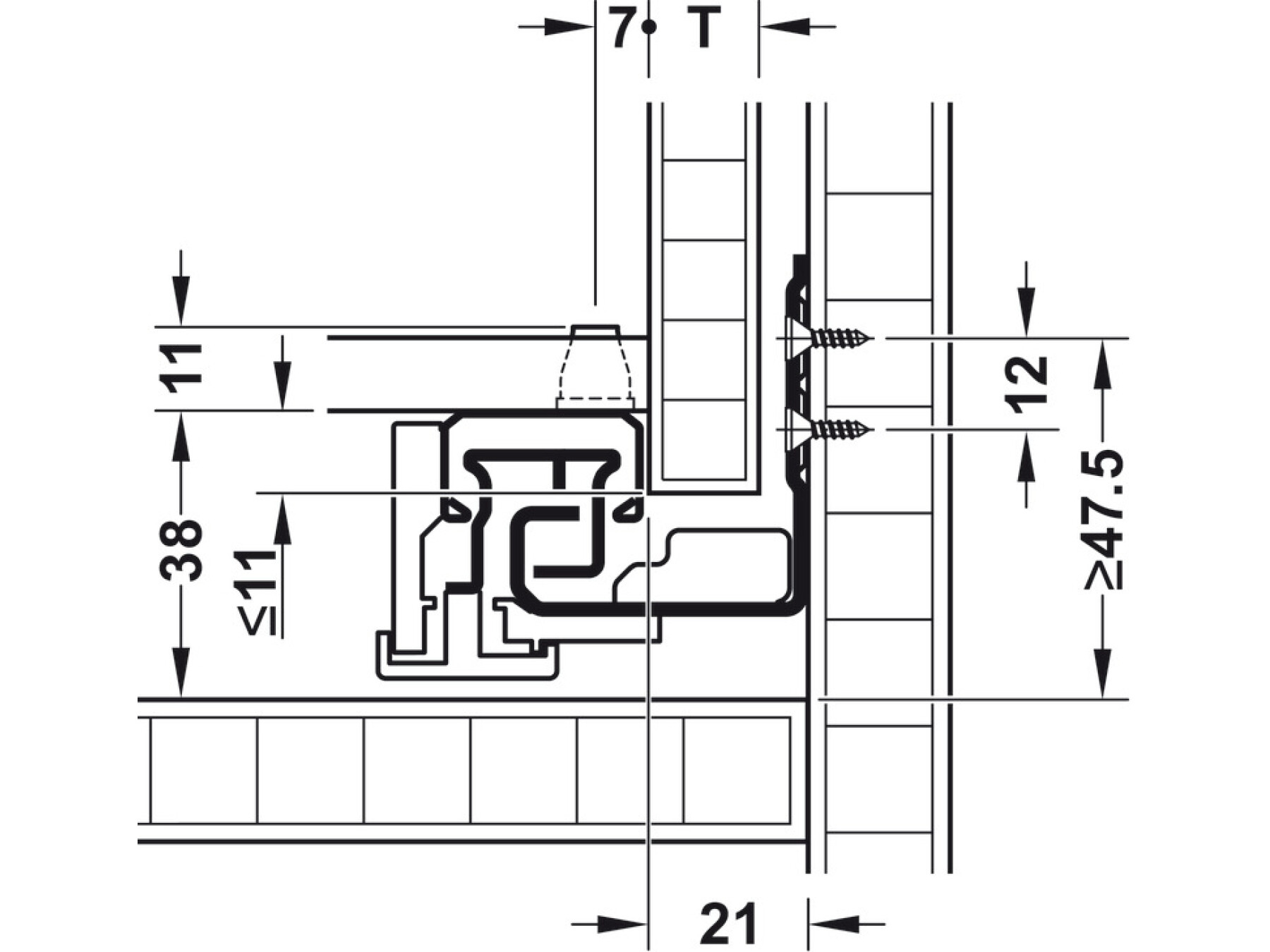

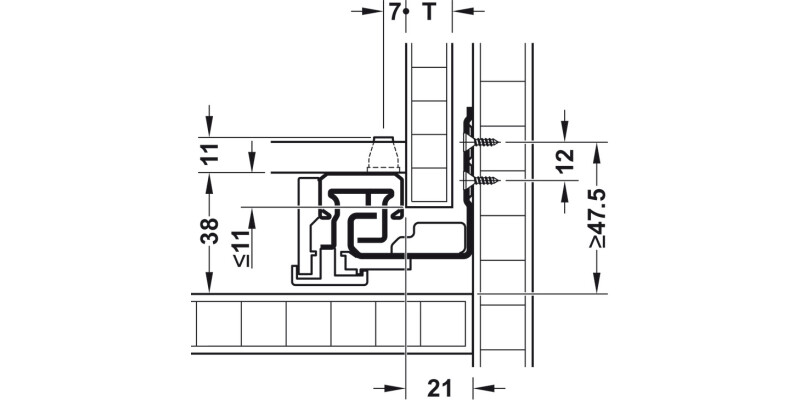

Will it fit my cabinet side panels, and what thickness is supported?

Side panel thickness up to 16 mm is supported. Before ordering, measure your cabinet carcass side thickness to confirm it falls within the recommended range.

Is the finish protected against everyday wear and moisture?

The runners are zinc plated steel, which provides corrosion resistance for normal domestic use. This finish helps the runners stay dependable over time, particularly in environments like kitchens where condensation and steam can be present.

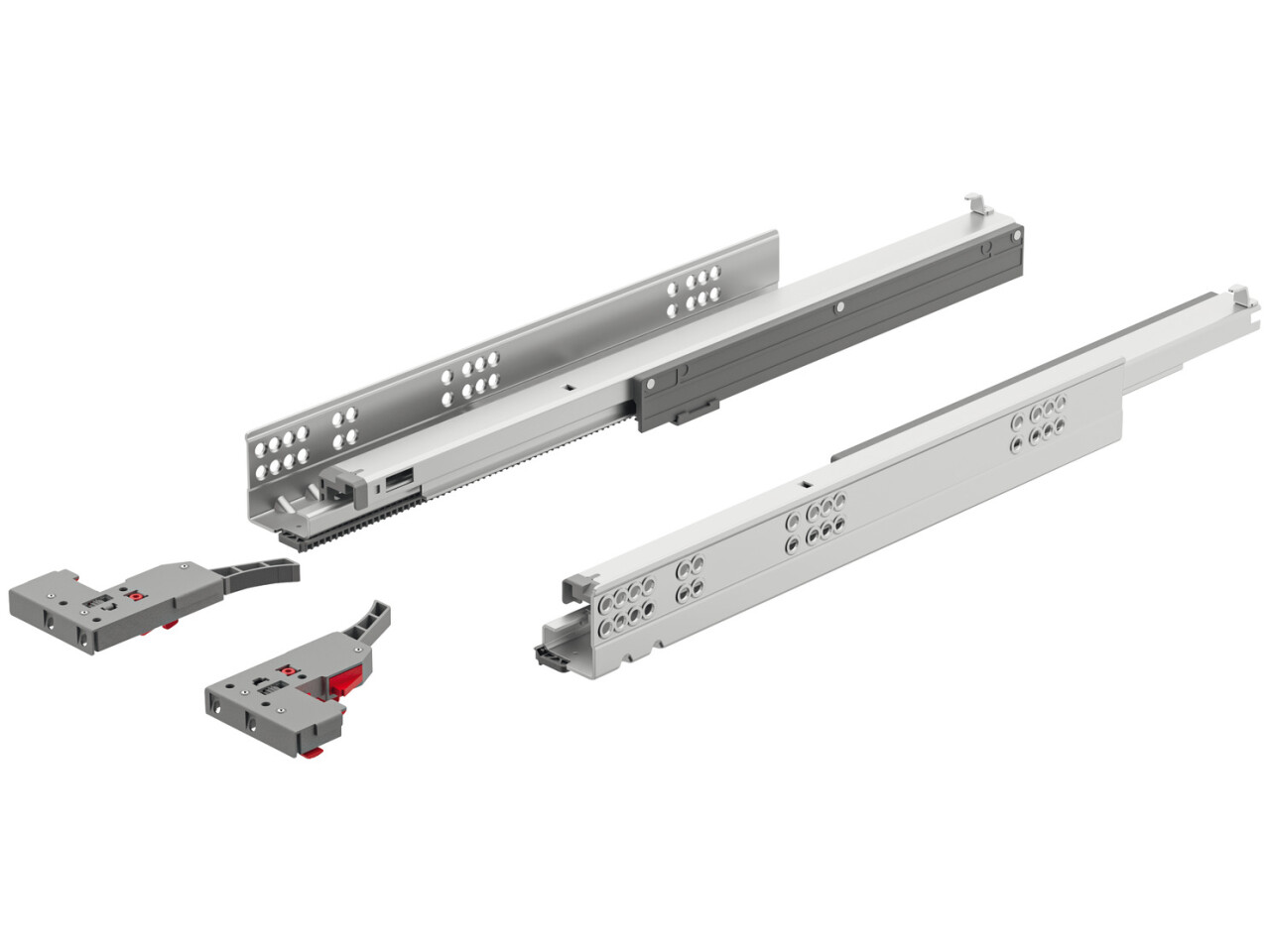

What is included in the box for Part No 433.03.653?

You will receive 1 pair of runners and 1 coupling for full extension. If you are using specific fixing requirements, be aware the order reference notes that 5 mm countersunk screws are supplied separately, so you may need to source the correct screws for your installation.

What guarantee comes with these concealed runners?

These runners are covered by the Hafele Lifetime Guarantee of 25 years. It is designed to give confidence in the performance and workmanship of the hardware you are fitting.
