Concealed Runners, Full Extension, Synchronised, Load Capacity 30 kg, Matrix Box

Part Number: 433.03.670
Zinc plated steel, With Push-to-Open mechanism, drawer length 270 mm, cabinet depth 288 mm, extension length 252 mm
Price:
£64.81
Per 4 Pack
VAT excluded

Concealed Runners, Full Extension, Synchronised, Load Capacity 30 kg, Matrix Box (Part No: 433.03.670) is a... Read More

Product Information

Product Details

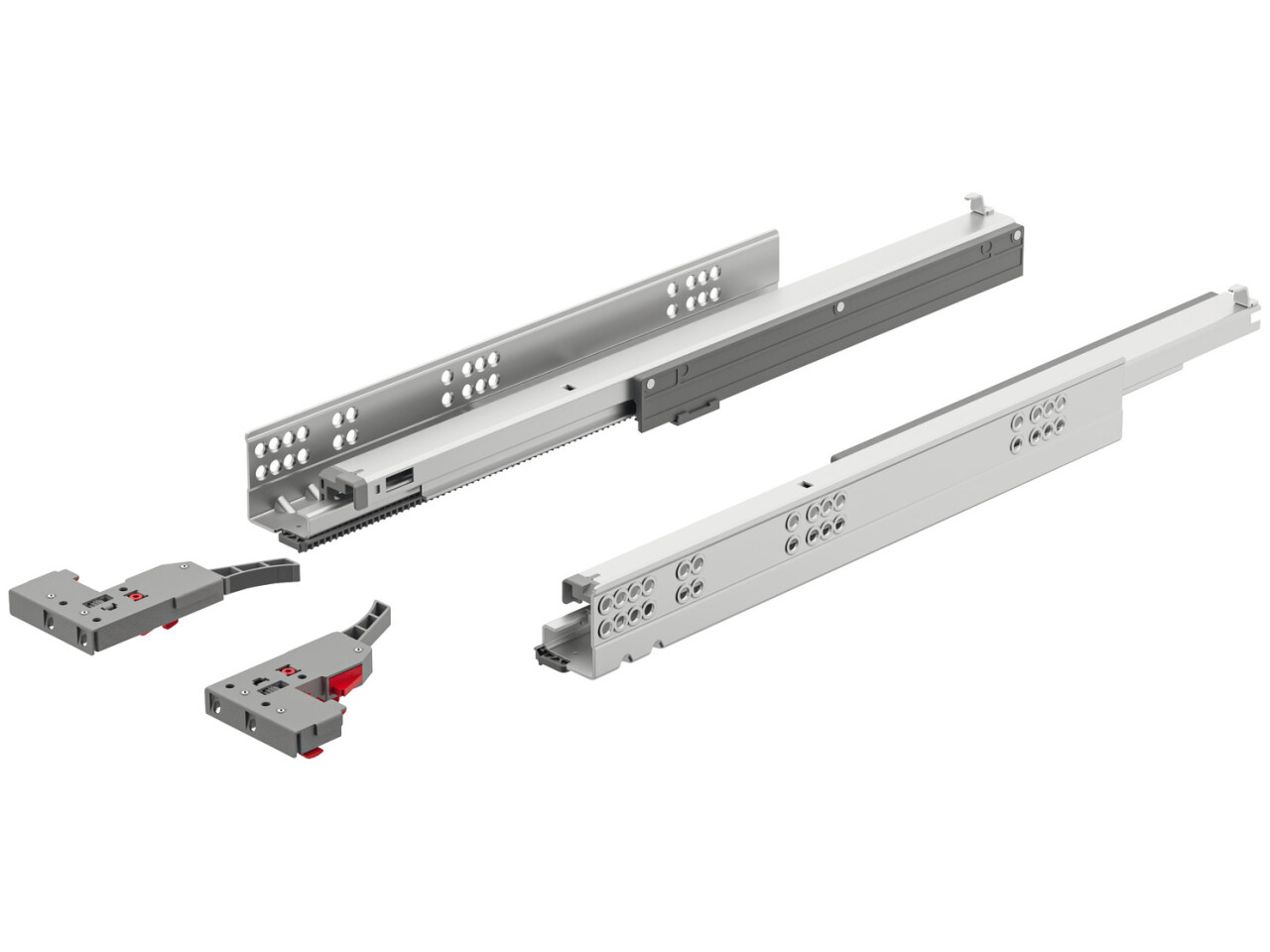

Concealed Runners, Full Extension, Synchronised, Load Capacity 30 kg, Matrix Box (Part No: 433.03.670) is a premium drawer runner designed for smooth, full-extension access in both living and commercial furniture. With its sleek “slim” profile and reliable performance, this concealed runner helps you create drawers that feel effortless to use—day after day.

Engineered with zinc plated steel for dependable durability, the MX A30 runner features a Push-to-Open mechanism for clean, modern convenience. Simply press the drawer front and enjoy a controlled opening and closing experience, thanks to the runner’s synchronized running action. That means the drawer movement stays balanced and stable, enhancing everyday usability.

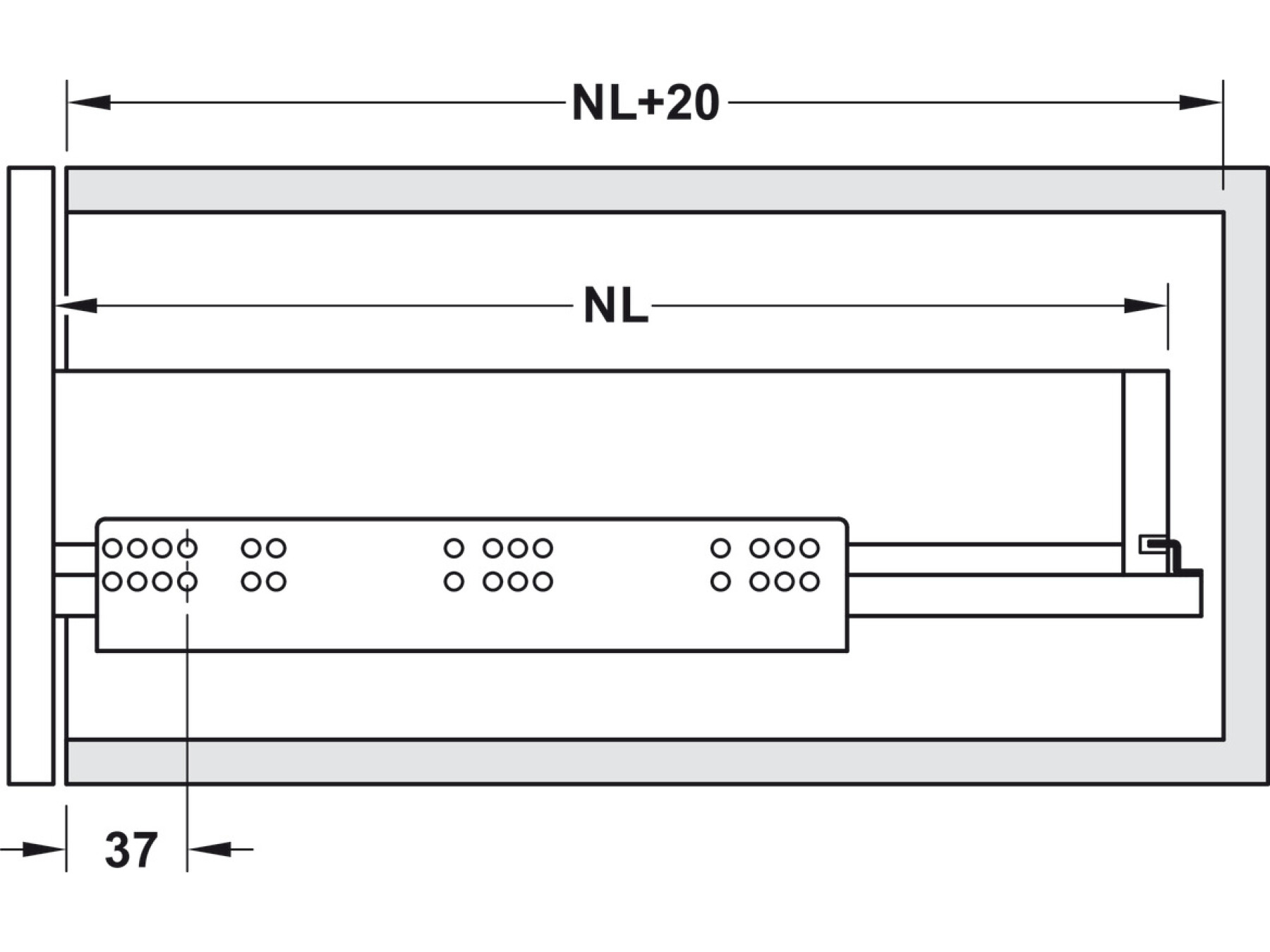

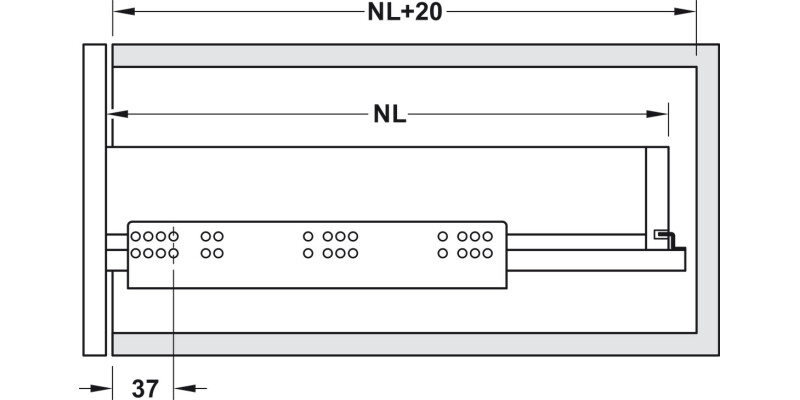

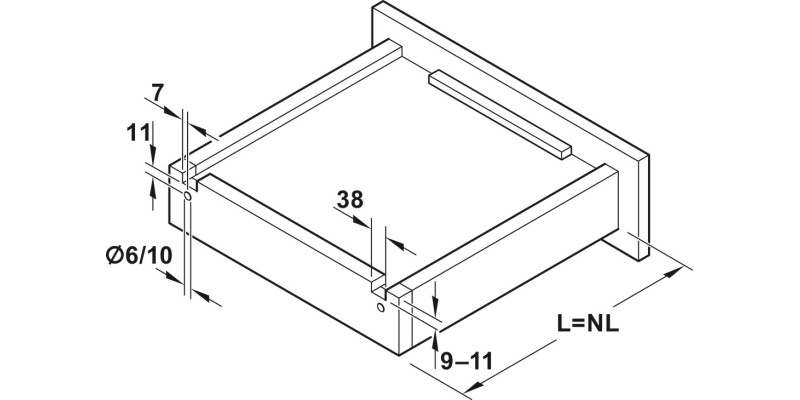

Built for practical fit and refined performance, this model is specified for drawer length 270 mm and a cabinet depth 288 mm, with an extension length of 252 mm. It supports up to 30.00 kg per pair, making it a great choice for wardrobes, filing furniture, kitchen drawers, and other high-use storage solutions.

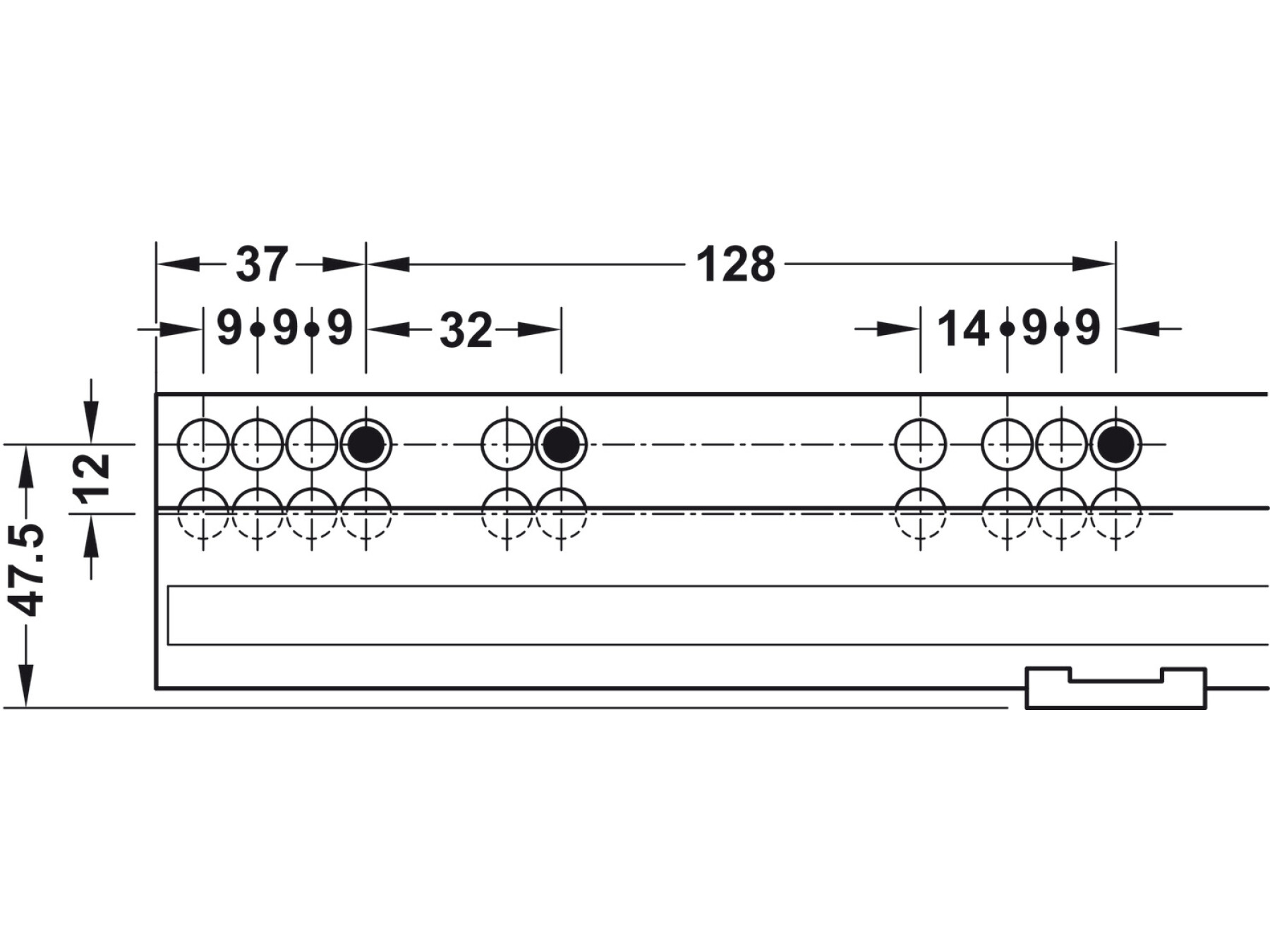

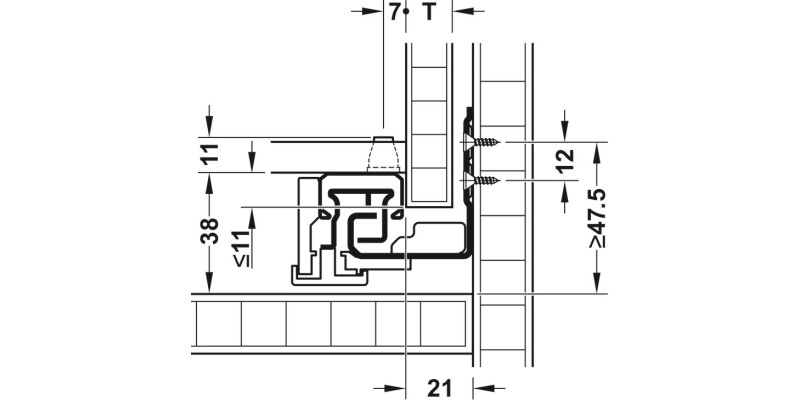

Installation is straightforward with coupling installation, and the runner is suitable for side panel thicknesses ≤16 mm. Supplied with 1 pair of runners and 1 coupling for full extension, it’s ready to integrate into your project.

Choose Concealed Runners, Full Extension, Synchronised, Load Capacity 30 kg, Matrix Box for quiet, smooth operation, modern push-to-open comfort, and long-lasting quality backed by the Hafele Lifetime Guarantee (25 years).

Specifications

Model

UM A30

Model series

Runner

Type of pull out

Full extension

Features

Synchronized running action

Comfort functions opening/closing

Push to open

Load bearing capacity

30.00 kg

Note on load bearing capacity

per pair

Material

Steel

Colour/finish

Zinc plated

For side panel thickness

≤16 mm

Installation

Coupling installation

Hafele Lifetime Guarantee

25 years

Order reference

Order Varianta 5 mm countersunk screws separately

Supplied with

1 pair of runners
1 coupling for full extension
