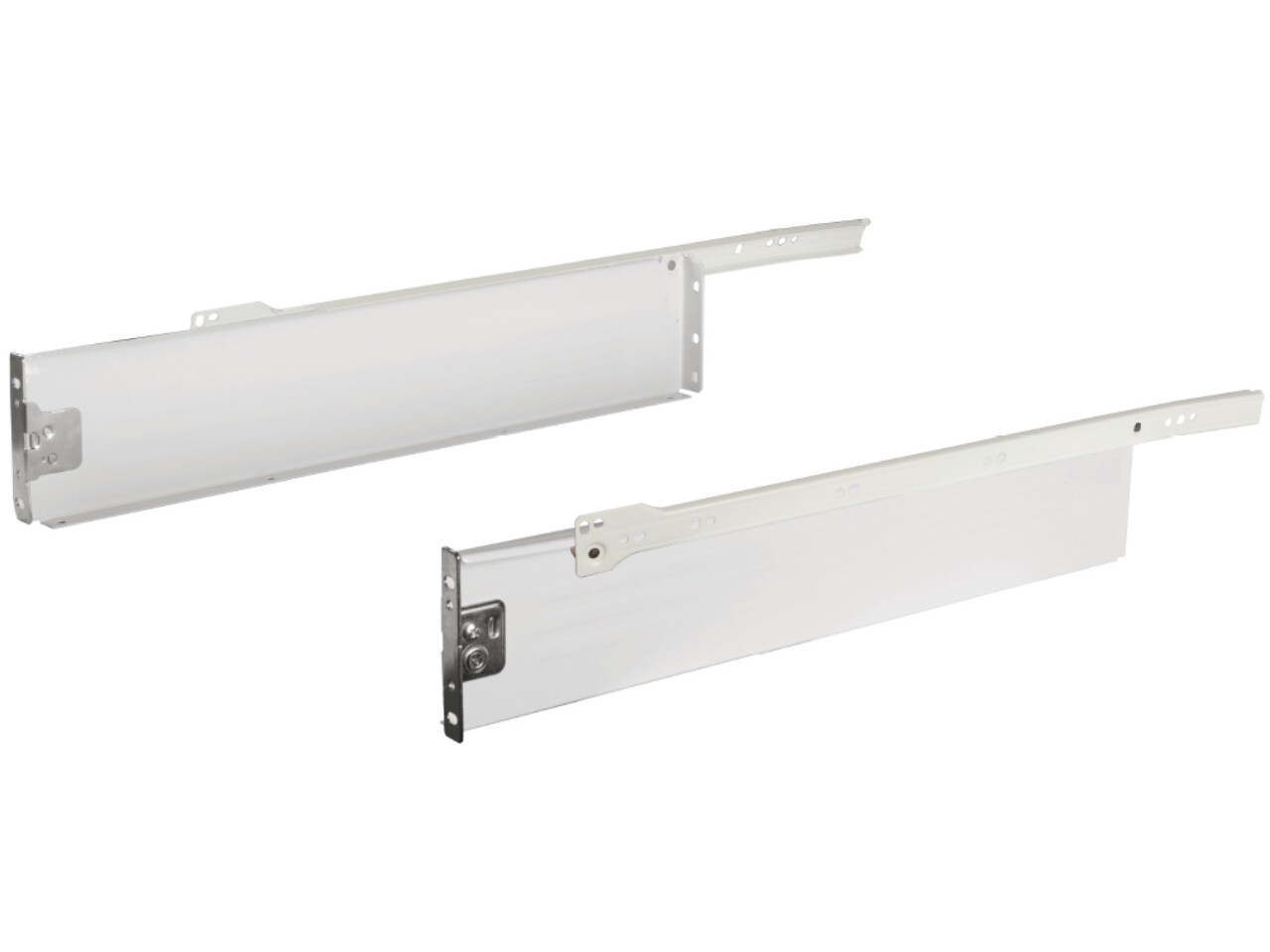

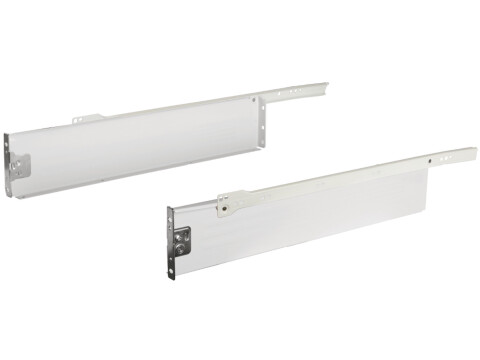

Metal Drawer Sides, Single Walled, 86 mm High, Häfele Matrix Box Single
Part Number: 554.47.727
Complete with self closing runners with nylon rollers, Installed length 270 mm, white finish
Price:
£4.28
Per Item
Metal Drawer Sides, Single Walled, 86 mm High, Häfele Matrix Box Single. (Product Part No: 554.47.727) are... Read More
Product Information
Product Details
Metal Drawer Sides, Single Walled, 86 mm High, Häfele Matrix Box Single. (Product Part No: 554.47.727) are precision drawer fittings designed to give your furniture a smooth, reliable slide and a clean, professional finish. If you’re upgrading existing cabinetry or building new drawers for living or commercial spaces, these metal drawer sides deliver the performance and fit you need.
Product subtitle: Complete with self closing runners with nylon rollers, Installed length 270 mm, white finish — every component is made for effortless day-to-day use. The single-extension action offers a practical pull-out range, while the self-closing mechanism helps drawers glide shut gently and consistently.
Engineered for durability, these drawer sides feature roller runners with nylon rollers, built from steel and fitted with zinc alloy brackets. The result is a stable, long-lasting system that stands up to everyday motion. They’re suitable for drawers and pull outs for door front fixing, making them ideal for kitchen cabinetry, storage units, and commercial furniture applications.
Capacity matters: these fittings support up to 20 kg per pair, making them a strong choice for medium-duty storage. Installation is designed for screw fixing, and the system includes 1 set of front fixing brackets. For easier alignment during setup, the bracket allows ± 2 mm height adjustment.
Order note: Order Hospa 3.5 mm countersunk screws separately. Choose Metal Drawer Sides, Single Walled, 86 mm High, Häfele Matrix Box Single. for smooth operation, crisp white presentation, and a dependable self-closing drawer experience.
Specifications
Height
86.00 mm
Type of pull out
Single extension with self closing mechanism
Area of application
For drawers and pull outs for door front fixing
Version
With roller runners
Material
Steel with zinc alloy brackets
Note on load bearing capacity
20 kg per pair

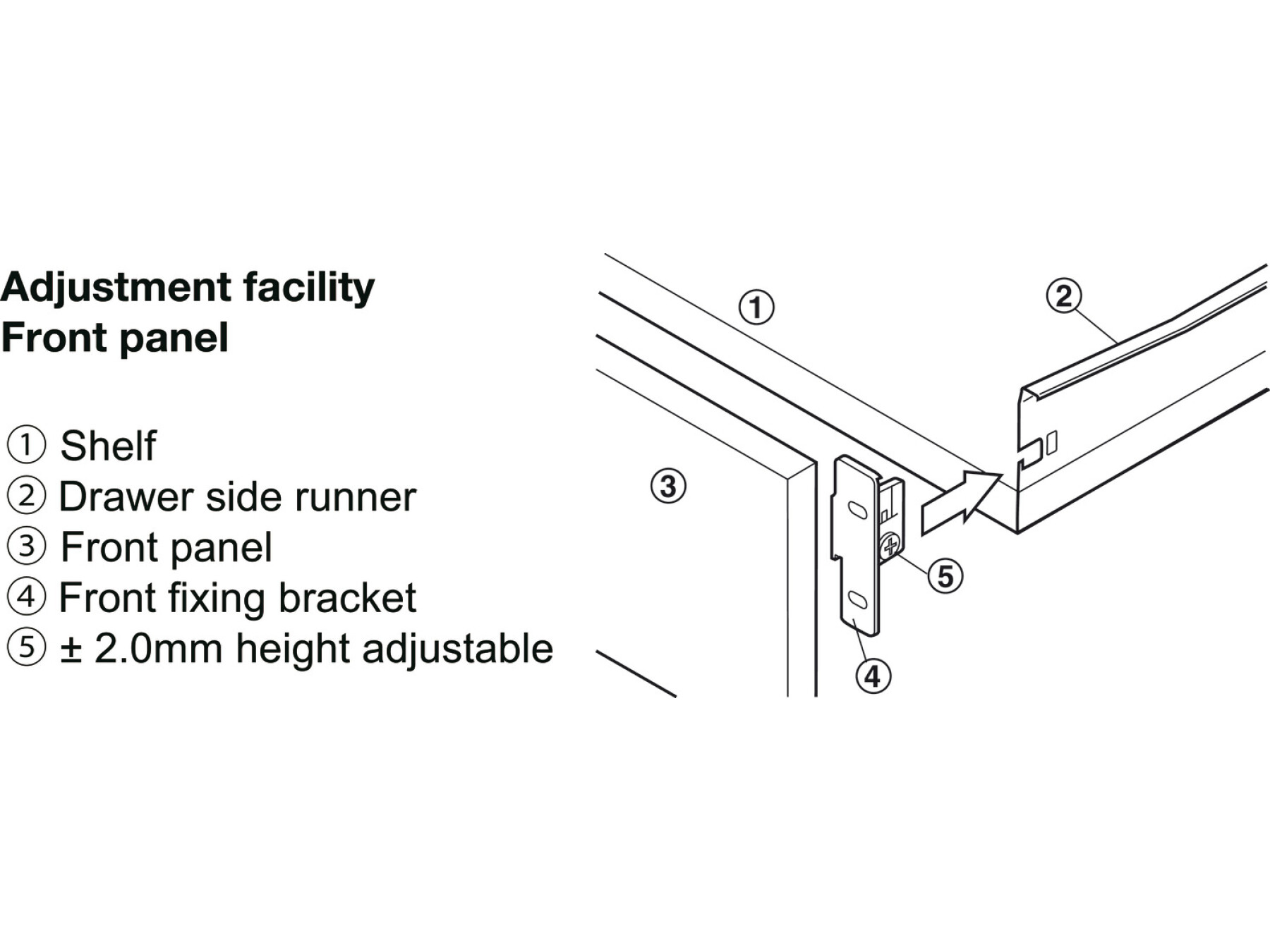

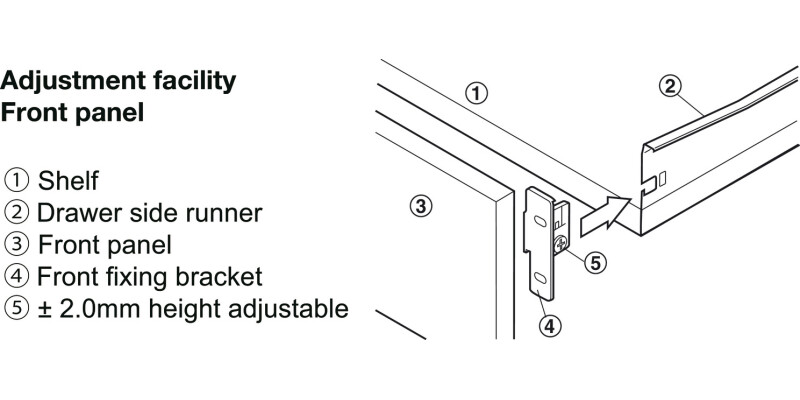

Adjustment facility
± 2 mm height adjustment on bracket
Installation
For screw fixing
Order reference
Order Hospa 3.5 mm countersunk screws seperately
Supplied with
1 set of Front fixing brackets
FAQ
Product Details
Is this drawer side system suitable for heavy loads?
Yes. This MX metal drawer side set is rated for 20 kg per pair. Always keep the load within the stated capacity and ensure the drawer and carcass are properly built to support the weight safely.
How does the self closing mechanism work?
It uses single extension runners with a self closing function and nylon rollers for smooth travel. The drawer will draw back towards the closed position for consistent closure during everyday use.

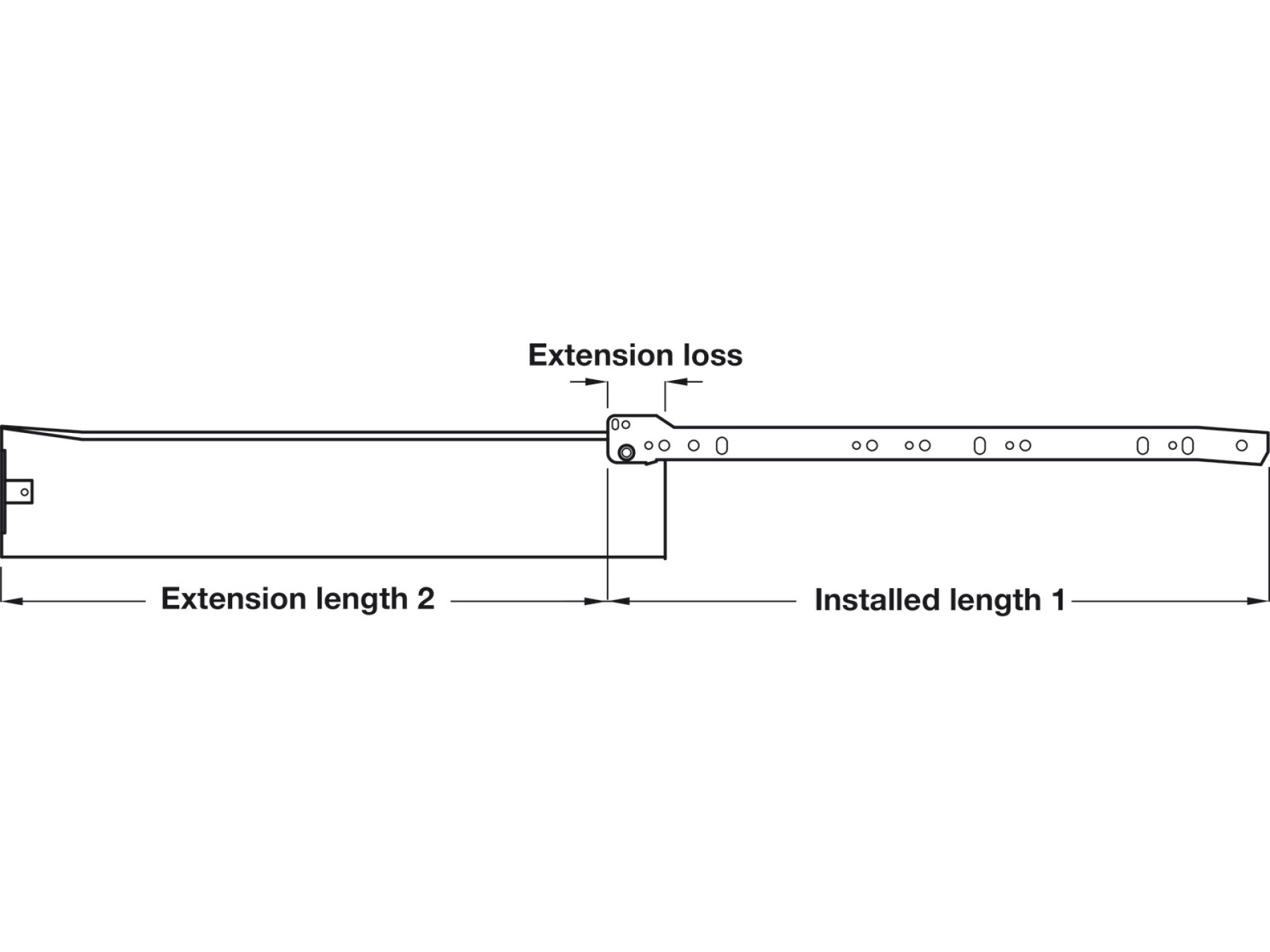

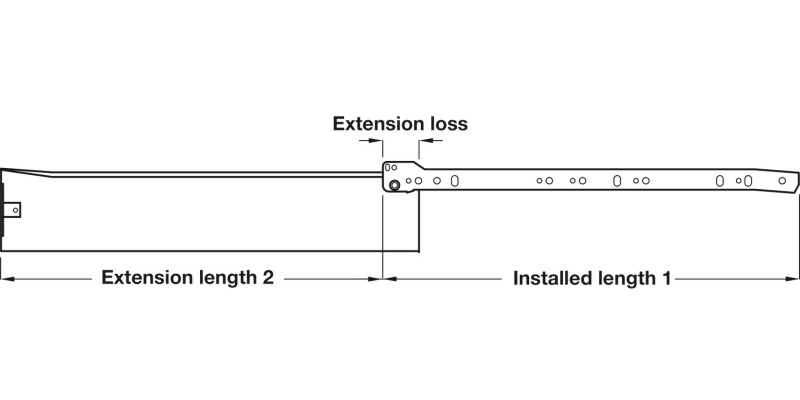

What installed length is this drawer side designed for?
The installed length is 270 mm. Before purchasing, check your drawer opening or carcass measurement to confirm it matches the required installed length.
Can I adjust the drawer height after installation?
Yes. The bracket provides ± 2 mm height adjustment, helping you fine tune drawer alignment for an even reveal and smooth operation.
Does this include all brackets and fittings needed to mount the runners?
It includes front fixing brackets. Please note that order reference screws are not included, and you should purchase the required 3.5 mm countersunk screws separately for screw fixing installation.
What type of mounting does it use?
It is designed for screw fixing. Use the correct countersunk screws as recommended to secure the brackets firmly and to achieve reliable runner performance.
Will the runners open fully or only partly?
It is a single extension system, meaning it extends once from the closed position rather than fully telescoping. This is commonly used for standard furniture drawers where practical reach and smooth self closing are both priorities.
