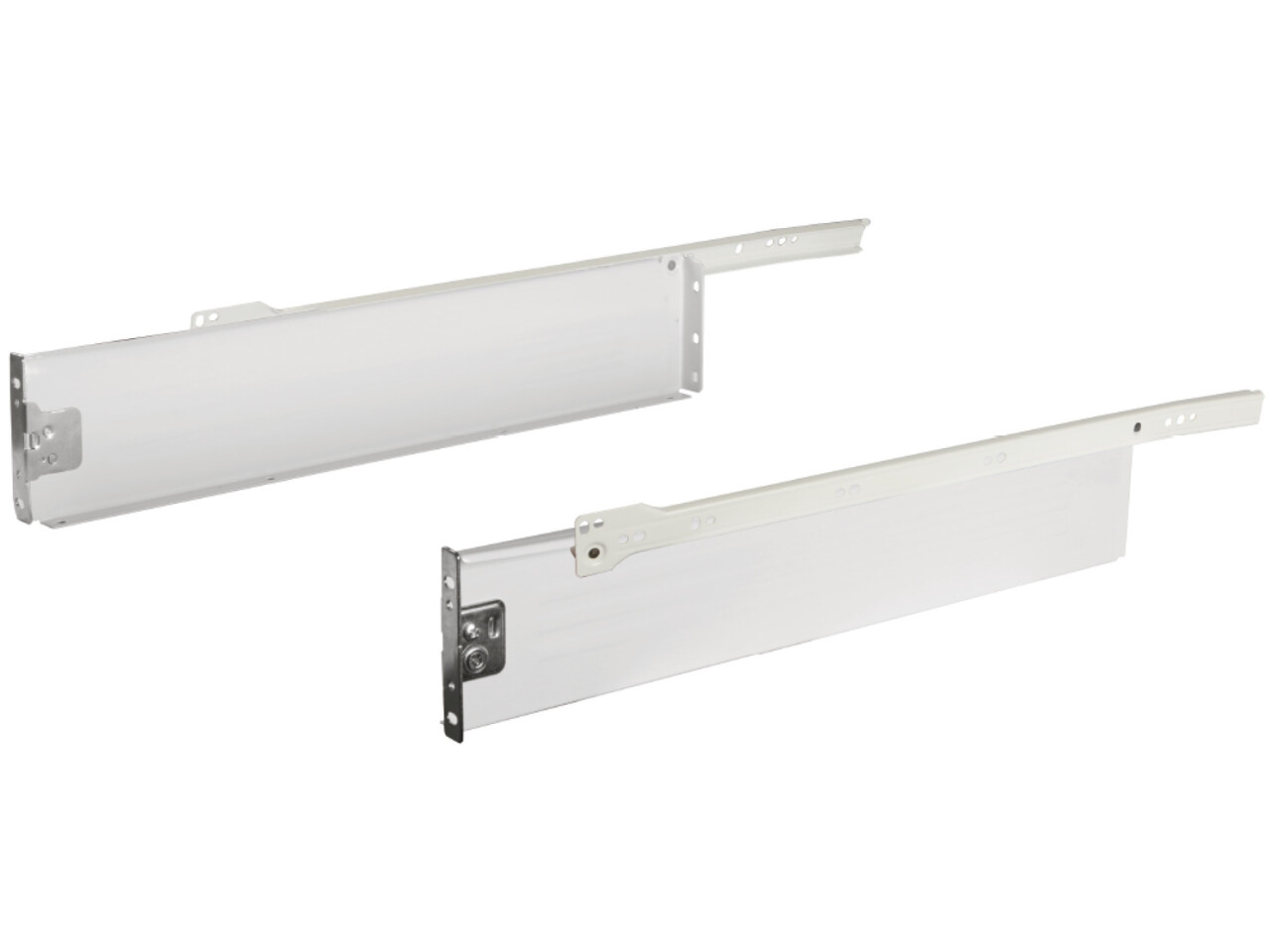

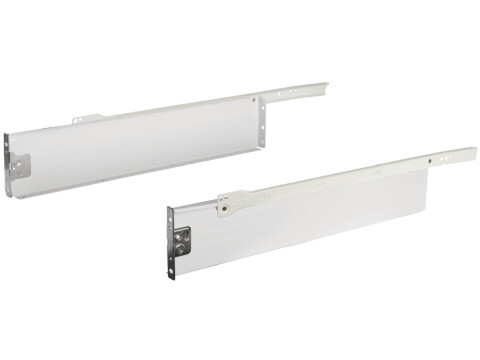

Metal Drawer Sides, Single Walled, 118 mm High, Häfele Matrix Box Single
Part Number: 554.48.745
Complete with self closing runners with nylon rollers, Installed length 450 mm, white finish
Price:
£5.21
Per Item
Metal Drawer Sides, Single Walled, 118 mm High, Häfele Matrix Box Single (Product Part No: 554.48.745) are... Read More
Product Information
Product Details
Metal Drawer Sides, Single Walled, 118 mm High, Häfele Matrix Box Single (Product Part No: 554.48.745) are the ideal drawer fittings for anyone upgrading or building furniture that feels smooth, solid, and effortless to use. Styled in a clean white finish, these metal drawer sides are designed to deliver reliable performance for everyday living and practical commercial applications.

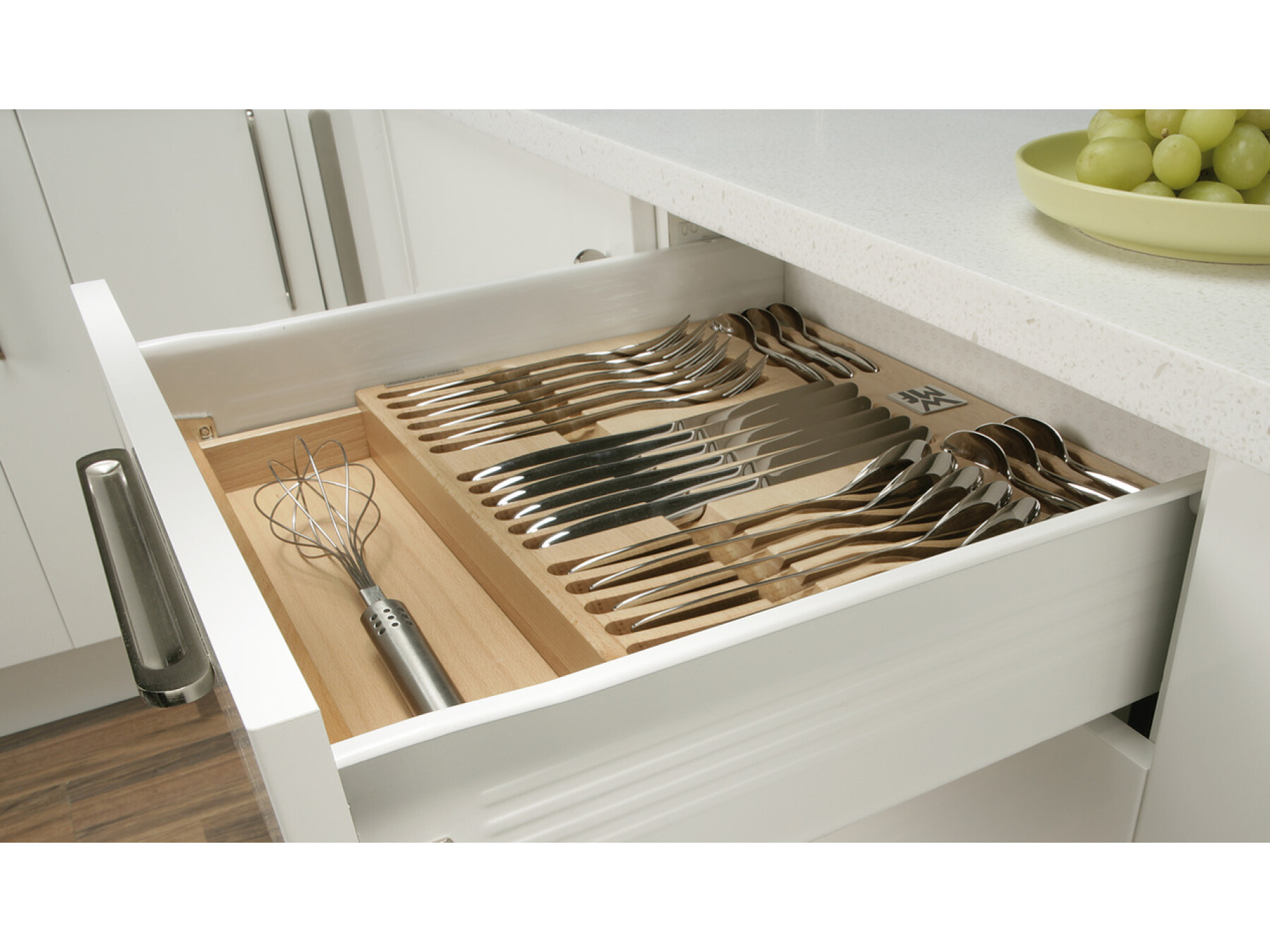

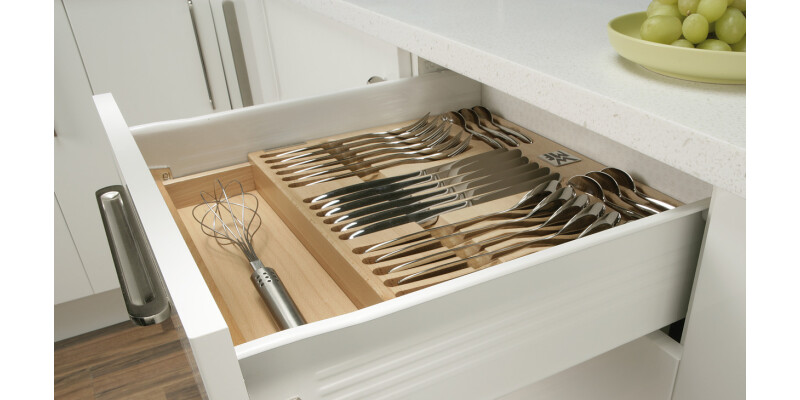

Built for single-extension pull-outs with a self-closing mechanism, the runners guide your drawer gently into place every time. With nylon rollers and an efficient motion design, closing is quiet, controlled, and consistent—perfect for kitchens, vanities, workstations, and custom cabinetry.

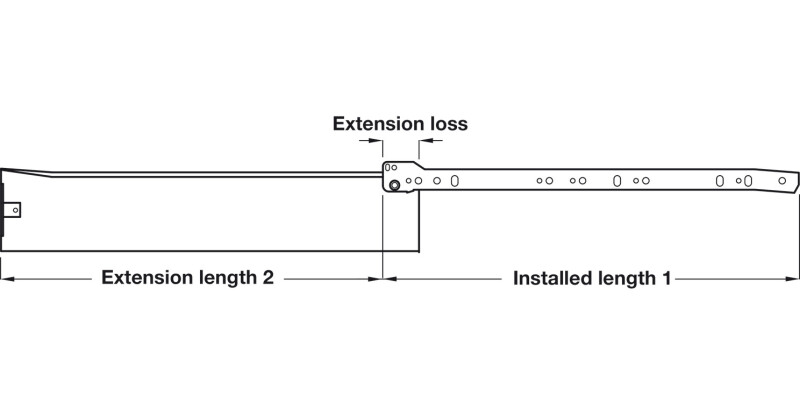

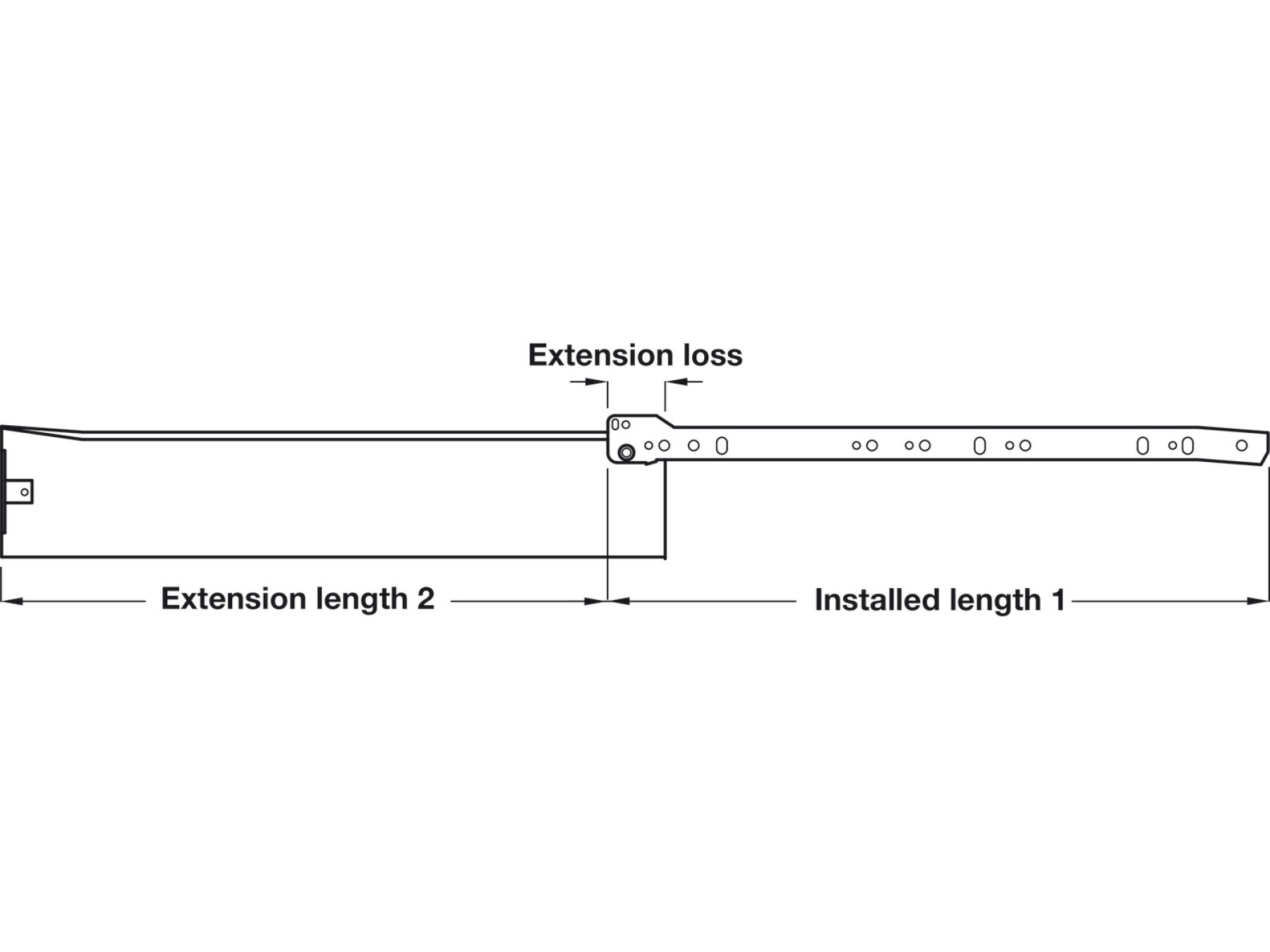

Measuring 118 mm in height and featuring an installed length of 450 mm, these drawer sides suit a wide range of drawer builds and internal fittings. The system is intended for drawers and pull outs for door front fixing, helping you achieve a professional, flush look with secure alignment.
Engineered from steel with zinc alloy brackets, these fittings offer a 20 kg load-bearing capacity per pair, giving you confidence for regular storage use. Installation is straightforward with screw fixing, and the bracket provides ± 2 mm height adjustment to help fine-tune your setup.
Each set includes 1 set of front fixing brackets. Order reference: please note order Hospa 3.5 mm countersunk screws separately.
Upgrade your drawers with Metal Drawer Sides, Single Walled, 118 mm High, Häfele Matrix Box Single and enjoy smooth, self-closing motion plus sturdy support—add to your cart today.
Specifications
Height
118.00 mm
Type of pull out
Single extension with self closing mechanism
Area of application
For drawers and pull outs for door front fixing
Version
With roller runners
Material
Steel with zinc alloy brackets
Load bearing capacity per pair
20.00 kg
Adjustment facility

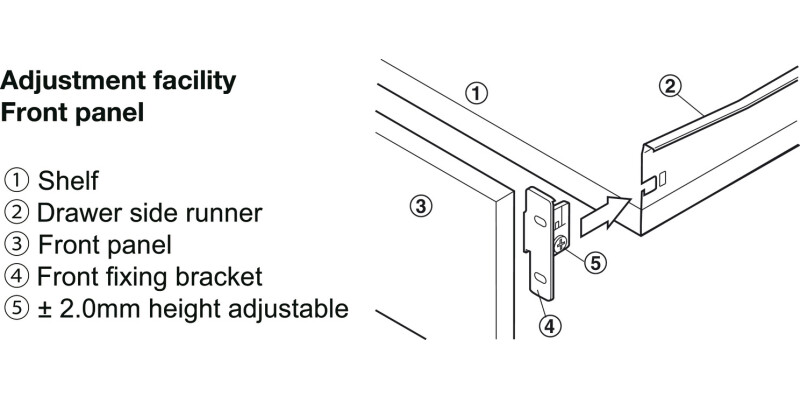

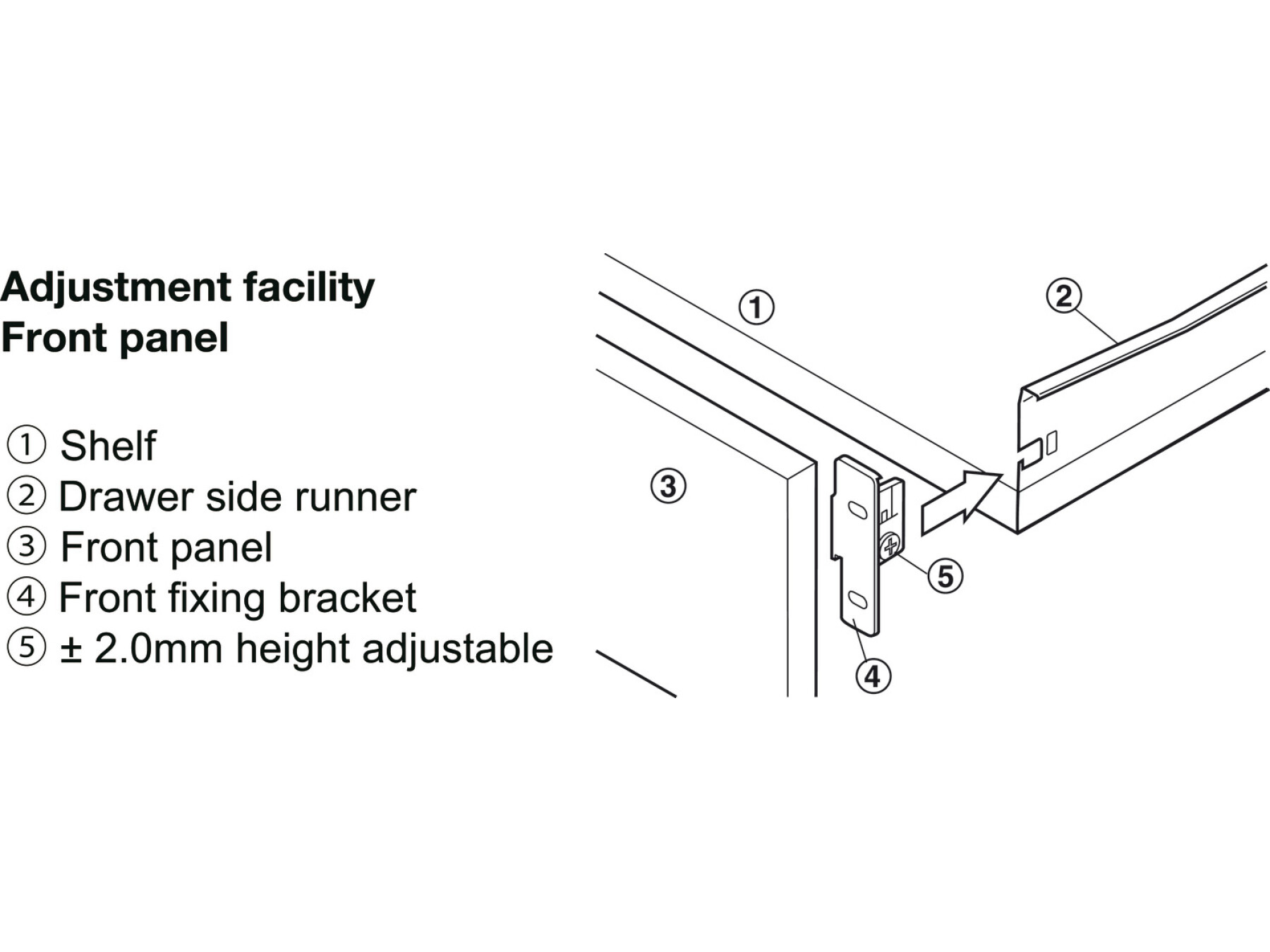

± 2 mm height adjustment on bracket
Installation
For screw fixing
Order reference
Order Hospa 3.5 mm countersunk screws separately
Supplied with
1 set of Front fixing brackets
FAQ
Product Details
Is this drawer side suitable for single extension applications?
Yes. This MX metal drawer side is designed for single extension with a self closing mechanism, so the drawer opens smoothly and closes automatically when pushed in.
What installed length does this runner system support?
The installed length is 450 mm, making it a good match for drawers built to that running size. Please confirm your drawer depth before ordering.
How much weight can a pair handle?
This model offers a load bearing capacity of 20 kg per pair. For best results, ensure your drawer construction supports the load evenly and matches the correct runner length.
Does it include the self closing runners and rollers?
It is supplied complete with self closing runners with nylon rollers. That means you receive the key running components needed for installation, without needing to source a separate runner set.
How is it adjusted once fitted?
There is an adjustment facility of plus or minus 2 mm for height on the bracket, helping you fine tune drawer alignment after mounting.

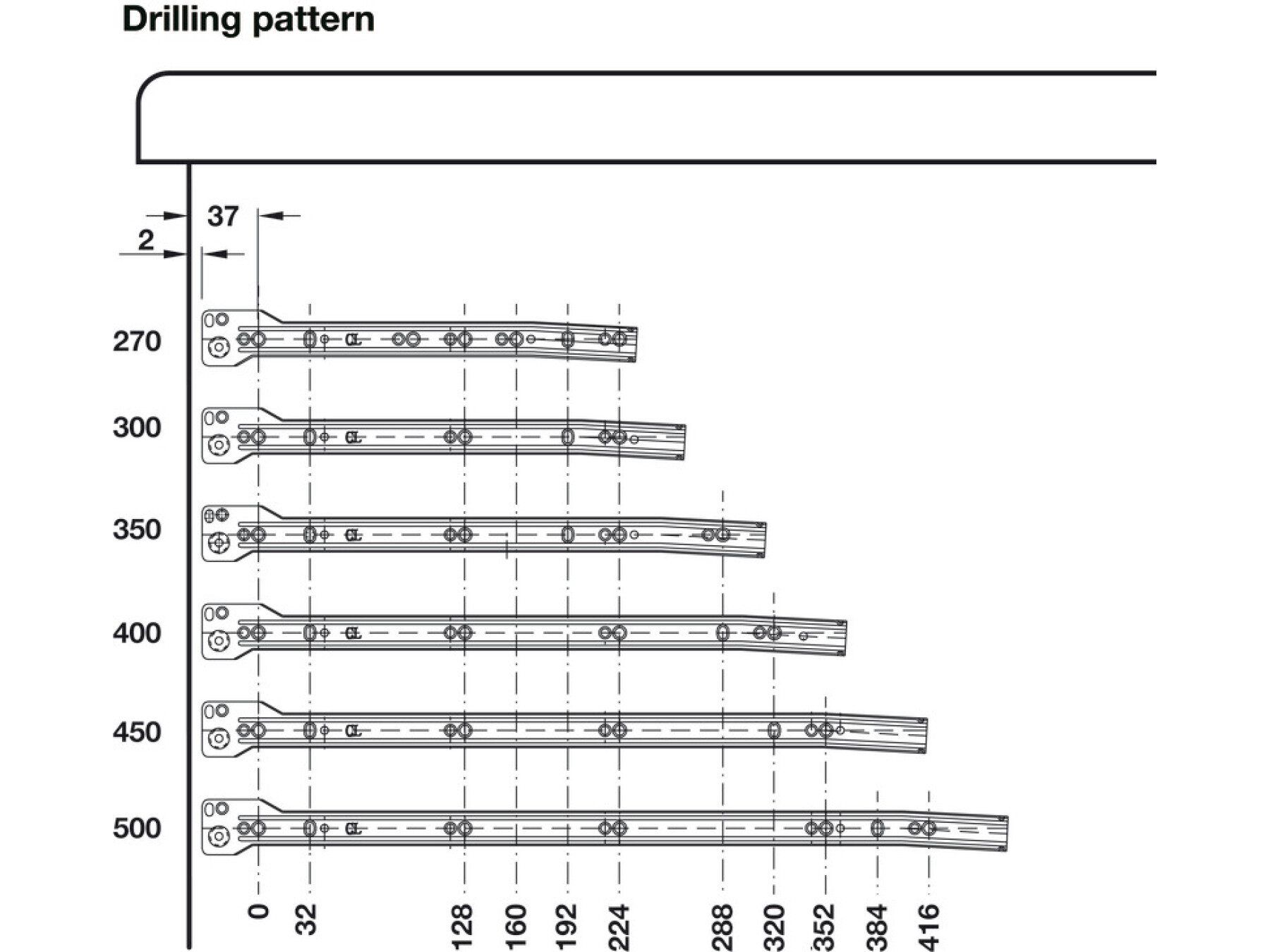

How do I install these drawer sides?
Installation is screw fixing using the required front fixing brackets. The order reference indicates you may need to order the correct 3.5 mm countersunk screws separately, so check your available fixings before you start.
What else is included in the box?
The drawer sides are supplied with one set of front fixing brackets. Once fitted, the brackets support the alignment and secure the drawer front as required for a reliable pull out installation.
