LED Driver 12 V, Constant Voltage, without Mains Lead, Rated IP 20, Loox5

LED Driver 12 V, Constant Voltage, without Mains Lead, Rated IP 20, Loox5

Name: LED Driver 12 V, Constant Voltage, without Mains Lead, Rated IP 20, Loox5
SKU: 833.95.003
Price: 42.31 GBP
Availability: InStock

Part Number: 833.95.003

With twin overload protection, Output power 60 W, with power factor correction

Price:

£42.31

Per Item

VAT excluded

LED Driver 12 V, Constant Voltage, without Mains Lead, Rated IP 20, Loox5. (Product Part No: 833.95.003) is a... Read More

Product Information

Product Details

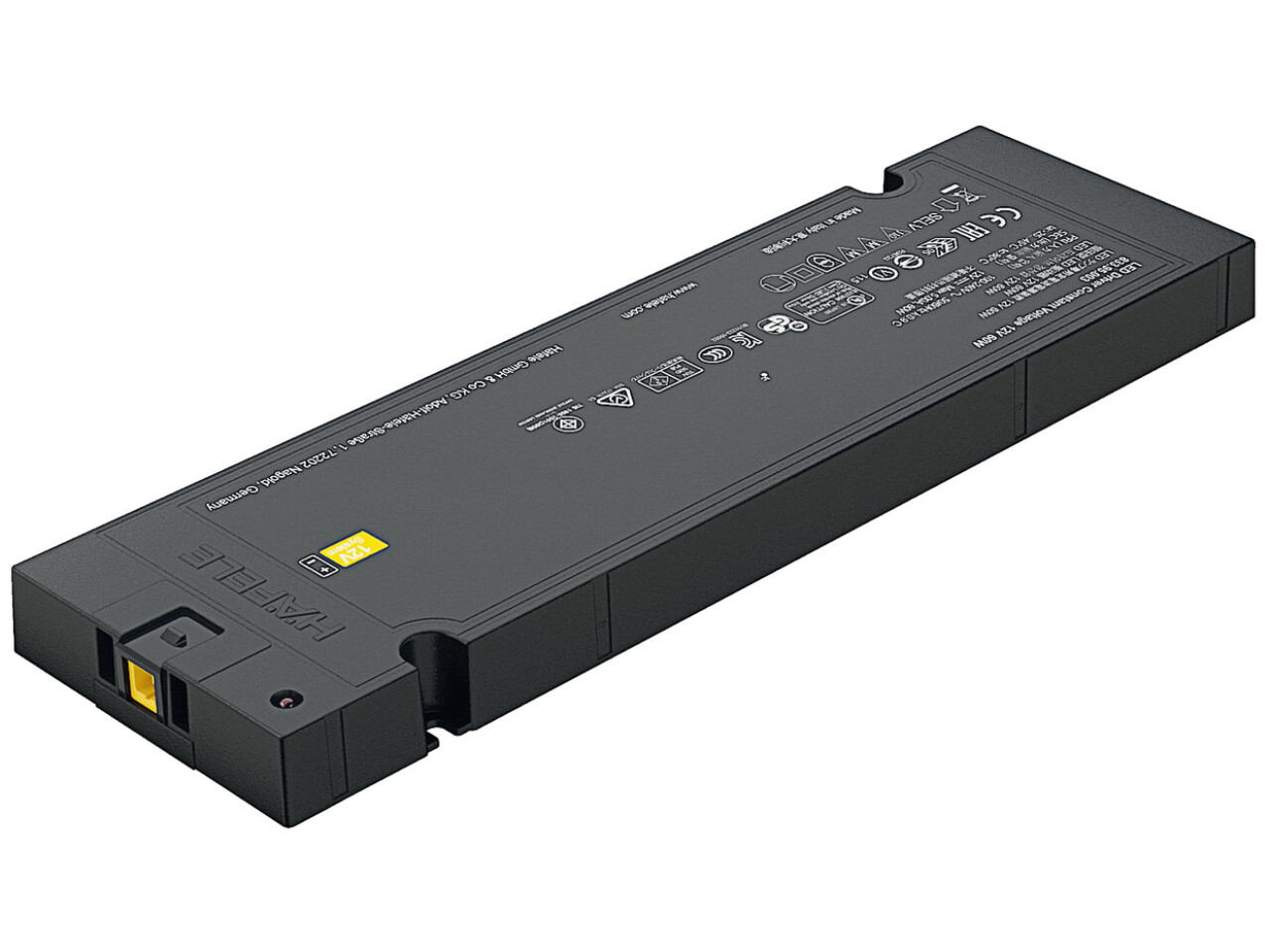

LED Driver 12 V, Constant Voltage, without Mains Lead, Rated IP 20, Loox5. (Product Part No: 833.95.003) is a reliable power supply made for smooth, consistent performance in low-voltage LED systems. Designed to suit modern installations, this driver delivers 12 V DC output with an output power of 60 W, helping you power compatible LEDs with confidence and control.

Built for efficiency and stable operation, the driver features power factor correction (PFC) (efficiency at full load reaches 89% at 230 V and 88% at 115 V). Even when idle, it keeps no-load consumption low—only 0.14 W at 230 V and 0.06 W at 115 V.

Safety and durability are key: this model includes twin overload protection, along with a design version that offers overload protection for added peace of mind during day-to-day use. It operates over a mains frequency range of 50–60 Hz and is suitable for LED applications.

Perfectly matched for the Loox5 ecosystem, it’s intended for a 12 V consumer with Loox5 plug system. The black plastic housing, 1 x socket Loox5 2-pin 12 V box-to-box connection, and screw fixing make it straightforward to install. Secondary side circuitry supports parallel connection.

Hafele Lifetime Guarantee: 7 years. Order note: Loox mains leads must be ordered separately, and the distributor must be ordered separately if you’re powering more than one light.

Specifications

Mains frequency

50 – 60 Hz

With switching function

Efficiency factor correction (PFC)

yes

Version

With overload protection

Output voltage

12 V DC

Area of application

LED

Suitable for

12 V consumer with Loox5 plug system

Material

Plastic

Colour/finish

Black

Output ports

1 x socket, Loox5 2-pin 12 V box to box

Secondary side circuit

Parallel connection

Installation

Screw fixing

Efficiency at 230 V full load

89 %

Efficiency at 115 V full load

88 %

Power consumption at 115 V no load

0.06 W

Power consumption at 230 V no load

0.14 W

Weight

248.00 g

Hafele Lifetime Guarantee

7 years

Output current

5.00 A

Order reference

Loox mains leads must be ordered separately
Distributor must be ordered separately for more than one light

Supplied with

Mounting accessories

FAQ

Product Details

```html

Is this LED driver compatible with 12 V LED systems?

Yes. The Loox5 LED Driver is designed for 12 V DC LED loads with a 60 W output capability. It is intended for use with compatible 12 V consumer setups.

What input voltage range does the driver support?

It works on mains supplies from 100 to 240 V. This wide range makes it suitable for typical UK installations using mains power.

How does the driver protect against overloads?

It includes twin overload protection, helping to reduce the risk of damage if the connected LED load draws too much current. This makes it a practical choice for reliable LED performance.

Does the driver include power factor correction?

Yes. It features efficiency and power factor correction (PFC), which can help improve how the driver operates with the mains supply compared with non PFC designs.

What connections does it use for the 12 V side?

It has one Loox5 2 pin 12 V box to box socket output. For installations that allow it, the secondary side circuit supports a parallel connection approach for multiple consumers.

Can I use it with the Loox5 plug system?

Yes. The driver is suitable for 12 V consumer equipment with the Loox5 plug system. If you are planning a Loox5 based lighting run, this driver is built to fit that ecosystem.

What is the lifespan and warranty support?
