Part No: 833.72.933
LED Driver 12 V, without Mains Lead, Rated IP 20, Loox5 Eco
£21.29
(excl. VAT)

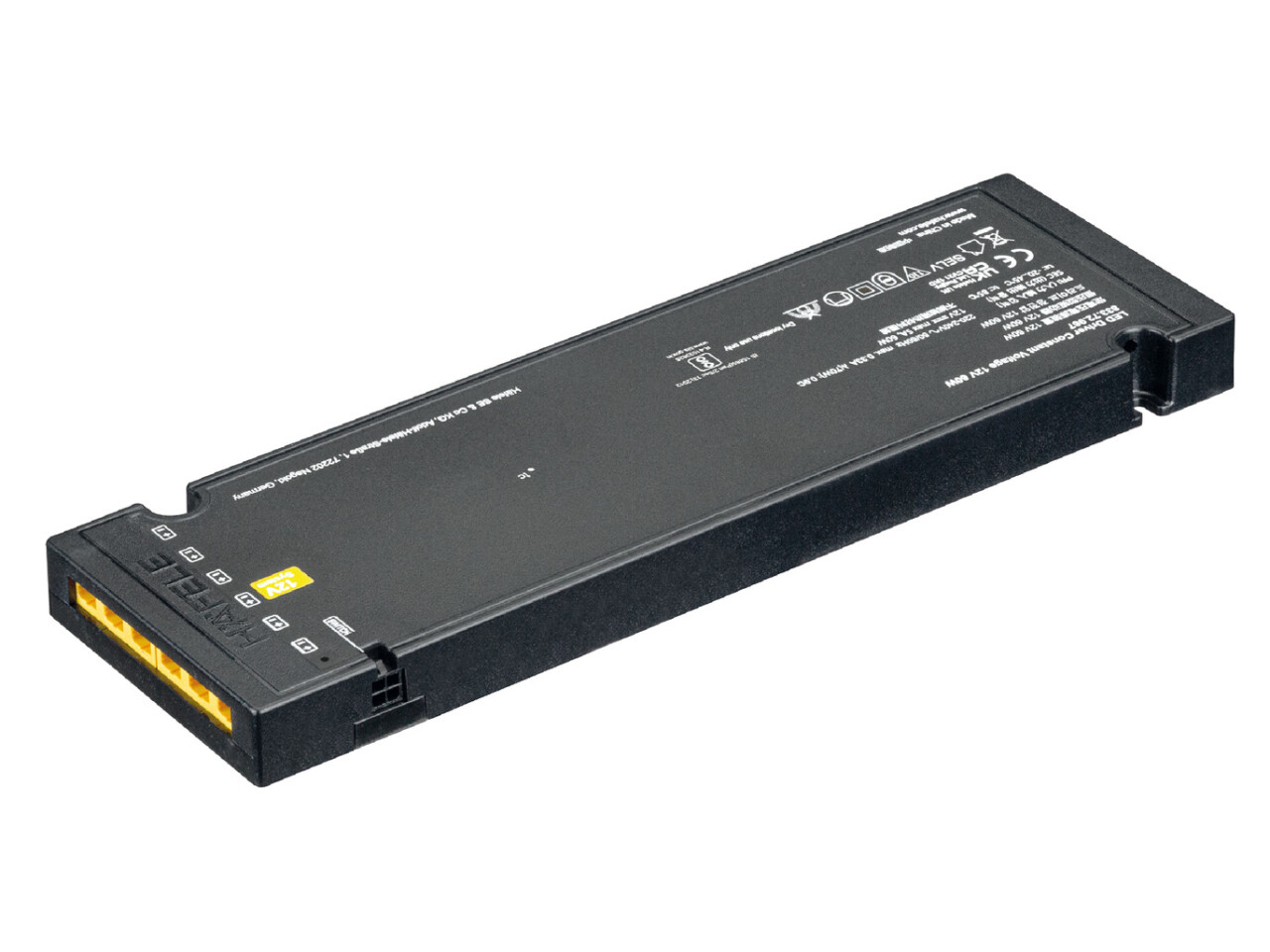

LED Driver 12 V, without Mains Lead, Rated IP 20, Loox5 Eco
Part Number: 833.72.967
With switching function, Length x width x height 222 x 70 x 16 mm, Wattage 0 - 60 W
Price:
£43.91
Per Item
LED Driver 12 V, without Mains Lead, Rated IP 20, Loox5 Eco (Part No: 833.72.967) is the smart, energy-conscious... Read More
Product Information
Product Details
LED Driver 12 V, without Mains Lead, Rated IP 20, Loox5 Eco (Part No: 833.72.967) is the smart, energy-conscious choice for powering your low-voltage 12V LED systems with the dependable Loox5 plug concept. Built for clean, straightforward installation and designed with efficiency in mind, this compact driver helps you create reliable lighting with a professional finish.
Choose the Loox5 Eco Driver w Sckt for a smooth, controlled lighting setup thanks to its switching function and practical connection options. It supports a mains input of 220–240V at 50–60Hz, delivering 12V DC output for compatible LED applications (it is not suitable for other devices).
With a wattage range of 0–60W and an efficiency of 88% at 230V full load, this driver helps reduce energy waste. Even when not under full load, power consumption is only 0.50W at 230V no load. Integrated overload protection adds peace of mind, while the operating temperature range of -25–45°C makes it suitable for varied environments.

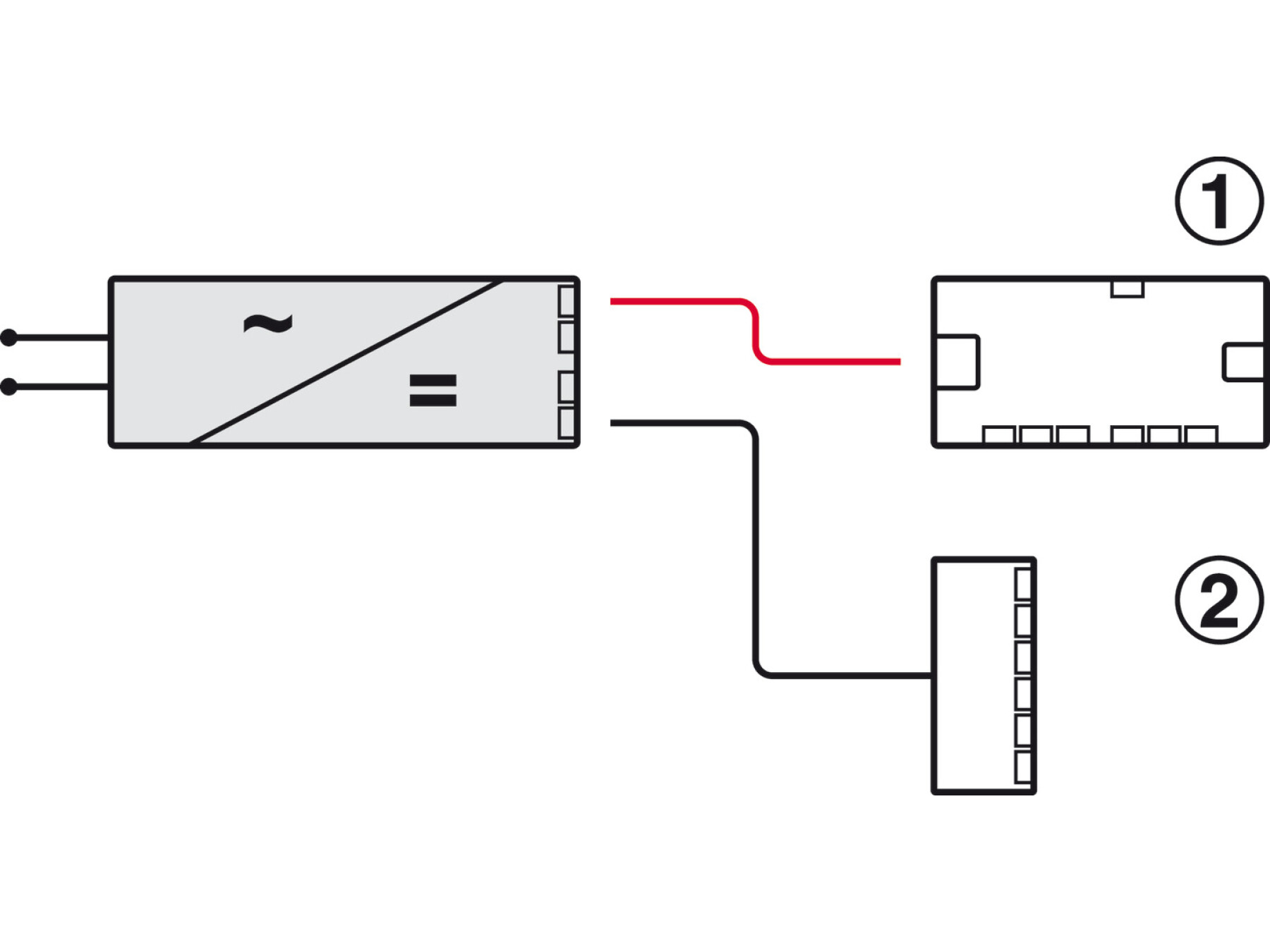

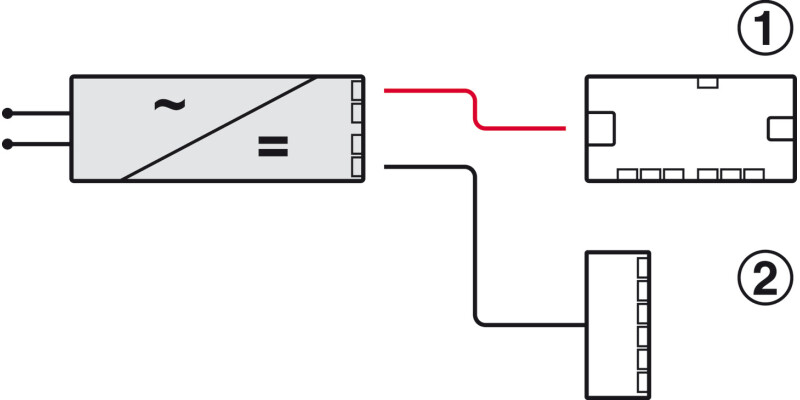

Designed to fit neatly into your installation, it measures 222 x 70 x 16 mm and features a black plastic finish. The connected output ports include 6 x Loox5 2-pin 12V sockets, plus 1 x socket for a Loox switch for flexible control. Installation is available via glue fixing or screw fixing.
Hafele Lifetime Guarantee: 7 years. Note: Loox mains leads must be ordered separately (e.g. 833.89.000). Supplied with fixings—ready to power your next LED project.
Specifications
Mains voltage
220 – 240 V
Mains frequency
50 – 60 Hz
With switching function
Yes
Ambient temperature
-25–45 °C
Number of switch connections
1.00
Version
With overload protection
Suitable for
220–240 V AC: typical mains voltage e.g. for EU, UK, AU, KR – not US!
Output voltage
12 V DC
Area of application
LED (no other device)
Area of application
For LED lights (not suitable for other devices)
Suitable for
12 V consumer with Loox5 plug system
Material
Plastic
Colour/finish
Black
Connected output ports
6 x sockets, Loox5 2-pin 12 V
Control input ports
1 x socket, Loox switch
Installation
for glue fixing, Screw fixing
Efficiency at 230 V full load
88 %
Power consumption at 230 V no load
0.50 W
Hafele Lifetime Guarantee
7 years
Output current
5.00 A
Order reference
Loox mains leads must be ordered separately; e.g. 833.89.000
Supplied with
Fixings
FAQ
Product Details
Can I use the Loox5 Eco Driver with any LED strip or light?
Yes, if it is a 12 V LED load and uses the Loox5 plug system. This driver is intended for LEDs only and it is not suitable for powering other devices. Check that your LED has a suitable 12 V DC input before connecting.
How does the switching function work on this driver?
The driver includes a built in switching function with a dedicated control input connection. This lets you control the connected 12 V LEDs using a compatible Loox switch setup. Use a single switch connection as specified for correct operation.
What is the input voltage and is it compatible with UK mains?
It accepts 220 to 240 V AC at 50 to 60 Hz, which covers typical UK mains supply. This means it is designed for regions using that mains range and it is not intended for use with US style mains voltages.
What power range can it drive?
The output supports 0 to 60 W of connected LED load. To stay within its rating, make sure your total LED power consumption does not exceed 60 W when all connected outputs are operating.
How many Loox5 connections does it provide for the 12 V output?
It features 6 x Loox5 2 pin 12 V sockets for connecting multiple LED components in a Loox5 system. This is designed to work with Loox style cabling and connectors for tidy installation.
Where can I mount it and what temperature conditions are supported?
It is suitable for ambient temperatures from minus 25 to 45 degrees Celsius, making it appropriate for many indoor cabinet and under counter style applications. You can install it using glue fixing or screw fixing based on your preferred mounting approach.
Does it include protection and how long is the coverage?
Yes, it includes overload protection and it is backed by a 7 year Hafele Lifetime Guarantee. This gives added peace of mind when powering compatible 12 V LED loads.
