Lid Stay, Adjustable, Automatic Opening, K12

Product Details

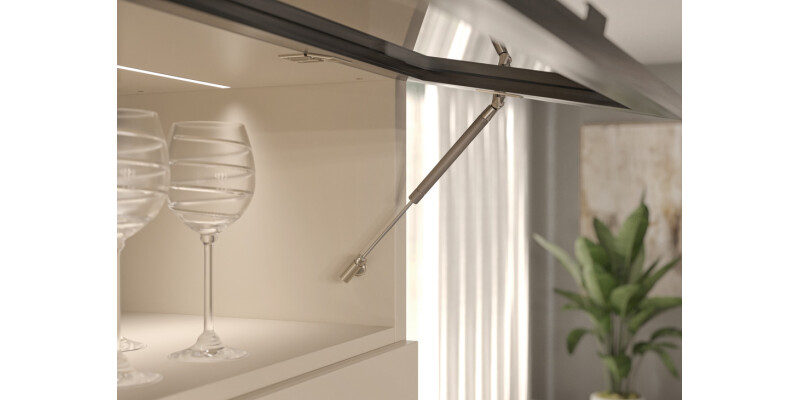

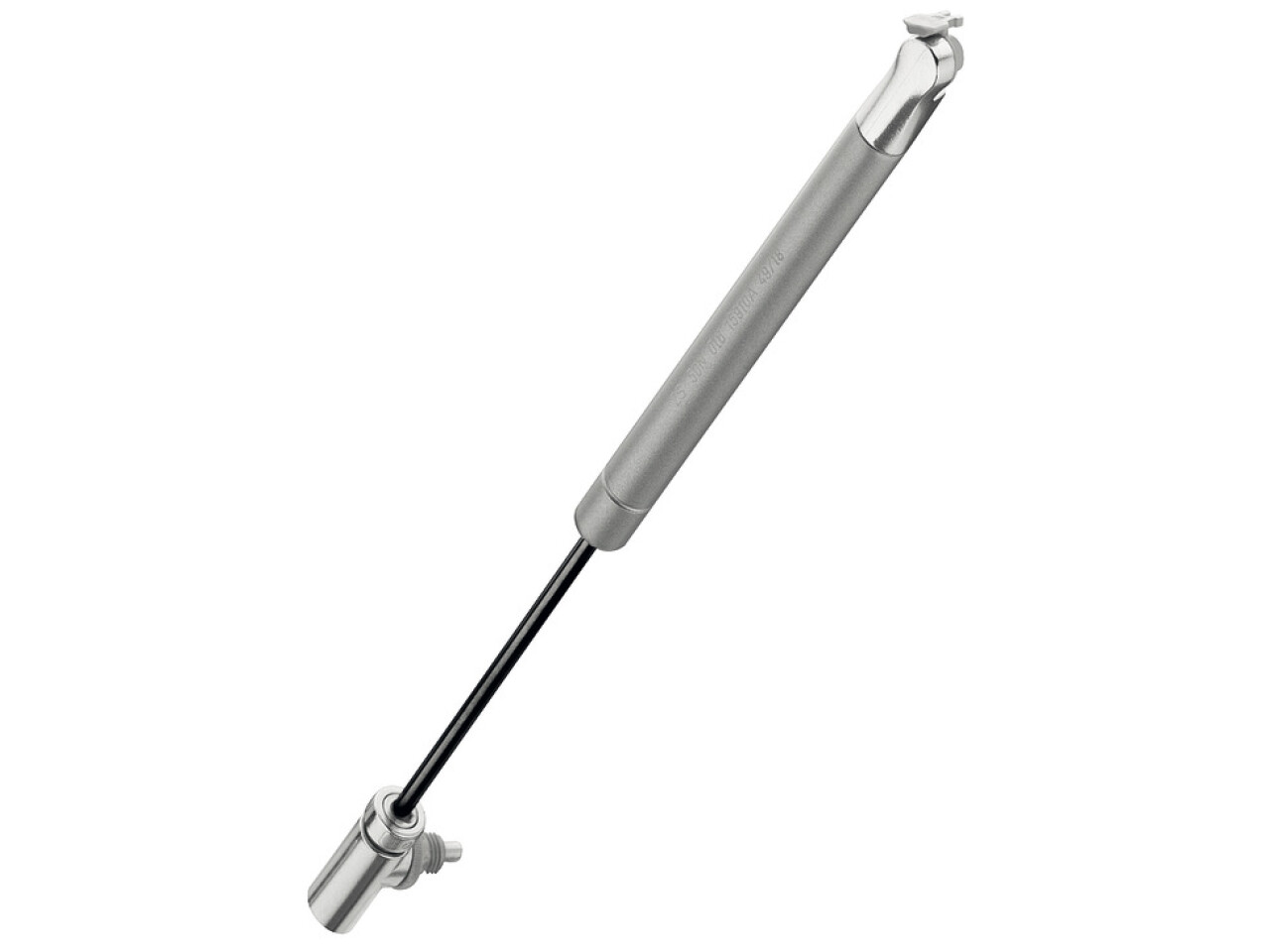

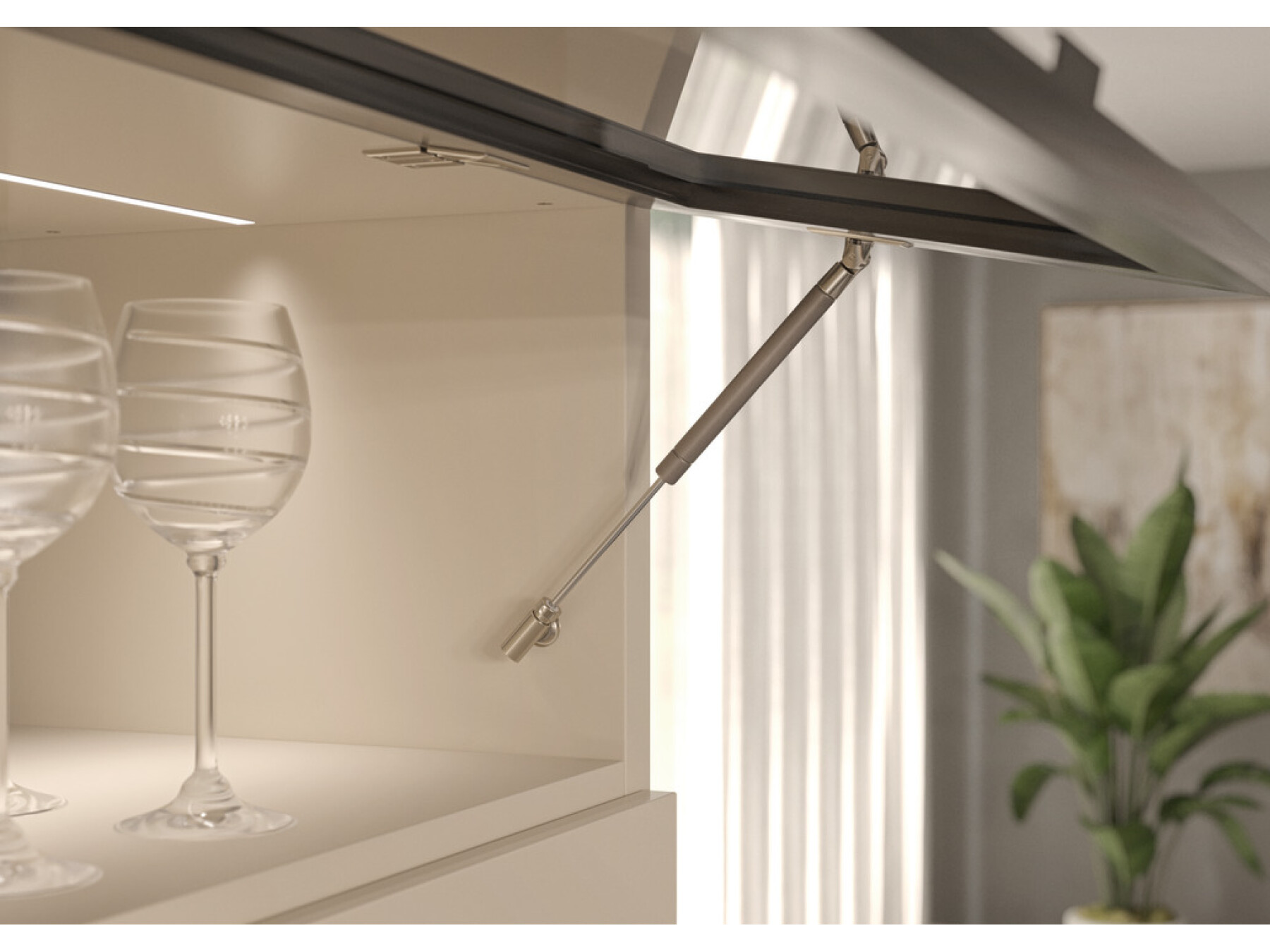

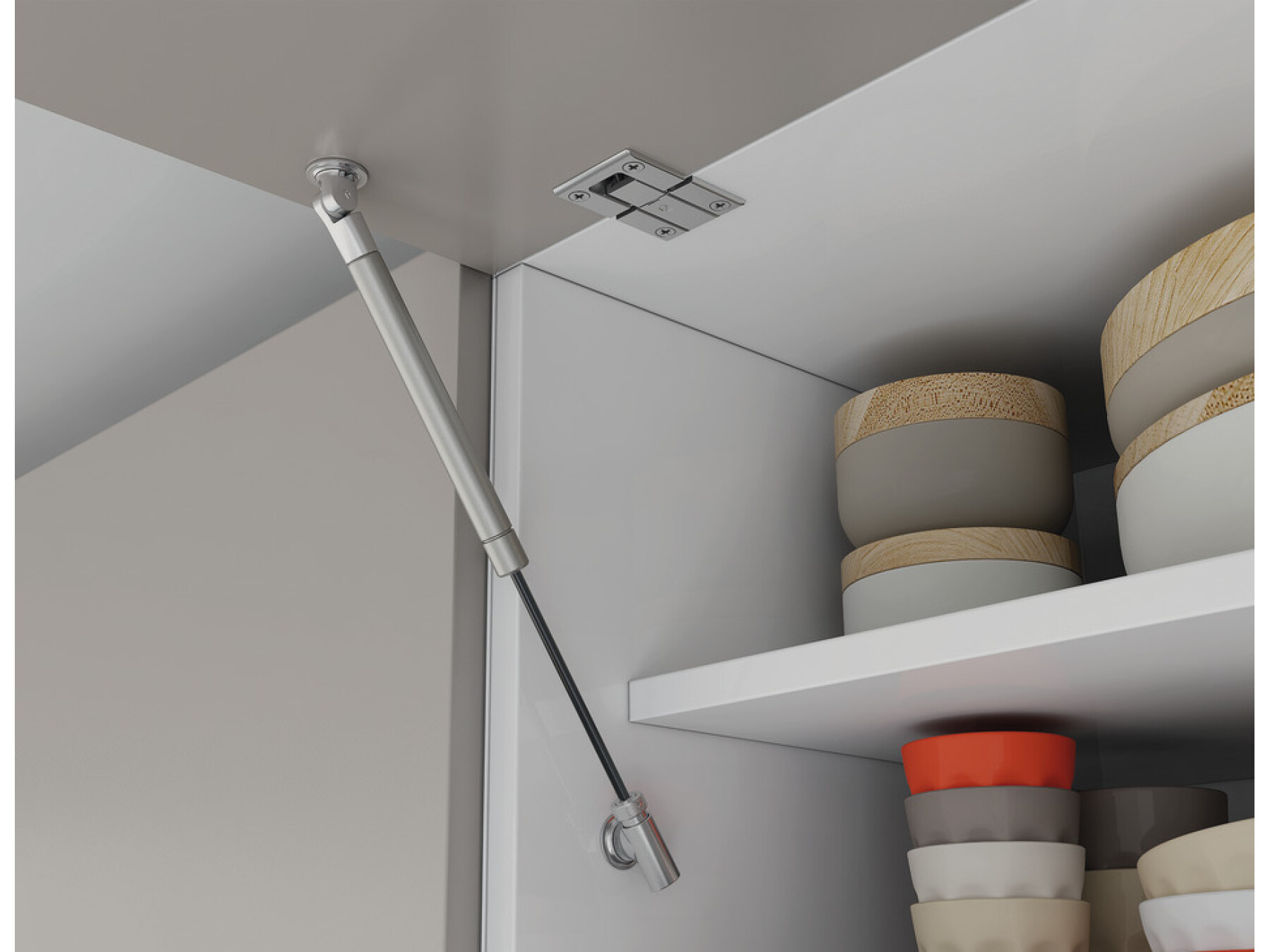

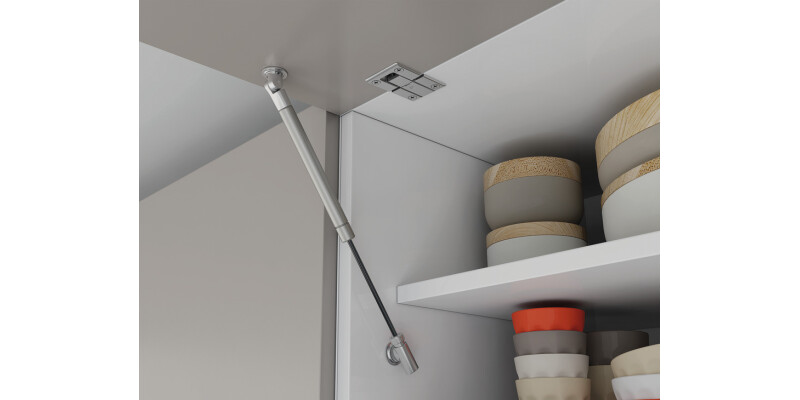

Lid Stay, Adjustable, Automatic Opening, K12 (Part No: 373.83.442) is a dependable gas spring lid support designed to help wooden flaps and framed panels open smoothly and stay securely in position. Ideal for kitchen and commercial cabinetry, this 110N lid stay delivers controlled movement for everyday use—perfect when you want a neat, professional finish with reliable performance.

Built for stay flap front panels made from wood or with an aluminium frame, this model is made from durable steel with a zinc alloy cylinder for long-lasting stability. The grey silver appearance, finished in silver grey, blends effortlessly with modern cabinet interiors and complements a wide range of furniture styles.

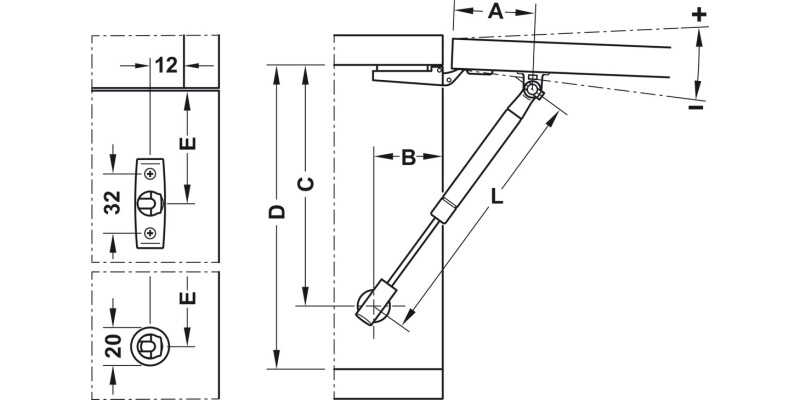

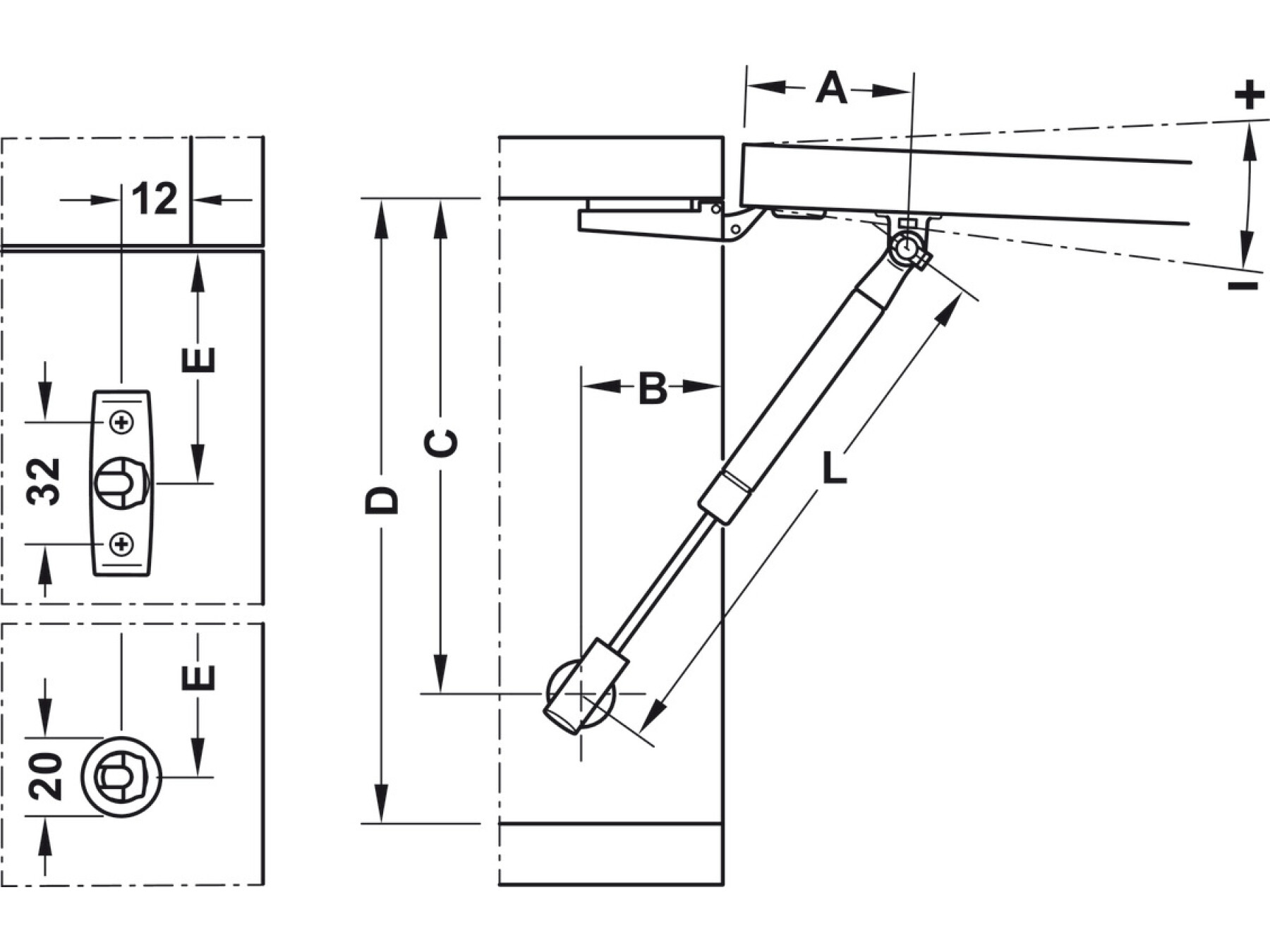

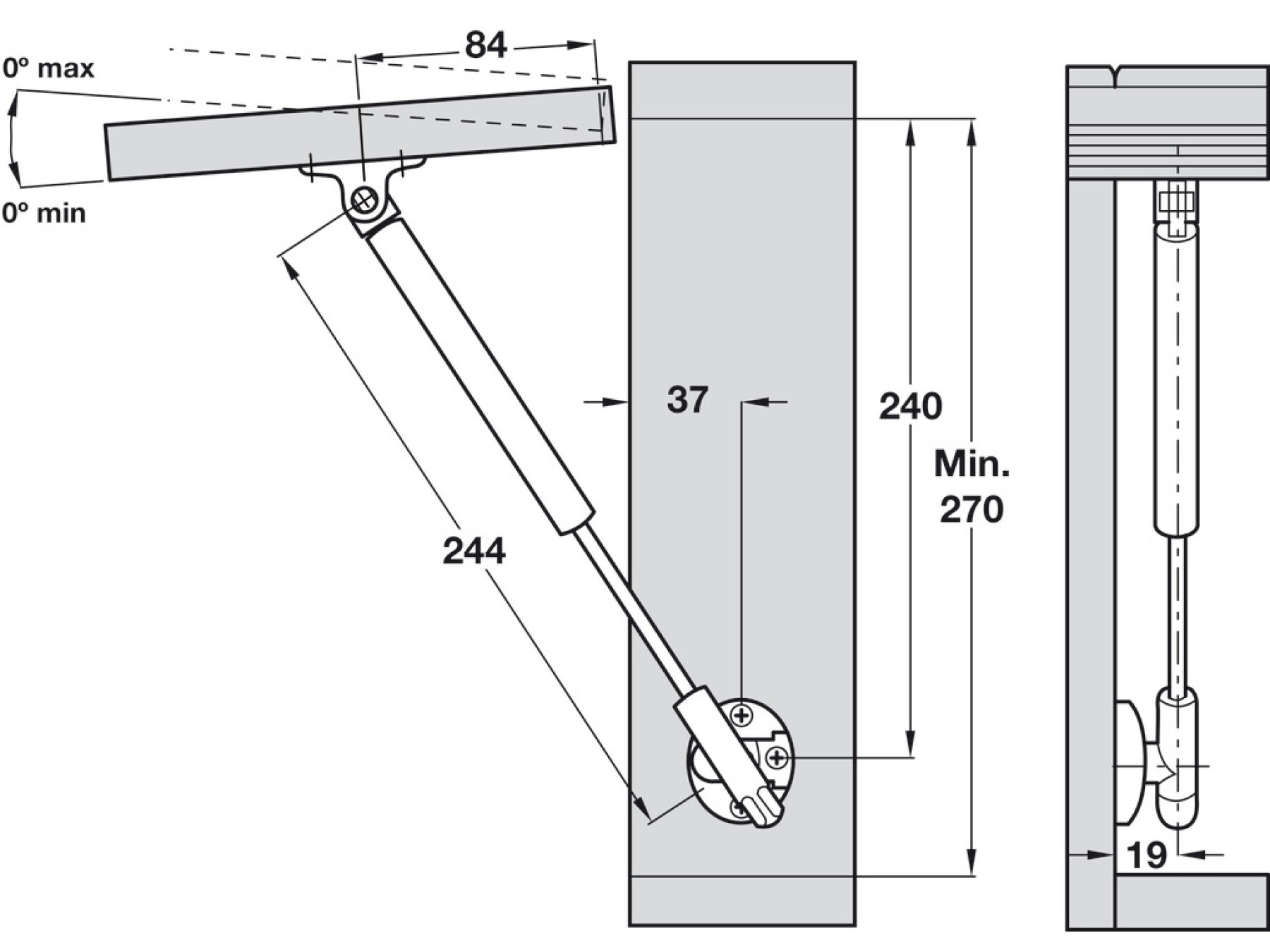

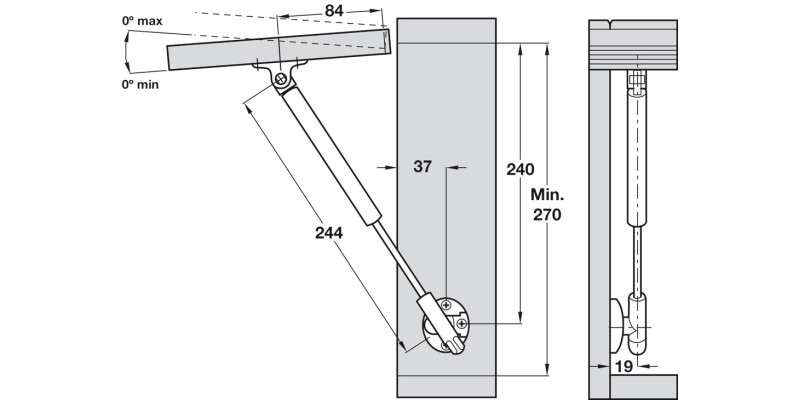

Featuring an opening angle of 90°, the unit is suitable for cabinet heights of 200–600 mm and supports lid weights of up to ≤13.5 kg (based on sample measurements). Installation is straightforward: it is screw fixed into 32 mm series drilled holes using the included mounting bracket and fixing options for screw fitting or plug fitting.

For fine-tuning, the adjustment facility (travel ±3 mm) allows you to dial in alignment using the adjusting wheel. Supplied with 1x gas spring lid stay, 1x screw fixing door lid bracket, 1x recess mounted cabinet side bracket, and the required fixings, you can get fitted and ready faster.

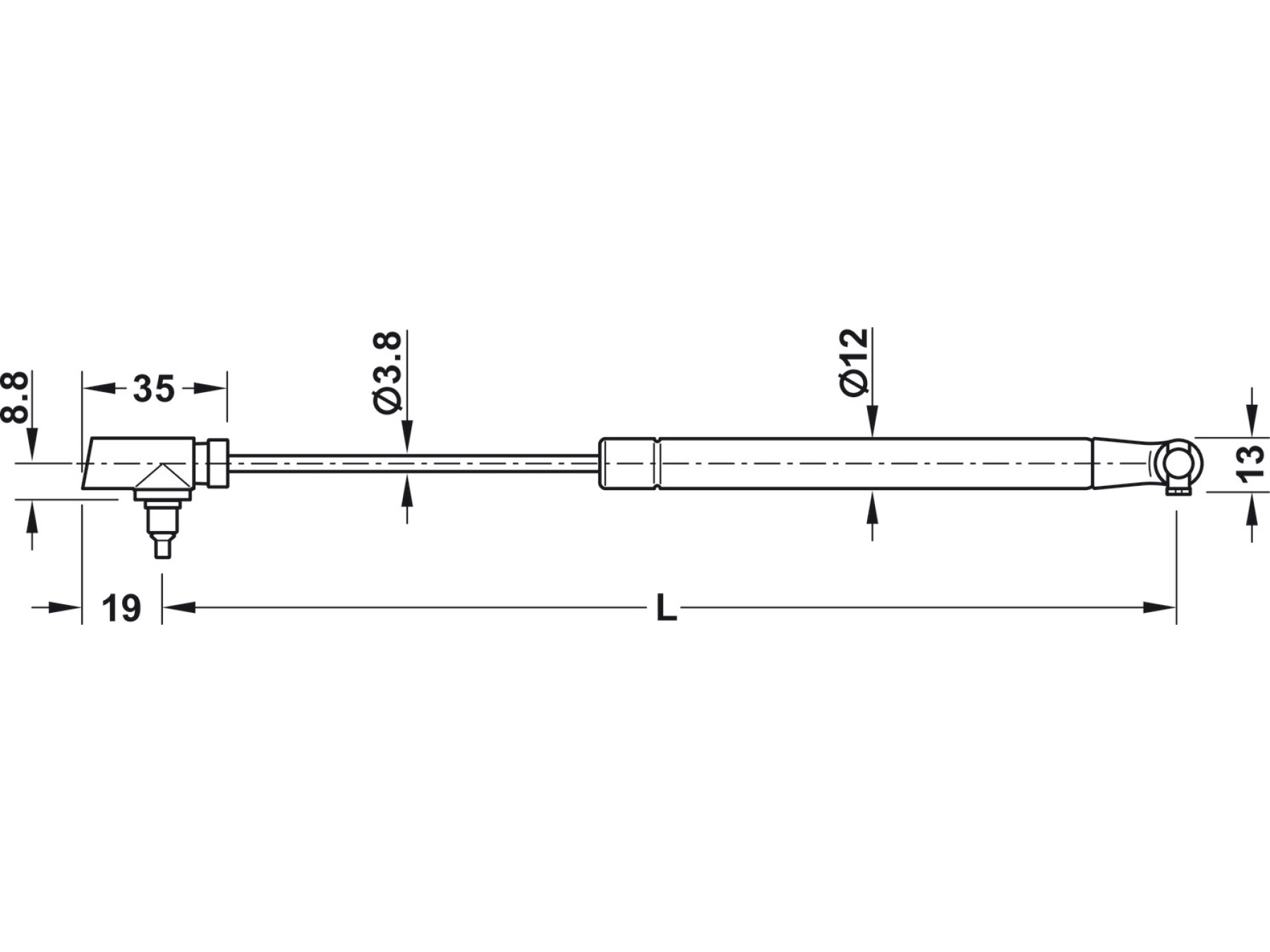

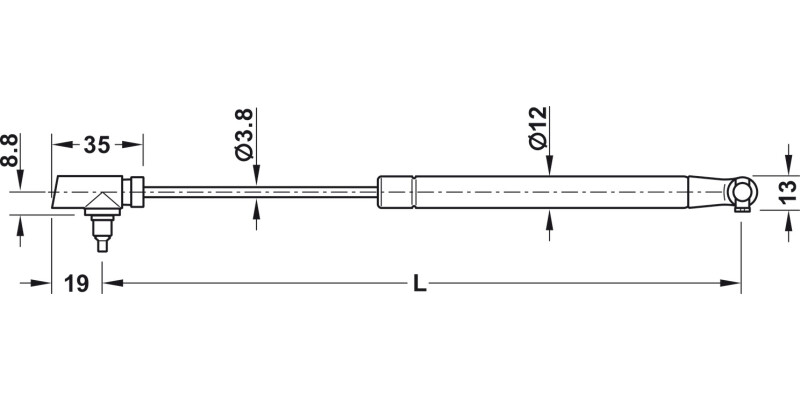

Subtitle included: For wooden flaps or flaps with aluminium frame, Length 355 mm, spring force 110 N.

In case of threshold values always use stronger version. Trial mounting is recommended.

1x Gas spring lid stay
1x Screw fixing door lid bracket,
1x Recess mounted cabinet side bracket
Fixings
