Mortice Lock, for Dialock DT 700 and DT 710

Product Details

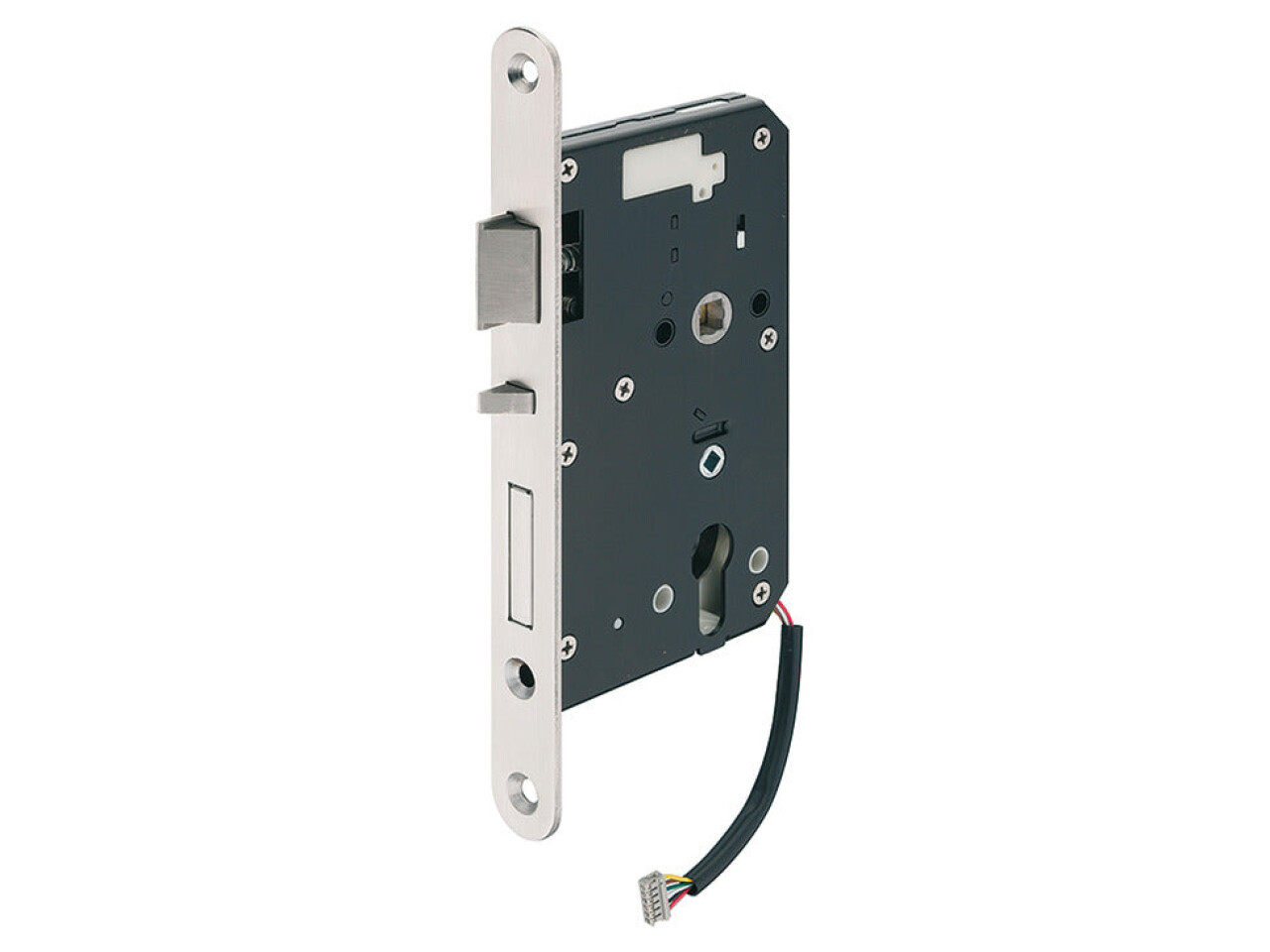

Mortice Lock, for Dialock DT 700 and DT 710 (Part No: 917.81.887) is a premium mortice door release designed for outward-opening doors, combining smooth hardware performance with a sleek black stainless finish. Ideal for architects, contractors, and facilities teams, this DIN R compliant device is built to deliver reliable panic function operation—helping you meet the demands of life-safety applications without compromising on style.

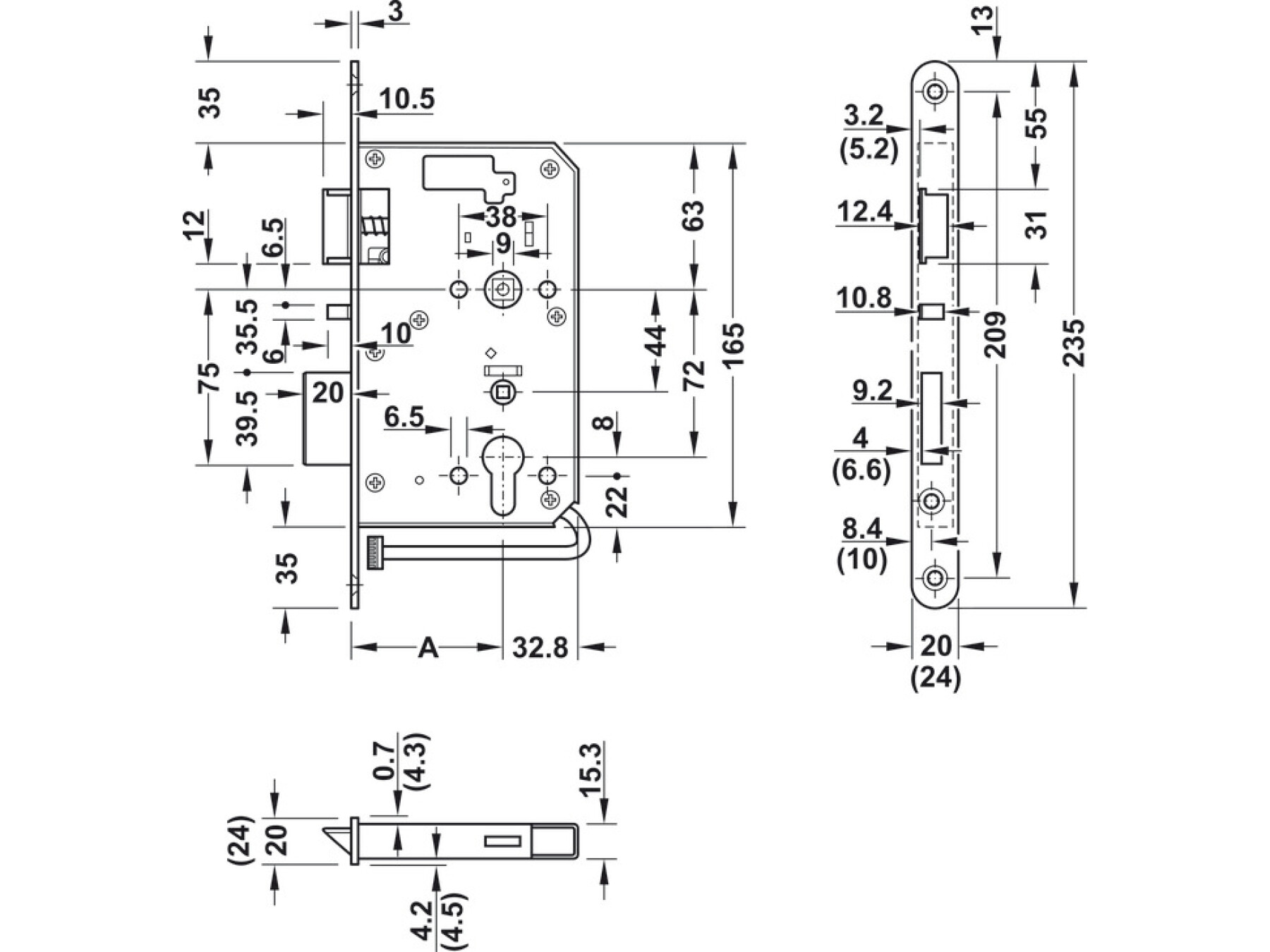

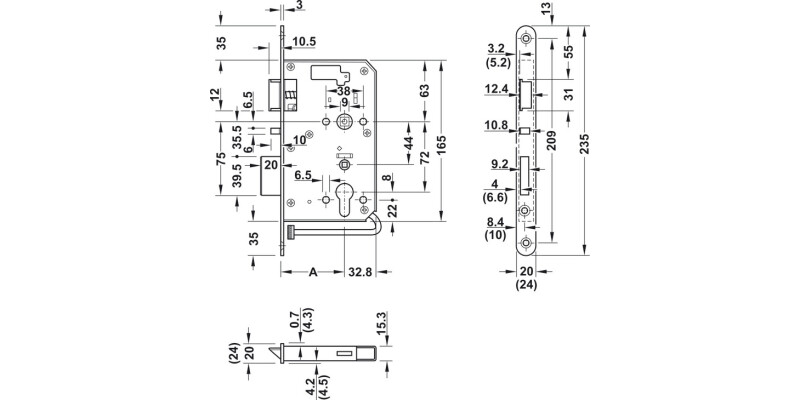

Crafted for durability, the lock features a flat forend with rounded edges and a 24.00 mm forend width. Suitable for unrebated door construction, it’s engineered for ease of installation and a neat, professional fit. The forend length is 65.00 mm, making it a strong choice for modern door sets where clean lines matter.

Designed specifically for fire resistant and smoke control doors, the Mortice Lock, for Dialock DT 700 and DT 710 supports secure performance in critical environments. The robust construction includes a stainless steel forend, with the latchbolt and lock case made from steel, while the lever follower uses malleable cast for dependable feel and operation.

This outward opening mortice door release supports electromechanical unlocking, with a 1 turn deadbolt throw and a 72.00 mm distance. It’s prepared for a profile cylinder and includes a 9.00 mm lever follower for accurate alignment and consistent engagement.

Upgrade your door hardware with the Mortice Lock, for Dialock DT 700 and DT 710—a functional, fire-door compatible solution with a refined black stainless look that elevates the whole installation.
