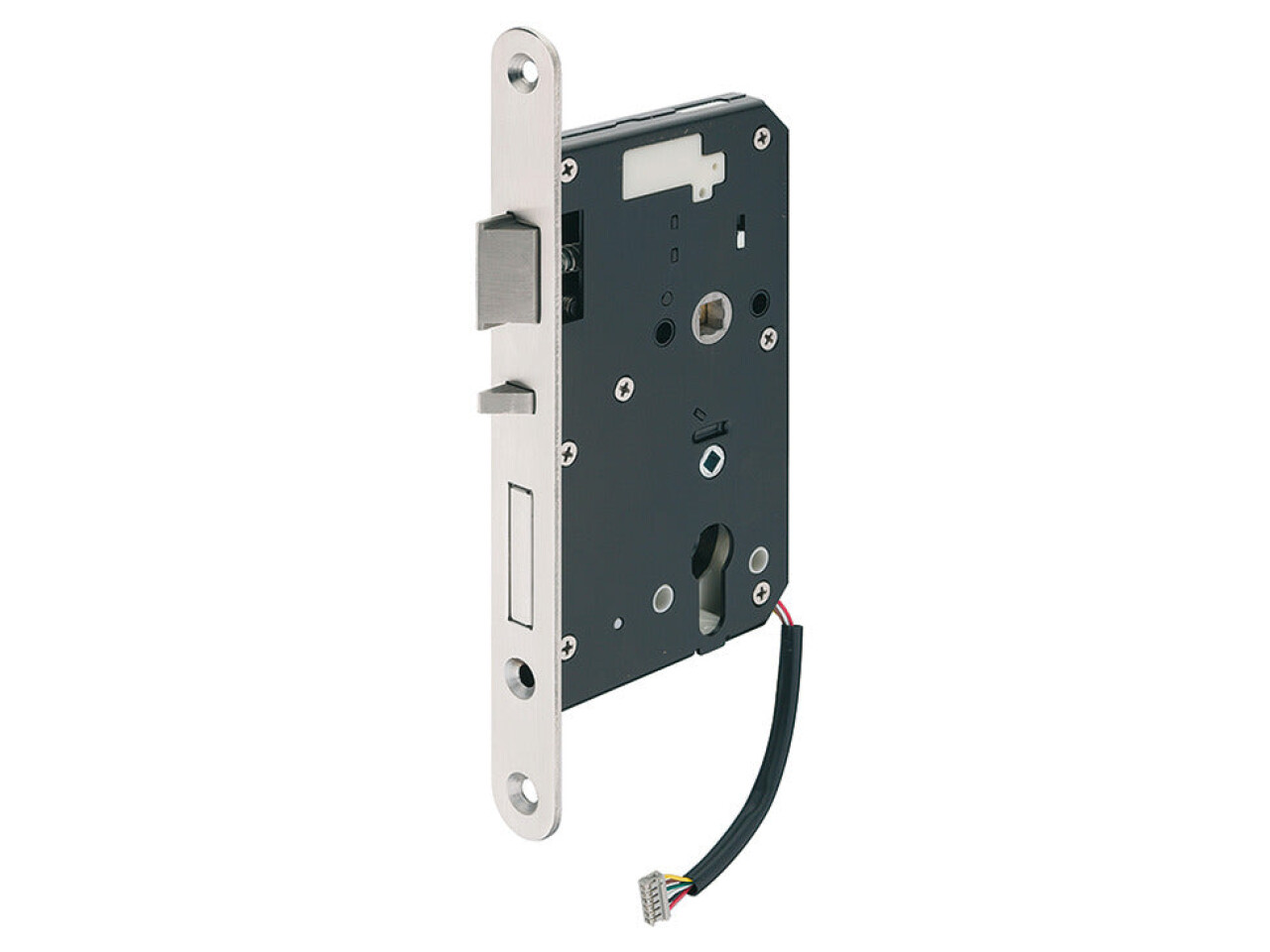

Mortice Lock, for Dialock DT 700 and DT 710

Product Details

Is the Dialock DT700 and DT710 suitable for fire resistant and smoke control doors?

Yes. This mortice lock is intended for use on fire resistant and smoke control doors. If you are upgrading or fitting ironmongery to a rated door set, choosing hardware that is specified for this type of door helps you meet the intended fire door performance.

How does the panic function work on inward opening doors?

The lock is designed for DIN R use, with a panic function inwards opening doors. This means it supports quick egress from the inside when required, helping occupants open the door in an emergency without needing to operate a key.

Will this lock work with a standard Euro profile cylinder?

Yes. The lock is prepared for a profile cylinder, so it is compatible with commonly used Euro profile cylinders. This allows you to choose the cylinder that matches your security and keying requirements.

What mortice size and forend dimensions should I plan for?

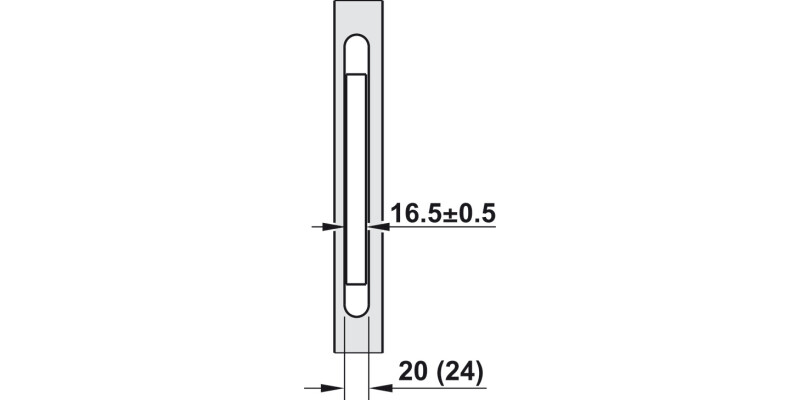

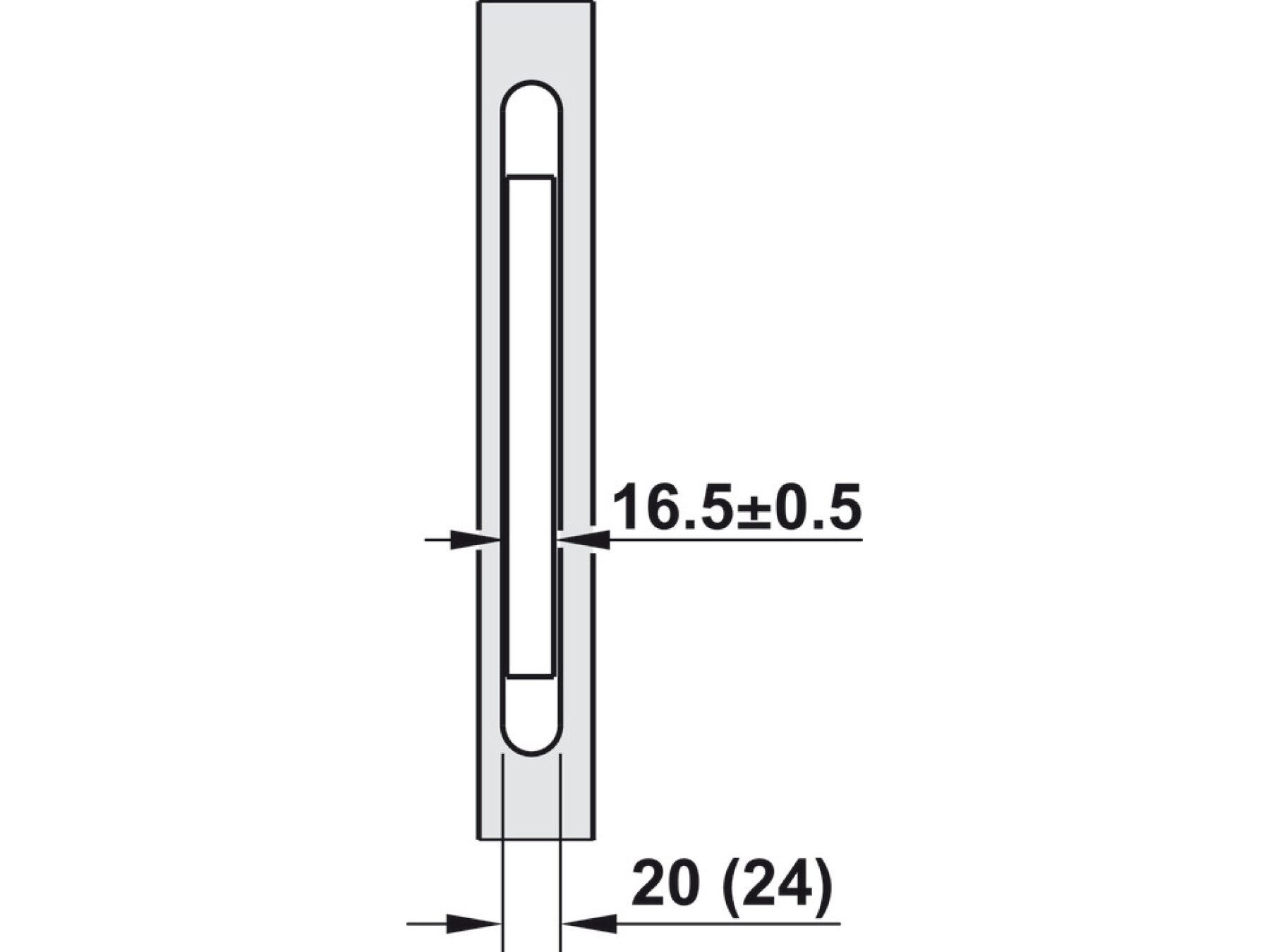

It has a 65 mm forend type and a 24 mm forend width. The distance is 72 mm, which is the critical measurement when checking compatibility with your door and existing cut outs. If you are replacing older hardware, compare these dimensions carefully before ordering.

Is the unlocking electromechanical, and does it include a deadbolt?

Yes. The unlocking type is electromechanical, and the lock provides a deadbolt with a 1 turn deadbolt throw. If your door system uses access control or remote locking, this feature set is typically chosen to match that approach.

What colour finish is the latch and lock in?

This model is supplied in a polished brass coloured finish. It is a popular choice when you want architectural ironmongery that complements brass toned door hardware in corridors, offices, and commercial settings.
