Mortice Lock, for Dialock DT 700 and DT 710

Product Details

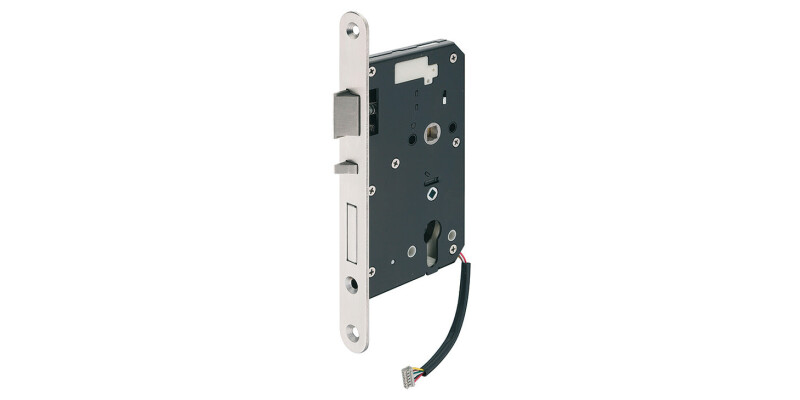

Mortice Lock, for Dialock DT 700 and DT 710 (Part No: 917.81.761) is a premium DIN L mortice lock designed for reliable performance in modern, high-spec door installations. Finished in satin stainless steel, this elegant mortice lock blends professional aesthetics with robust security—ideal for projects where durability and clean architectural lines matter.

Built for inward-opening applications, the DT700/710 Mortice DL includes a panic function for smooth, compliant egress when you need it most. The unrebated door construction helps ensure a secure fit and a neat, site-ready installation, while the lock’s electromechanical unlocking type delivers controlled operation for compatible systems.

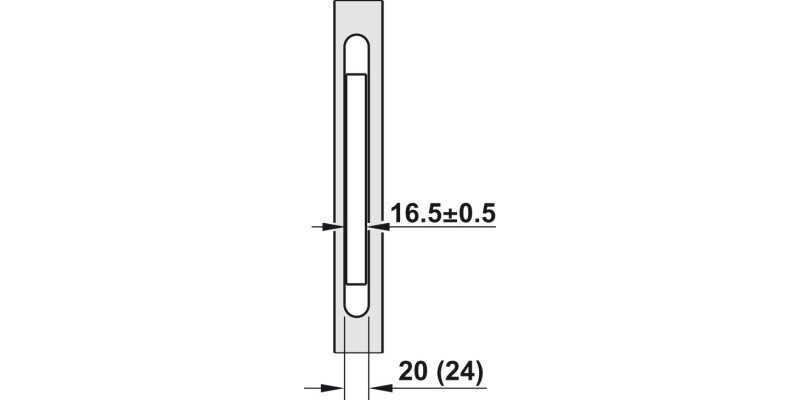

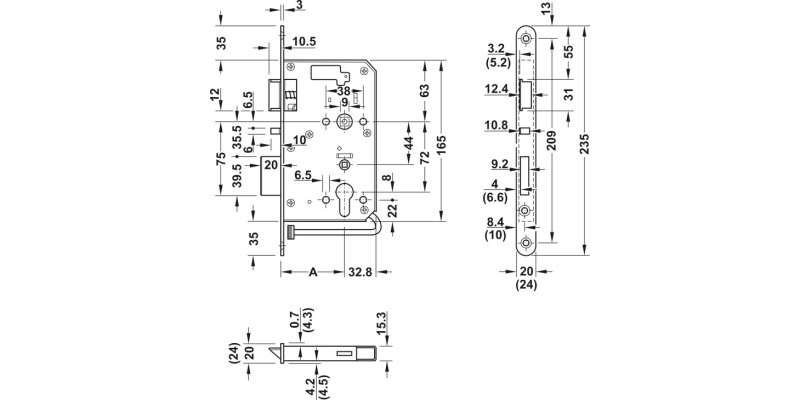

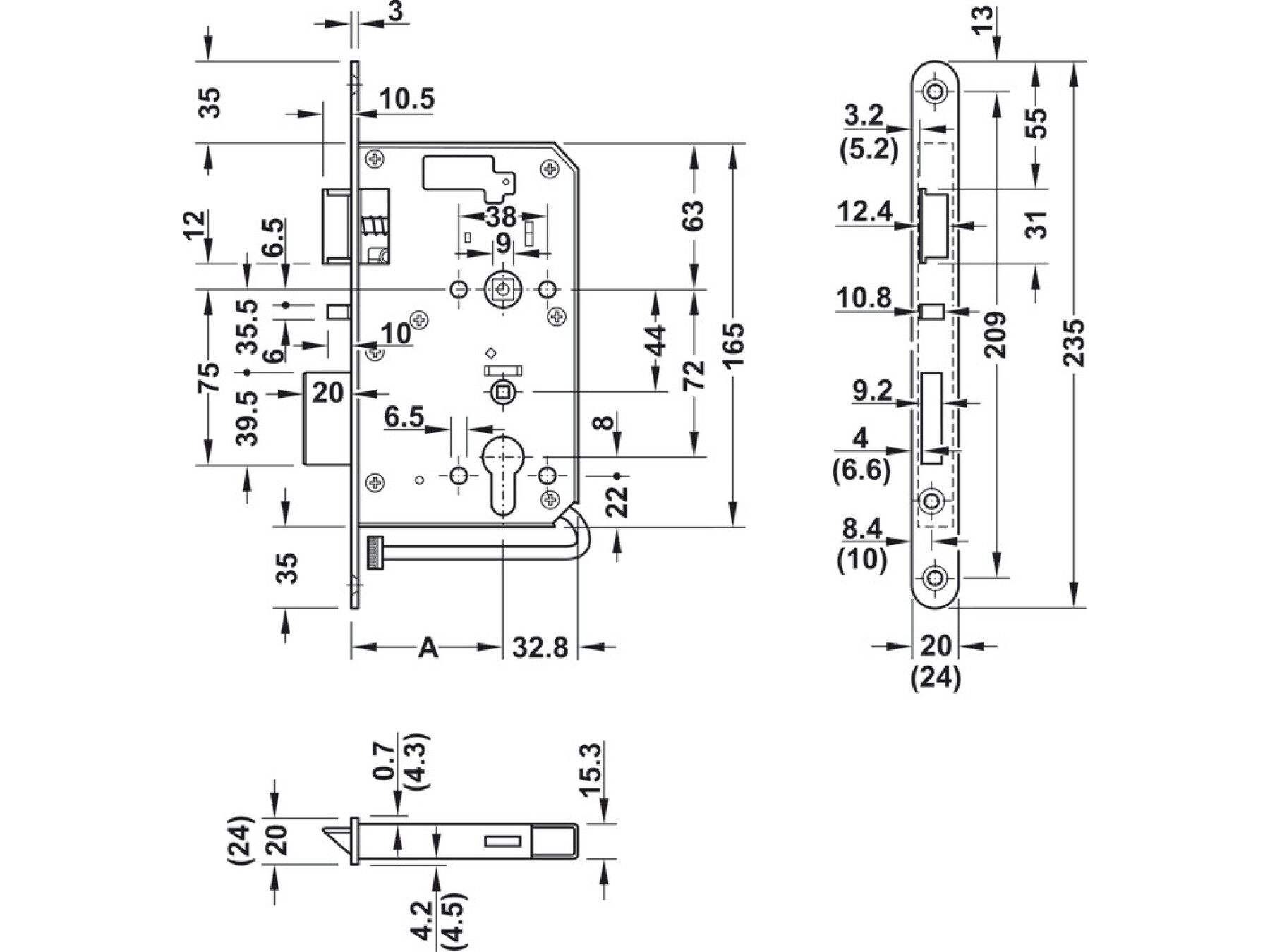

Crafted with quality materials, the forend features stainless steel for long-lasting appearance, while the latchbolt and lock case use steel strength. A malleable cast lever follower supports dependable day-to-day action. Key dimensions are thoughtfully engineered for proper alignment and performance, including a 24.00 mm forend width, a 65.00 mm forend depth (type 65), and a 72.00 mm distance. The deadbolt throw is 1 turn, with a 9.00 mm lever follower.

For door type: Suitable for fire resistant and smoke control doors, and prepared for profile cylinder—a great choice for architects, installers, and specifiers seeking a mortice lock that looks the part and performs under pressure.

Upgrade your door hardware with Mortice Lock, for Dialock DT 700 and DT 710 and choose dependable security with a refined satin stainless finish.
