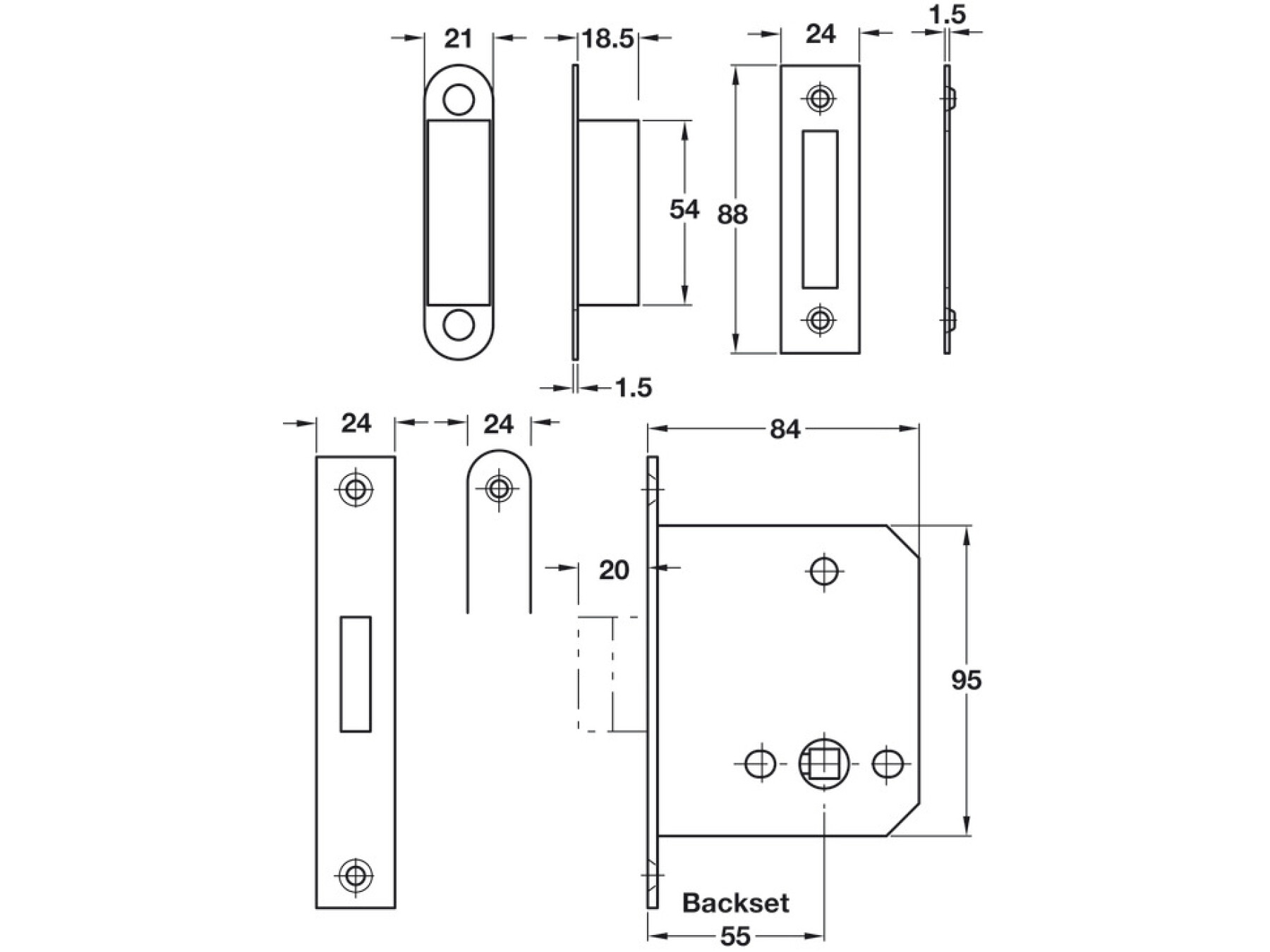

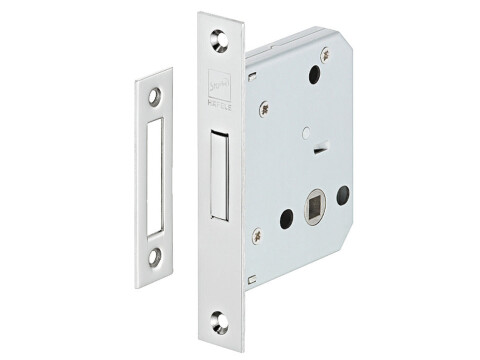

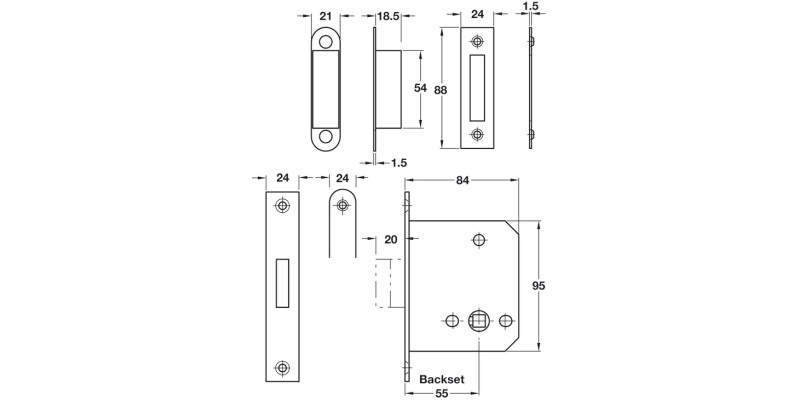

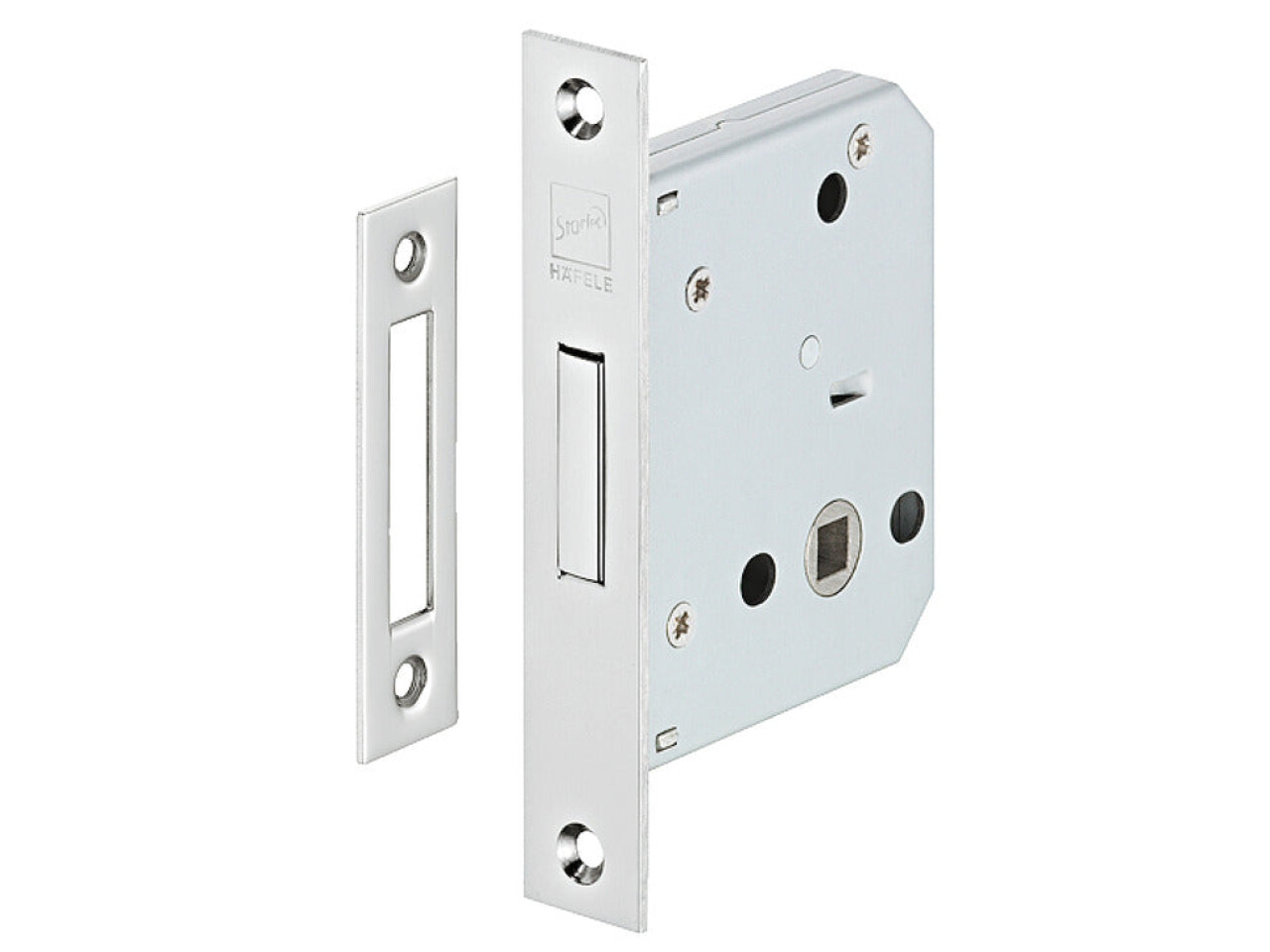

Startec DIN Mort Toiletlock 55/84mm SSS
Part Number: 911.22.511
Backset 55 mm, case size 84 mm, satin
Price:
£12.64
Per Item
Deadbolt operated by turn/emergency releaseForend: Square, 2 pieceFlanged strike plate: Square, flatFollower: 8... Read More
Product Information
Product Details
Deadbolt operated by turn/emergency release

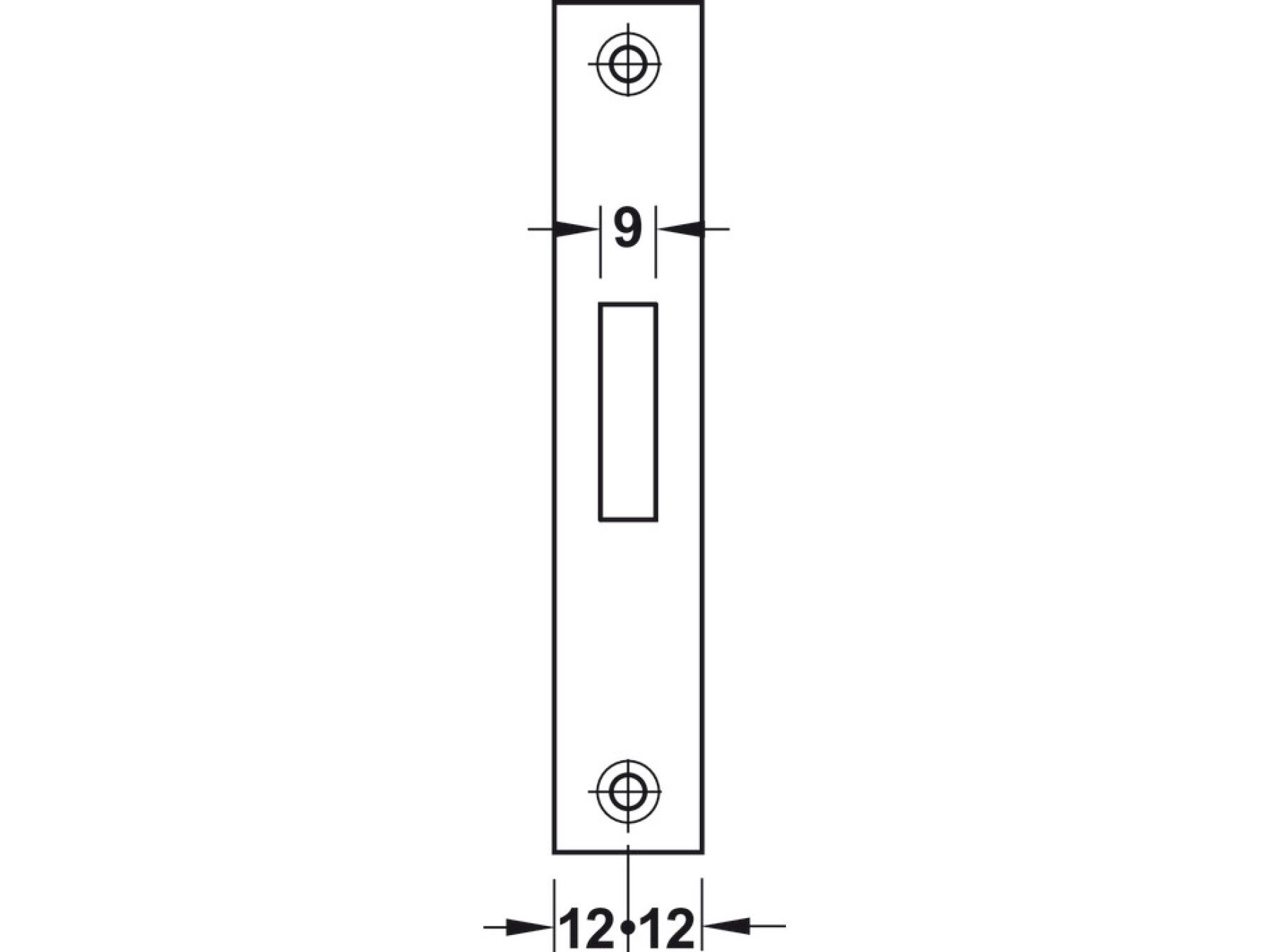

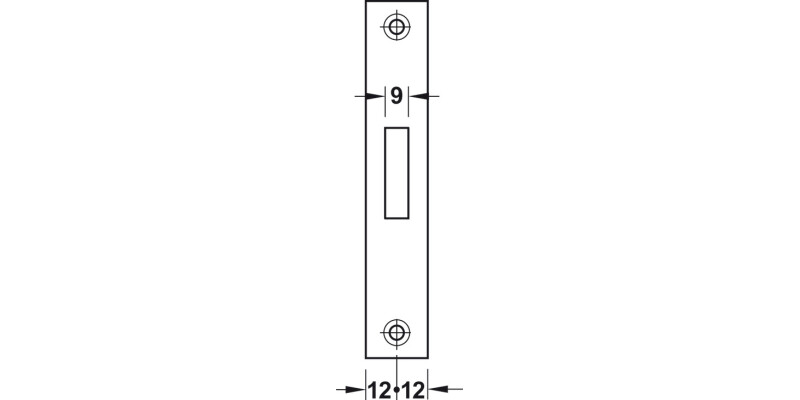

Forend: Square, 2 piece

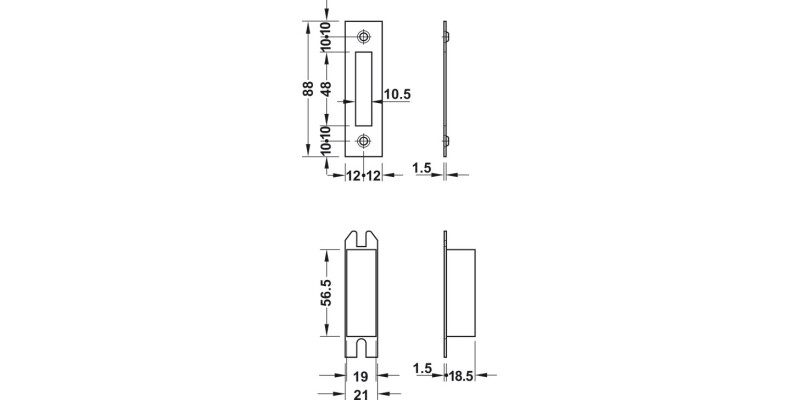

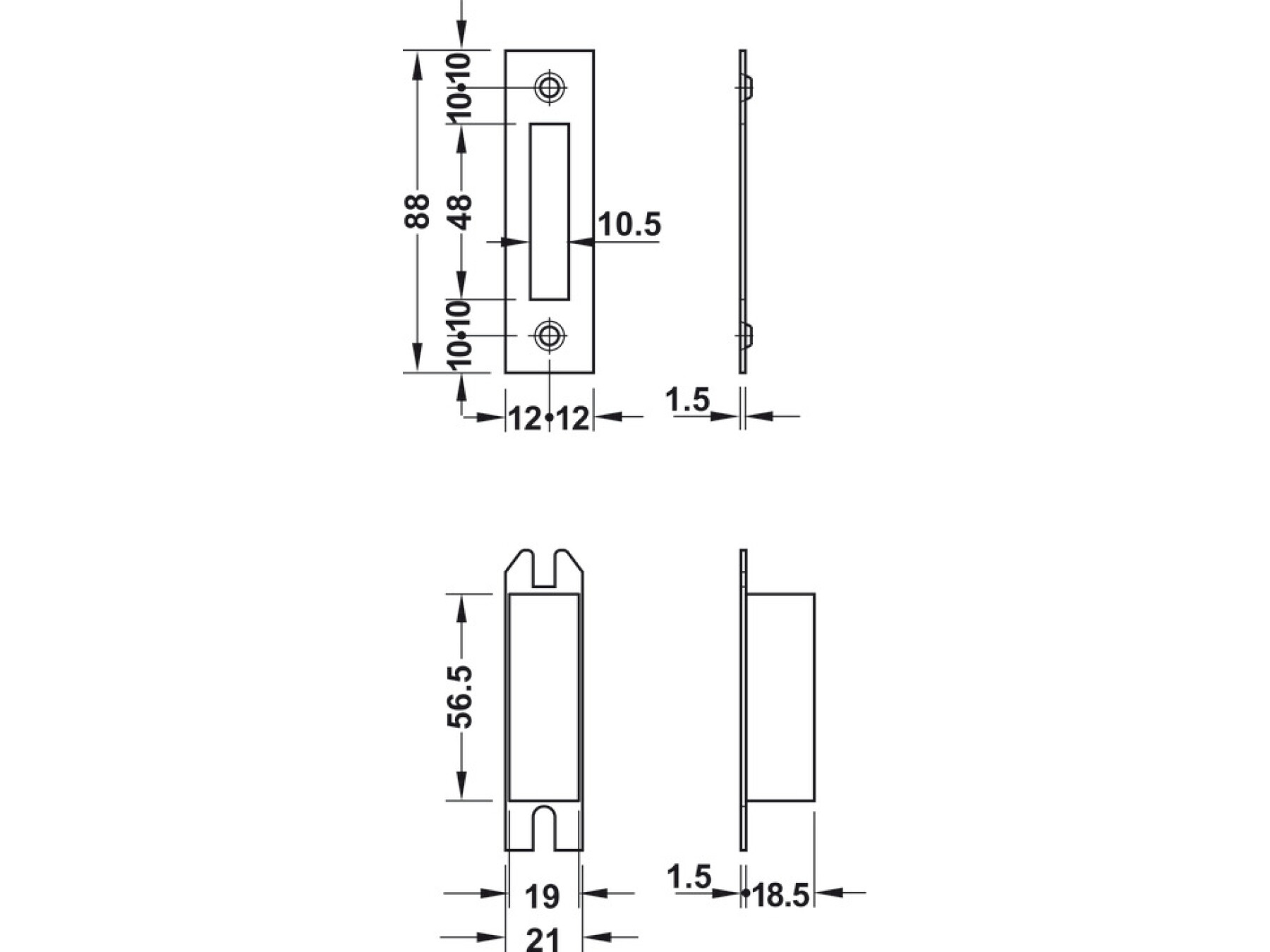

Flanged strike plate: Square, flat
Follower: 8 mm
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee
| Technical data | |
|---|---|
| Type of locking | WC/Bathroom |
| Deadbolt throw | 1 turn |
| Deadbolt throw dim. | 10 mm |
| Deadbolt follower | 8 mm |
Specifications
Type of locking
WC/Bathroom
Forend Type
55.00 mm
Forend design
Flat forend edged
Forend width
24.00 mm
Door construction
Unrebated
Mounting
DIN left/right (reversible)
Material
Case: Steel
Forend: Stainless steel
Deadbolt and follower: Stainless steel
Latchbolt version
Without latch
For door type
Hinged doors
Version
Strike plate with bolt pocket
Colour/finish
Satin
Forend length
138.00 mm
Deadbolt version
Standard deadbolt
Hafele Lifetime Guarantee
10 years
Supplied with
Fixings
