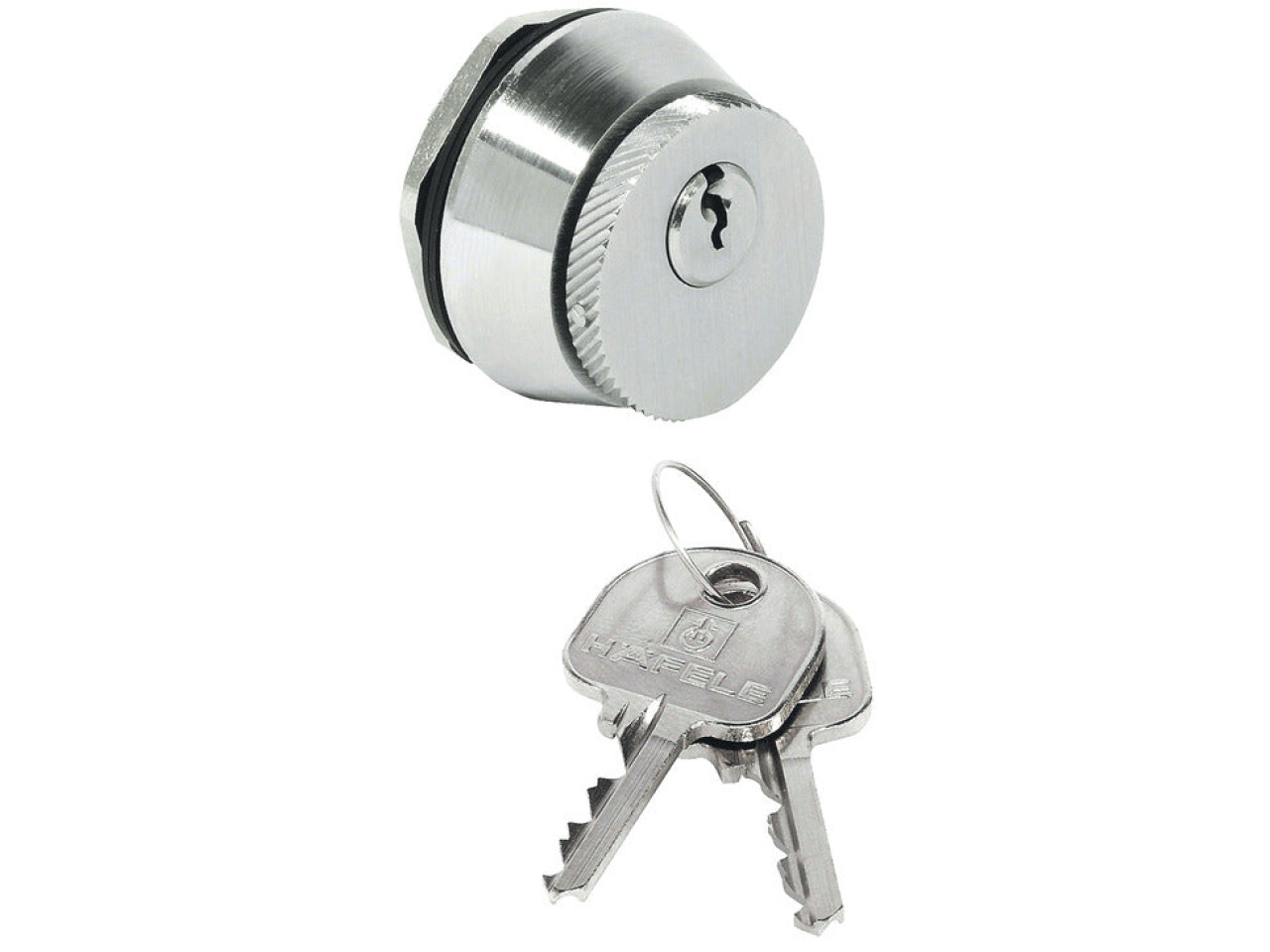

Push and Turn Cylinder Lock, for Glass Sliding Doors 3 - 7 mm Thick
Push and Turn Cylinder Lock, for Glass Sliding Doors 3 - 7 mm Thick (Part No: 233.26.101) is a reliable locking... Read More
Product Details
Push and Turn Cylinder Lock, for Glass Sliding Doors 3 - 7 mm Thick (Part No: 233.26.101) is a reliable locking solution designed for smooth, convenient cabinet access in both living and commercial spaces. This push-and-turn system combines a practical locking pin with a comfortable plastic lever, making it easy to operate day after day—ideal for furniture fittings, storage cabinets, and purpose-built interior doors.
Built around a standard profile round cylinder, this model is finished to look clean and modern. The lock housing and cylinder feature chrome plating with a matt finish, while the locking cam is white plastic for a neat, coordinated appearance. Inside, the lock uses 5 pin tumblers, supporting secure retention and dependable performance.
One of the standout features is the H 1–keyed alike system. Both the key change and closure are keyed alike, so you can streamline access and reduce the hassle of managing multiple keys for compatible locks.
Closure and application are simple: it’s made for straight sliding doors only, with support for glass thicknesses of 3–7 mm. The fixed pin tumbler cylinder version is installed with screw fixing using a hexagonal nut, ensuring a secure fit.
When you choose Push and Turn Cylinder Lock, for Glass Sliding Doors 3 - 7 mm Thick, you get a functional, stylish cabinet locking system that’s made for everyday use—plus a keyed-alike approach that helps you stay organized. Add it to your cart today for an upgrade in convenience and security.
Specifications
Locking system
Key change
Closure type
Colour/finish
Locking cam: White, Housing and cylinder: Chrome plated, Housing and cylinder: Matt
Area of application
For straight sliding doors only
Cylinder shape
Version
With fixed pin tumbler cylinder
Material
Housing and cylinder: Brass
Locking Cam: Plastic
Locking system
For glass thickness

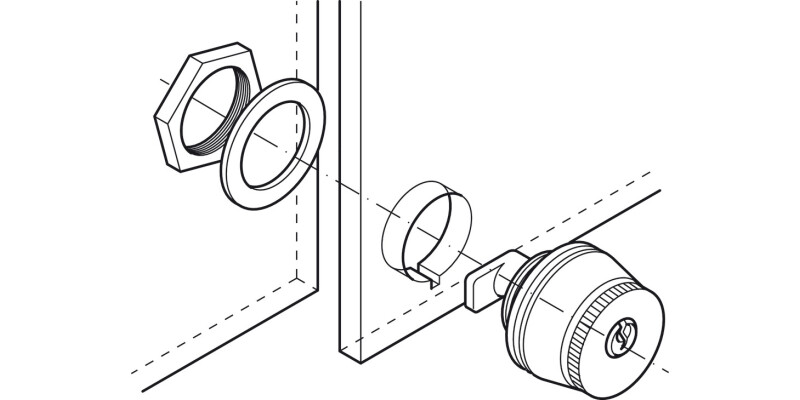

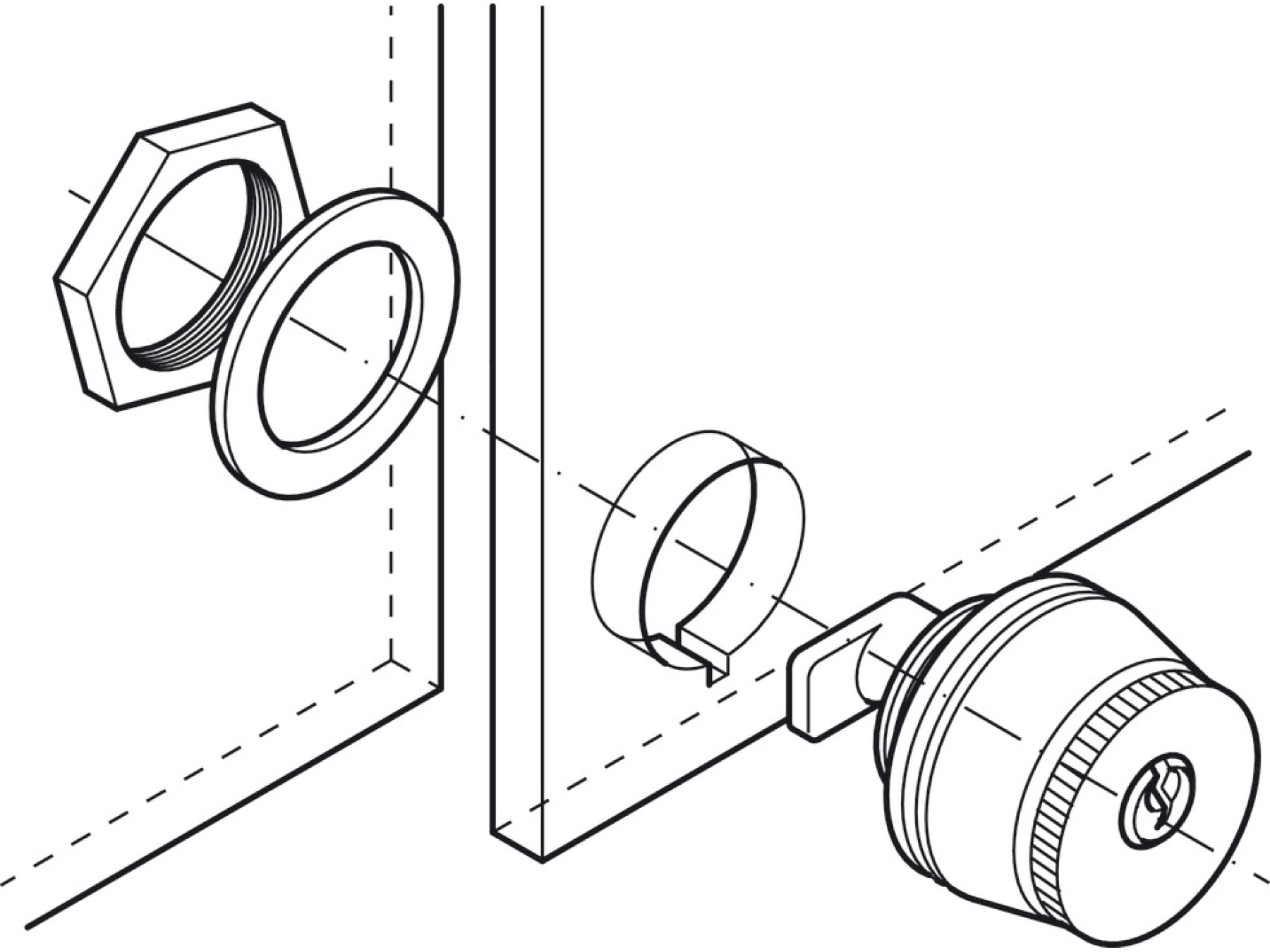

Installation
For screw fixing with hexagonal nut
with key
Product Details
Is the Cylinder Lock Push+Turn H1 suitable for glass doors?
Yes. It is designed for straight sliding doors with glass thickness from 3 to 7 mm. If your installation does not match this thickness range, the lock may not fit correctly.
What does H 1 keyed alike mean for this lock?
H 1 keyed alike means multiple locks can share the same key within the keyed alike group. This is useful if you want one key to operate several cabinet or door locks.
Does this lock come with keys?
Yes. The product is supplied with key, so you can fit and use it straight away after installation.
How is the lock installed and secured in place?
It is installed for screw fixing with a hexagonal nut. Use the correct fixing position for your door and tighten securely so the cylinder and housing sit firmly.
What are the main colour and finish options on the lock?
The locking cam is white, while the housing and cylinder are chrome plated and matt for a mixed look. This helps the lock blend with many contemporary furniture and commercial door designs.
Can one key operate multiple locks in a keyed alike setup?
Yes. This version is keyed alike, which is ideal for households, shared offices, or settings where you want consistent key use across several locking points.
Is the push and turn mechanism easy to use for sliding applications?
Yes. The push and turn style allows convenient operation, and it is built for straight sliding doors, making it a practical choice for cabinets and similar furniture applications where space is limited.
What cylinder type and locking pin system does the Push+Turn H1 use?
It uses a round cylinder with a fixed pin tumbler cylinder and a fixed pin tumbler arrangement with five pin tumblers. The design is intended to provide reliable operation for day to day use.
