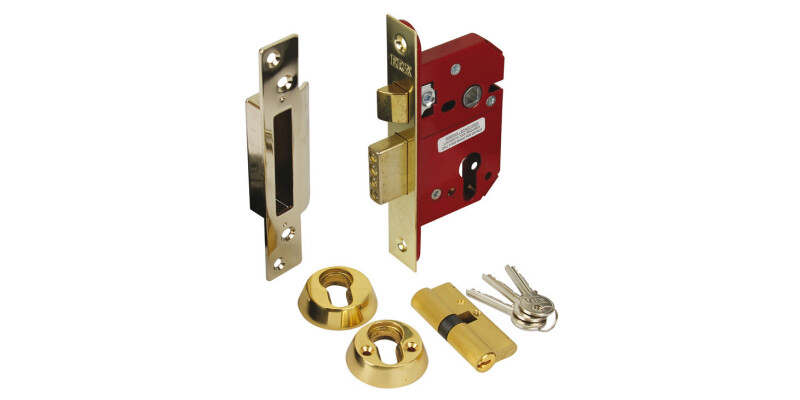

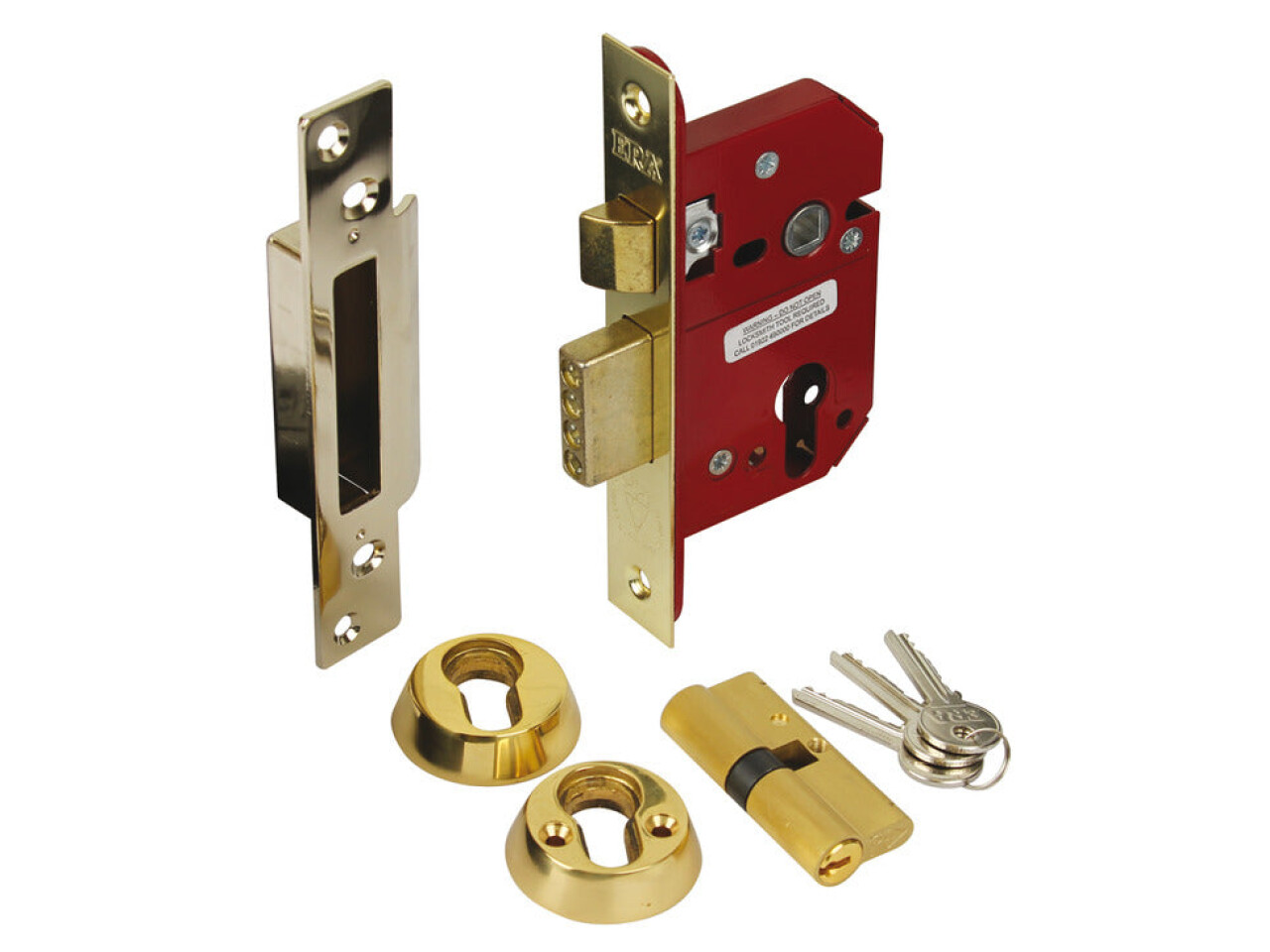

Secure Mortice Cyl Sashlock 56/79mm SSS
Part Number: 911.03.603
Conforms to BS 3621: 2007, Basket 56 mm, case size 79 mm, satin stainless steel
Price:
£77.10
Per Item
Conforms to BS 3621: 2007Secured by Design: Police preferred specificationLatchbolt operated by lever handles.... Read More
Product Information
Product Details
Conforms to BS 3621: 2007
Secured by Design: Police preferred specification
Latchbolt operated by lever handles. Deadbolt operated by cylinder
Complete with high security euro profile double cylinder and security escutcheons
4 hardened steel rollers in dead bolt, revolves to resist hacksawing
Case: Anti-drill plates on both sides of lock
Strike plate: Box type
Latchbolt: Brass-plated. Reversible
Deadbolt: Brass-plated. 20 mm throw
Follower: 8 mm

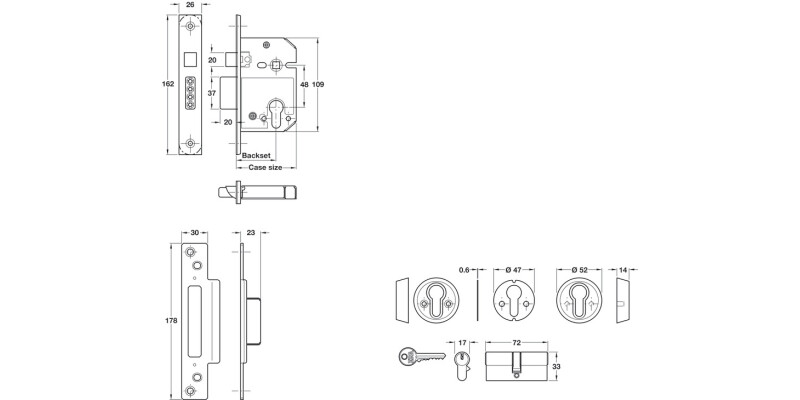

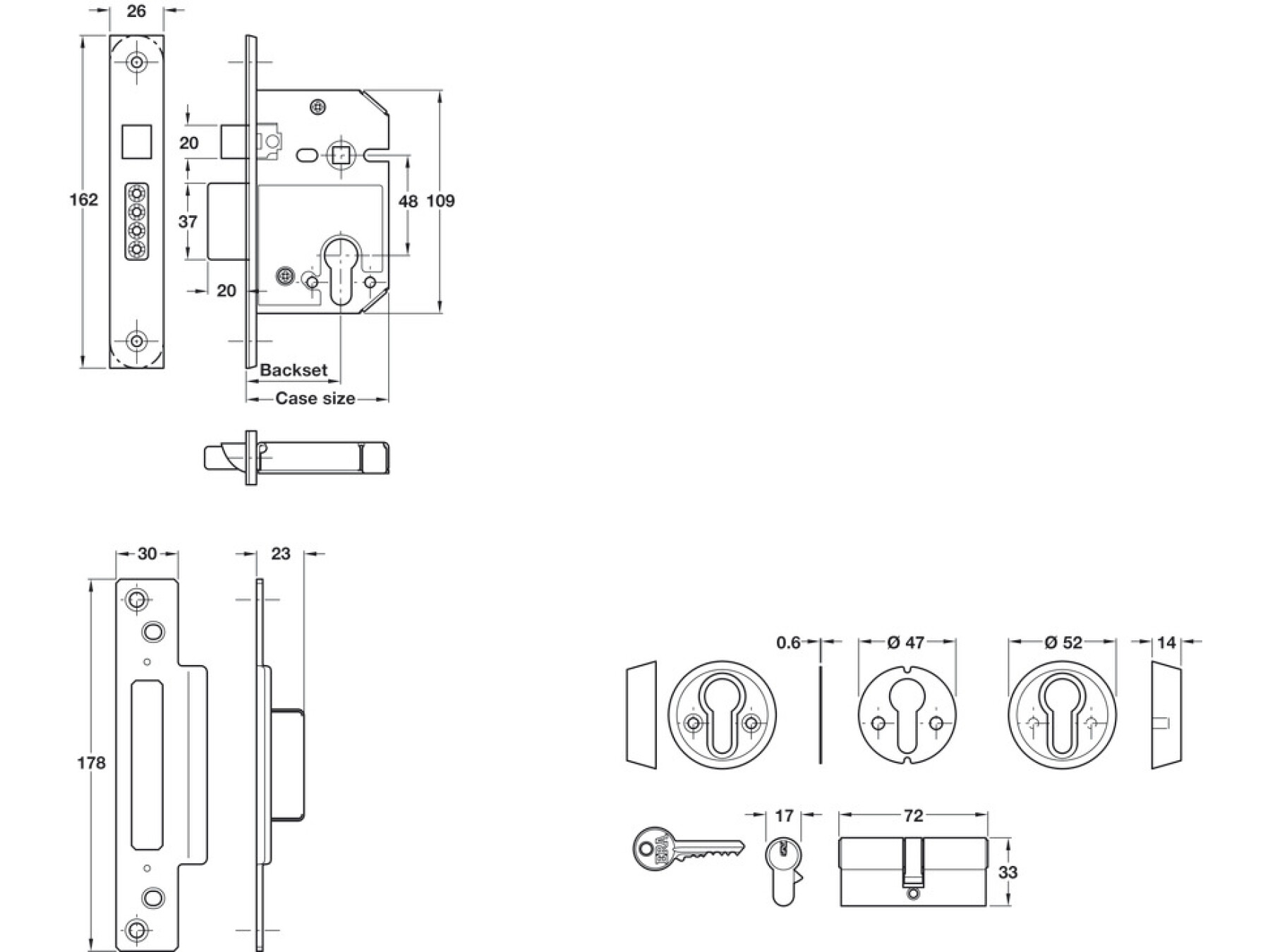

| Technical data | |
|---|---|
| Type of locking | PC |
| Distance | 48 mm |
| Deadbolt throw dim. | 20 mm |
| Lever follower | 8 mm |
Specifications
Type of locking
PC
Distance
48.00 mm
Forend design
Flat forend edged
Forend width
26.00 mm
Lever follower
8.00 mm
Material
Case: Hardened steel
Forend and strike plate: Steel
Latchbolt and deadbolt: Zinc alloy
Latchbolt version
Standard latch
Version
Strike plate with bolt pocket
Prepared for
Profile cylinder
Colour/finish
Satin stainless steel
Forend length
162.00 mm
Deadbolt version
Standard deadbolt
Supplied with
Keys: 3 included
Fixings
