Espagnolette Lock, Piccolo-Nova Case, with Pin Tumbler Cylinder, Backset 15 mm

Product Details

Espagnolette Lock, Piccolo-Nova Case, with Pin Tumbler Cylinder, Backset 15 mm is a precision-built MK locking system espagnolette lock designed to upgrade cabinet security with a clean, professional finish. Part No. 225.58.198 makes it an ideal choice for living and commercial furniture applications where reliable locking performance matters.

This lock case features a fixed pin tumbler cylinder with 5 pin tumblers, helping provide a secure, smooth action you can trust day after day. The case is made from zinc alloy and paired with a brass cylinder for durability and consistent operation.

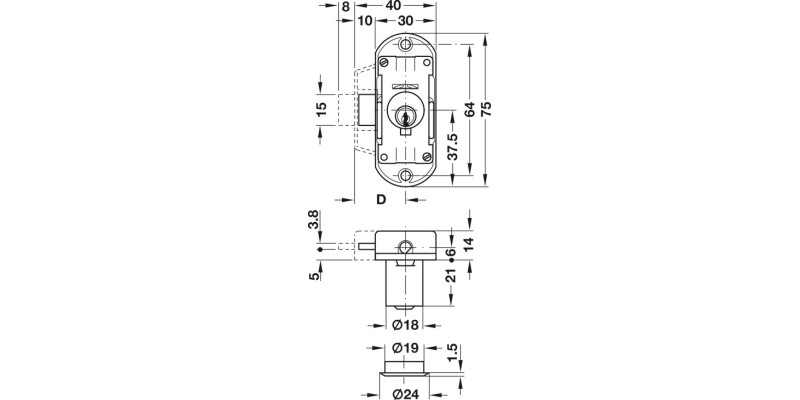

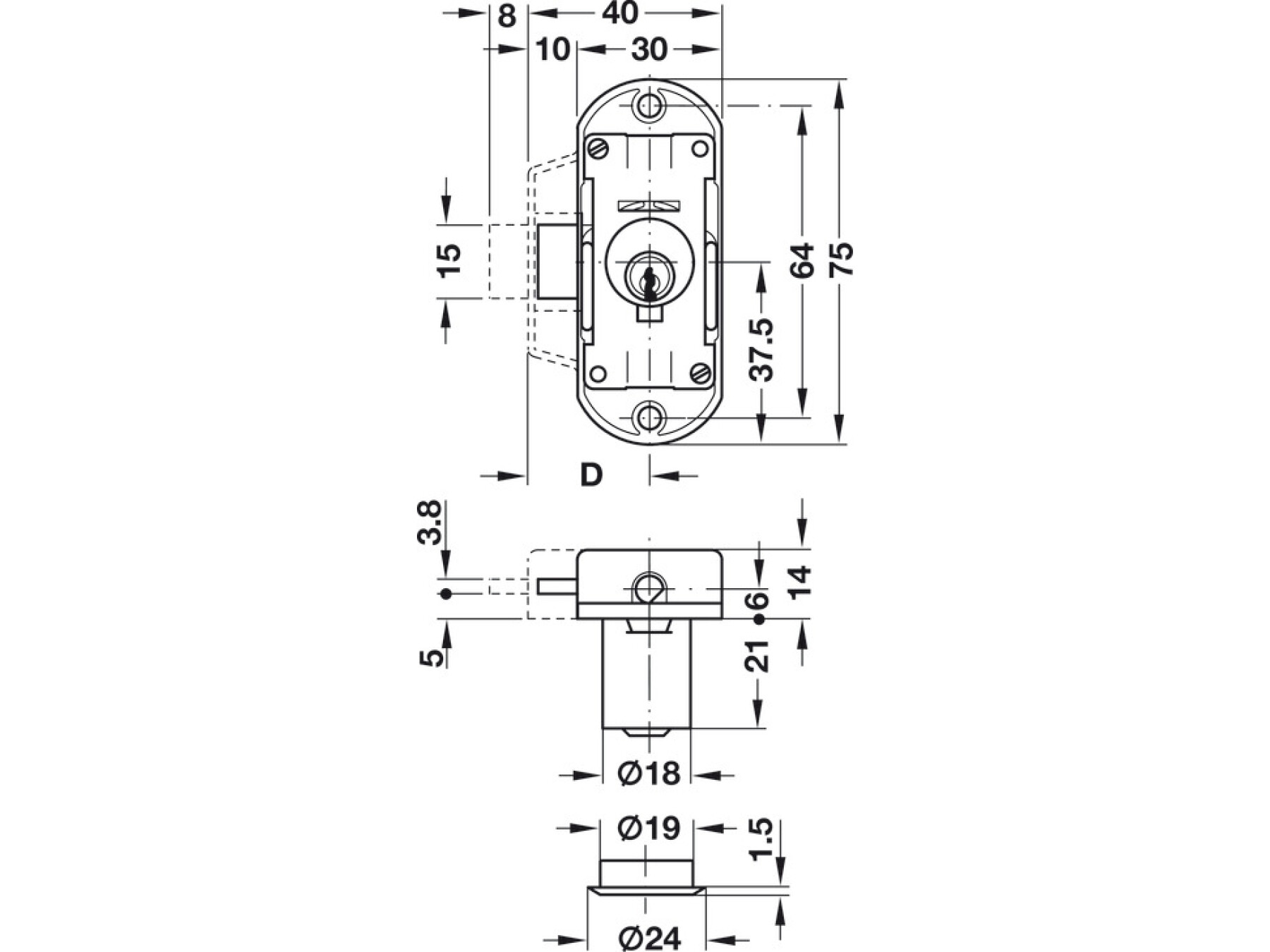

Finished in a nickel plated, matt look, the hardware offers an attractive appearance that suits modern interiors without distracting from your furniture design. The forend is 15.00 mm and the backset D is 15.00 mm, with installation using screw fixing for a straightforward, stable fit.

Flexible for different cabinet builds, the mounting is available for left or right hand use. The cylinder is round with a 18.00 mm diameter and a 21.00 mm cylinder length, and it’s for a divided profile rod Ø 6 mm.

For enhanced control, the Piccolo Nova Lock Case is supplied as part of a customised MK locking system. You’ll receive 1x espagnolette lock, 2x keys, and a cylinder rosette, plus the required documentation for master key systems (security pass and locking map).

Choose Espagnolette Lock, Piccolo-Nova Case, with Pin Tumbler Cylinder, Backset 15 mm for stronger cabinet security, a premium matt nickel finish, and an MK system you can tailor to your needs.

For master key systems the order must be based on the locking map.

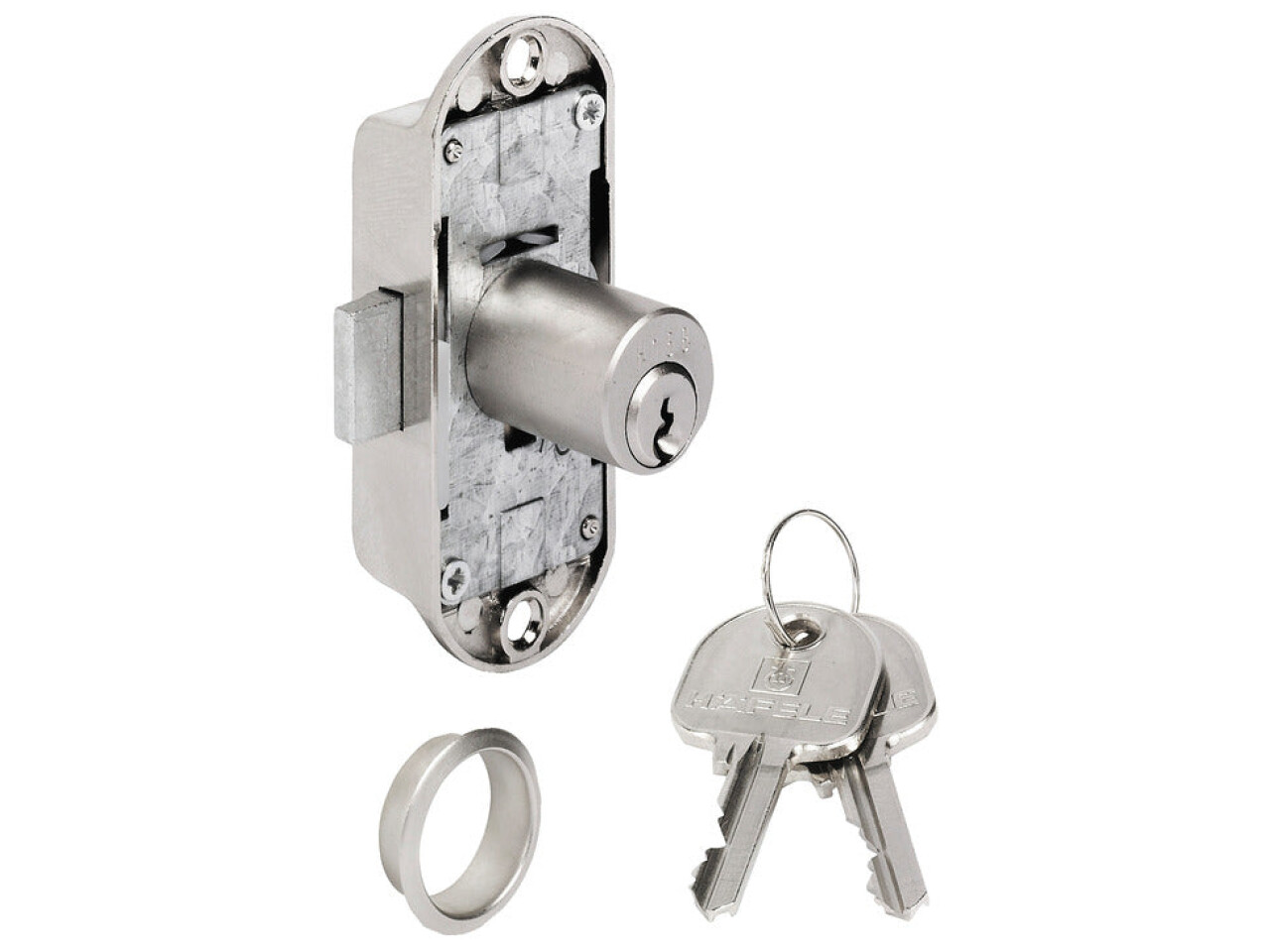

1x Espagnolette lock
2x Keys
1x Cylinder rosette
Security pass and locking map with master key systems
