Jig Supplement, for Concealed Hinges Ø 35mm, 45/9.5mm, Häfele Red Jig

Product Details

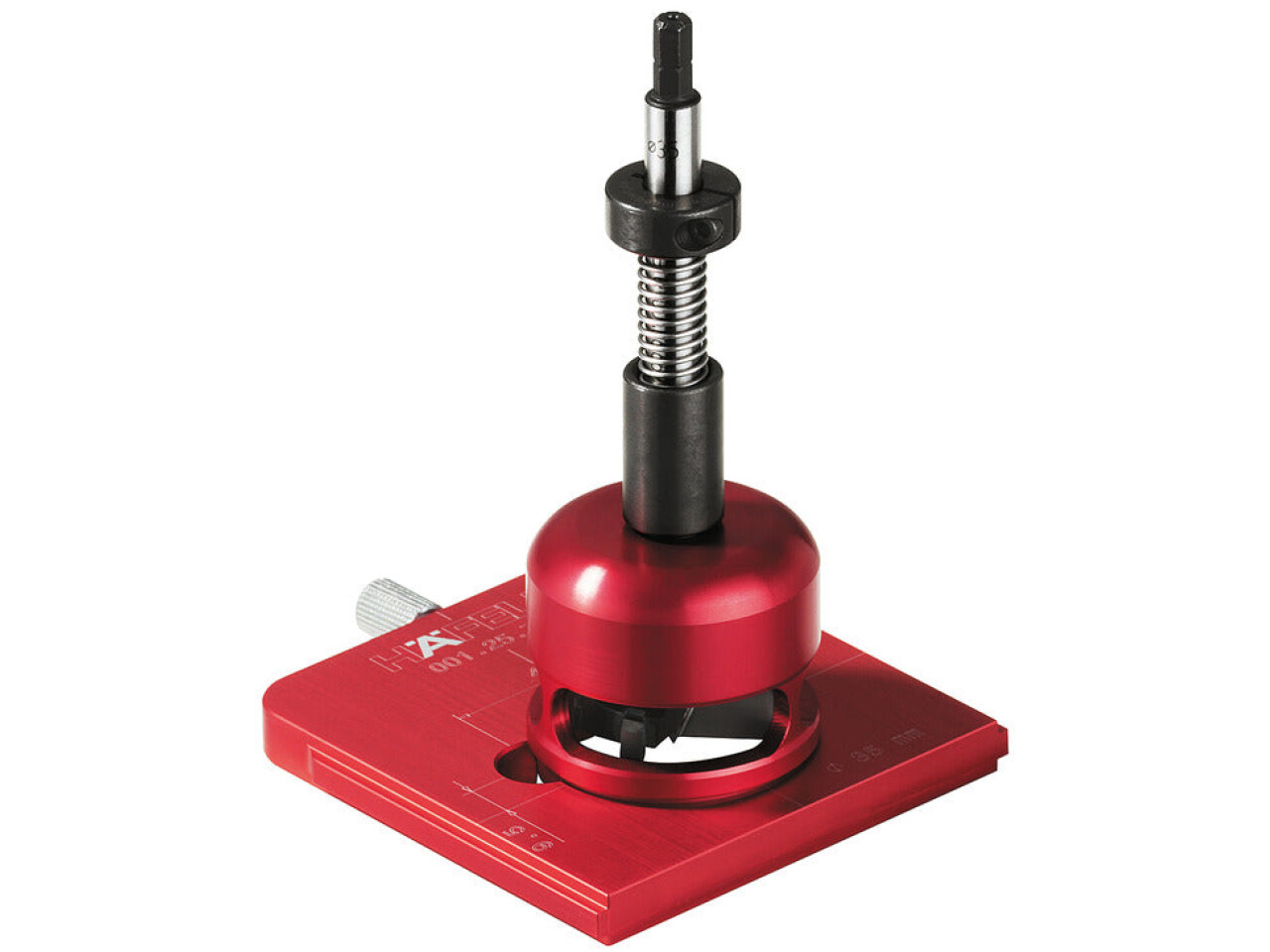

Jig Supplement, for Concealed Hinges Ø 35mm, 45/9.5mm, Häfele Red Jig (Part No: 001.25.832) is a dependable drill guide set designed to help you install concealed hinges with confidence and precision. Built for repeatable accuracy, this Häfele Red Jig supplement works seamlessly with the Red Jig system—ideal for cabinet makers, joiners, and fitters who value clean alignment and consistent results.

With the Jig Supplement, for Concealed Hinges Ø 35mm, 45/9.5mm, Häfele Red Jig you can achieve accurate drilling for concealed hinges 35 mm. The set is specifically intended for concealed hinge drilling dimensions 45/9.5, helping you produce correctly positioned bores every time. Whether you’re working on residential joinery or professional installations, this guide makes it easier to stay on-spec and reduce the risk of misalignment.

Key features:

• Suitable for: concealed hinges 35 mm, drilling dim. 45/9.5

• Version: Additional Häfele Red Jig for concealed hinges Ø 35 mm, drilling pattern 45/9.5

• Area of application: precise drilling of drill holes for concealed hinges Ø 35 mm

• Drill bit Ø: 35 mm

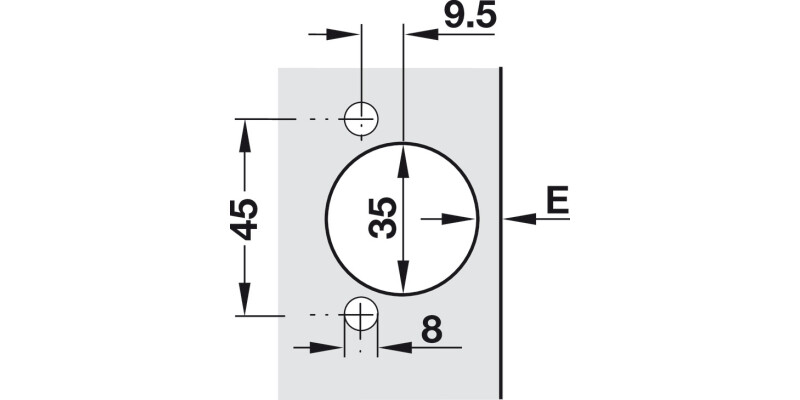

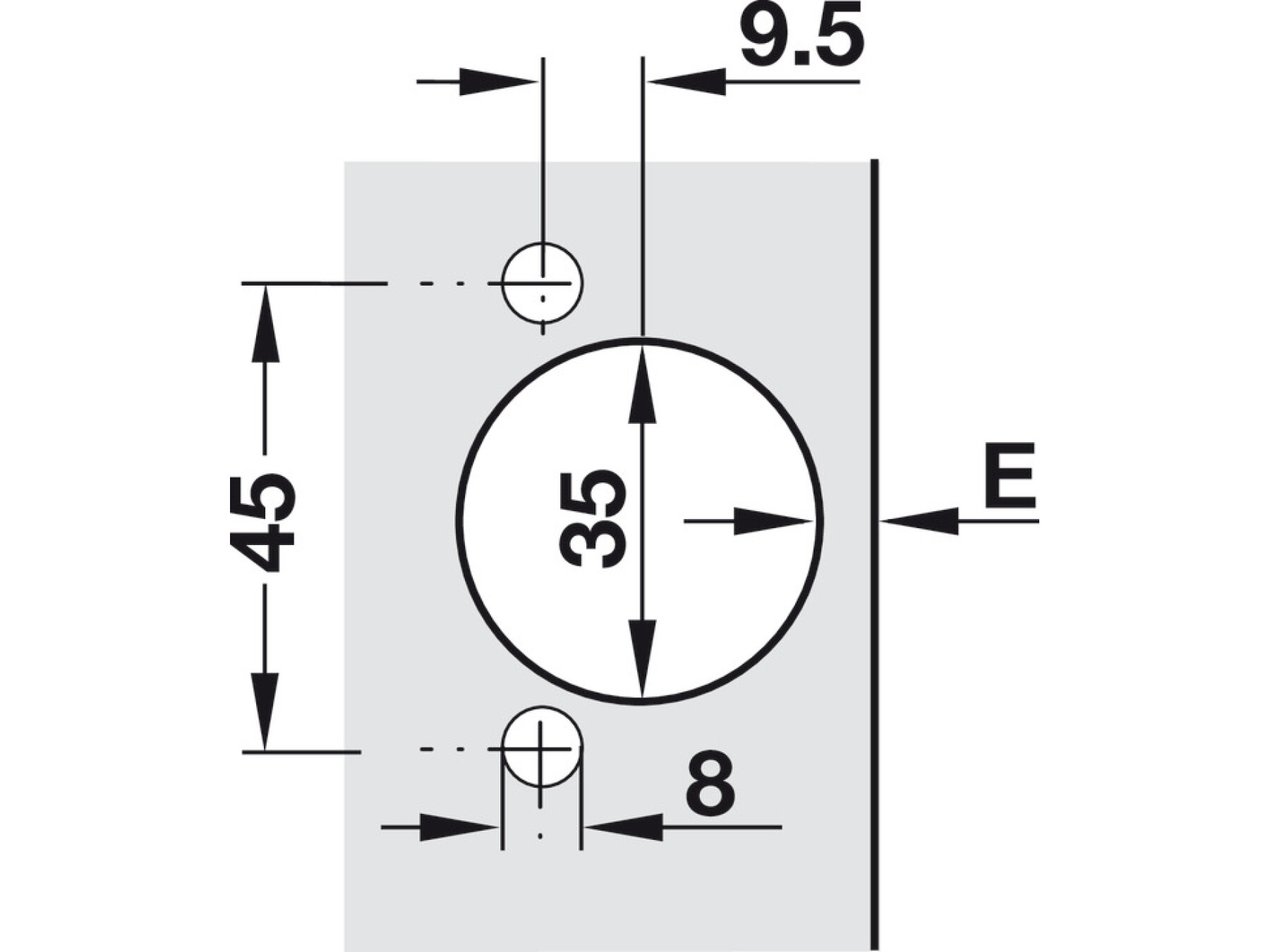

• Drilling pattern: 45/9.5

• Material: aluminium

• Colour/finish: red, anodized

Order reference: Red drilling jig and spare parts are to be ordered separately as required. Upgrade your workflow with the Jig Supplement, for Concealed Hinges Ø 35mm, 45/9.5mm, Häfele Red Jig—a smart choice for precise, efficient concealed hinge installation.

Red drilling jig and spare parts to be ordered separately as required
