Concealed Drawer Runners, Full Extension, Packed Set with 4D Fixing Clips, Dynap is a premium concealed drawer... Read More

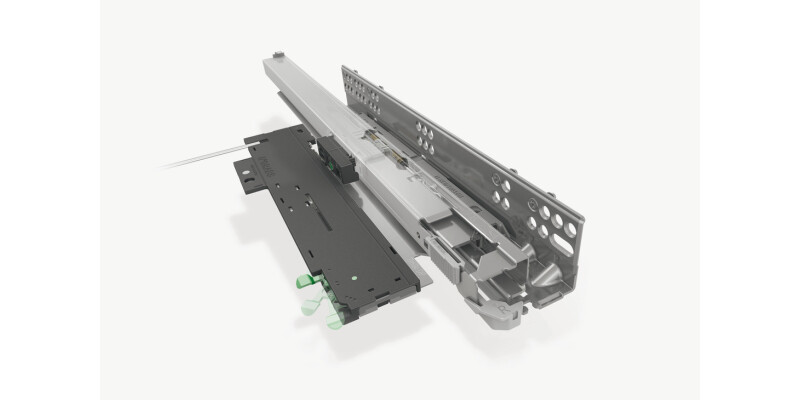

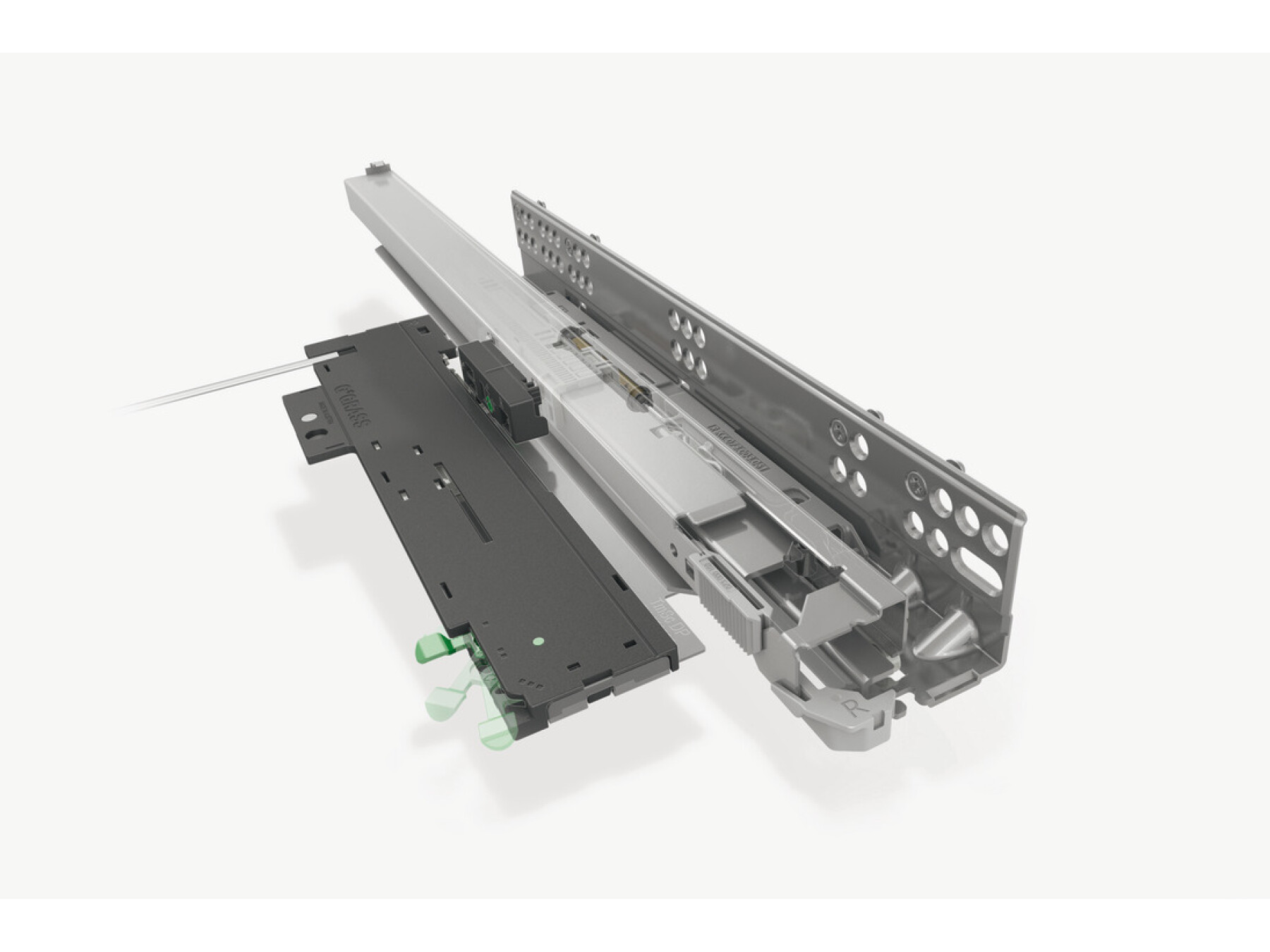

Concealed Drawer Runners, Full Extension, Packed Set with 4D Fixing Clips, Dynap is a premium concealed drawer runner system designed for smooth, reliable operation in both living and commercial furniture. Built around a high-performance mechanical opening mechanism with a convenient touch-to-open feel, this runner also features integrated liquid Soft-close® technology—so your drawers glide shut quietly and stay under control every time.
Ideal for applications requiring a full, unobstructed extension, the product subtitle—“With integrated liquid Soft-close® and touch to open mechanical opening system, Nominal length 550 mm, drawer length 540 mm”—highlights the perfect fit for drawers that need an effortless everyday experience. You’ll enjoy comfort functions that make opening and closing feel effortless, combining soft-close fluid damping with push to open performance.
Engineered for strength, these drawer runners deliver a 70.00 kg load bearing capacity, supported by a durable steel construction with a zinc plated finish for added protection and longevity. Mounting is designed to be straightforward with slide-on installation, using a 32 mm drilling pattern for accurate alignment and secure fixing.
For fast project planning, this unit is supplied as a complete set including 1x pair runners, 1x pair 4D fixing clips, 1x Tipmatic set, and 1x synchronised bar. Please note: countersunk and pan head screws in the specified sizes must be ordered separately (order reference 433.20.832).
Upgrade your drawer performance with the Concealed Drawer Runners, Full Extension, Packed Set with 4D Fixing Clips, Dynap—clean lines, effortless opening, and dependable soft-close comfort in one refined system.
Steel
Zinc plated
Slide-on
32 mm drilling pattern
Varianta Ø 5 mm countersunk screws and Hospa Ø 4.0 mm pan head screws to be ordered separately
Set includes:
1x pair runners

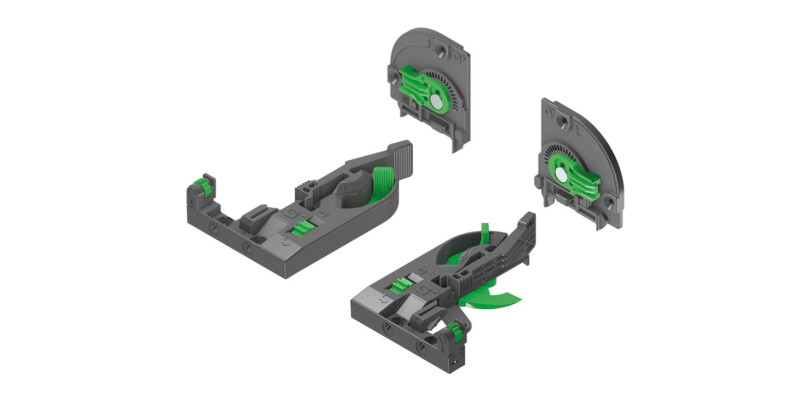

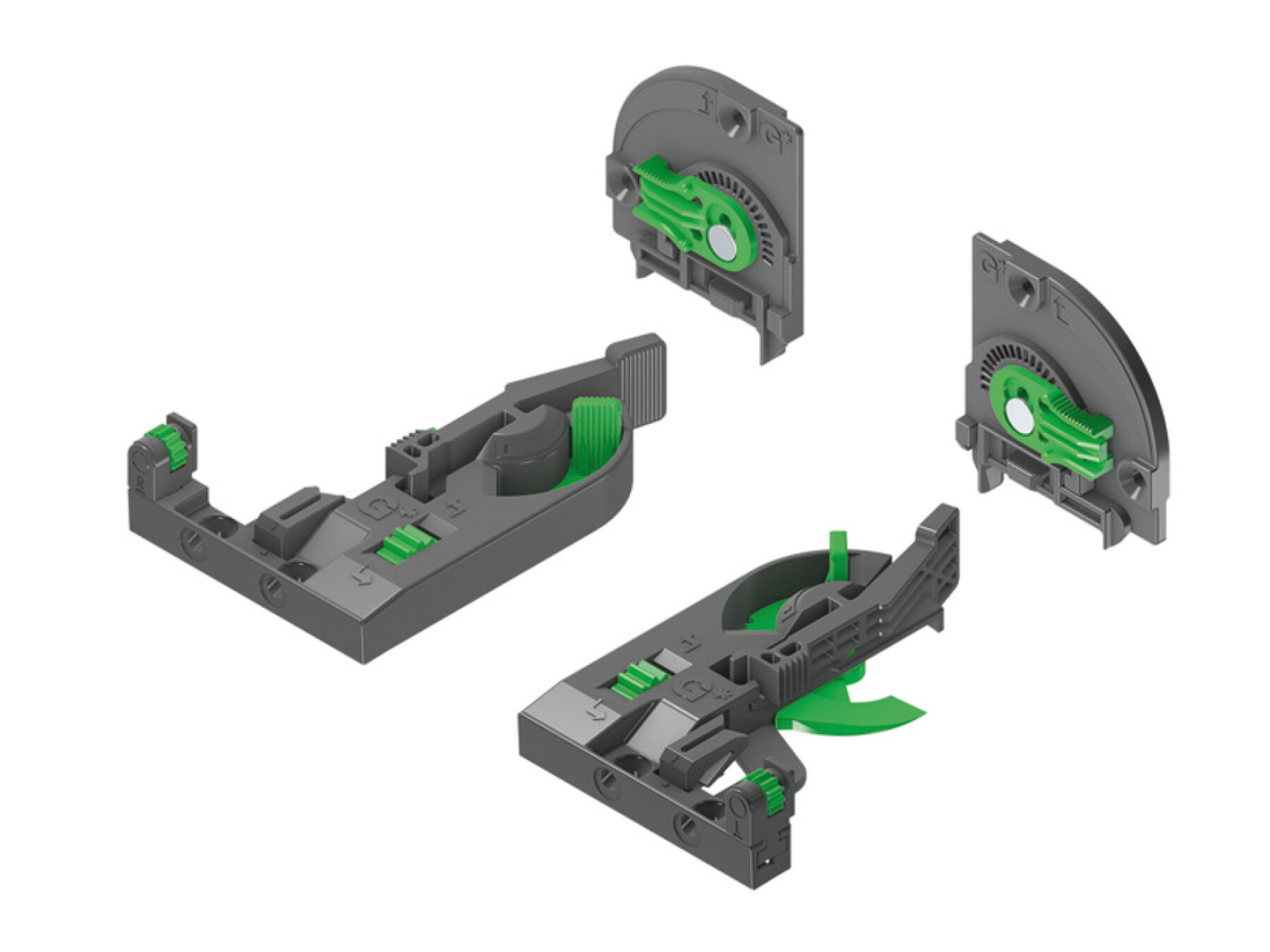

1x pair 4D fixing clips
1x Tipmatic set

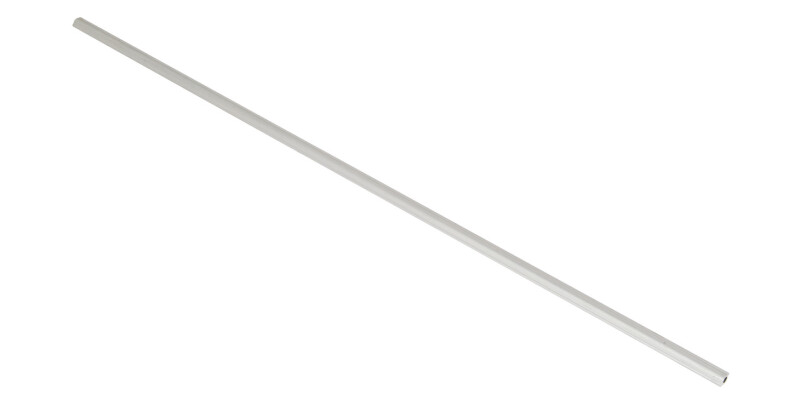

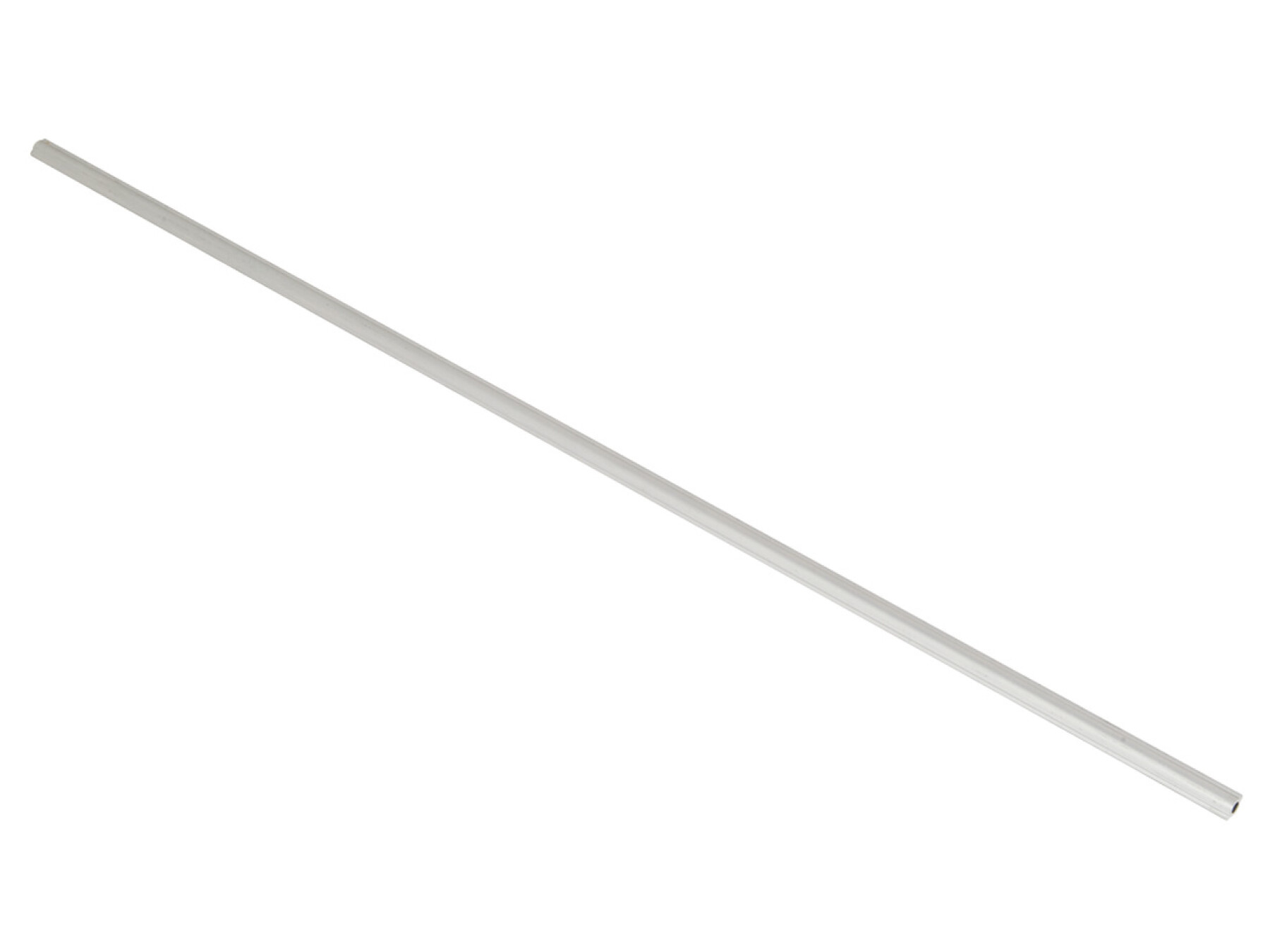

1x Synchronised bar
Yes. These concealed drawer runners include an integrated liquid Soft close function, which helps the drawer close smoothly and reduces noise when it reaches the end of travel.
Push to open operation is built in. With the drawer properly set up on the runners, you can lightly touch or press the drawer front to release it, allowing the drawer to open smoothly without pulling.
Up to 70 kg load capacity applies when used as directed. Always consider the total weight of the drawer contents and distribute weight evenly for best performance.
Nominal length is 550 mm, with a drawer length of 540 mm. This means it is intended for drawer builds matched to that size. If you are unsure of your drawer length, measure the drawer box length to confirm compatibility.
The runners use slide on mounting with a 32 mm drilling pattern. Plan your cabinet preparation around this drilling layout to ensure clean alignment and secure fixing during installation.
Set includes: a pair of runners, a pair of 4D fixing clips, the Tipmatic set, and a synchronised bar. Any additional screws may need to be sourced separately depending on your fixing choice.
Yes, in some cases. The order reference specifies that Ø 5 mm countersunk screws and Ø 4.0 mm pan head screws are to be ordered separately. Check your cabinet and fixing requirements before you install.
