Concealed Drawer Runners, Full Extension, Packed Set with 4D Fixing Clips, Dynap (Part No: 433.19.684) is the... Read More

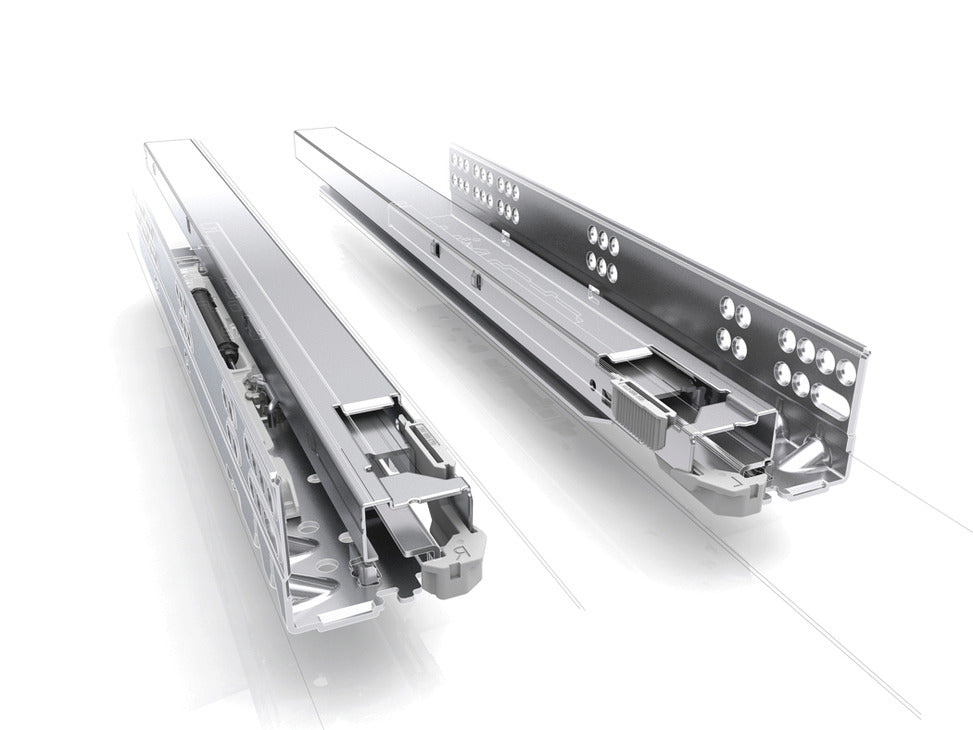

Concealed Drawer Runners, Full Extension, Packed Set with 4D Fixing Clips, Dynap (Part No: 433.19.684) is the ideal choice for anyone upgrading furniture with smooth, dependable drawer motion. Designed for concealed installations, this runner set delivers a premium feel from day one—helping your drawers glide effortlessly while keeping the hardware neatly out of sight.
Built with an integrated liquid Soft-close®, the Concealed Drawer Runners, Full Extension, Packed Set with 4D Fixing Clips, Dynap features gentle, fluid dampening that slows the drawer’s closing action for a quiet, controlled finish. Thanks to the Push to open comfort function, drawers open with minimal effort—perfect for kitchens, living spaces, offices, and commercial fit-outs.
With a nominal length of 350 mm and a drawer length of 340 mm, this concealed drawer runner is made to fit seamlessly into cabinetry designs. It offers a strong 40.00 kg load-bearing capacity, giving you confidence for everyday storage—pots, tools, linens, files, and more.
Crafted from steel and finished with zinc plating, these runners are built for long-term durability. Installation is straightforward with a 32 mm drilling pattern, and the slide-on mounting style helps streamline fitting time.
Supplied with a complete set including 1x pair runners and 1x pair 4D fixing clips, the Concealed Drawer Runners, Full Extension, Packed Set with 4D Fixing Clips, Dynap provides everything you need for a clean, professional upgrade.
Steel
Zinc plated
Slide-on
32 mm drilling pattern

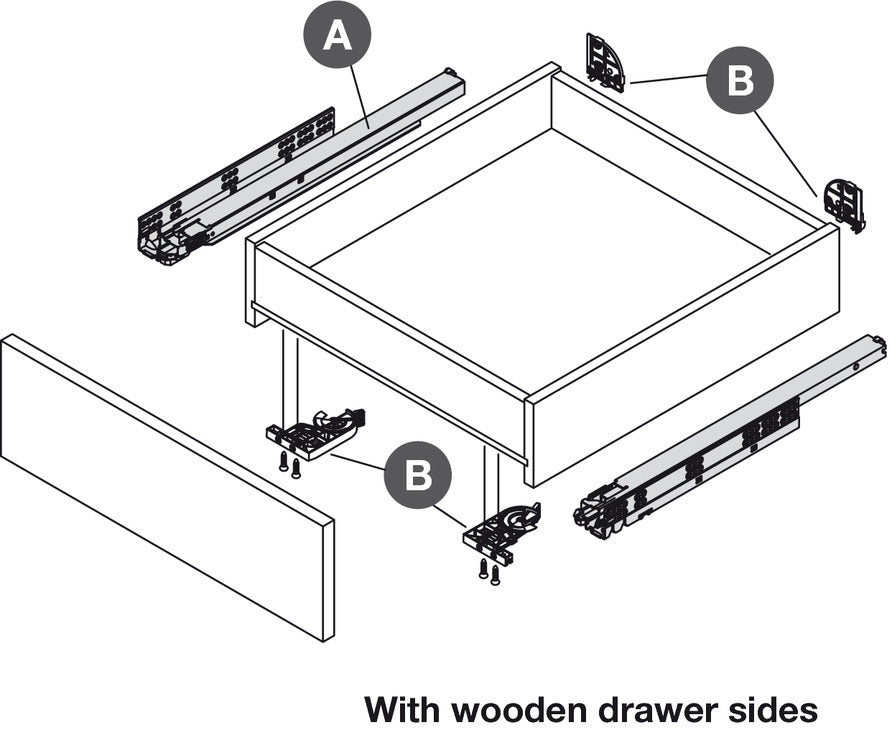

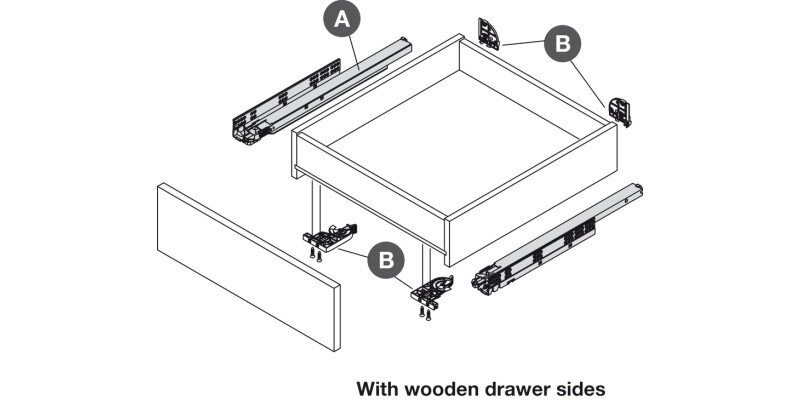

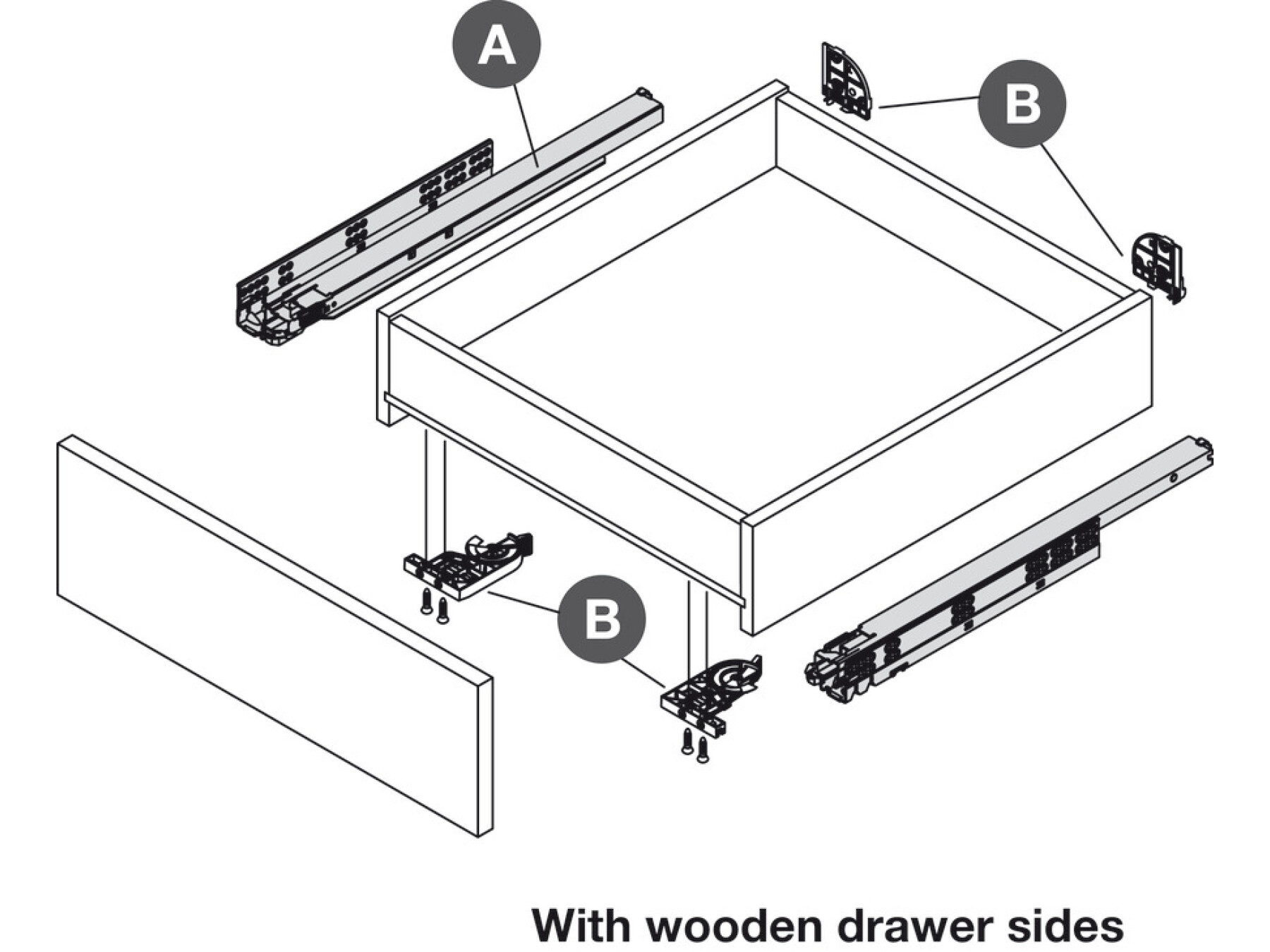

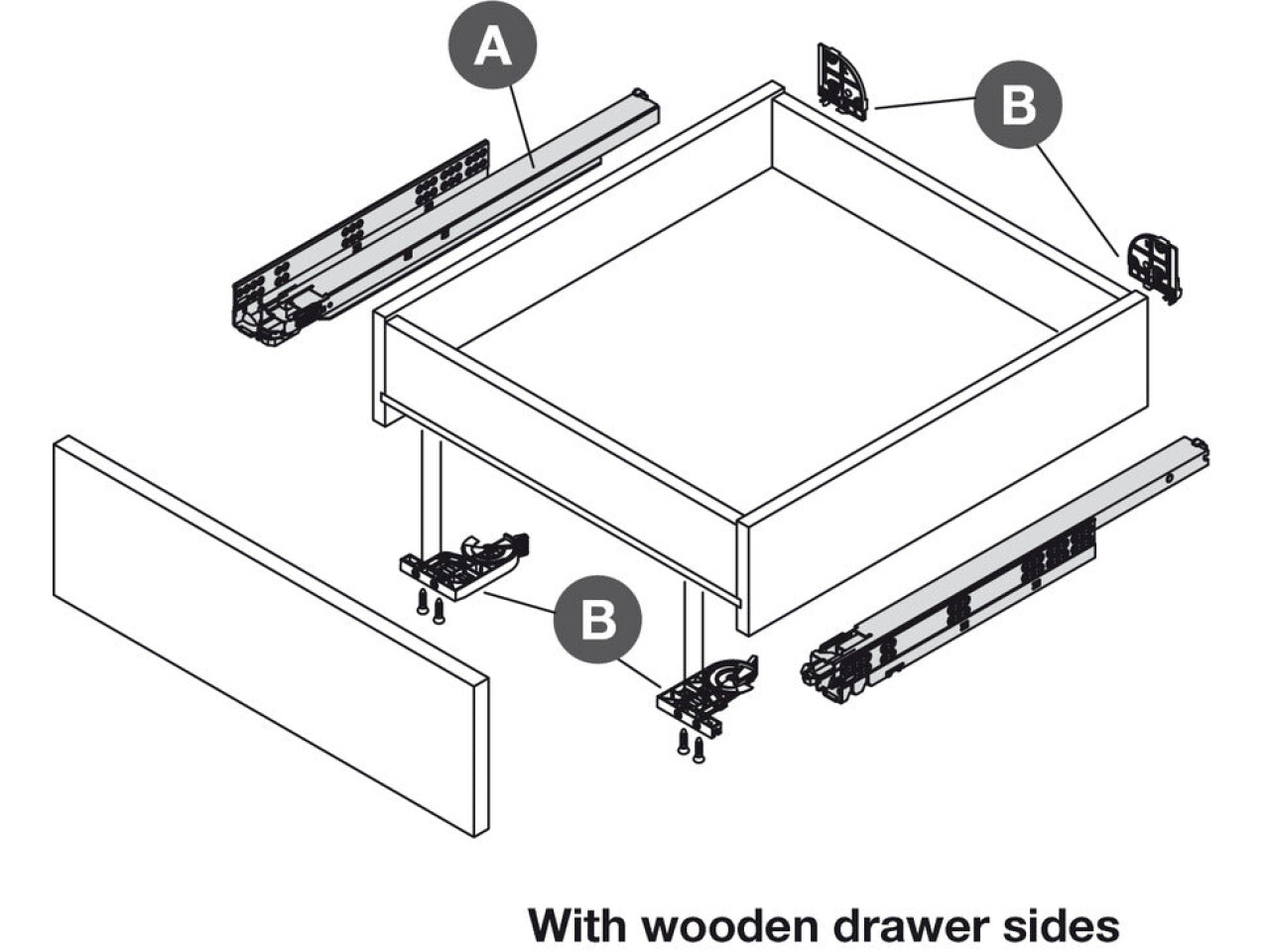

Set includes:
1x pair runners

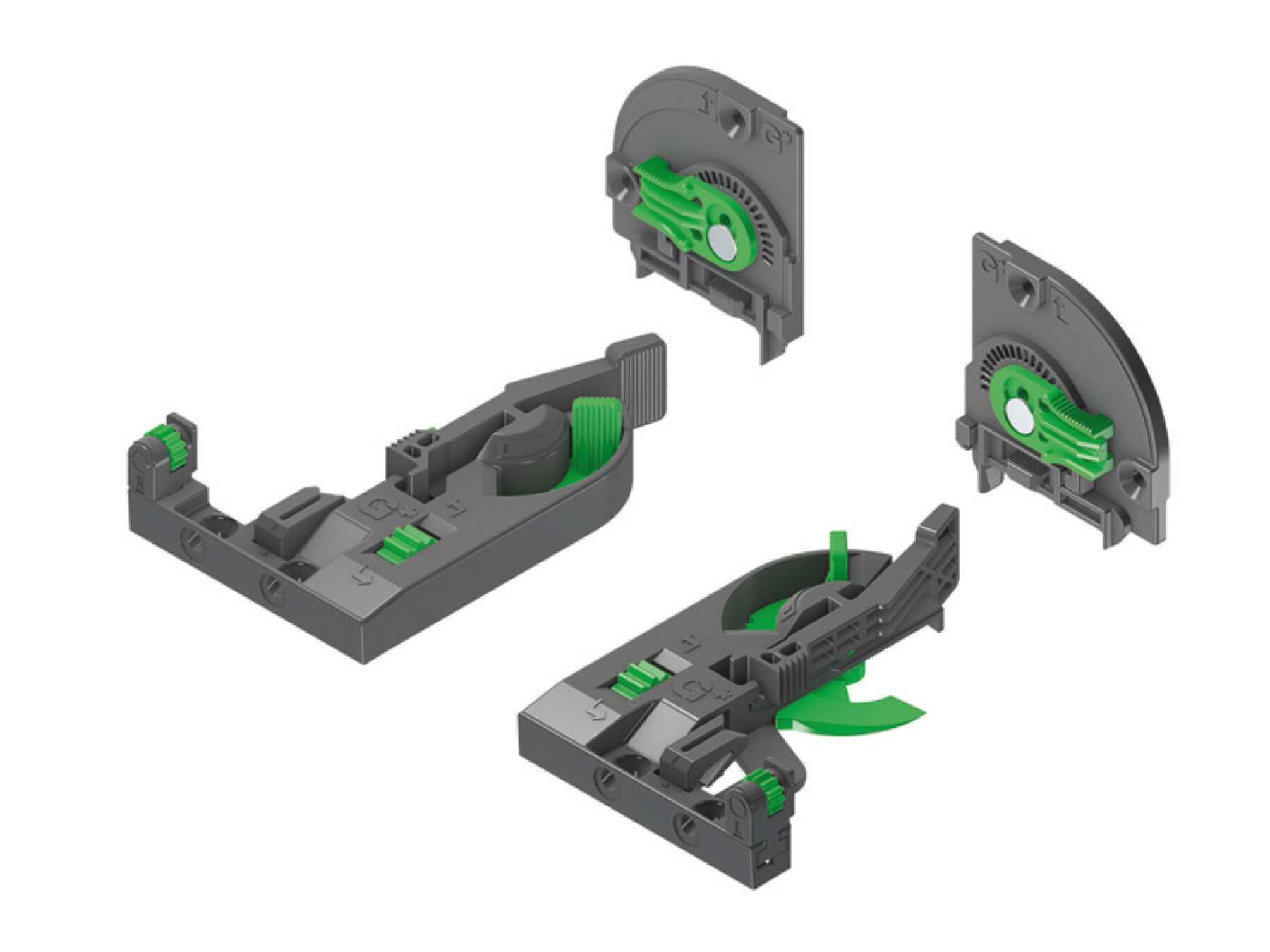

1x pair 4D fixing clips
Yes. Dynapro Drawer Runner Liquid Full 40kg 350mm is rated for a maximum load of 40.00 kg, making it a good choice for kitchens, workshops, and other living and commercial furniture where drawers may be heavily used.
The runner includes an integrated liquid Soft close system that gently slows the drawer during closing for smoother operation and reduced slamming. It is also push to open, so drawers can be opened with a light push for neat, handle free style.
This model is designed with a nominal runner length of 350 mm and a drawer length of 340 mm. Check your drawer box dimensions to confirm compatibility before purchasing.
These runners use a slide on mounting style and are installed using a 32 mm drilling pattern. If you are matching an existing layout, make sure your screw and hole positions follow the same pattern for a straightforward fit.
Yes. The set includes 1x pair runners and 1x pair 4D fixing clips, so you can complete the installation without needing to source the additional clips separately.
The runners are zinc plated, which helps provide corrosion resistance for everyday use. This finish is especially useful in furniture that experiences regular opening and closing or slightly humid environments.
Dynapro Liquid Full runners are designed for full extension so you can access the full drawer contents more easily. This improves usability, particularly in deeper drawers where items at the back can otherwise be hard to reach.
