Concealed Drawer Runners, Full Extension, Packed Set with 4D Fixing Clips, Dynap (Part No: 433.20.816) is a... Read More

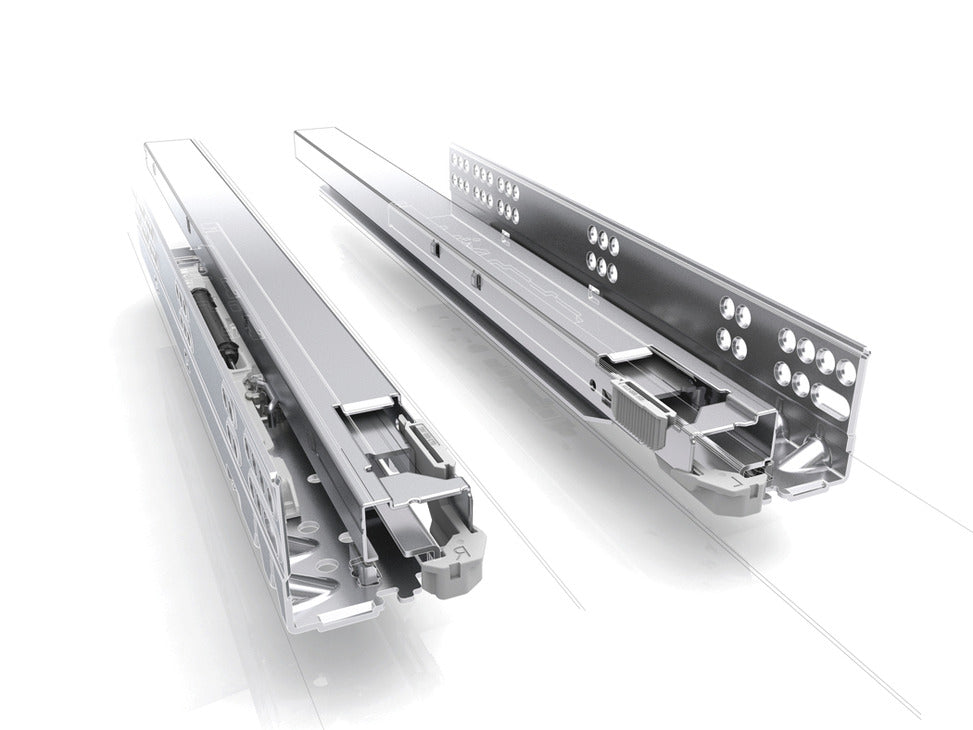

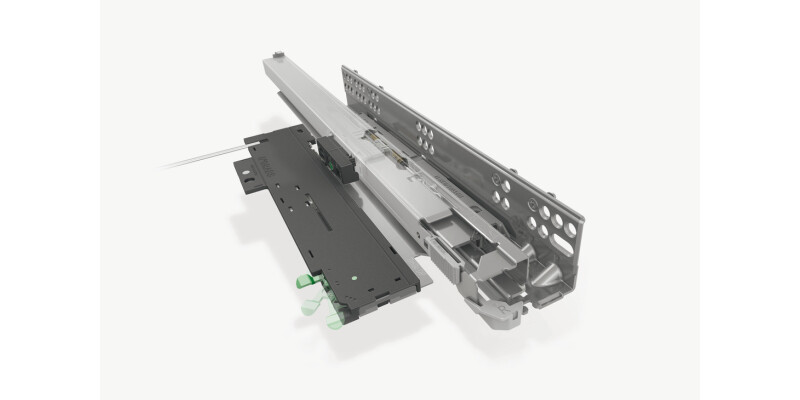

Concealed Drawer Runners, Full Extension, Packed Set with 4D Fixing Clips, Dynap (Part No: 433.20.816) is a premium concealed drawer runner designed for smooth, reliable everyday operation in both living and commercial furniture applications. Built for drawers that need to open easily and close quietly, this 750mm runner system pairs full extension travel with advanced comfort functions—making it an excellent choice for kitchens, cabinetry, vanities, and workshop-ready storage solutions.
The Concealed Drawer Runners, Full Extension, Packed Set with 4D Fixing Clips, Dynap subtitle highlights its standout features: integrated liquid Soft-close® plus a touch to open mechanical opening system. With push-to-open activation and fluid-damped soft closing, drawer doors glide in and out effortlessly—reducing slam and improving long-term user satisfaction.
Engineered for strength, these slide-on concealed runners support a 50.00 kg load capacity, helping you build or upgrade drawers with confidence. Made from steel and finished in zinc plated corrosion-resistant protection, they’re built to perform across demanding environments.
Installation is straightforward thanks to the 32 mm drilling pattern. You’ll also receive a complete set including 1x pair runners, 1x pair 4D fixing clips, Tipmatic set, and 1x synchronised bar.
Order reference note: Varianta Ø 5 mm countersunk screws and Hospa Ø 4.0 mm pan head screws must be ordered separately.
If you’re upgrading drawers for effortless access and a refined close, choose the Concealed Drawer Runners, Full Extension, Packed Set with 4D Fixing Clips, Dynap today.
Steel
Zinc plated
Slide-on
32 mm drilling pattern
Varianta Ø 5 mm countersunk screws and Hospa Ø 4.0 mm pan head screws to be ordered separately
Set includes:
1x pair runners

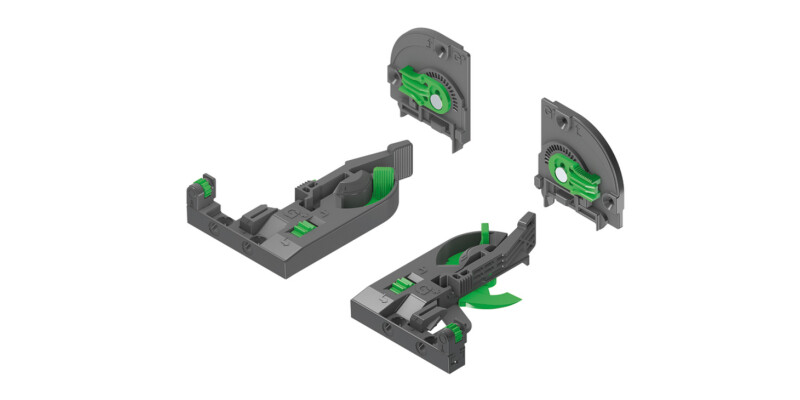

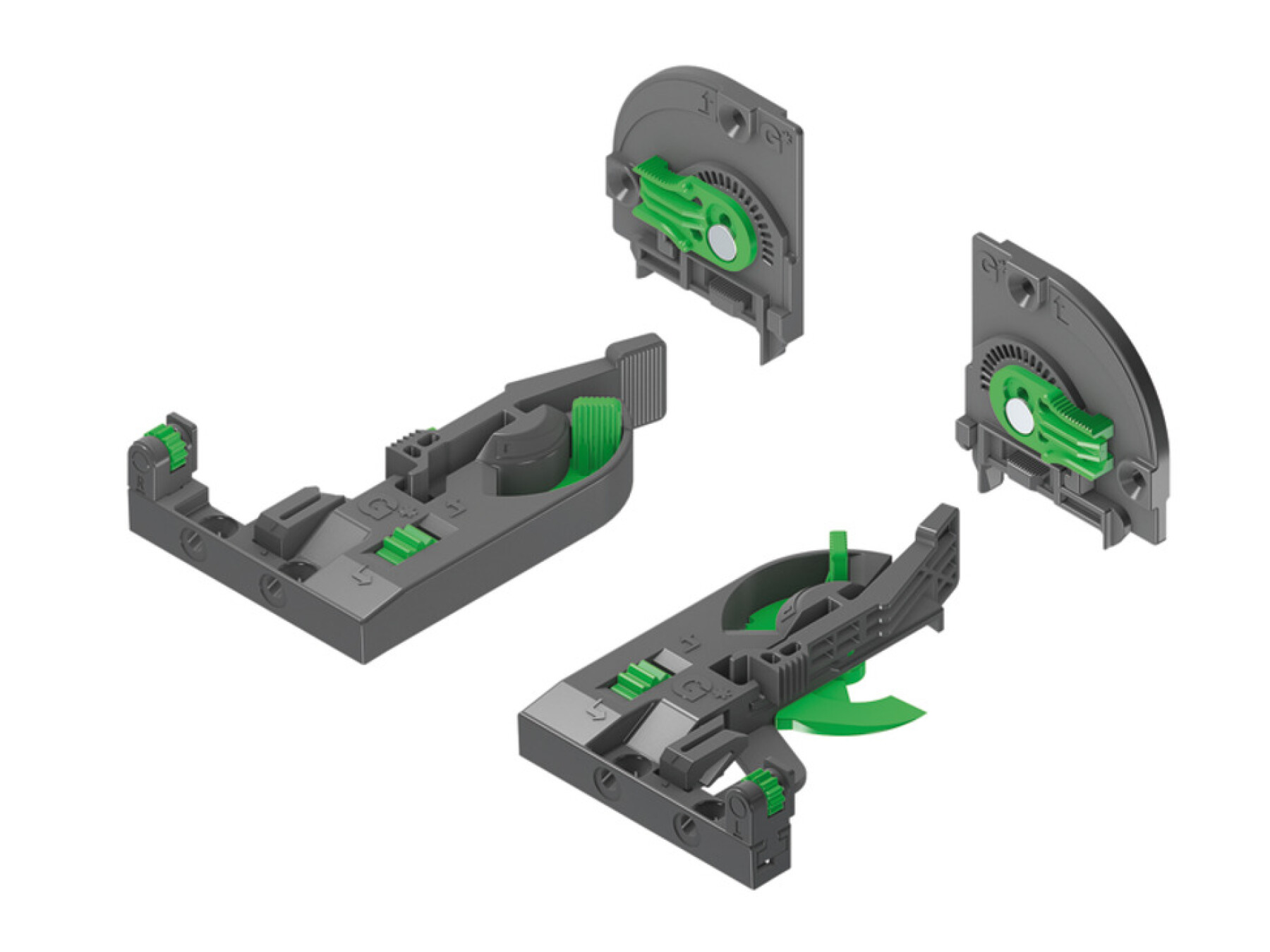

1x pair 4D fixing clips

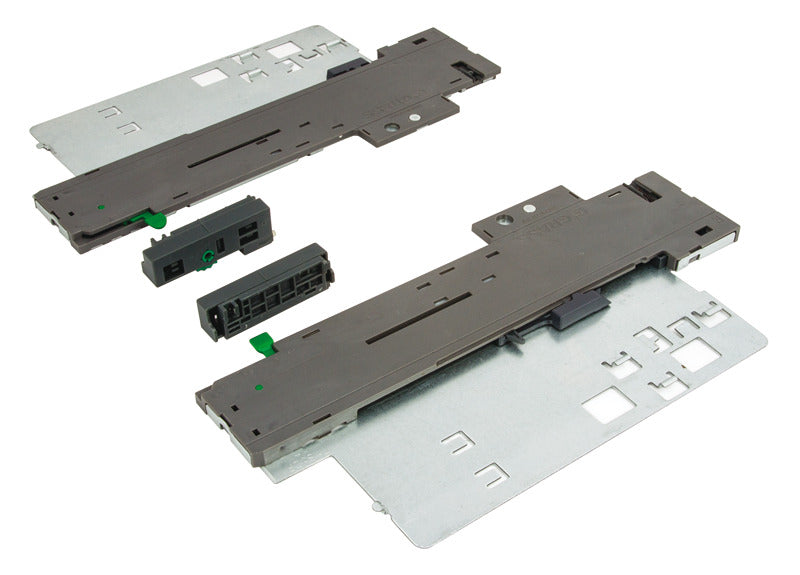

1x Tipmatic set

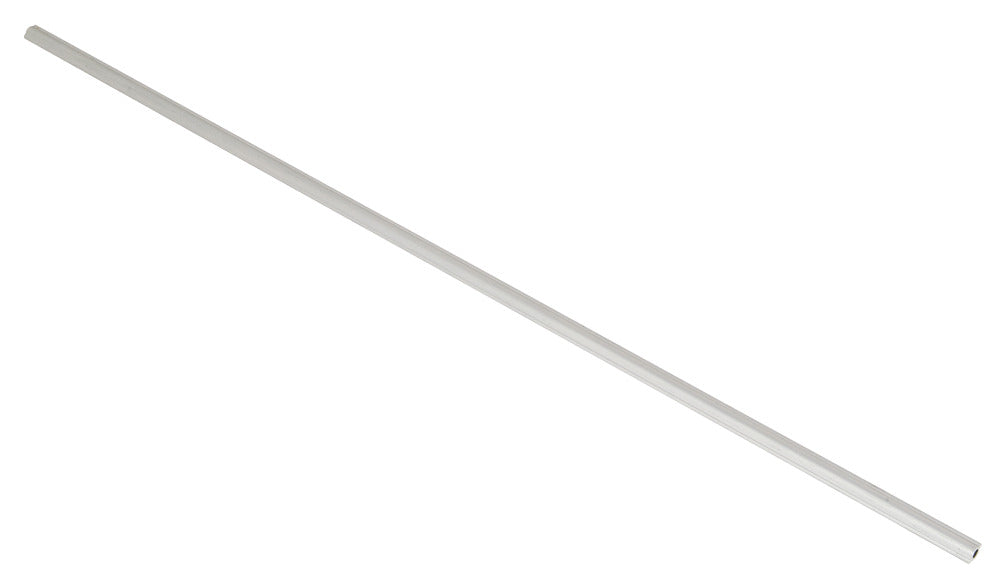

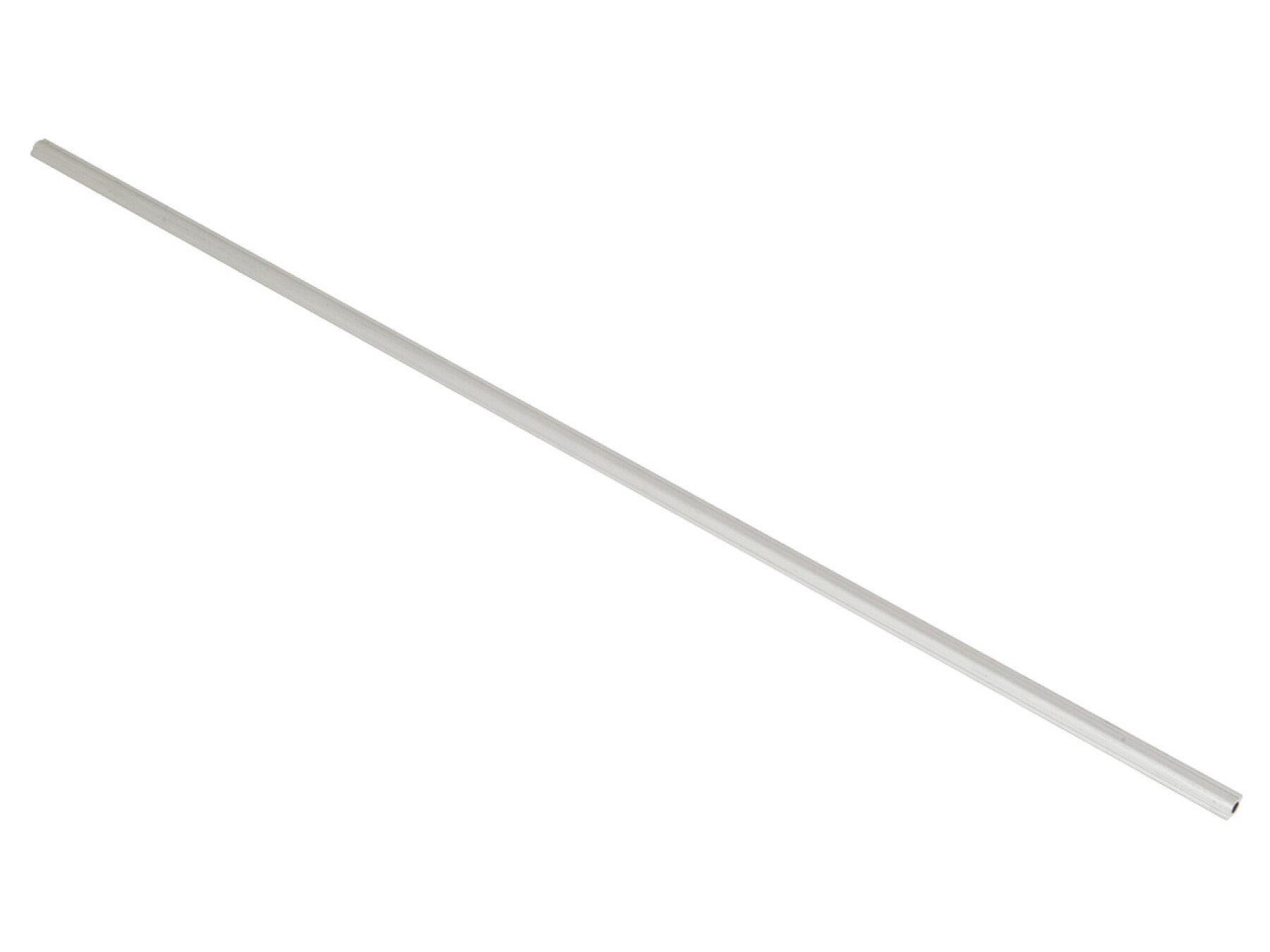

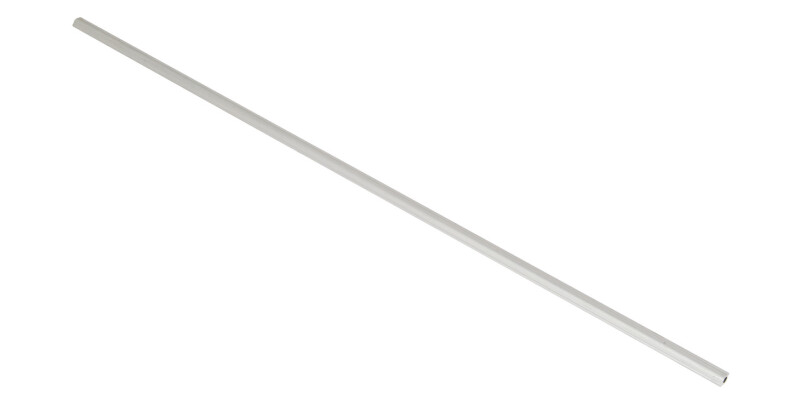

1x Synchronised bar

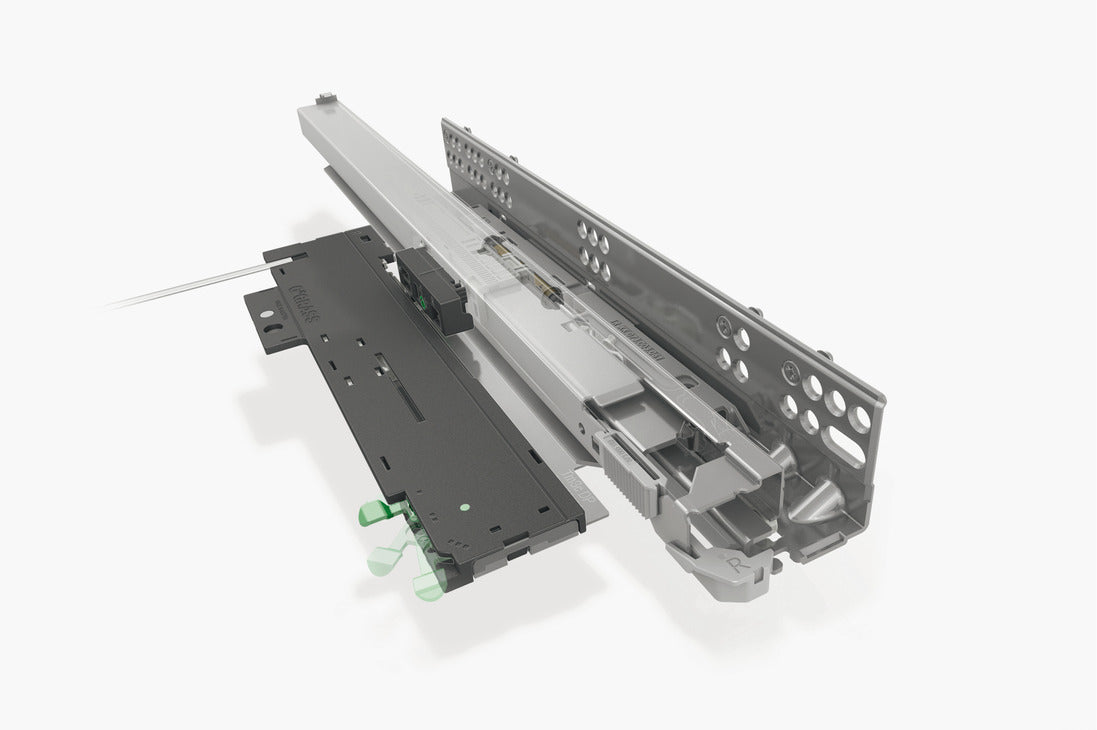

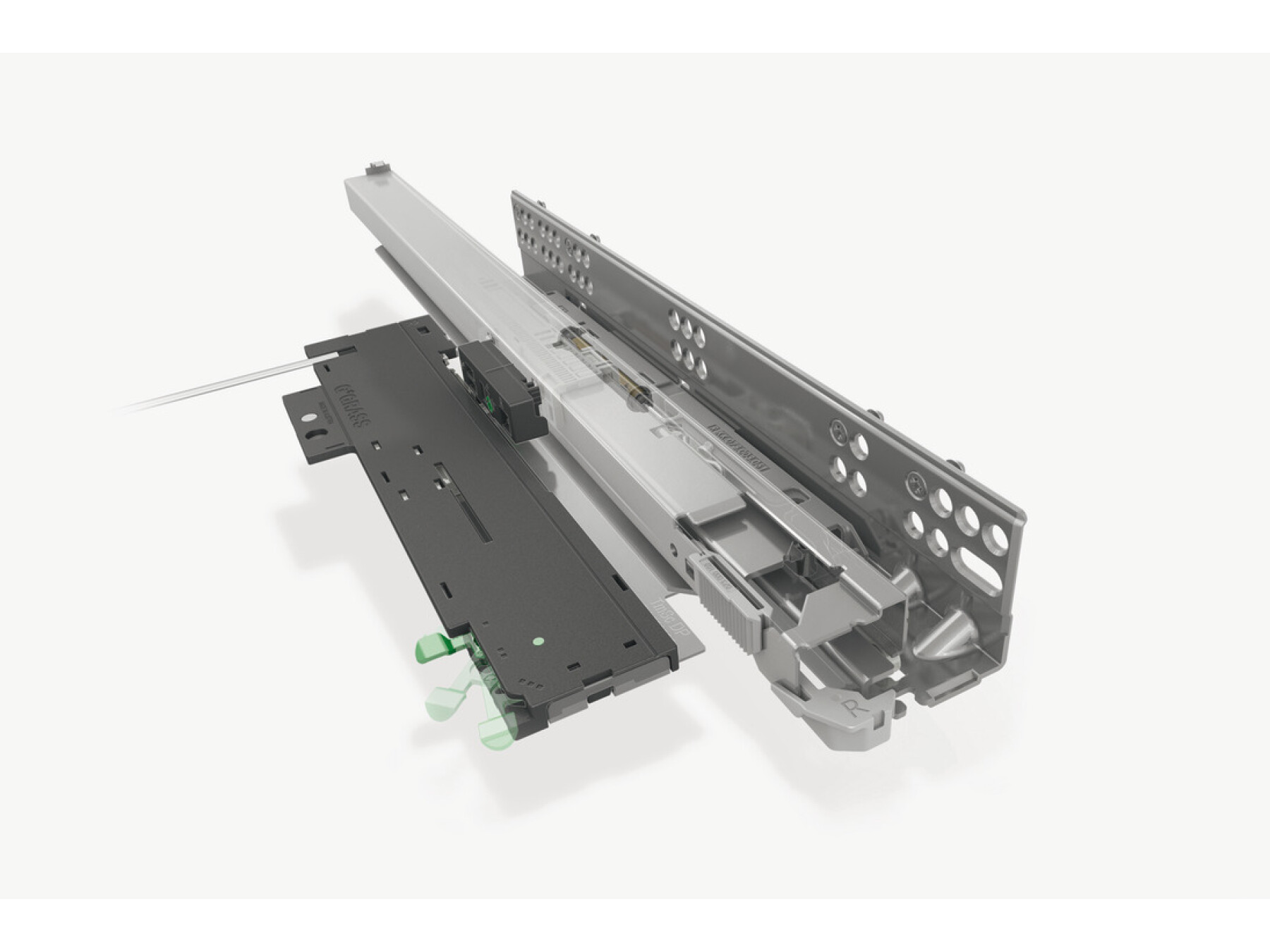

The Dynapro Tipmatic runners use a touch to open mechanical system built into the slide. With the drawer closed, a light push triggers the mechanism and the drawer glides open smoothly. This is designed to remove the need for handles in many furniture layouts while keeping operation simple and consistent.
Yes. The integrated liquid Soft close uses fluid damping to slow the drawer during the closing phase. This helps reduce impact noise and helps protect both the drawer and front fittings by allowing a controlled, gentle close every time.
These runners are rated for a load bearing capacity of up to 50.00 kg (when installed correctly and used within the intended configuration). If you are building or upgrading heavy drawer storage, choosing a 50 kg rated runner helps you achieve reliable performance.
The runners have a nominal length of 750 mm and are intended for a drawer length of 740 mm. Using the correct drawer length helps ensure smooth travel and proper alignment, especially when fitting concealed runners into carcasses.
Installation uses a 32 mm drilling pattern. Following the specified drilling layout is important for correct mounting and stable movement, particularly with concealed runner systems where the geometry affects alignment and smooth operation.
The set includes 1x pair runners, 1x pair 4D fixing clips, 1x Tipmatic set, and 1x synchronised bar. This means you can complete the core runner installation without needing to source the main components separately.
Yes. The order reference indicates you should source the required screws separately. Variants may include Ø 5 mm countersunk screws and Ø 4.0 mm pan head screws, depending on your chosen fixing set and fitting requirements.
