Name: Pivot Sliding Door Runners, for Cabinet Doors, Accuride 1432
SKU: 408.24.541
Price: 128.42 GBP
Availability: InStock

Part Number: 408.24.541

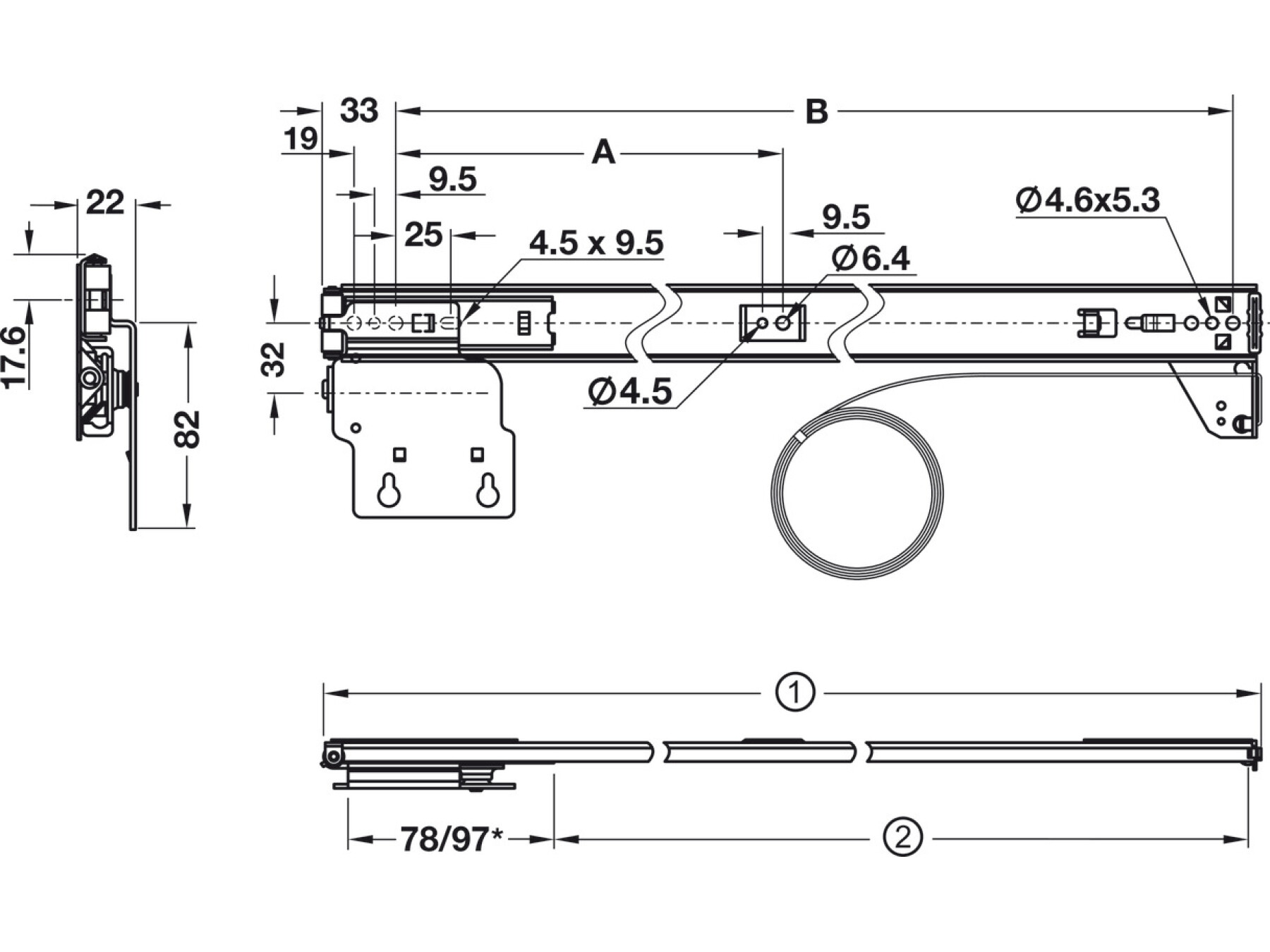

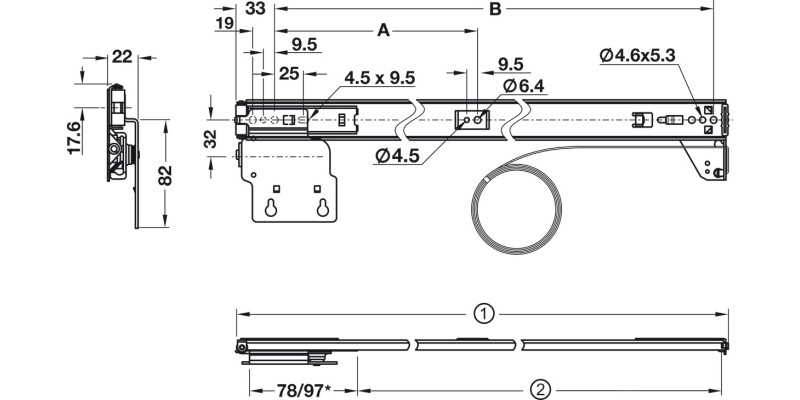

For vertical use, Installed length 405 mm, extension length 312 mm

Price:

£128.42

Per Item

VAT excluded

Pivot Sliding Door Runners, for Cabinet Doors, Accuride 1432 (Part No: 408.24.541) is premium sliding &... Read More

Product Information

Product Details

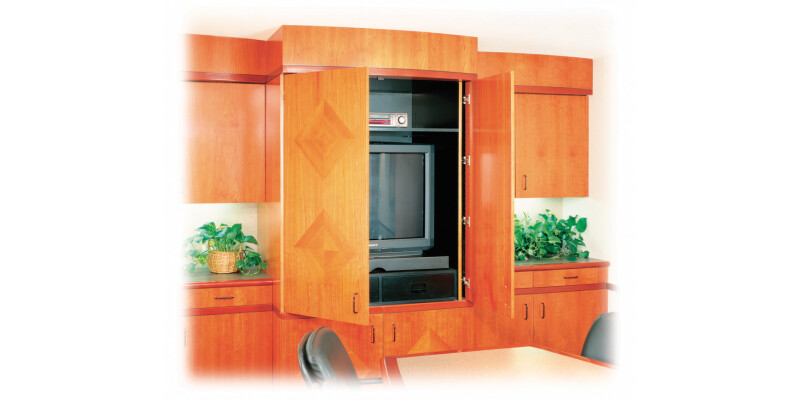

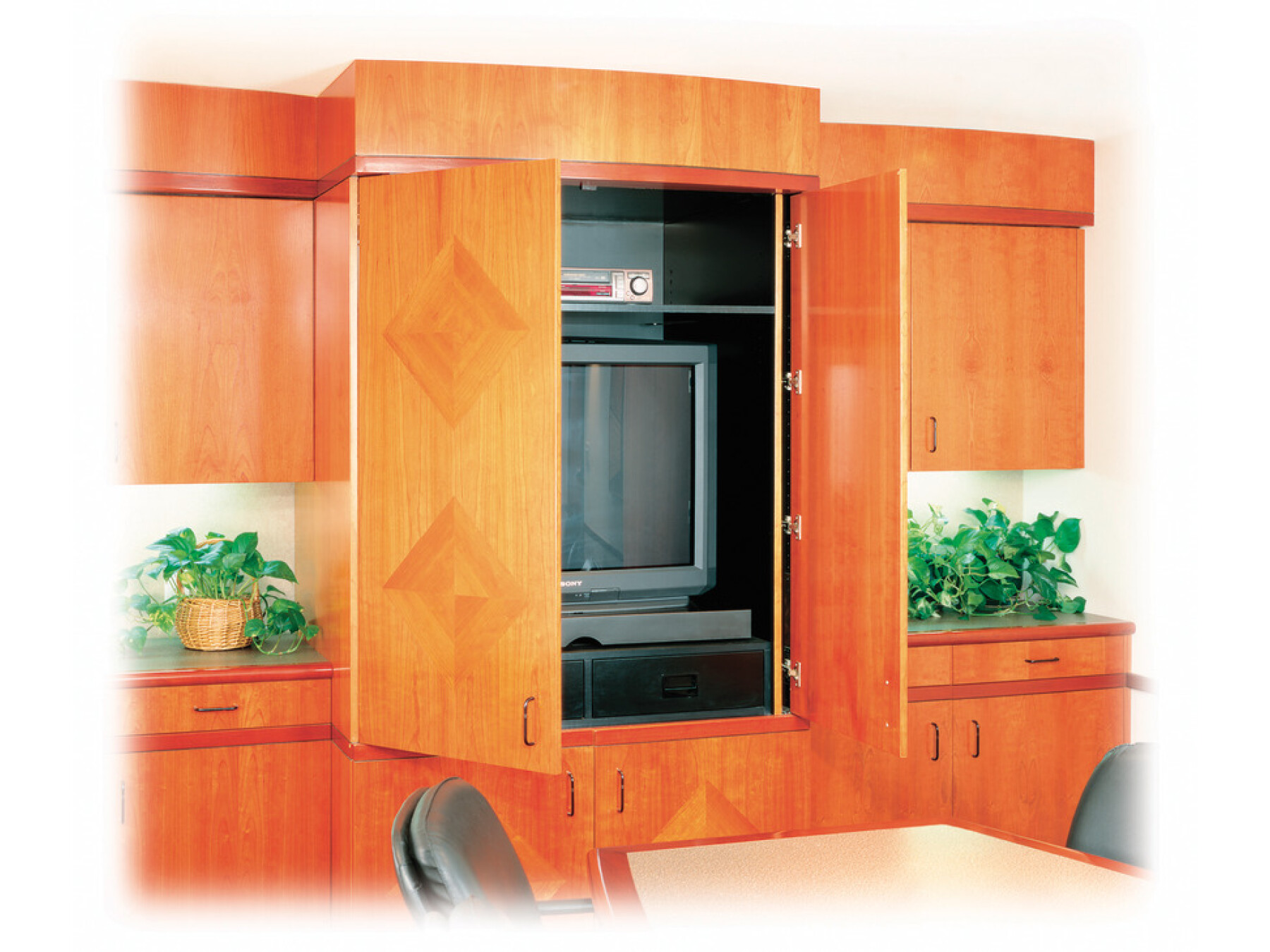

Pivot Sliding Door Runners, for Cabinet Doors, Accuride 1432 (Part No: 408.24.541) is premium sliding & folding door gear designed to deliver smooth, reliable movement for furniture and storage applications. Built for vertical use, this pivot sliding door runner features an installed length of 405 mm with an extension length of 312 mm, making it an excellent choice when you need controlled, space-saving door operation.

Engineered for dependable performance, this runner is ideal for inset and overlay cabinet doors (depending on the hinges you use). Whether you’re upgrading an existing wardrobe system or designing new furniture, you’ll appreciate the sturdy build and clean, functional finish.

Designed for wood doors, the Accuride 1432 system supports 1 door leaf per set and fits a wide range of door sizes. It’s suitable for door widths of 255–660 mm and door heights of 915–1,981 mm, with a maximum door weight of up to 34 kg. Door thickness compatibility is 19–32 mm, giving you flexibility across common furniture builds.

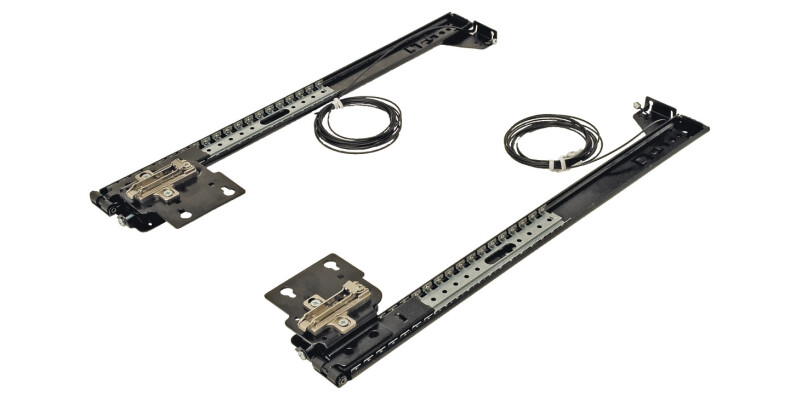

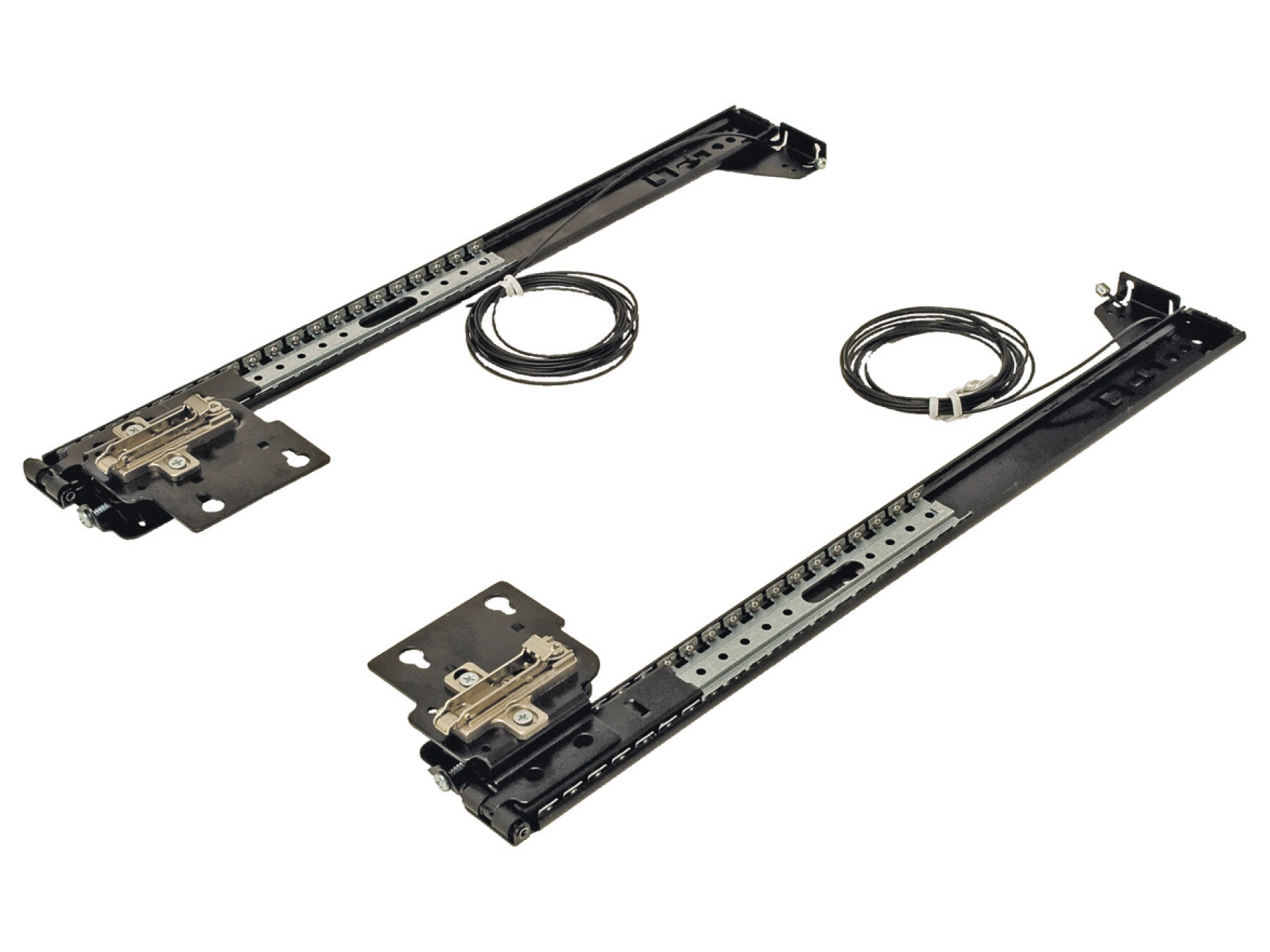

Crafted from steel with a sleek black, zinc-plated finish, the hardware offers strength and corrosion resistance for everyday use. Installation is straightforward with screw fixing, and the set is supplied with a synchronising cable to support coordinated door movement.

Order note: hinge carrier strips and hinge sets must be ordered separately. Choose the Pivot Sliding Door Runners, for Cabinet Doors, Accuride 1432 to upgrade your sliding & folding door hardware with smooth, professional results.

Specifications

Area of application

Inset and overlay cabinet doors, depending on hinges used

For door material

Wood

Number of door leaves per set

1.00

For door width

255 – 660 mm

For door height

915 – 1,981 mm

For door weight

≤34 kg

For door thickness

19 – 32 mm

Material/finish

Steel, Black, Zinc plated

Installation

Screw fixing

Order reference

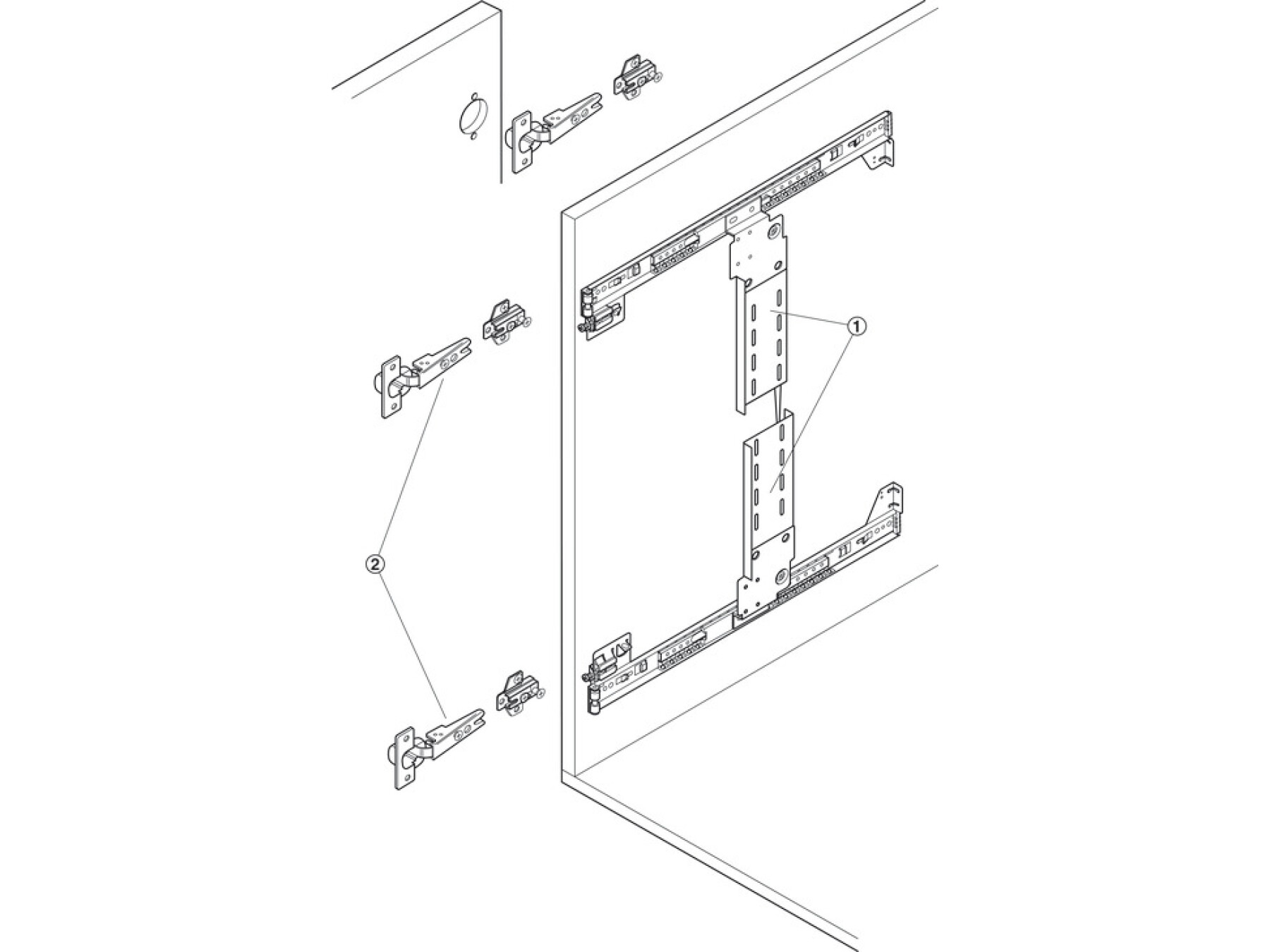

Hinge carrier strips and hinge sets to be ordered separately

Supplied with

Synchronising cable

FAQ

Product Details

Is this pivot sliding door runner suitable for inset and overlay cabinet doors?

Yes, this pivot sliding door runner can be used with both inset and overlay cabinet door setups, depending on the hinges you choose. Pair it with the correct hinge carrier strips and hinge set for a compatible installation.

What is the installed length and extension length for vertical use?

This runner is specified for vertical use, with an installed length of 405 mm and an extension length of 312 mm. Make sure your door and opening measurements allow for these dimensions before ordering.

Will it support my door size and weight?

For typical use, it is intended for door sizes in the range of 255 to 660 mm wide and 915 to 1,981 mm high, with a maximum door weight of up to 34 kg. If your door is near the upper limit, check that the full system, including hinges and carriers, is correctly matched.

What door thickness does this runner work with?

It is designed for cabinet and furniture doors with a thickness of 19 to 32 mm. Using a door outside this range may affect alignment, smooth running, and long term stability.

Is the runner supplied with everything needed to fit it?

The runner is supplied with a synchronising cable, however hinge carrier strips and hinge sets must be ordered separately. Confirm the correct hinge components for your door type so everything works as a coordinated system.

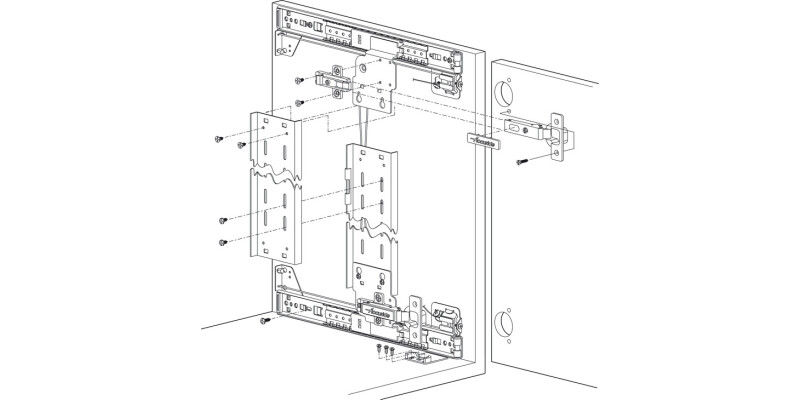

How is this pivot sliding runner installed?

Installation is by screw fixing. Use suitable screws for your furniture construction and follow the system instructions to ensure the runner is positioned correctly for reliable pivot and sliding operation.

How do I confirm the correct order reference for the complete set?
