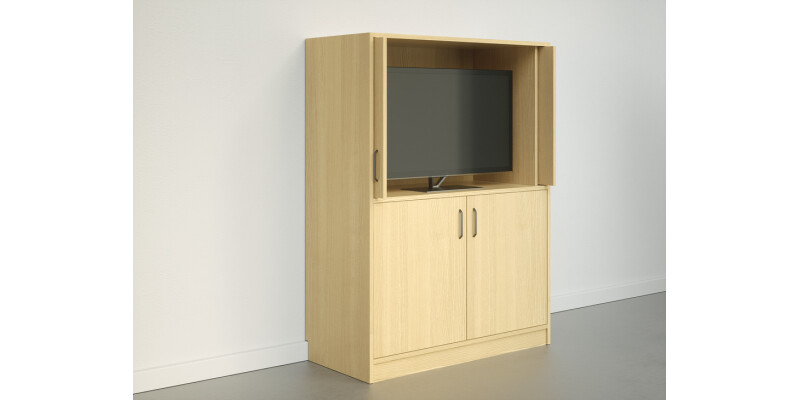

Pivot Sliding Door Runners, for Cabinet Doors, Accuride 1319

Product Details

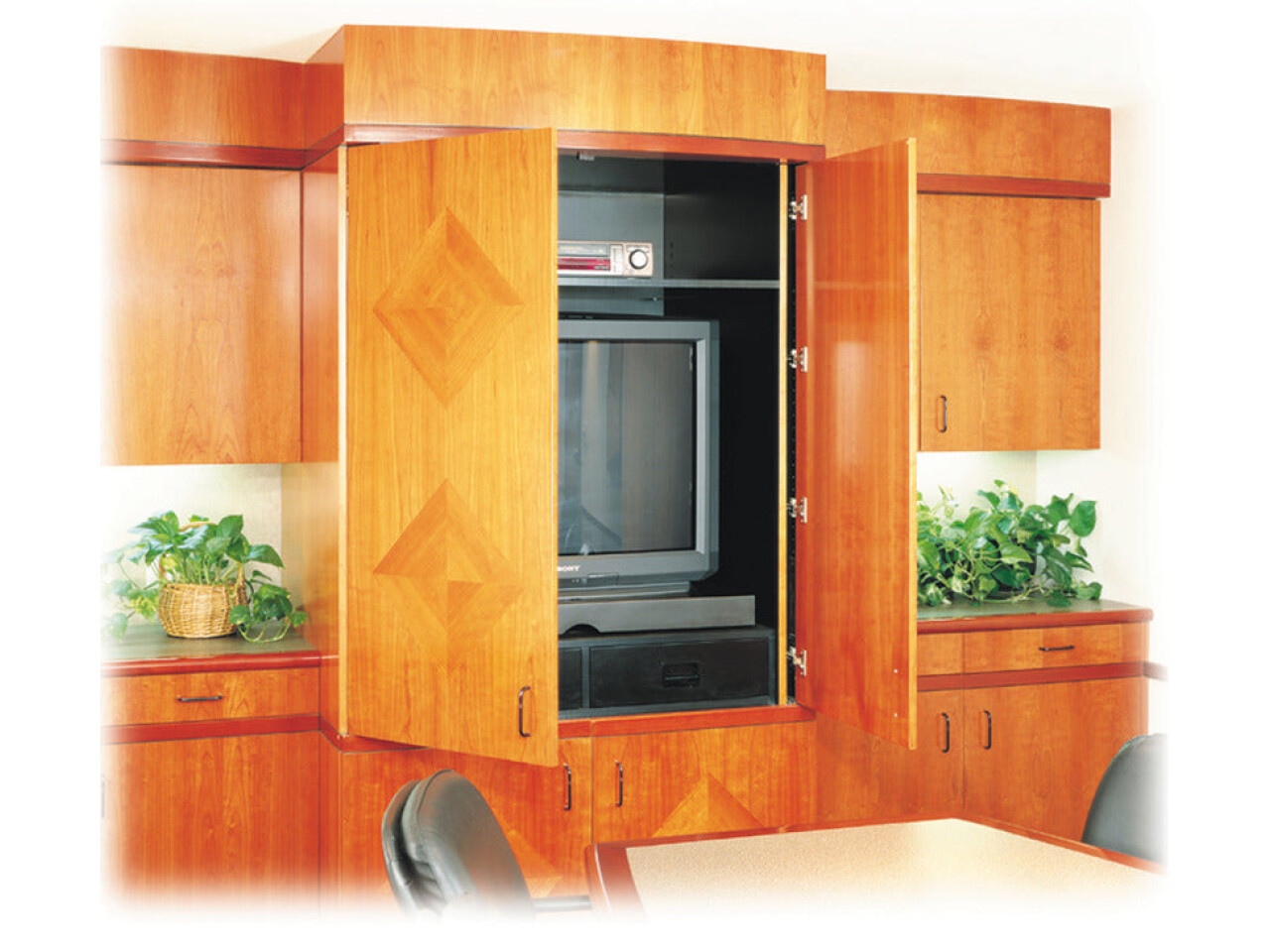

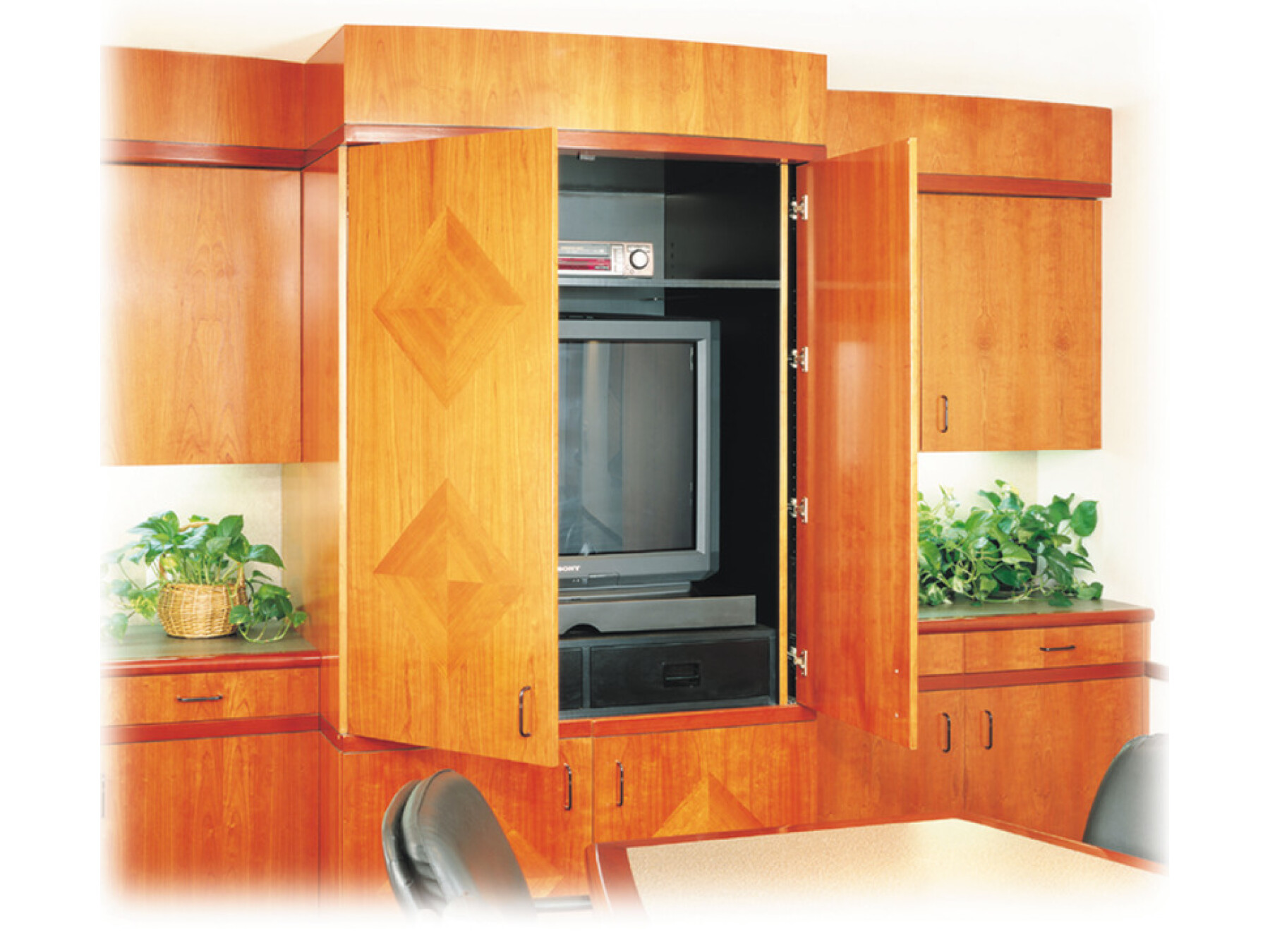

Is Accuride 1319 Pivot Sld Dr Run suitable for inset cabinet doors?

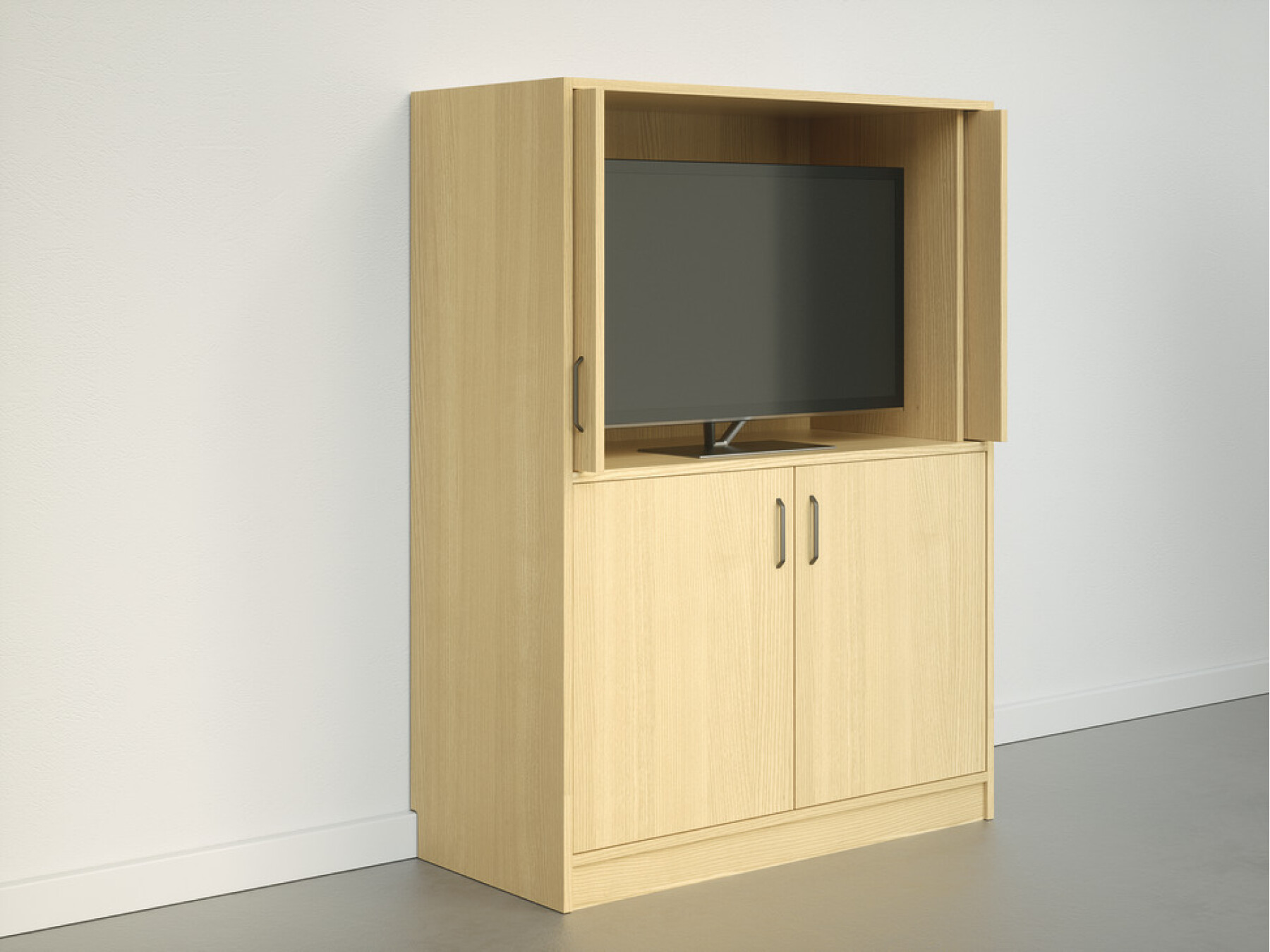

Yes. Accuride 1319 is designed for use with inset cabinet doors, supporting smooth sliding and pivoting movement. It is a practical choice when you want concealed or neatly integrated door operation within a furniture cabinet.

Can this runner be used for both horizontal and vertical door movement?

Yes. This pivot sliding door runner is intended for horizontal or vertical use, making it flexible for different cabinet layouts and furniture designs where the door needs to travel in either orientation.

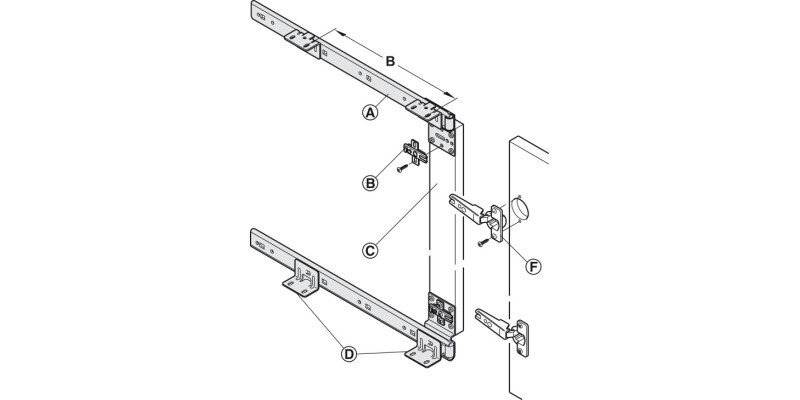

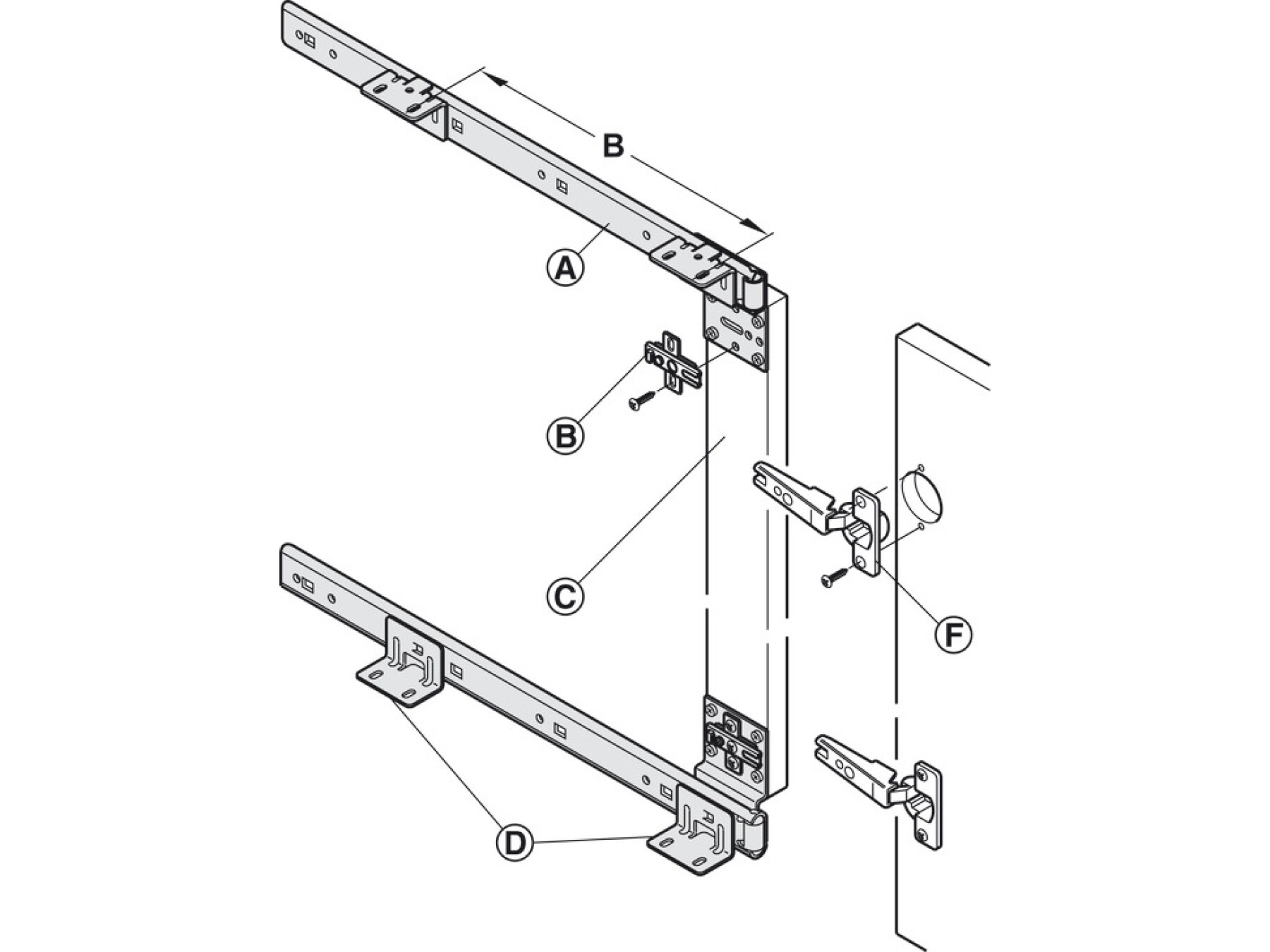

What are the track and runner lengths I need to plan for?

Installed length is 400 mm, with an extension length of 294 mm. The bracket position is 236 mm. Checking these figures before fitting helps ensure the runner aligns correctly with your track setup.

How heavy and high can the door be when using this set?

Door height should be no more than 700 mm and door weight should be no more than 5.5 kg. For taller or heavier doors, the guidance is to use a synchronised control system with Accuride 1316 in conjunction with Accuride 1319 to maintain stable operation.

What door thickness does this mechanism support?

Door thickness should be 16 to 20 mm. This range is important because it affects how securely the runner aligns and fixes to the door, helping ensure dependable movement over time.

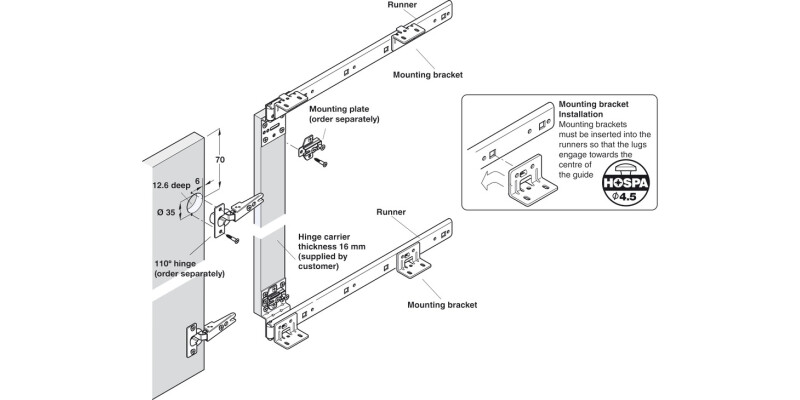

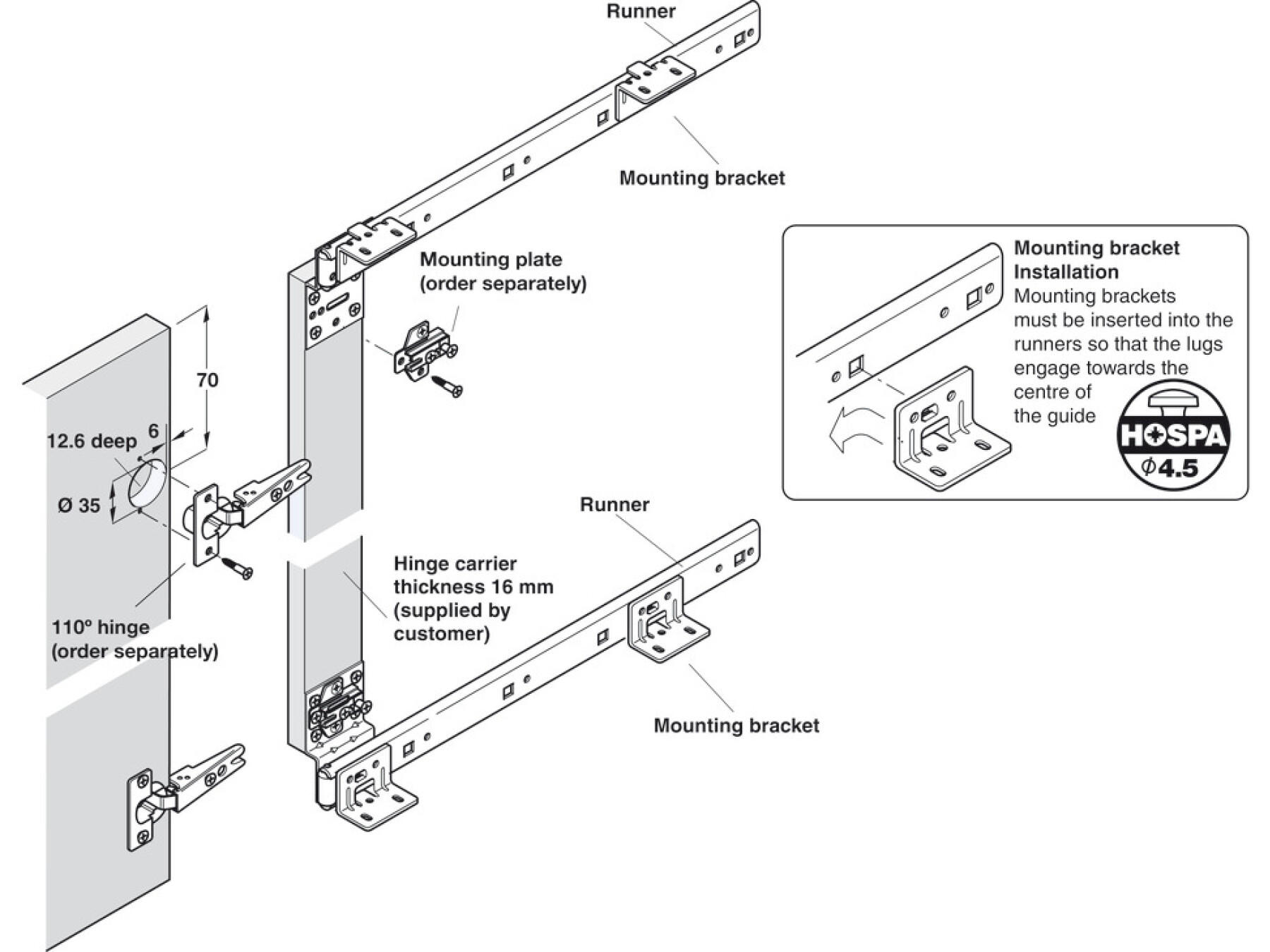

What fixing method is used and how is it installed?

Screw fixing is used for installation. This is typically straightforward for cabinet fitting, allowing you to secure the runner firmly in place and keep the movement smooth and consistent.

Does this come as a single door set, and how many leaves is it for?

It is supplied as a set with tracks and is intended for one door leaf per set. If you are fitting a multi door layout, you will generally need a set for each door leaf to match the expected movement and alignment.
