Marathon Senior FitSet 1Door 750-900mm
Part Number: 407.52.000
Top hung system, For door width 750-900 mm
Price:
£108.78
Per Item
Internal straight sliding door system for residential or light commercial useWith ball cage top assembly and... Read More
Product Information
Product Details
Internal straight sliding door system for residential or light commercial use
With ball cage top assembly and opening self closing set
Supplied with

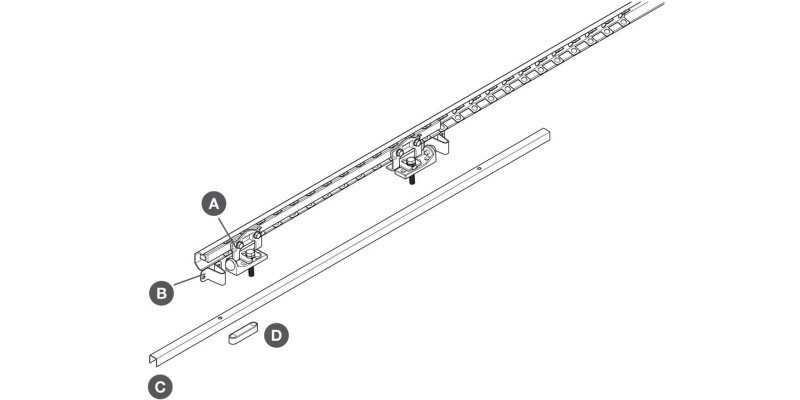

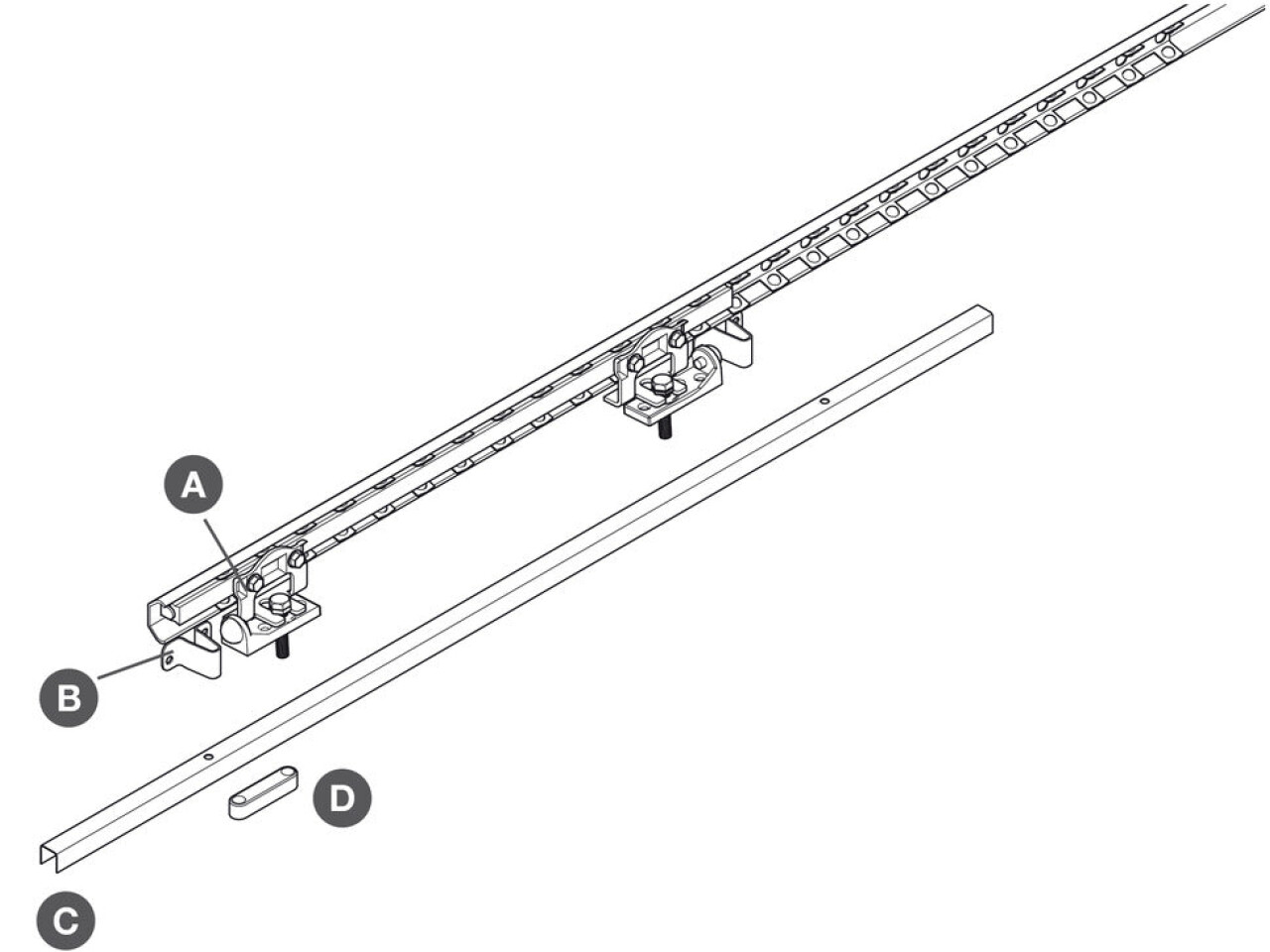

Set for door width 750-900 mm consists of 1 x Top assembly: track, hanger bracket, ball cage and runner bar with nylon top plates with integral buffer, 2 x End stops, wall mounted, 1 x Bottom channel, mortised into bottom of door, 1 x Bottom guide, nylon
Set for door width 900-1050 mm consists of 1 x Top assembly: track, hanger bracket, ball cage and runner bar with nylon top plates with integral buffer, 2 x End stops, wall mounted, 1 x Bottom channel, mortised into bottom of door, 1 x Bottom guide, nylon
Set for door width 1050-1200 mm consists of 1 x Top assembly: track, hanger bracket, ball cage and runner bar with nylon top plates with integral buffer 2 x End stops, wall mounted, 1 x Bottom channel, mortised into bottom of door, 1 x Bottom guide, nylon
Set for door width 1200-1500 mm consists of 1 x Top assembly: track, hanger bracket, ball cage and runner bar with nylon top plates with integral buffer, 2 x End stops, wall mounted, 1 x Bottom channel, mortised into bottom of door. 2 x Bottom guides, nylon
Specifications
Number of door wings in a system max.
2
Number of door leaves per set
1.00
For door material
Wood
For door weight
≤90 kg
Mounting type
Wall mounting
For door thickness
32 – 50 mm
For door height
≤3,000 mm
Running position
Top
Order reference
Marathon self closing set to be ordered separately
