Parallel Lift Up Fitting, Grass Kinvaro F-20 Folding

Product Details

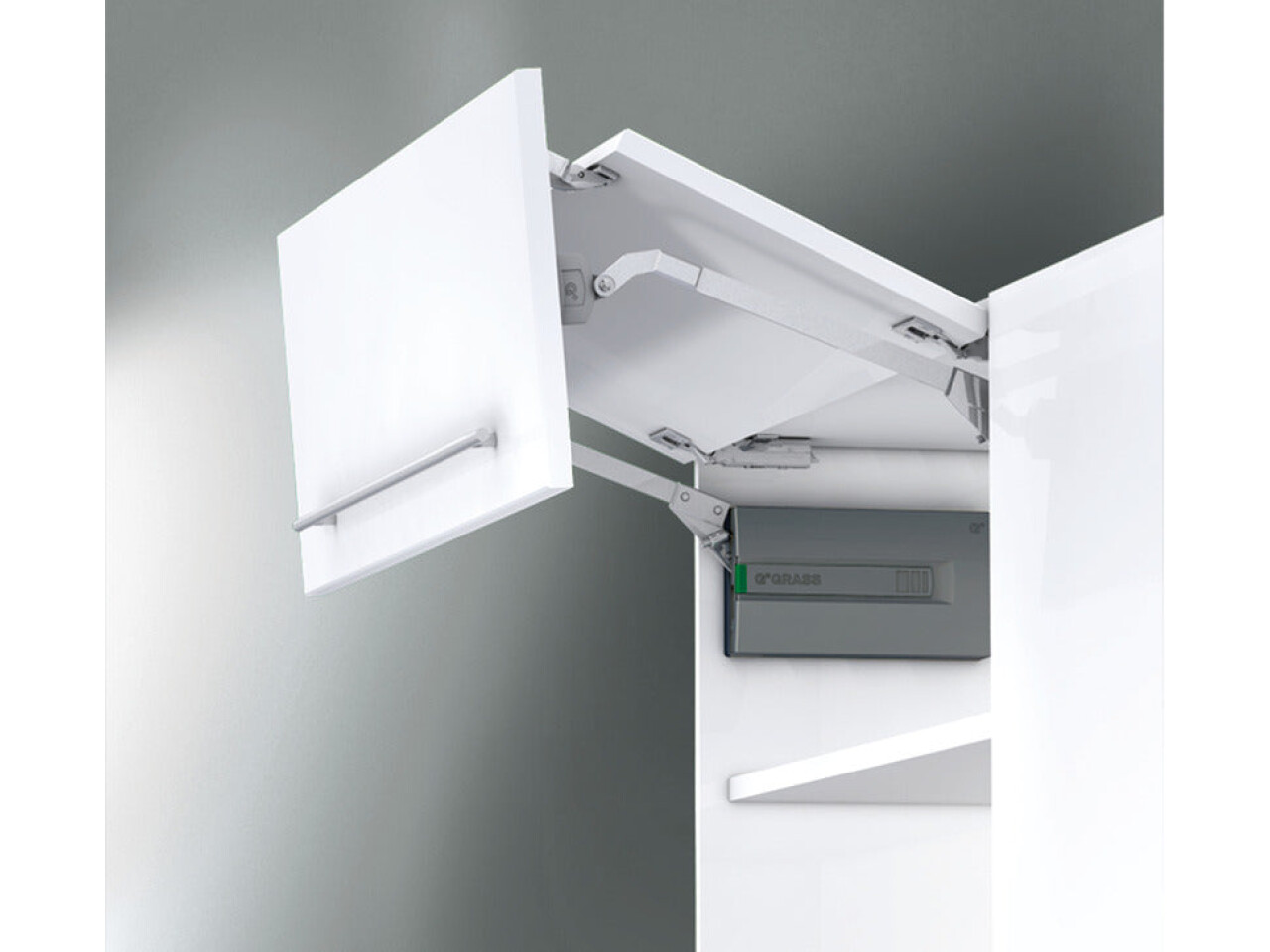

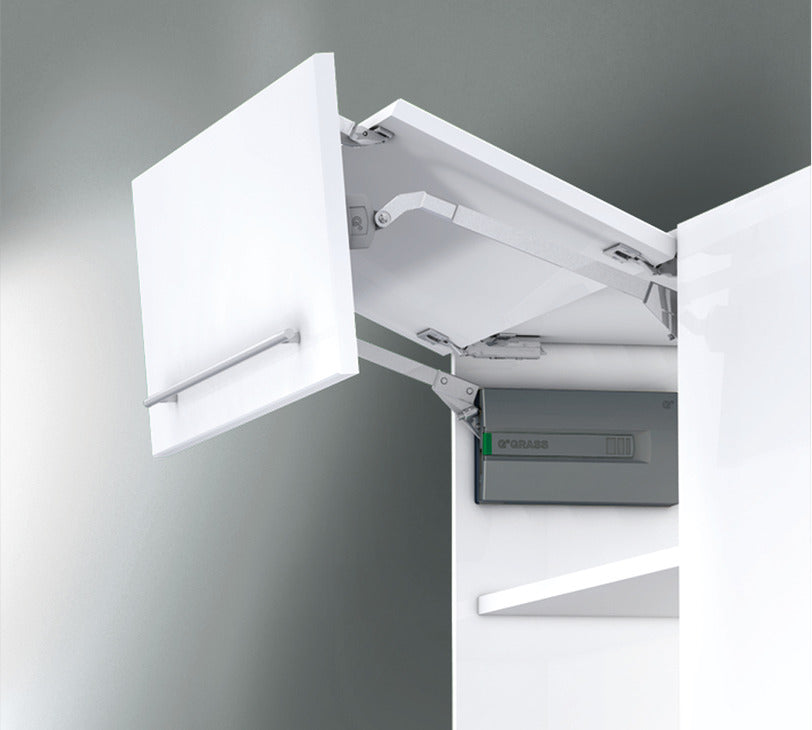

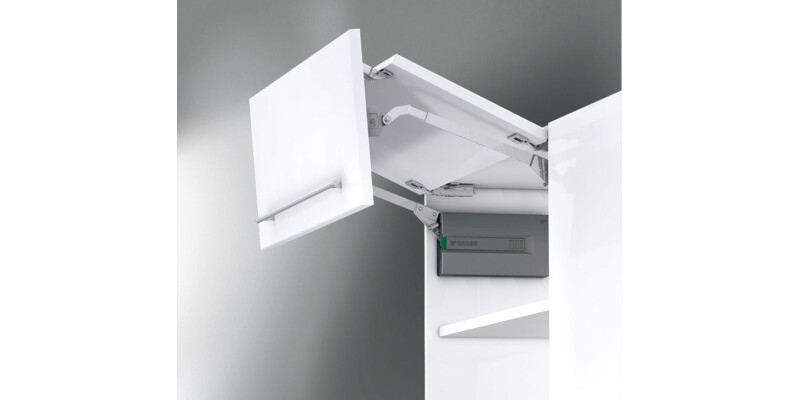

Parallel Lift Up Fitting, Grass Kinvaro F-20 Folding (Part No: 372.90.521) is a high-quality parallel lift up fitting designed to deliver smooth, reliable movement for flap-based cabinet solutions. If you’re building or upgrading living or commercial furniture, this Kinvaro F-20 FoldFlap is an excellent choice for creating an easy-access lid system with a clean, professional finish.

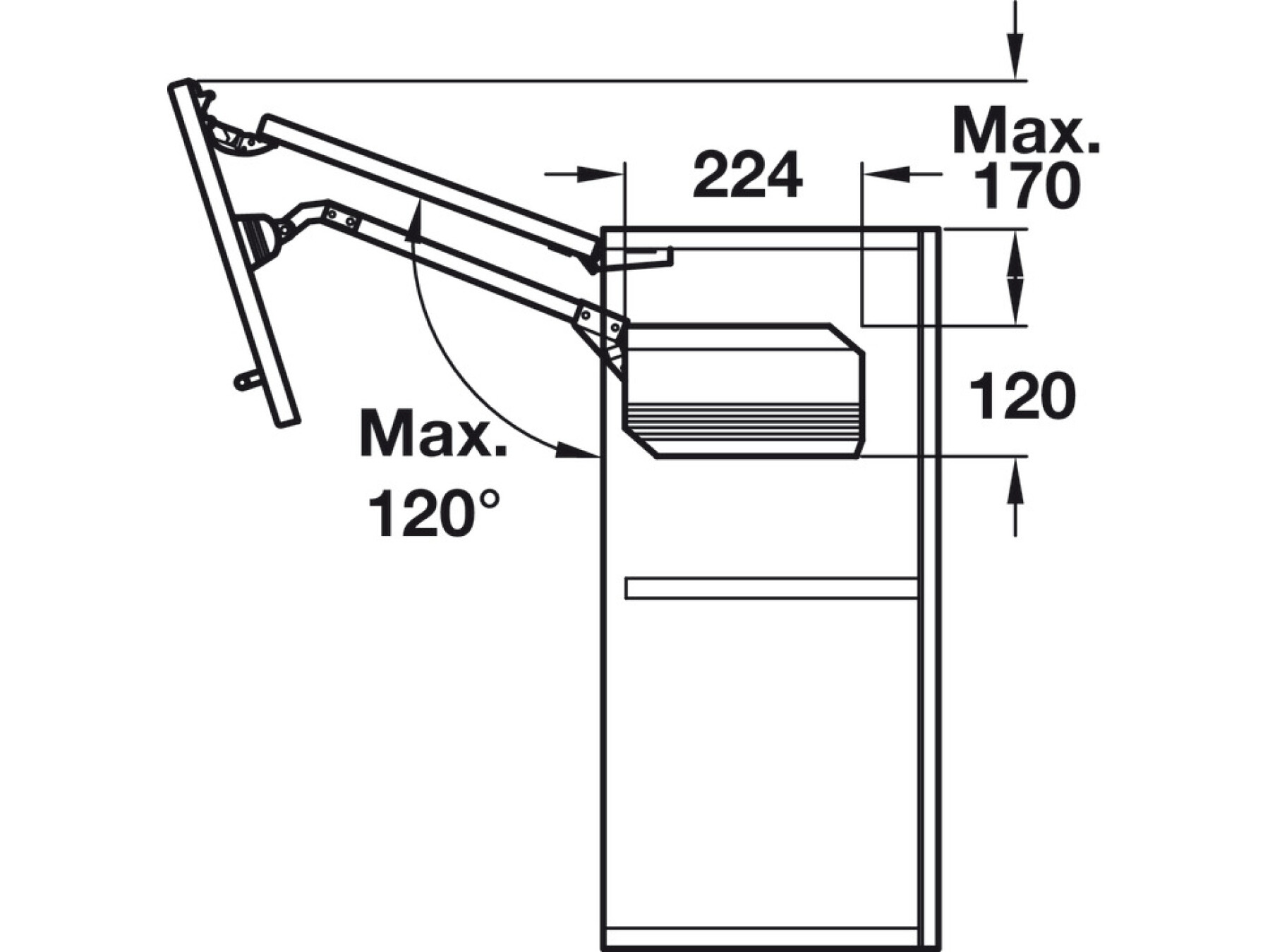

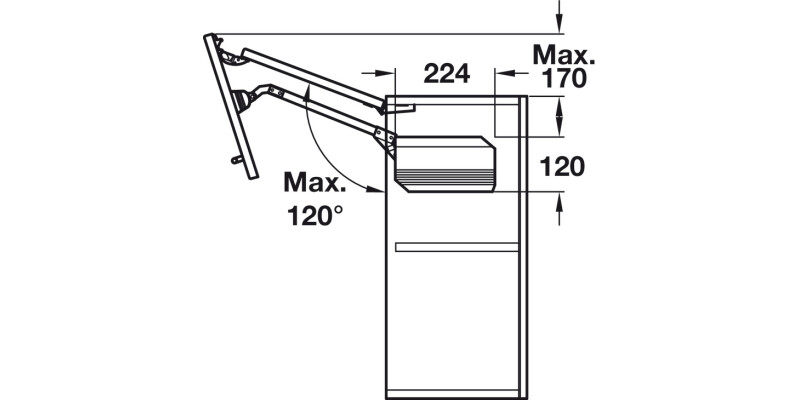

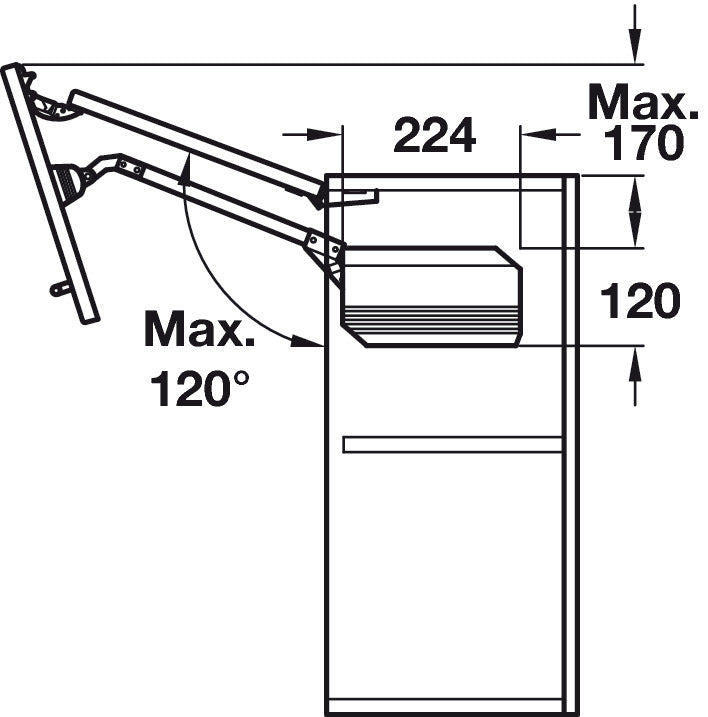

For flap dim. (W x H): 600/800/1000 x 570 mm, this fitting is made for flap installations using chipboard or MDF flap material. The mechanism is engineered for wooden doors and glass doors featuring a wide aluminium frame (40/50 mm), whether with or without a handle—making it versatile for a wide range of cabinet designs.

Built for durability and neat appearance, the hardware uses steel fittings and hinges, while the cover caps are made from plastic in Grey RAL 7045. The lid material can be wood, glass, or an aluminium frame, helping you match the fitting to your interior style.

Designed around your cabinet layout, it supports cabinet widths in the range 600–800 mm and is intended for a lid height of 570 mm. Installation is straightforward with screw fixing, and the unit is supplied with pre-mounted Euro screws and fitting instructions.

Important note: concealed sprung hinges with a 120° opening angle must be ordered separately. Choose the Parallel Lift Up Fitting, Grass Kinvaro F-20 Folding and upgrade your cabinet functionality with a fitting that looks good, operates smoothly, and is built to last.

Concealed sprung hinges with 120° opening angle must be ordered separately

Pre-mounted Euro screws and fitting instructions
