Parallel Lift Up Fitting, Grass Kinvaro F-20 Folding

Product Details

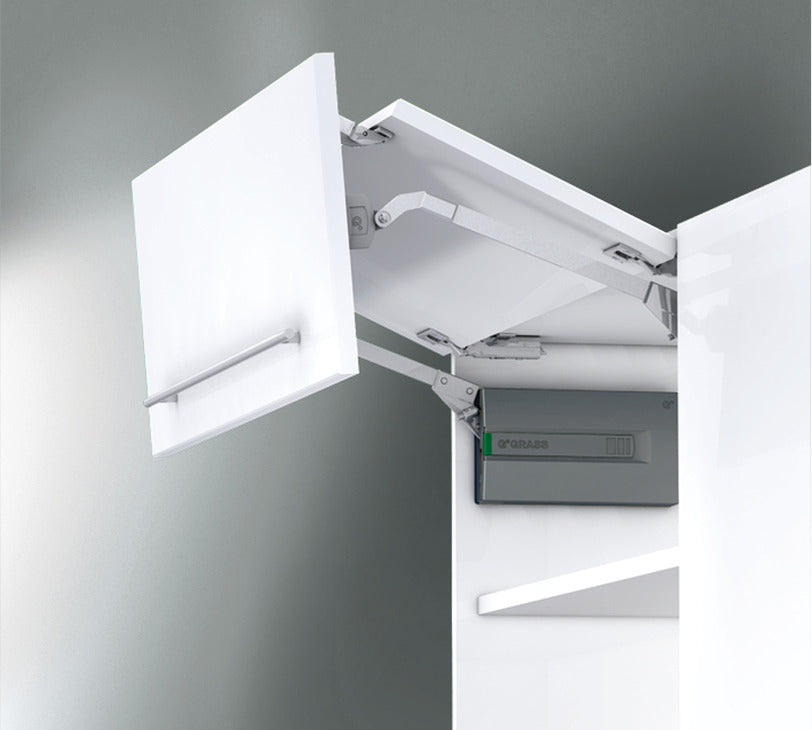

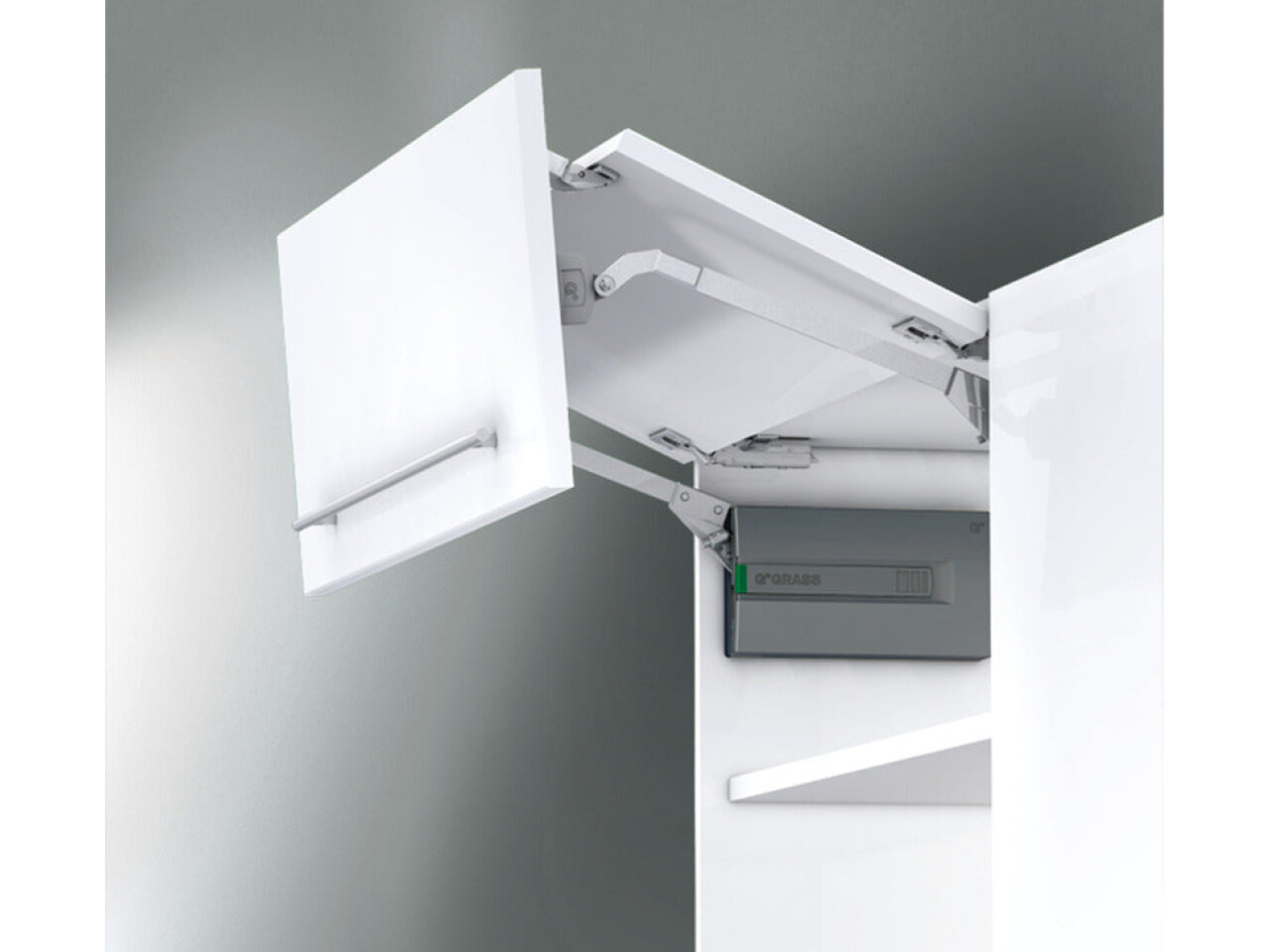

Parallel Lift Up Fitting, Grass Kinvaro F-20 Folding (Part No: 372.90.525) is a high-quality parallel lift-up fitting designed to create smooth, reliable flap movement in both living and commercial furniture applications. Ideal for flap doors made from chipboard or MDF, this FoldFlap system is built to deliver a clean, professional finish and effortless everyday use.

Product subtitle: For flap dim. (W x H) 600/800/1000 x 715 mm — chipboard or MDF flap material.

Area of application
Designed for wooden doors and glass doors featuring a wide aluminium frame (40/50 mm), with or without a handle. Whether you’re installing an elegant cabinet front or a functional access panel, the Kinvaro F-20 FoldFlap helps you achieve controlled lift performance with a tidy installation.

Material & finish
The fitting and hinges are made from steel for strength and long-term stability, while the cover caps are plastic in grey RAL 7045. The result is a discreet look that blends well with modern furniture styles.

Designed for the right dimensions

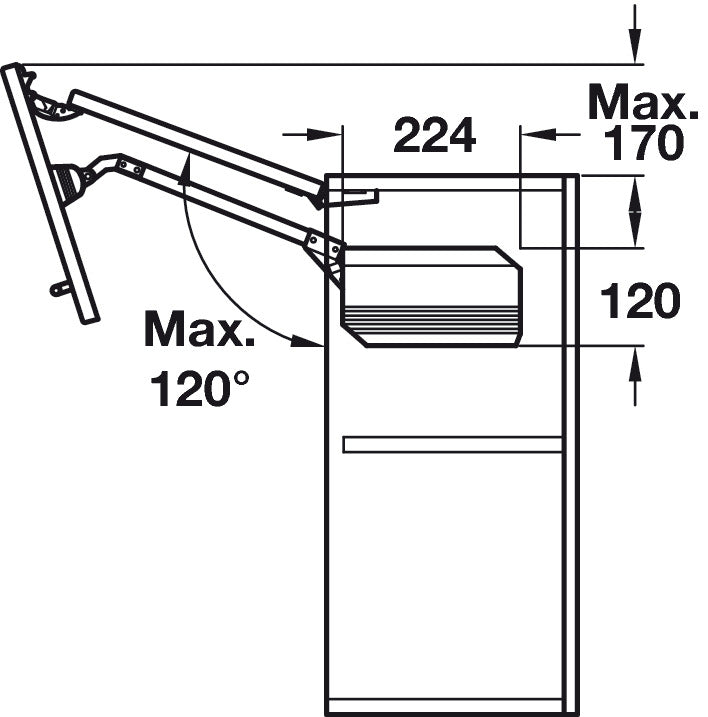

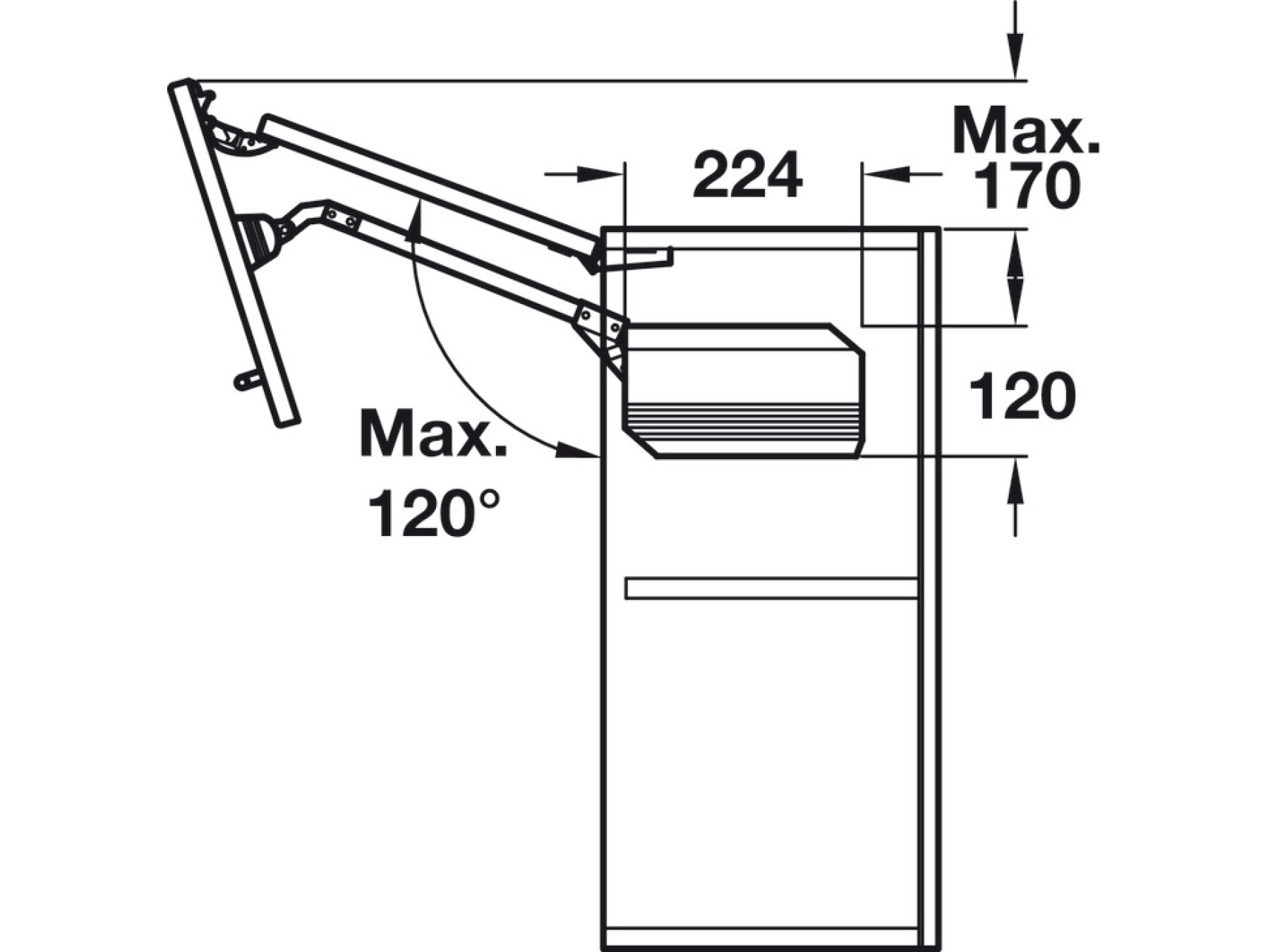

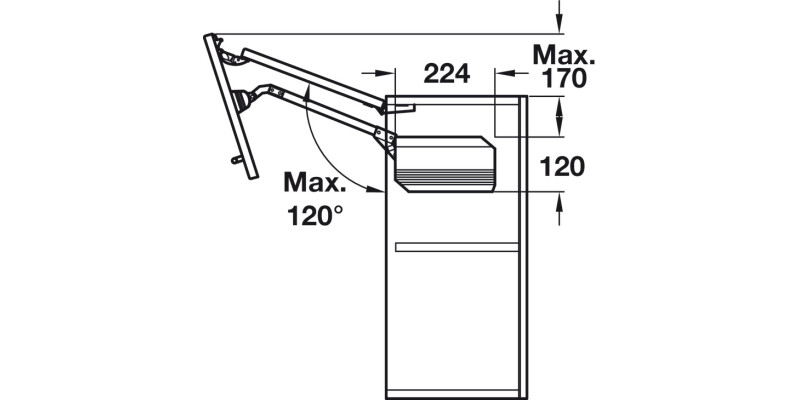

This fitting is suitable for cabinet widths of 600–800 mm and a lid height of 715 mm, with the correct flap sizing for your planned opening.

Installation
Simple and secure screw fixing for a robust build. The set is supplied with pre-mounted Euro screws and fitting instructions.

Note: Concealed sprung hinges with a 120° opening angle are required separately (order reference not included).

Upgrade your cabinet or storage solution with the Kinvaro F-20 FoldFlap—engineered for smooth access, strong construction, and a premium final look.

Concealed sprung hinges with 120° opening angle must be ordered separately

Pre-mounted Euro screws and fitting instructions
