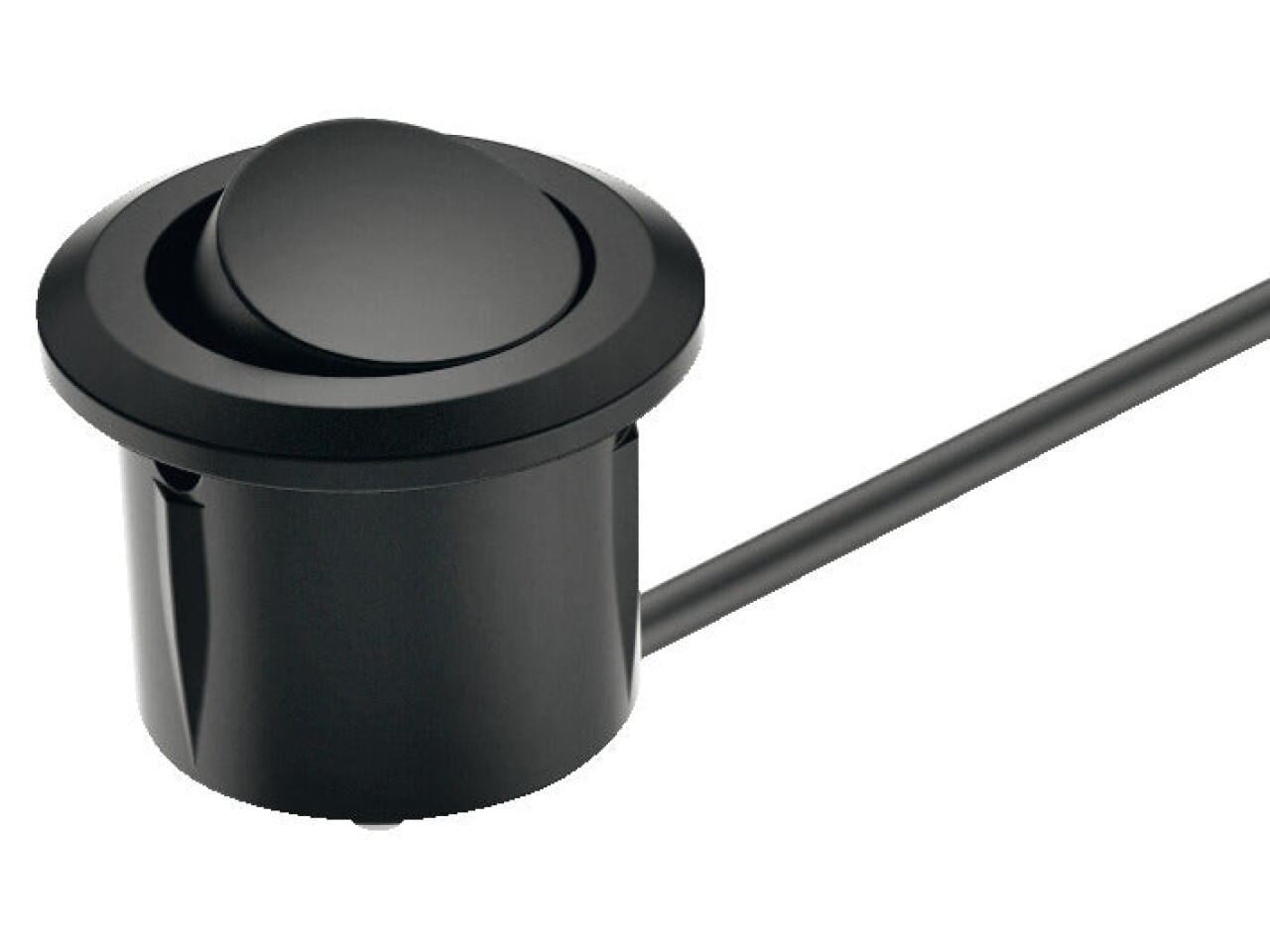

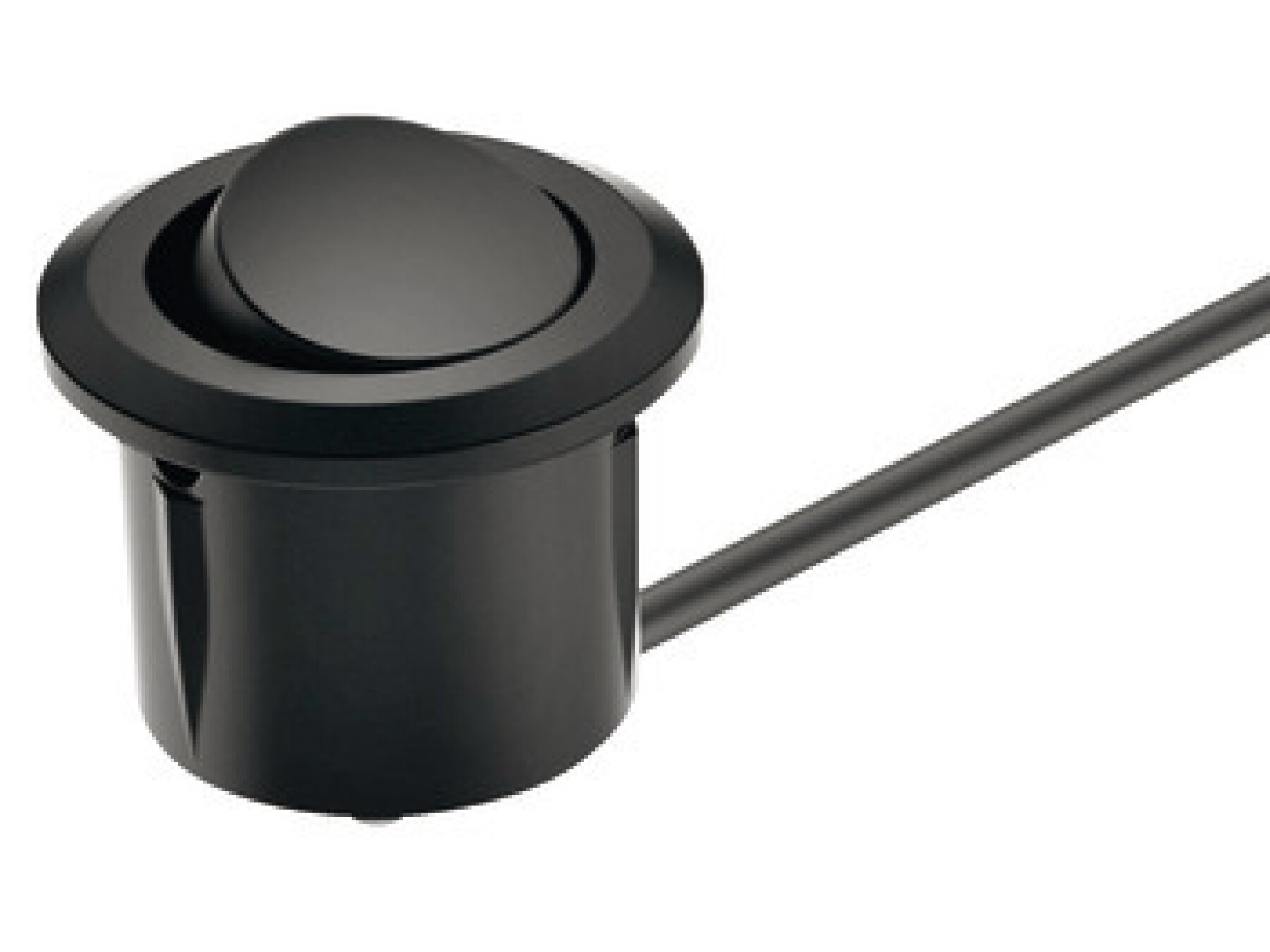

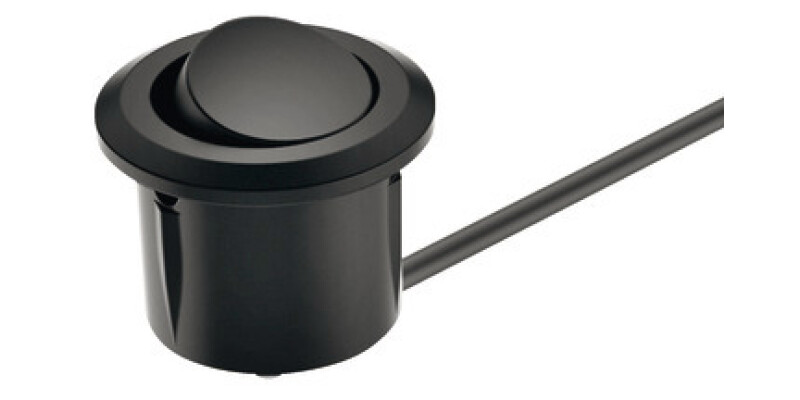

LED Rocker Switch, Ø 15 mm, for use with Loox LED Lights

Product Details

Is this rocker switch compatible with Loox LED drivers?

This Loox LED Rocker Switch is designed as part of the Loox plug and play system. It is supplied with a 2 m lead with connector for any Loox driver, so you can connect it easily when used with the correct Loox driver and lighting components.

What size hole do I need to install the Loox LED Rocker Switch D15mm Blk?

The required drill hole diameter is 12 mm. The installation note specifies a hole depth of 13.8 mm to help achieve a neat and secure fit, so it is worth measuring your panel thickness before installation.

Does the switch control LEDs with an on off function?

Yes. The switching function is on off, making it suitable for manual control of compatible Loox LED lighting sets.

What is the switch protection rating, and can it be used in damp areas?

The degree of protection is IP20. This means it is intended for dry indoor use. If you plan to use it in a steam or splash prone area, check for a suitable higher protection rating.

How long is the connecting lead supplied with the switch?

The switch is supplied with a 2 m lead with a connector. This length is typically designed to make wiring between the switch position and the Loox driver more straightforward.

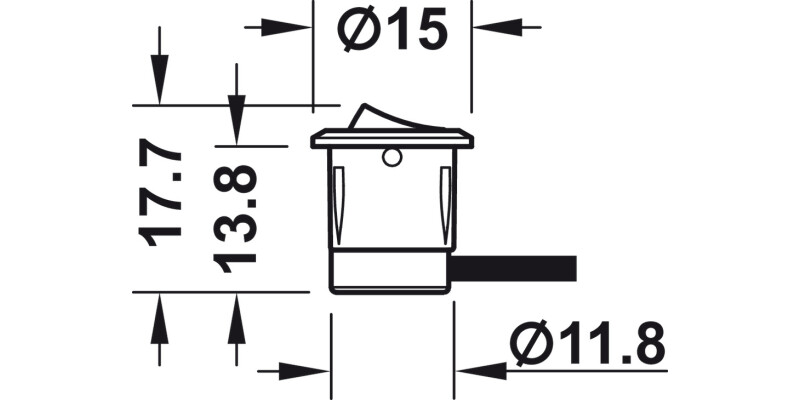

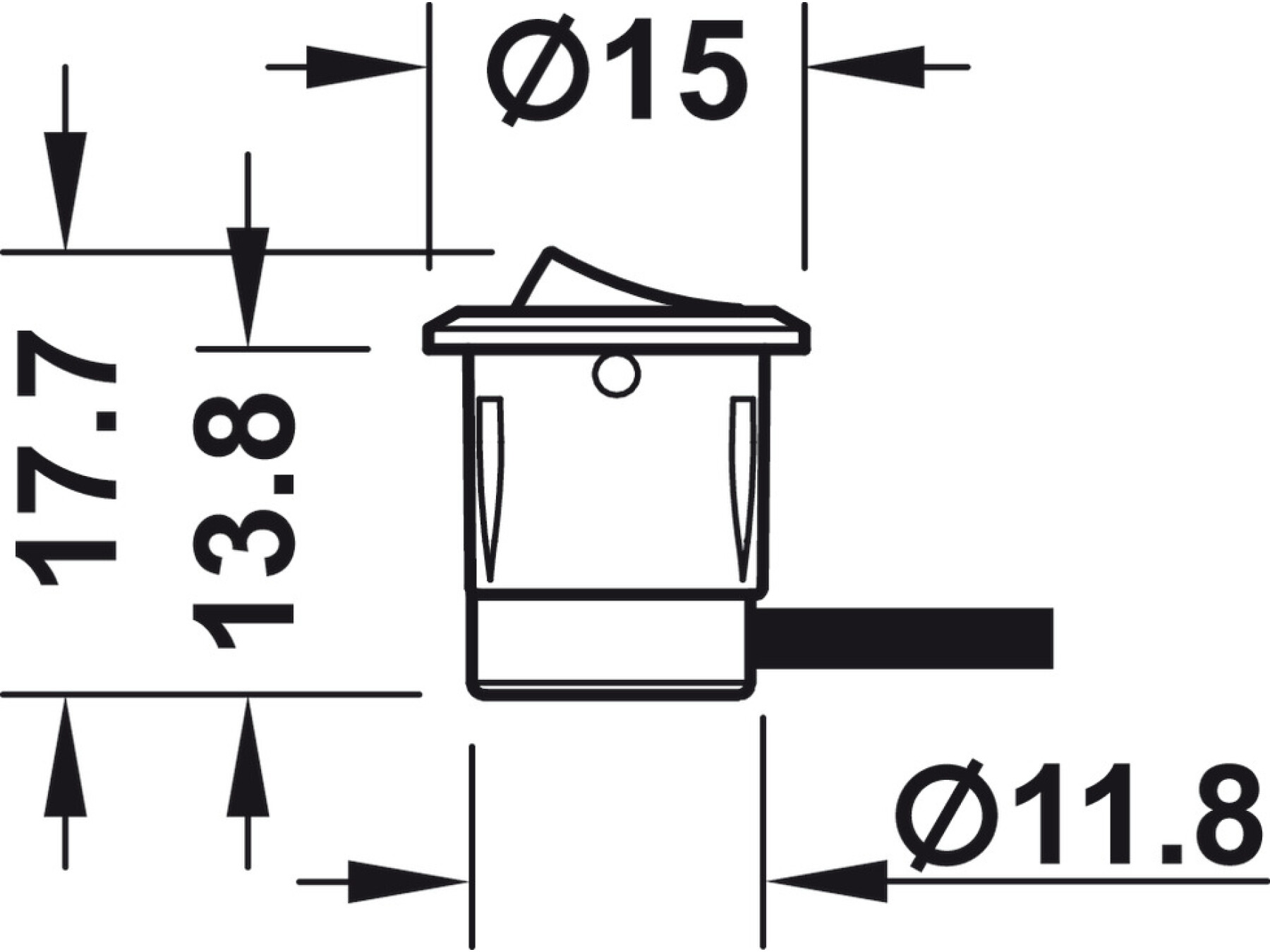

What are the physical dimensions of the switch?

The stated dimensions are 15 x 17.7 mm (Ø x H). The black finish also gives a tidy appearance for most countertop, cabinet, and furniture installations.

Is the Loox switch covered by a guarantee?

Yes. It comes with a Hafele Lifetime Guarantee of 7 years, giving added reassurance for long term use when installed and used as intended.
