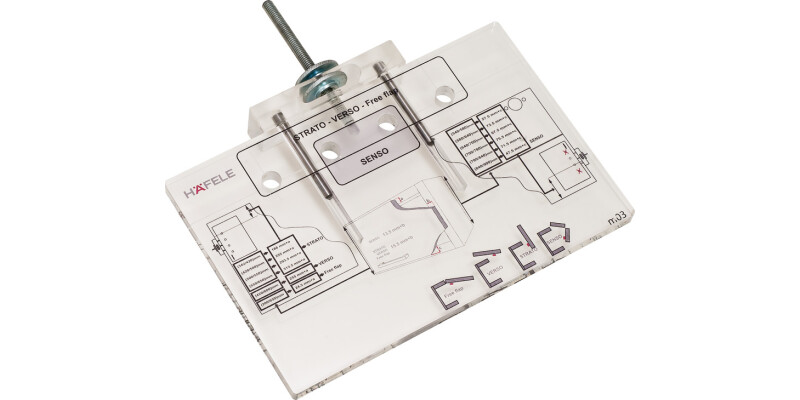

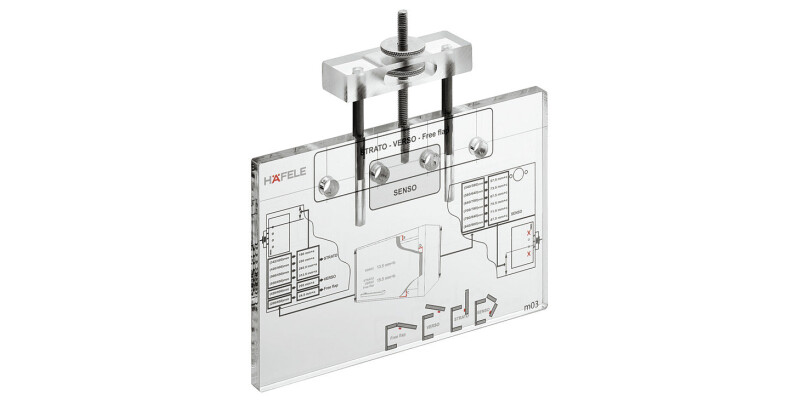

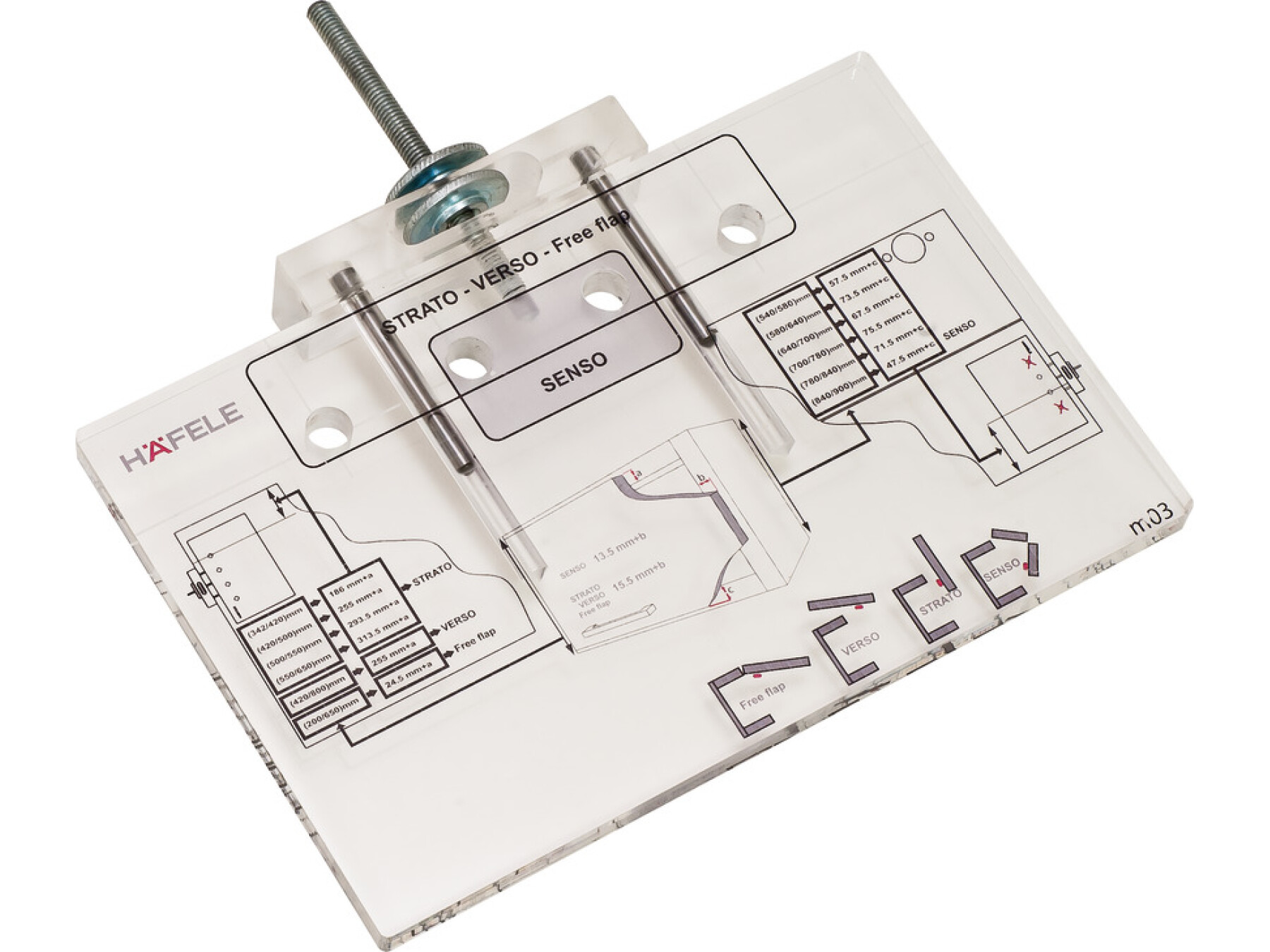

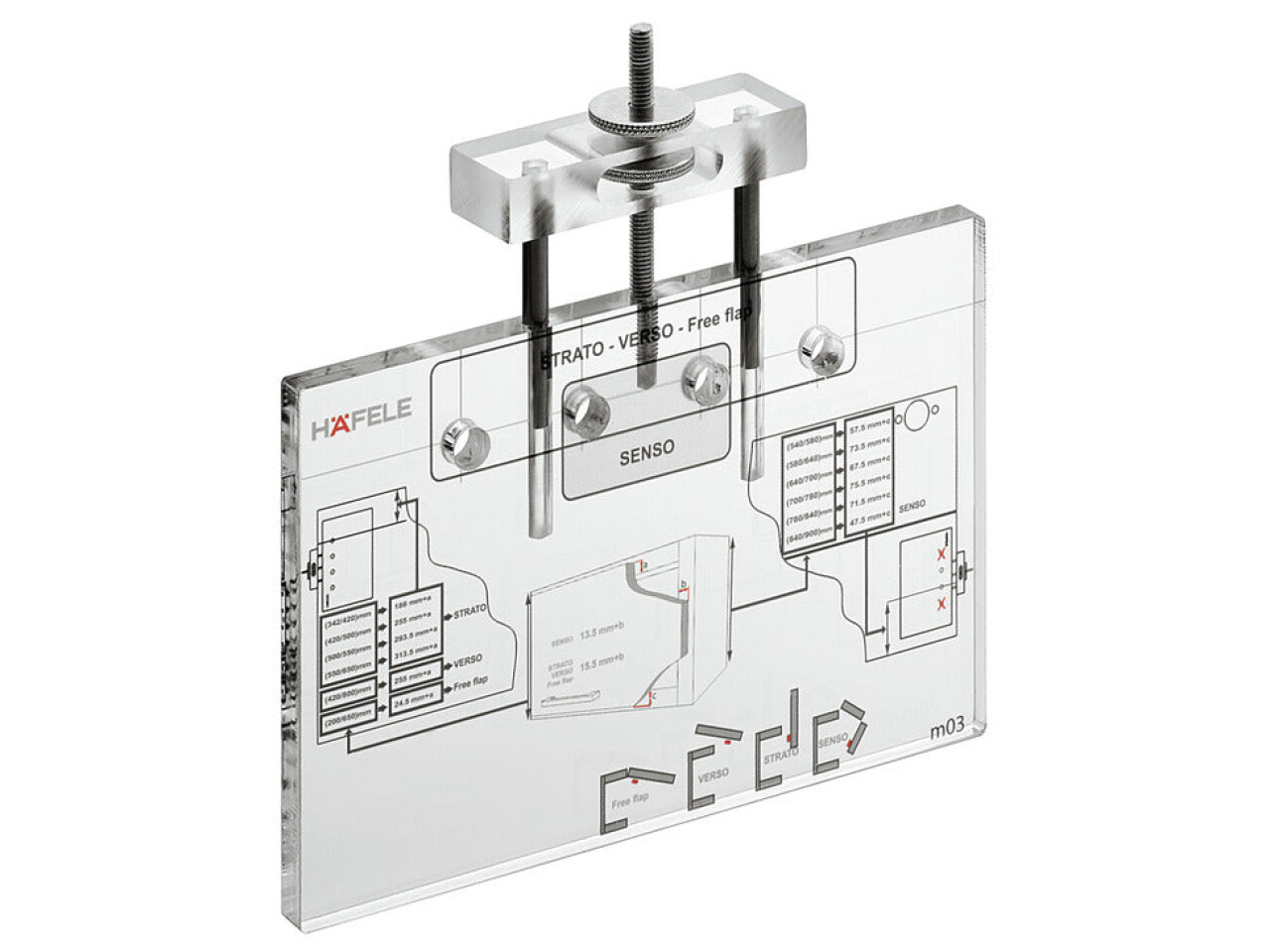

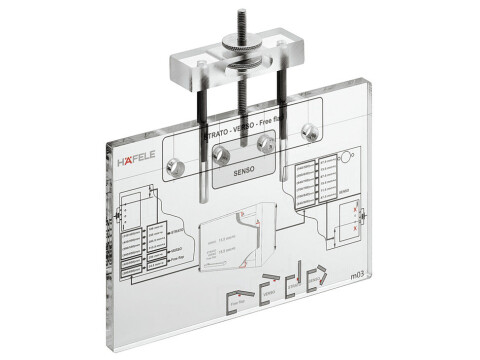

Drilling Jig, for Front Panels, for all Free Fittings

Product Details

Is this drilling jig suitable for Häfele Free flap and Free fold fittings?

Yes. The Drilling Jig for Free Front Panels is designed for pre drilling the front fixing brackets for Häfele Free flap 1.7, Free flap 3.15, Free fold, Free up, and Free swing flap fittings. Using the jig helps you position the pilot holes accurately before you fit the brackets.

What is the purpose of pre drilling with this jig?

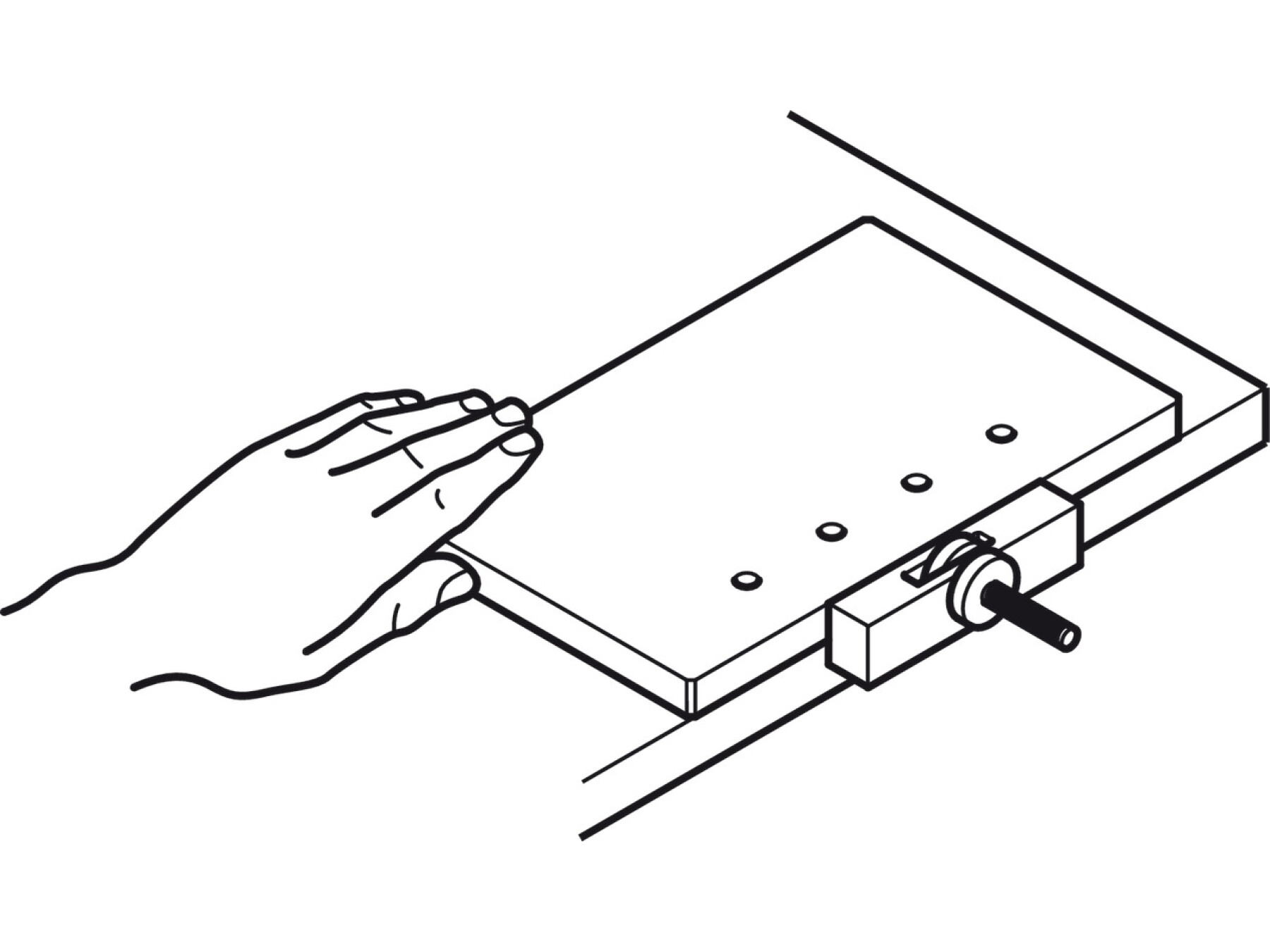

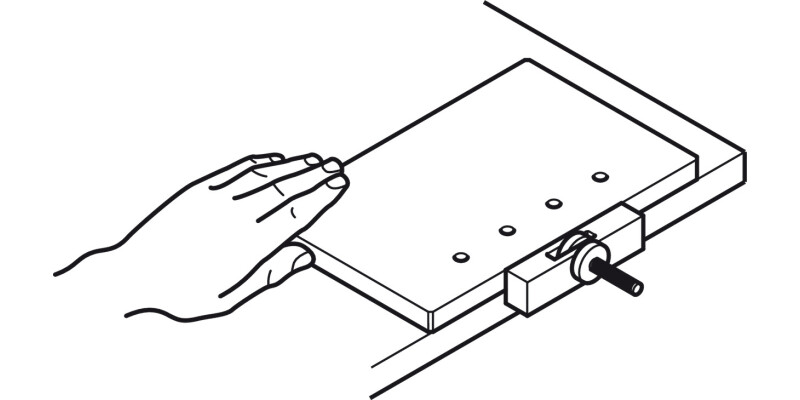

Pre drilling creates pilot holes for the mounting screw-on brackets on the front panel. This makes it easier to start screws correctly and can help you achieve a cleaner, more consistent fixing alignment across multiple doors or panels.

Will the jig work only with acrylic glass panels?

The jig is made from acrylic glass and is intended for drilling pilot holes in the front panel for Häfele bracket mounting. Always check that your specific front panel material and thickness are appropriate for your selected screws and bracket system.

How does the jig help when installing multiple front panels?

It standardises hole positions for the front fixing brackets. If you are fitting the same Häfele Free fitting type across several doors, using the same jig setup can help you repeat measurements and maintain consistent alignment from panel to panel.

What size jig is this and will it fit typical workshop setups?

This jig is compact at 20 mm length, making it easy to handle as a dedicated drilling accessory. It is designed specifically for the front bracket pre drilling step rather than general purpose drilling.

Do the Häfele Free fittings have a lifetime guarantee when using this jig?

The Häfele lifetime guarantee applies to the fitting system. This product is supplied as a drilling jig intended for correct pre drilling for the specified Häfele Free flap and flap fittings. Using it as directed can help ensure the installation is carried out as intended.

Where do I find the product details for Part No 372.64.893?

Order and identification are simple. This item is listed as Drilling Jig for Free Front Panels, Product Part No 372.64.893. If you are matching parts for an existing installation, make sure the fitting type is one of the Häfele Free models listed to ensure compatibility.
