Name: Parallel Lift Up Front Fitting, for One-Piece Flaps, Free Up
SKU: 372.33.531
Price: 91.30 GBP
Availability: InStock

Part Number: 372.33.531

For one-piece flaps made from wood, glass or with aluminium frame, Cabinet height 430-600 mm, min. flap height 388 mm, flap weight 2.6-5.5 kg, grey

Price:

£91.30

Per Item

VAT excluded

Parallel Lift Up Front Fitting, for One-Piece Flaps, Free Up is the perfect parallel lift-up front fitting for... Read More

Product Information

Product Details

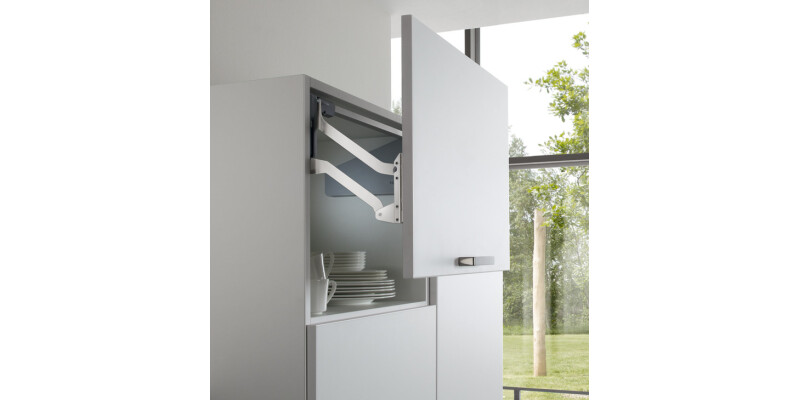

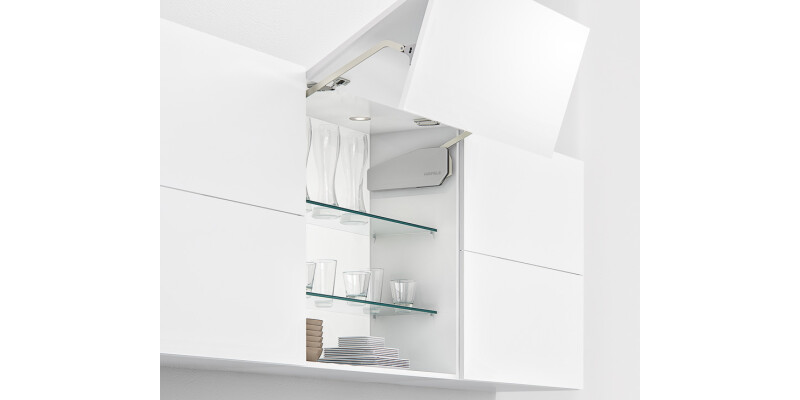

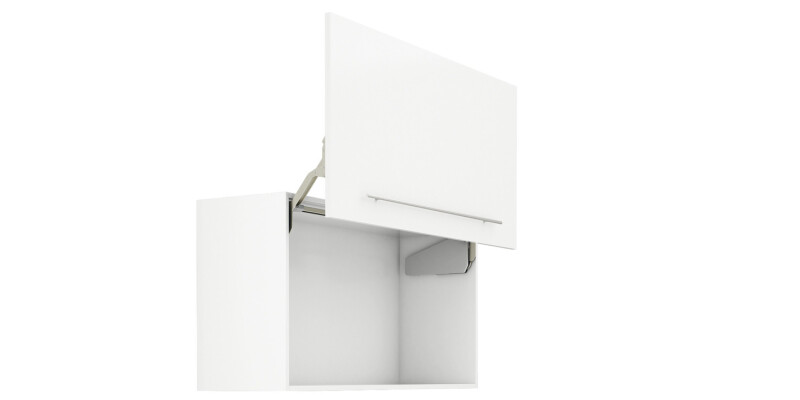

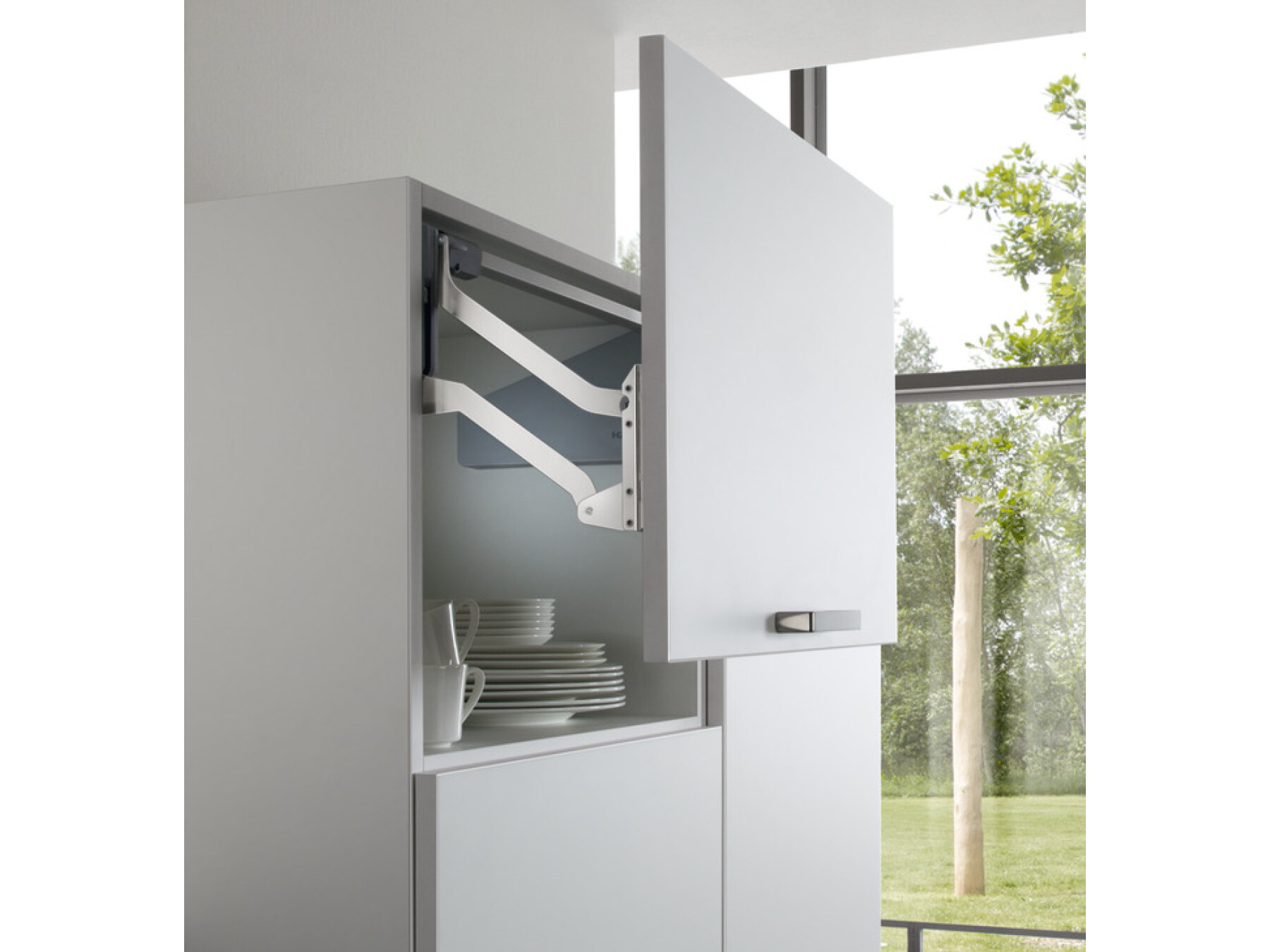

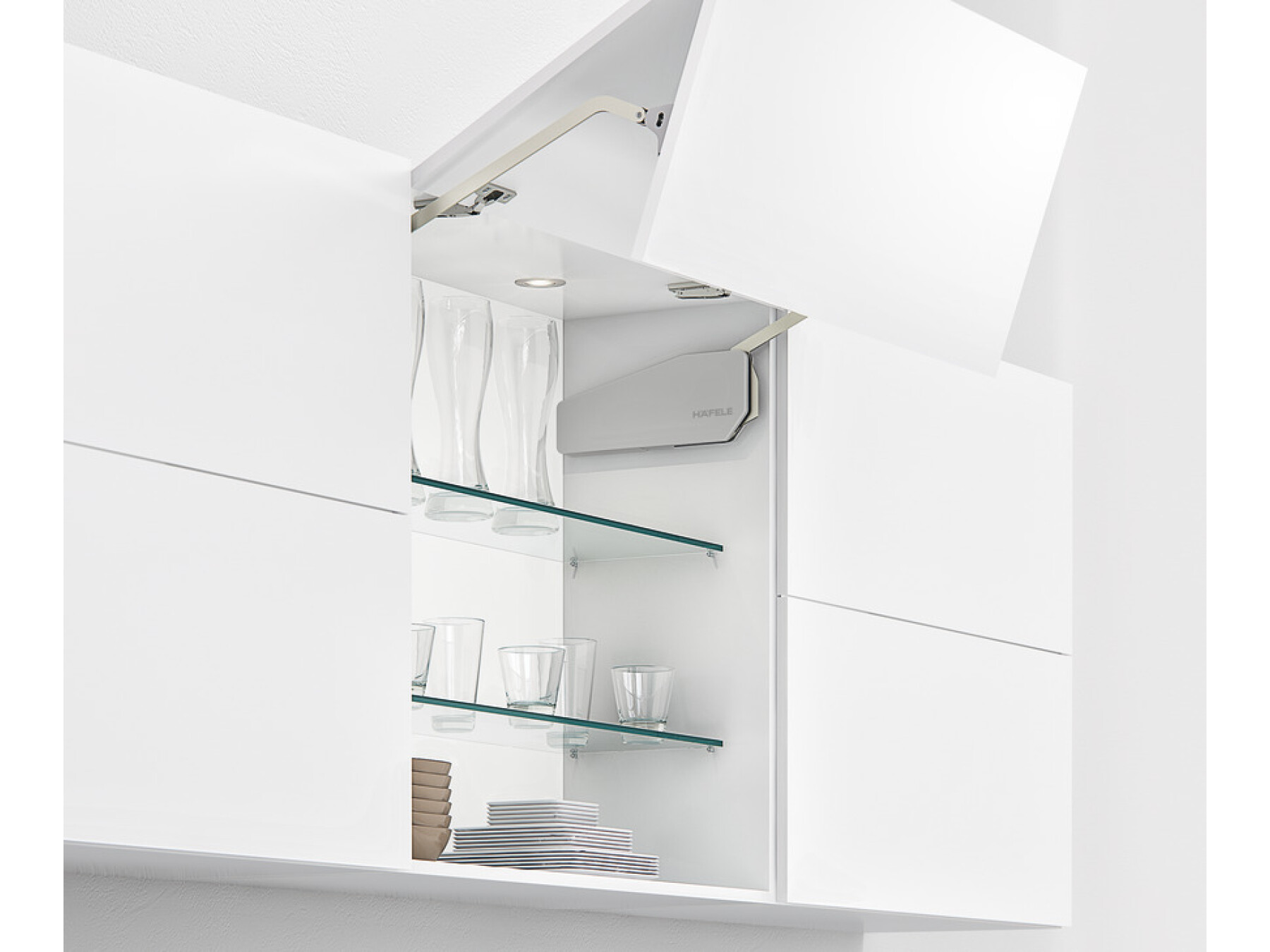

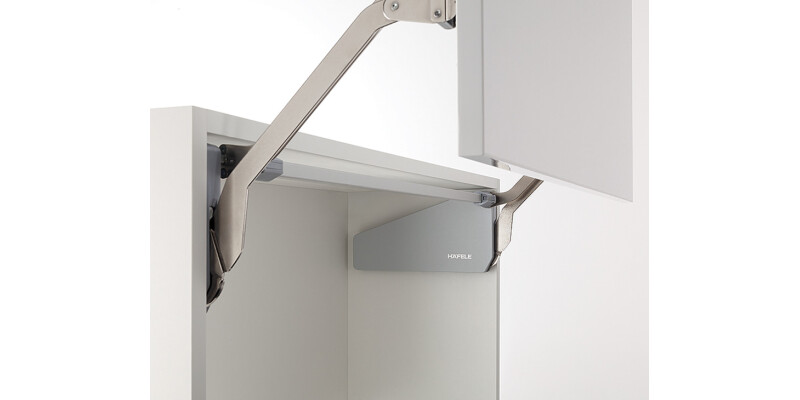

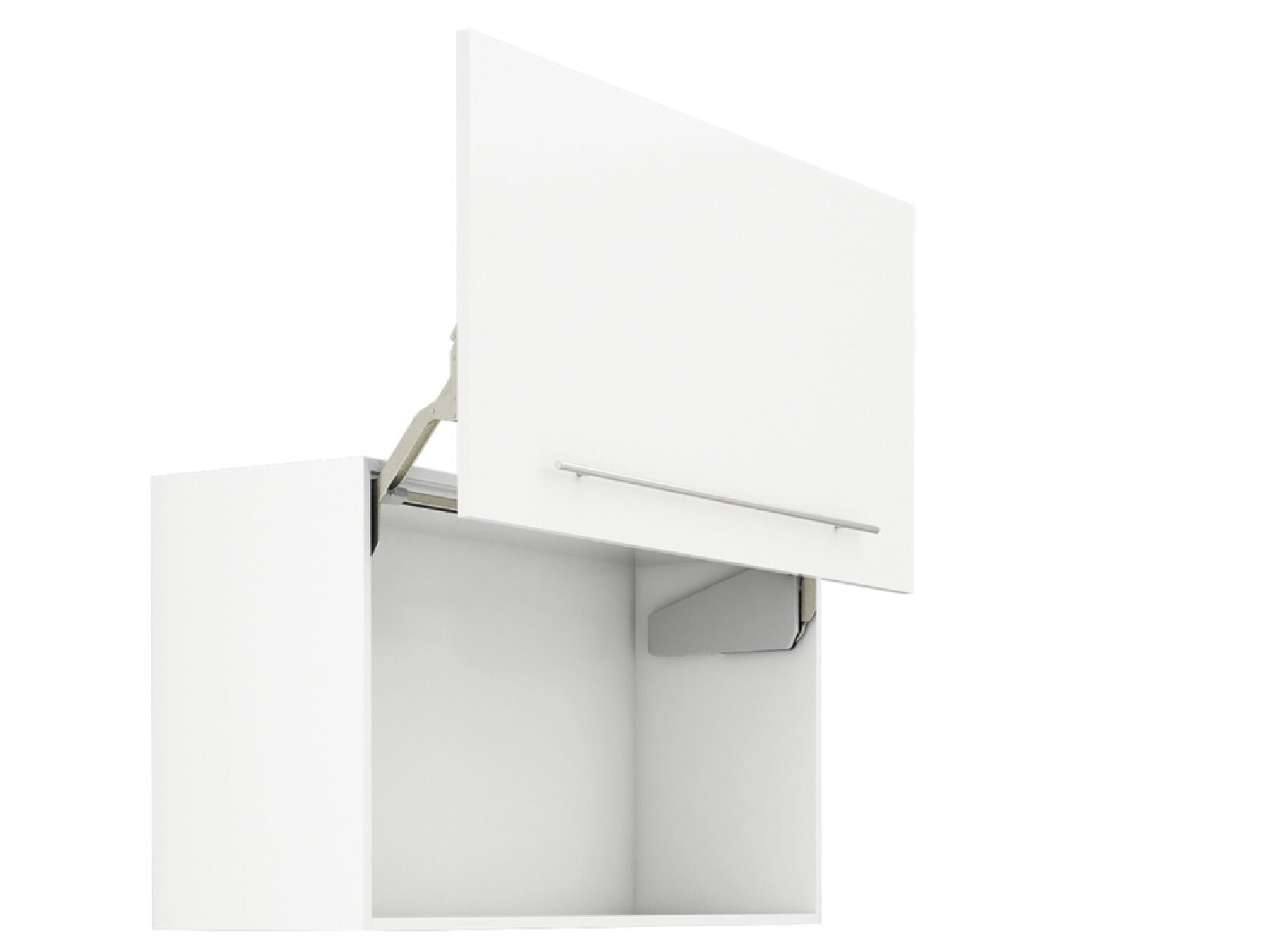

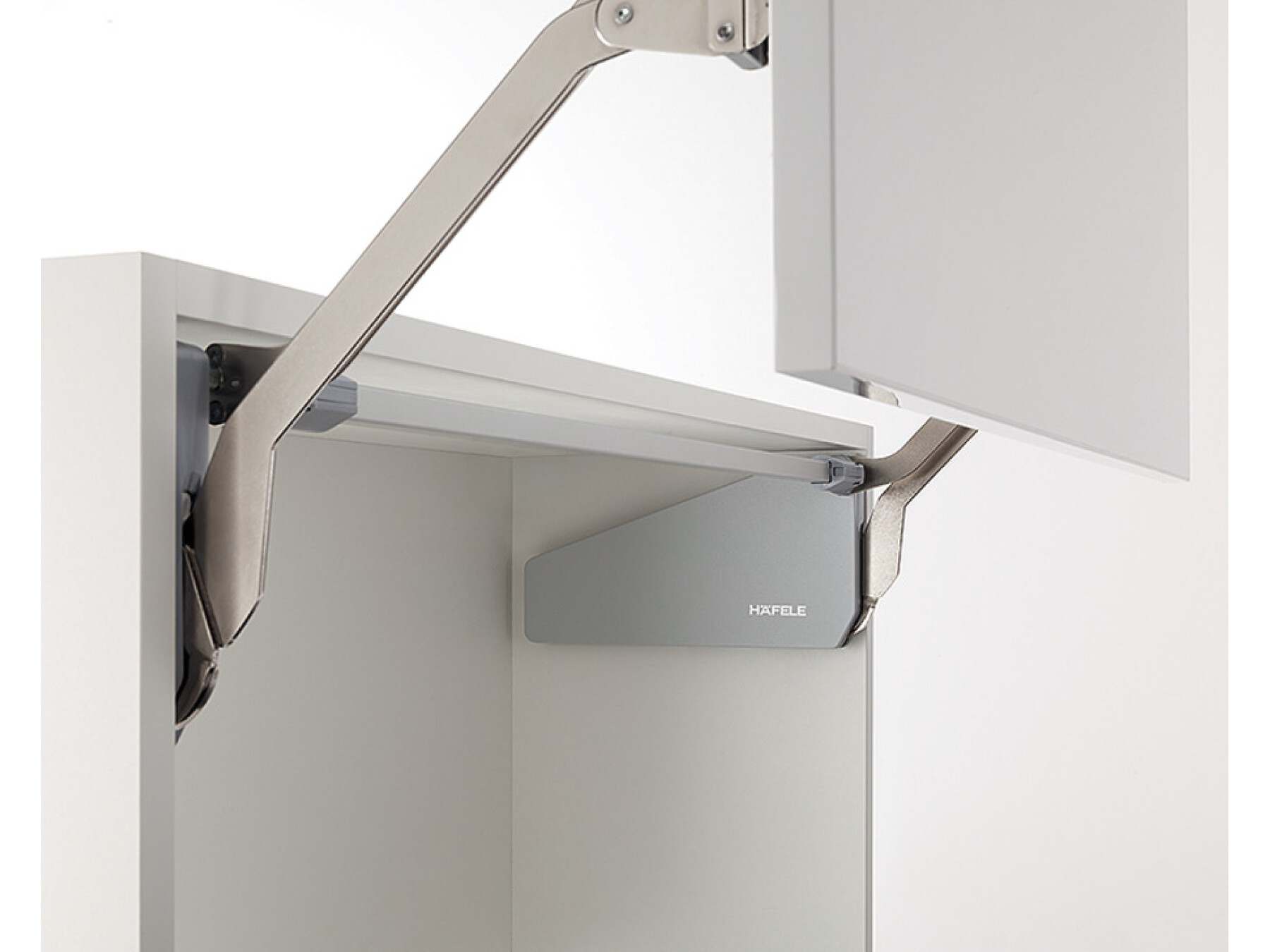

Parallel Lift Up Front Fitting, for One-Piece Flaps, Free Up is the perfect parallel lift-up front fitting for homeowners and commercial fit-out teams who want smooth, stable operation and a clean, modern look. Designed as Parallel Lift Up Front Fitting, for One-Piece Flaps, Free Up – Flap Fittings & Stays, this solution is ideal for one-piece flap doors made from wood, glass, or aluminium-framed panels.

With cabinet height compatibility from 430 to 600 mm, the system supports flap applications with a minimum flap height of 388 mm. It’s also built for flaps weighing 2.6 to 5.5 kg, helping ensure reliable movement and excellent control during everyday use.

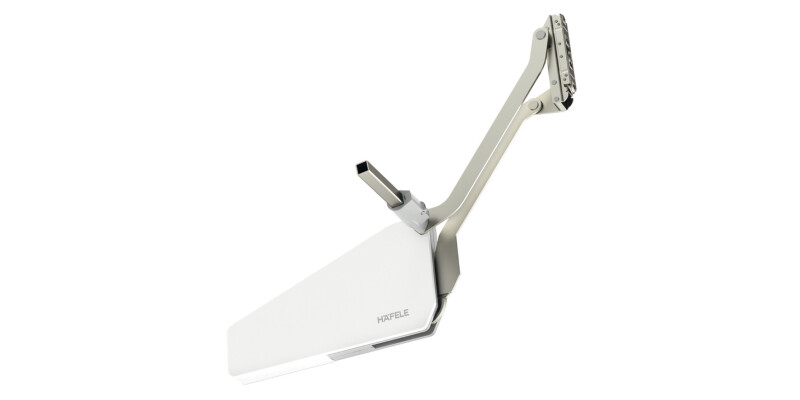

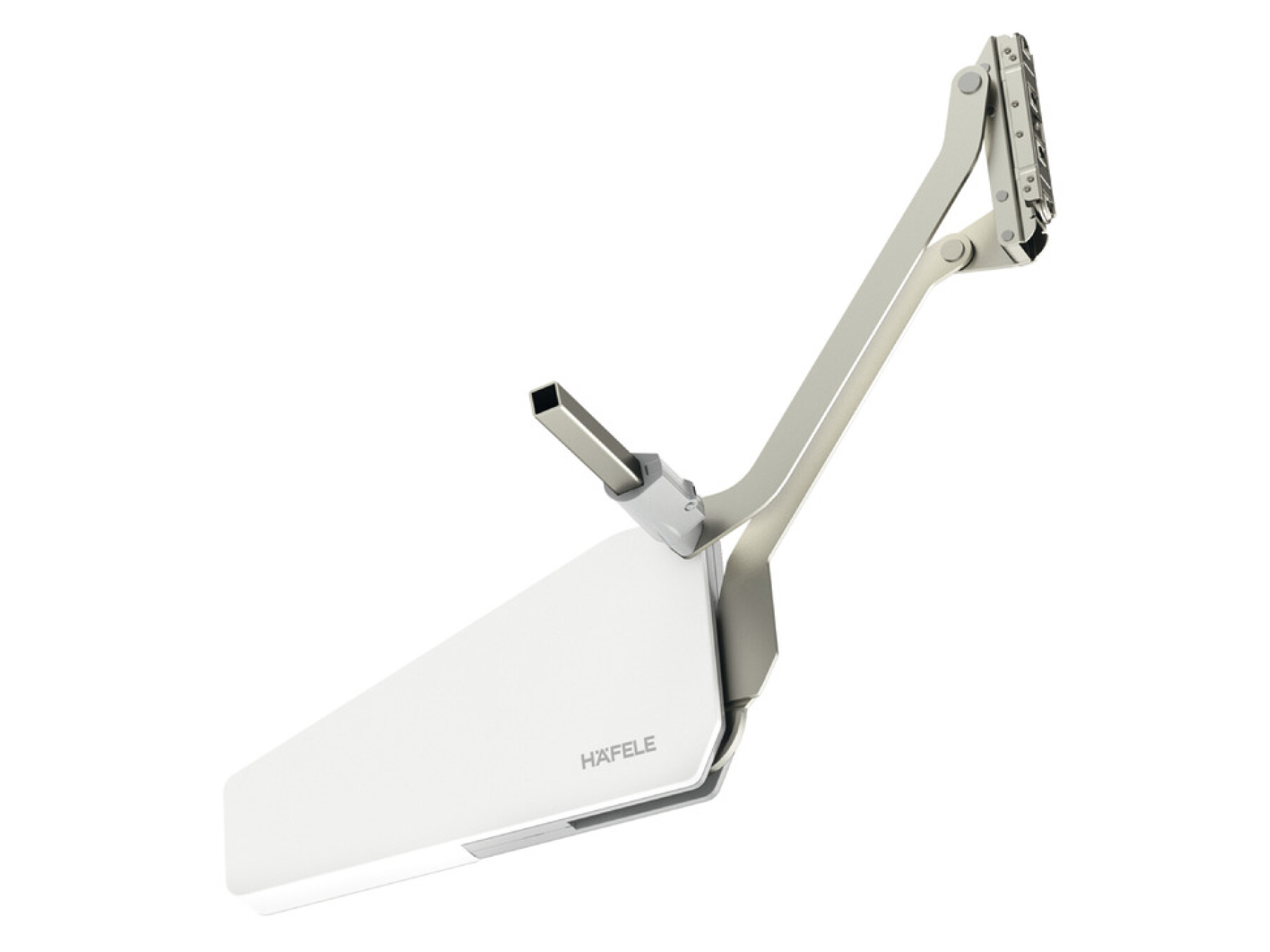

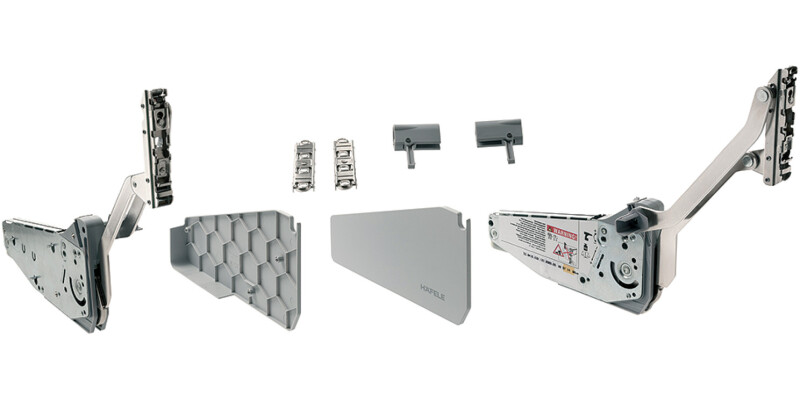

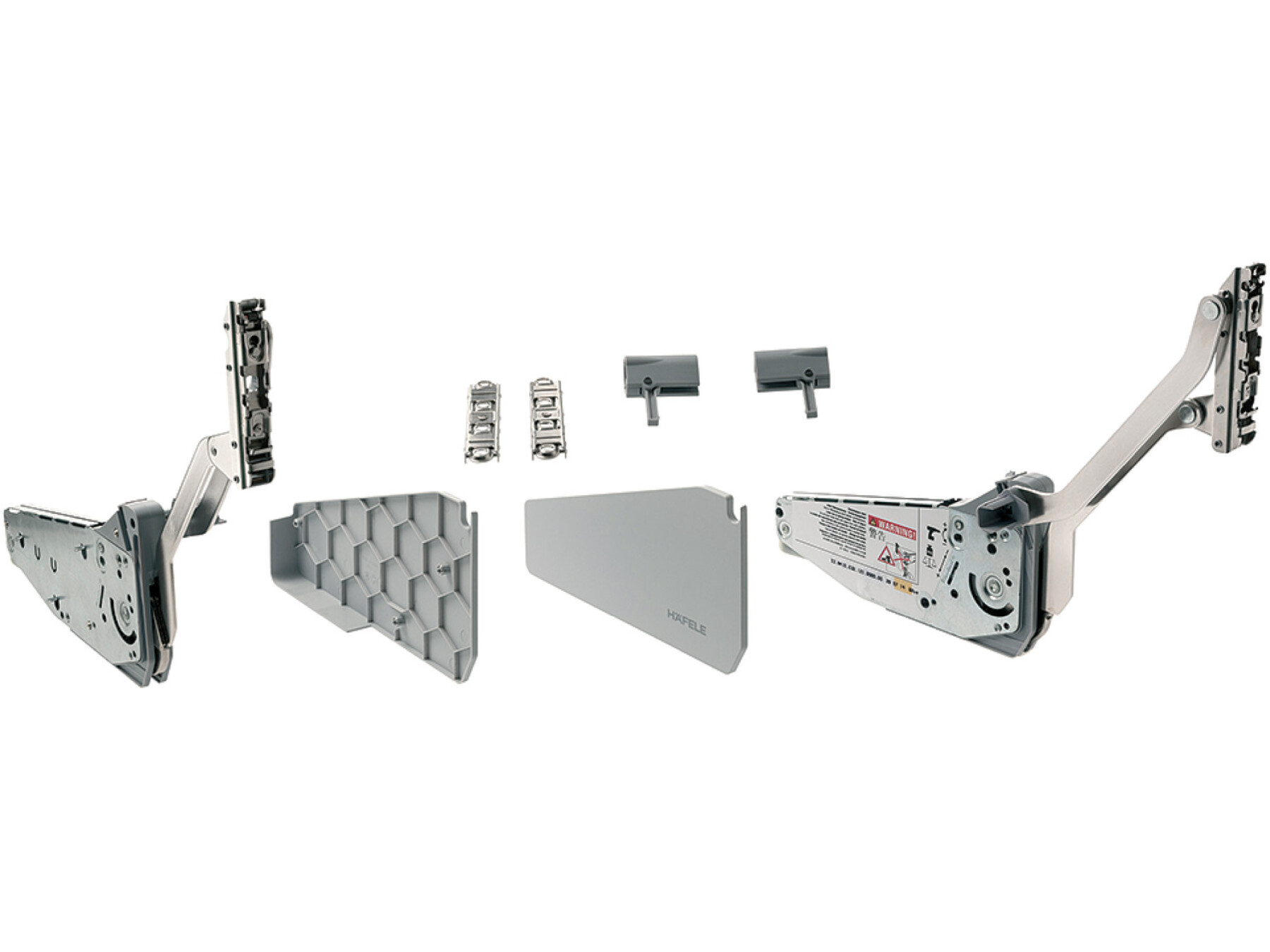

The fitting is manufactured with a steel base, while the cover cap uses durable plastic materials for a neat finish. Finished in a refined grey cover colour and nickel-plated fitting, it blends effortlessly with a wide range of cabinet interiors and living or commercial spaces.

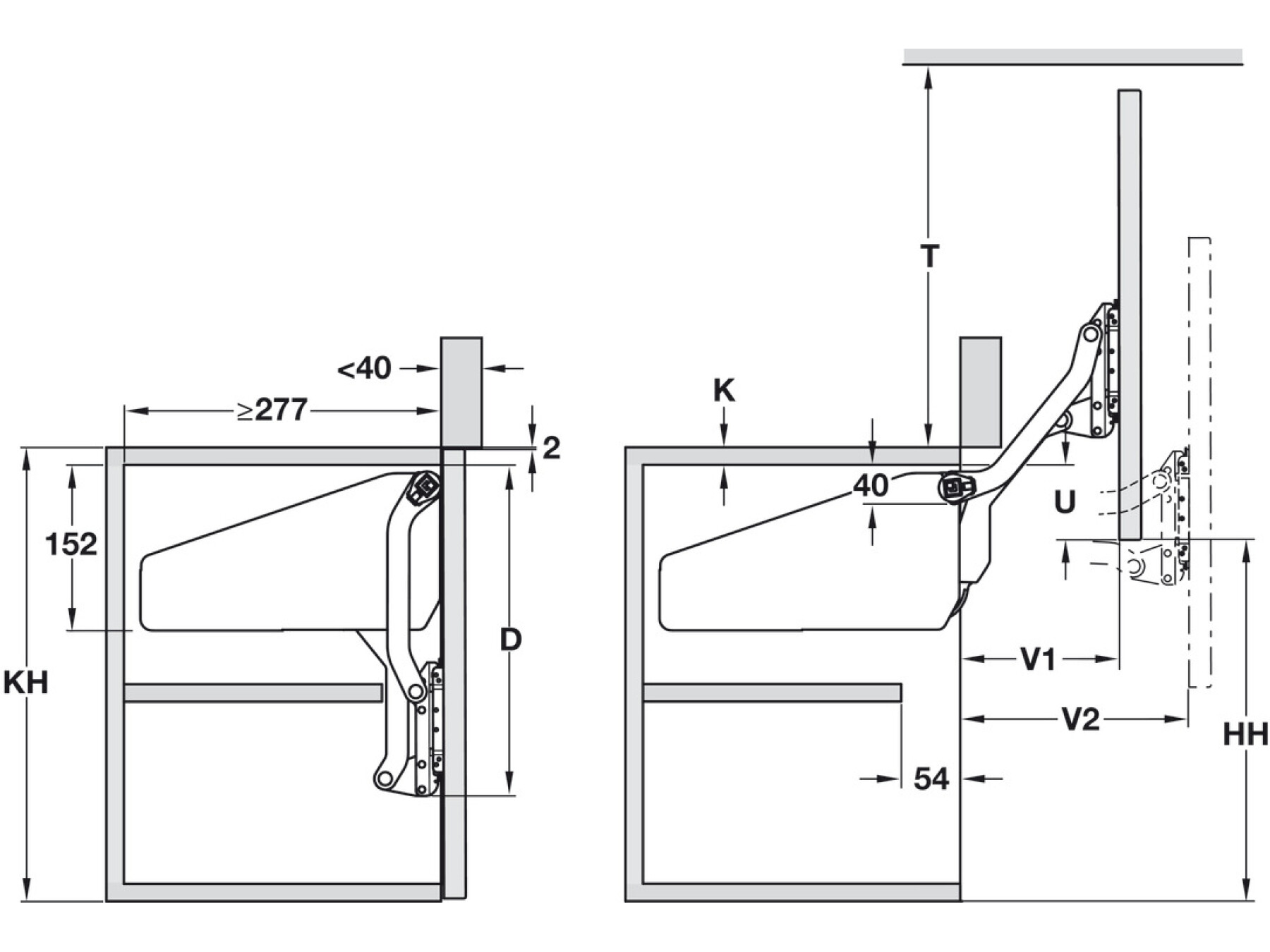

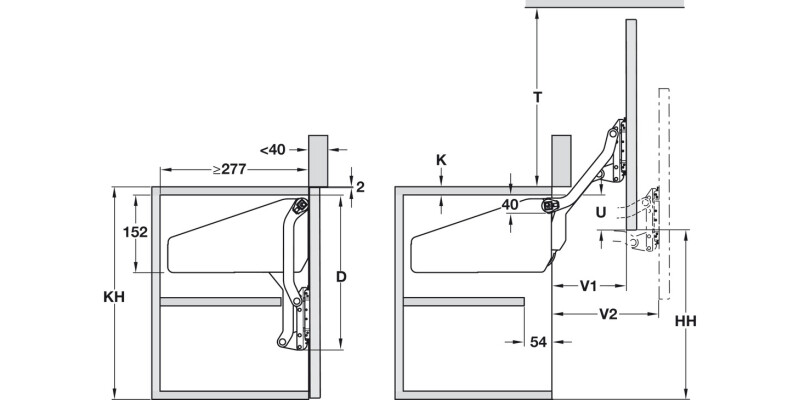

Installation versatility is a key benefit: this parallel lift-up front fitting is suitable for cabinet depths of ≥277 mm and provides precise setup with height adjustment ±1.5 mm, side adjustment ±1.5 mm, and an incline angle adjustment ±1.5°, with strong holding performance for confident positioning.

Every Parallel Lift Up Front Fitting, for One-Piece Flaps, Free Up unit (Part No: 372.33.531) is backed by the Hafele Lifetime Guarantee—25 years—making it a dependable choice for high-quality furniture projects.

Specifications

Area of application

For one-piece flaps made from wood, glass or with aluminium frame

Material

Fitting: Steel
Cover cap: Plastic

Colour/finish

Fitting: Nickel plated

Cover colour

Grey

Lid material

Wood, Glass, Aluminium frame

Flap type

one-piece

For cabinet depth

≥277 mm

Adjustment facility

Height adjustment ±1.5 mm, side adjustment ±1.5 mm, angle of incline ±1.5°, holding power

Hafele Lifetime Guarantee

25 years

FAQ

Product Details

Is Free Up Parallel 430 to 600mm suitable for one piece flap doors?

Yes. Free Up Parallel 430 to 600mm 2.6 to 5.5kg is designed for one piece flaps made from wood, glass or with an aluminium frame. It is intended for installations where the flap lifts smoothly and stays aligned with the cabinet face.

What cabinet and flap height ranges does Part No 372.33.531 support?

This fitting is for cabinet heights 430 to 600mm with a minimum flap height of 388mm. Choosing the correct size is important for safe operation and to ensure the adjustment travel is within range.

Will this support my flap weight and style?

It is rated for flap weights from 2.6 to 5.5kg. It is commonly used with wood and glass one piece fronts, including options with an aluminium frame, making it a good fit for both residential and light commercial units.

How much adjustment is available after installation?

The system offers height adjustment of plus or minus 1.5mm, side adjustment of plus or minus 1.5mm, and incline angle adjustment of plus or minus 1.5 degrees. This level of fine tuning helps you align the flap neatly and maintain consistent operation.

What is the required cabinet depth for this parallel lift up front fitting?

It is suitable for cabinets with a depth of at least 277mm (cabinet depth requirement is greater than or equal to 277mm). Using the fitting within the stated depth helps achieve proper lift geometry and prevents binding.

What colours and finishes can I expect?

The fitting is specified as nickel plated, with a grey cover cap. This finish is intended to blend with many contemporary cabinet hardware styles while remaining unobtrusive when the flap is open.

How confident can I be about long term durability?
