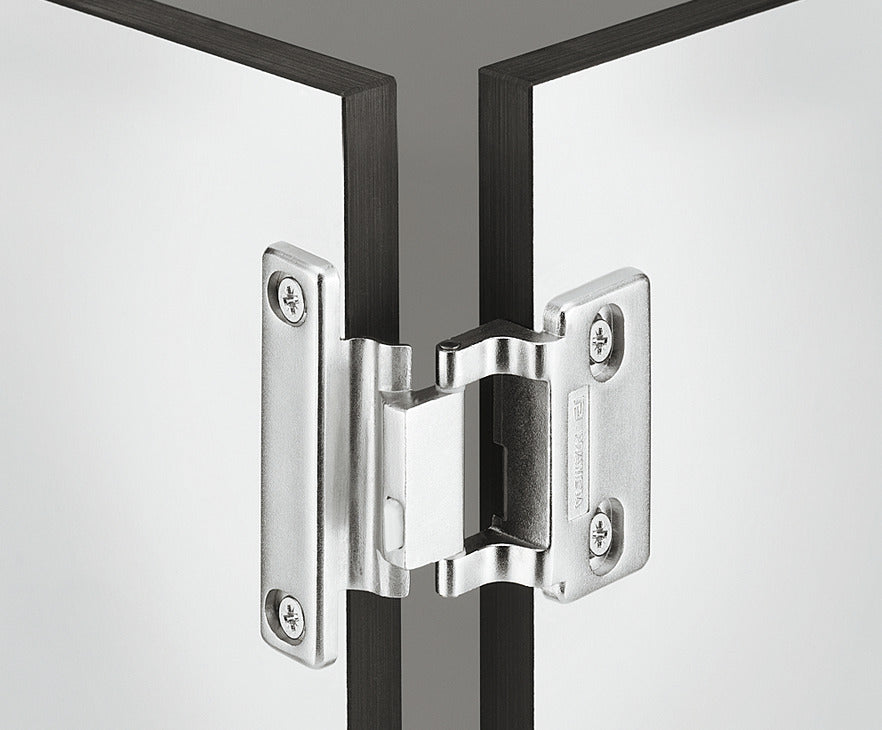

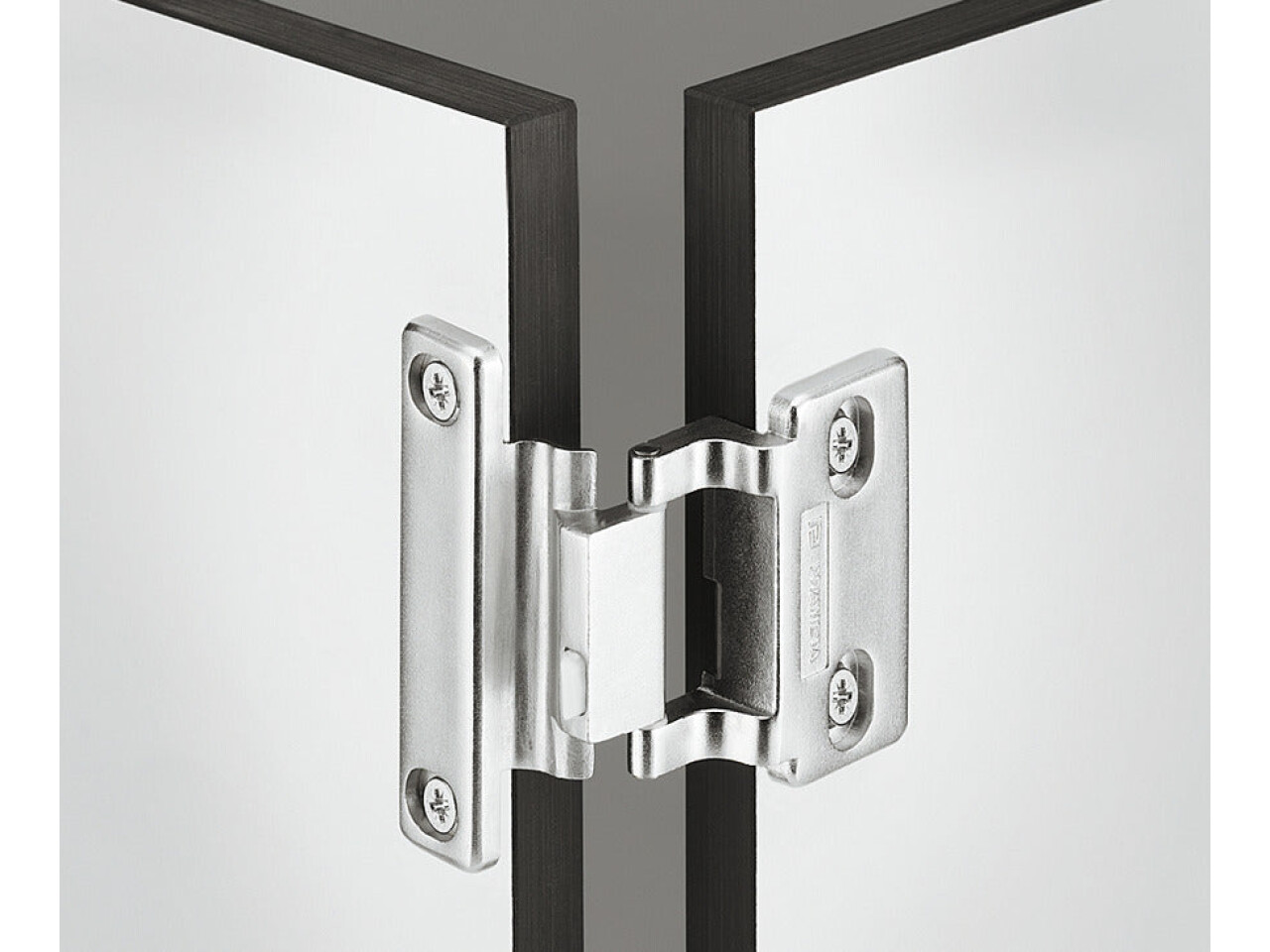

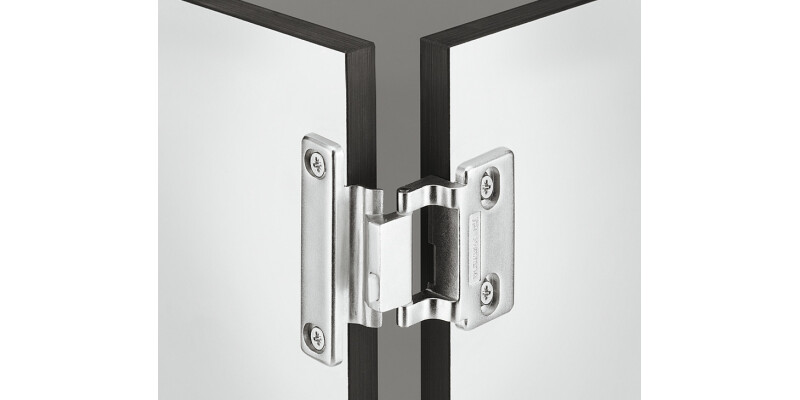

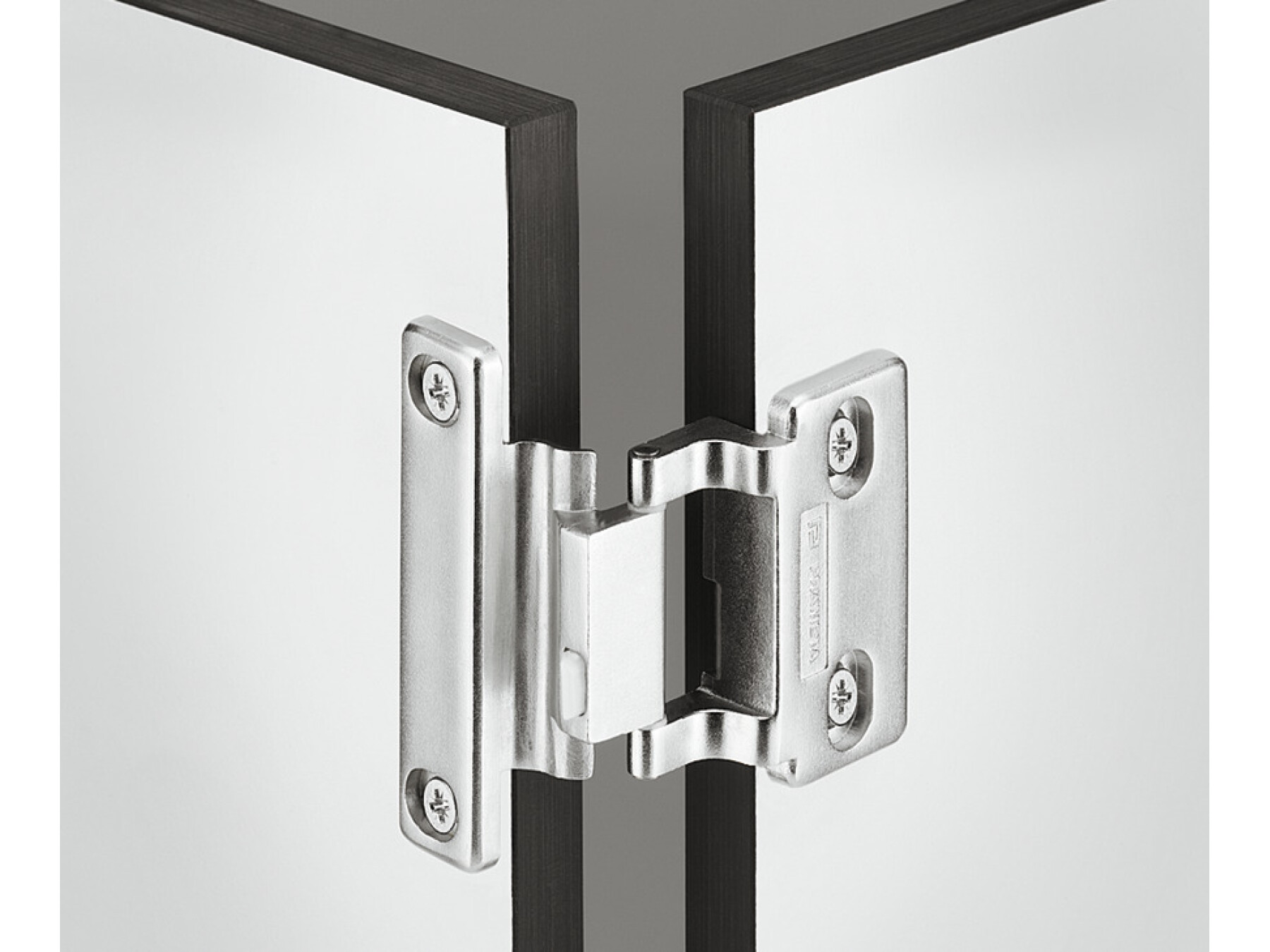

240D SS Hinge 10-13mm Doors Half Hospa
Part Number: 344.75.051
With automatic closing spring, Half overlay mounting, screw fixing
Price:
£69.19
Per Item
For cabinet thickness 13 mm The suitability of the stainless steel that is used for the intended application... Read More
Product Information
Product Details
For cabinet thickness 13 mm
The suitability of the stainless steel that is used for the intended application area must be assured by separate testing from case to case.
Specifications
Area of application
For laminate (HPL) doors, 6 mm gap
Version
Half overlay mounting
Material
Stainless steel, quality 1.4404 (V4A)
Colour/finish
matt
Opening angle
240°
For door thickness
10 – 13 mm
Door offset
0 mm at 140° opening angle
Gap
6.00 mm

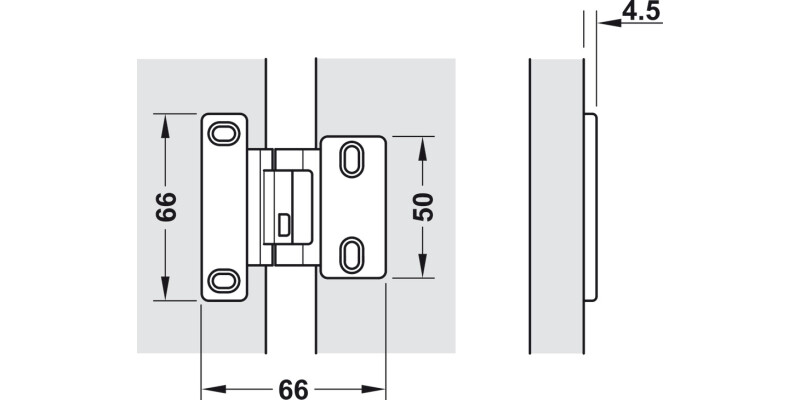

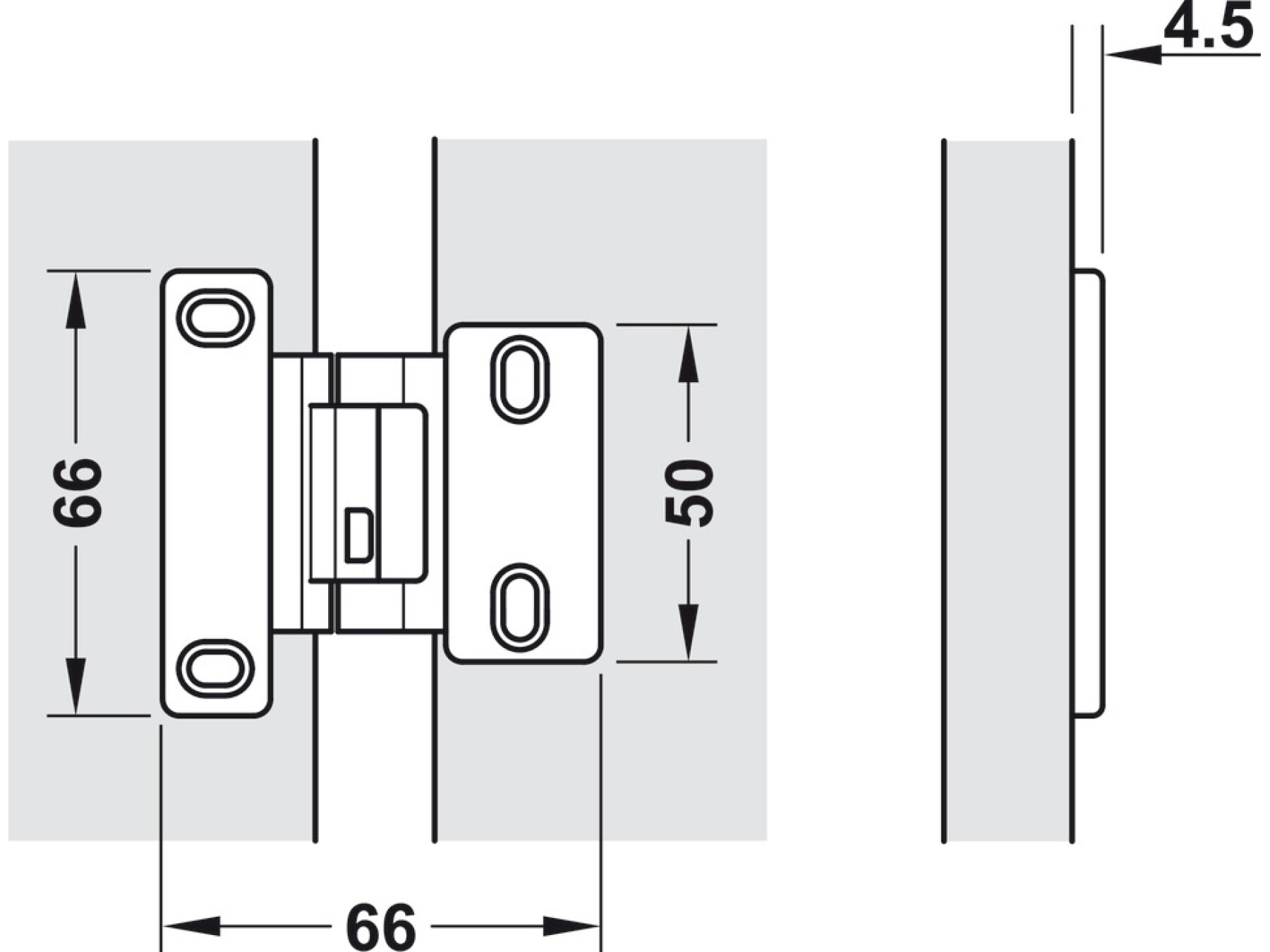

Door overlay
3.50 mm
Adjustment facility
Side adjustment: -1 mm, Height adjustment: -2 – 2 mm

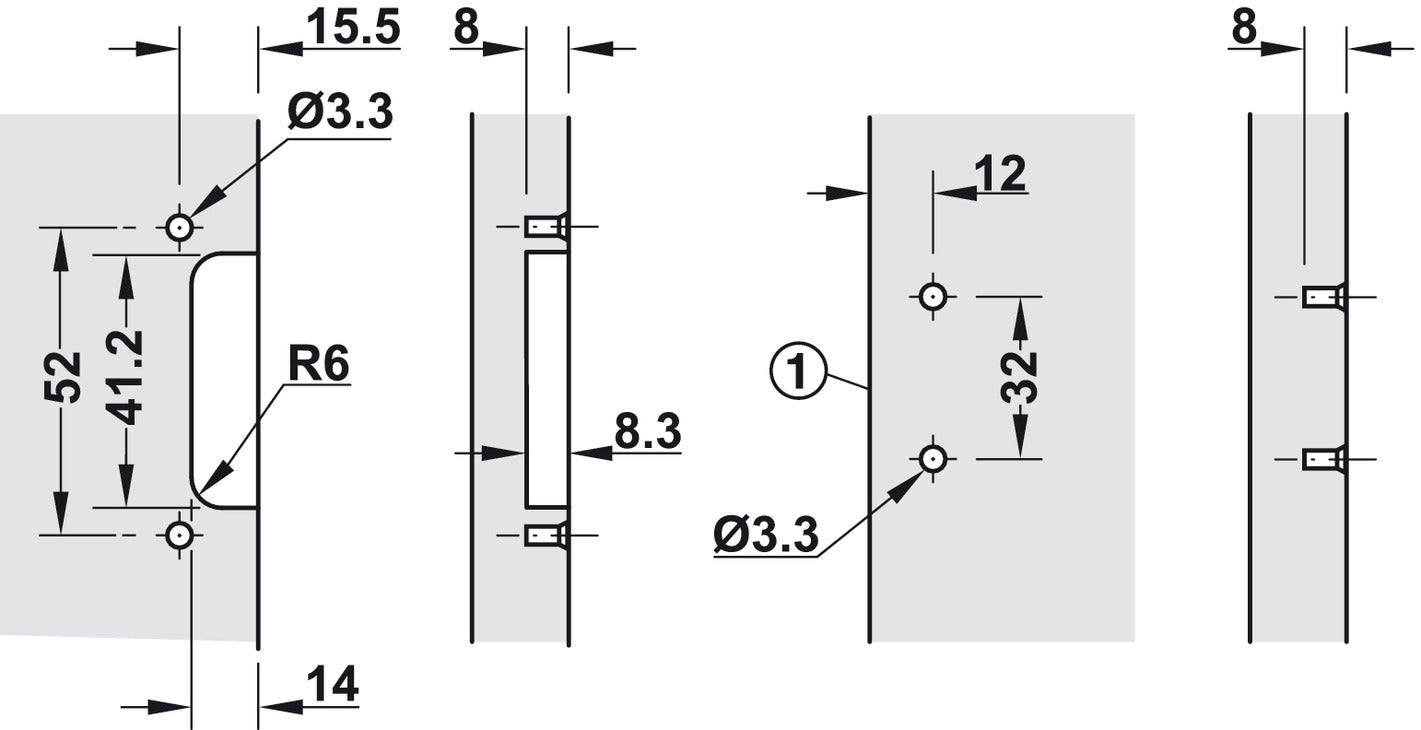

Installation
For screw fixing
Order reference
Order Hospa Ø 3.5 mm countersunk screws separately
Supplied with
1 hinge
1 set of fixing material
