Floor Spring, Power Sizes EN 1-4, Geze TS 500 NV

Product Details

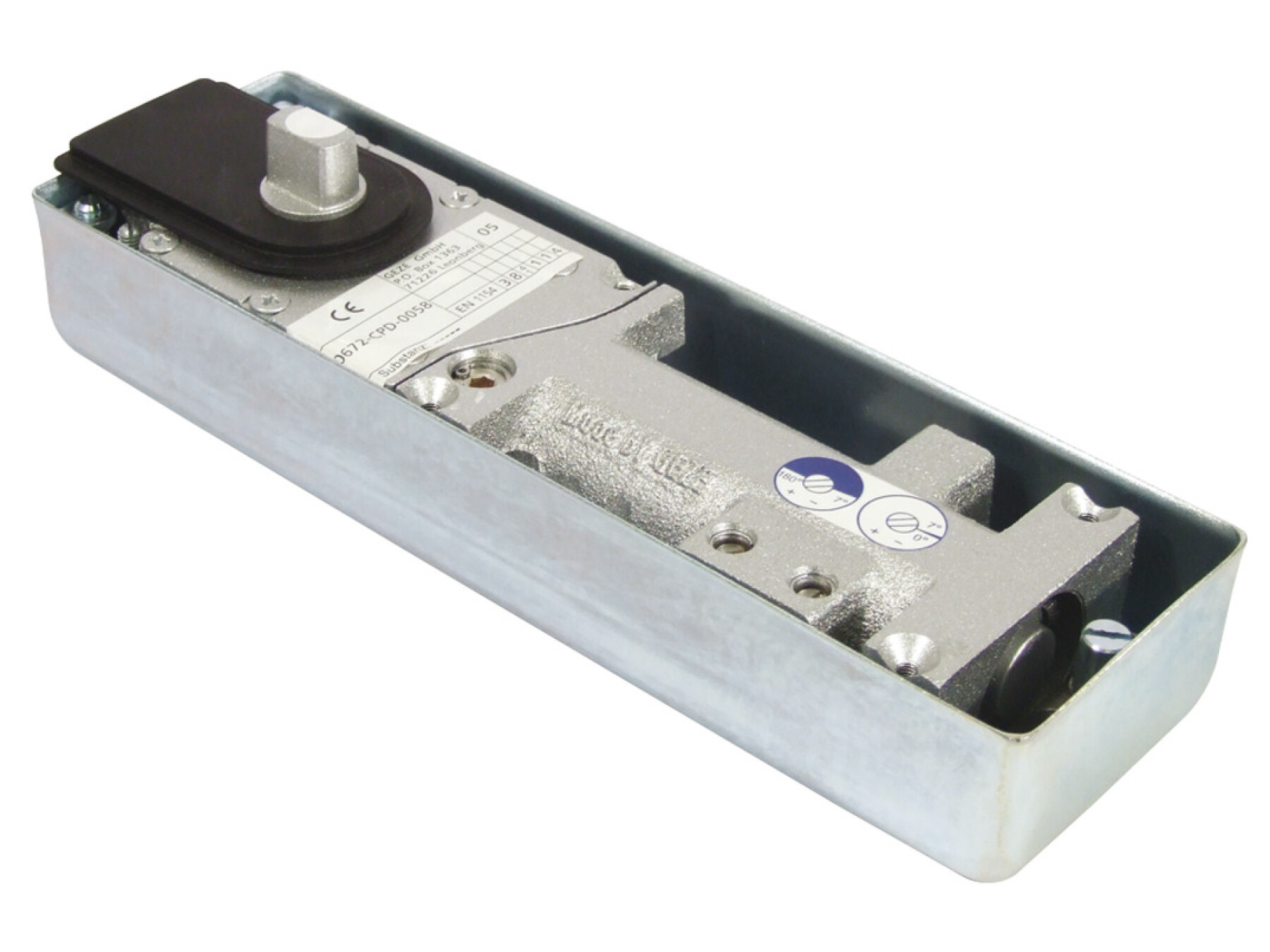

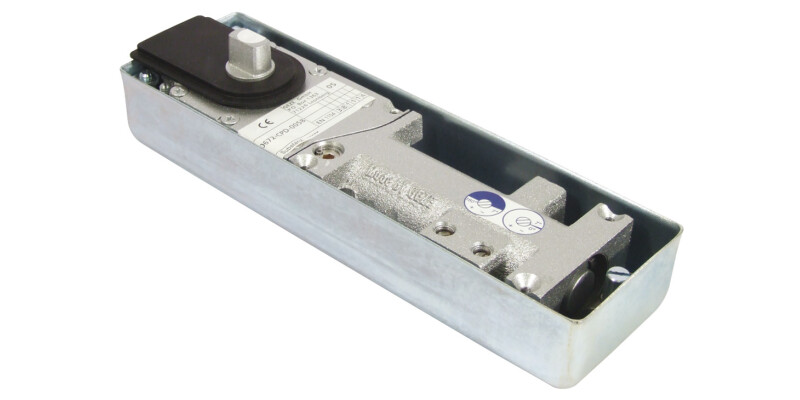

Floor Spring, Power Sizes EN 1-4, Geze TS 500 NV. (Product Part No. 932.10.050) is a premium floor spring mechanism designed for Moveable Wall Systems, as well as sliding and folding doors that demand smooth, reliable closing performance. This standard version for EN size 1–4 is ideal for projects where consistent operation, precise control, and strong safety features are essential.

Built for everyday performance in demanding environments, the mechanism offers a hold-open angle of 90° with single action doors and 95° with double action doors—perfect for high-traffic spaces such as offices, meeting rooms, and commercial interiors. It is suitable for door installations up to ≤150 kg, helping you achieve dependable control without compromising durability.

Engineered for flexible installation, this model is suitable for DIN left and DIN right hand mounting applications. The TS 500 NV Floor Spring Mech comes in a version with fixed backcheck, available with or without hold-open function, and includes a safety valve against overloading for added protection.

Enjoy adjustable operation thanks to settings for closing force, closing speed, and latching action. The closing force is 1–4 in line with EN 1154, with a closing effect starting from approx. 170°. The unit is certified according to EN 1154:1996/A1:2002 and carries grade 3|8|1–4|0|1|4. It supports door widths up to 1,100 mm.

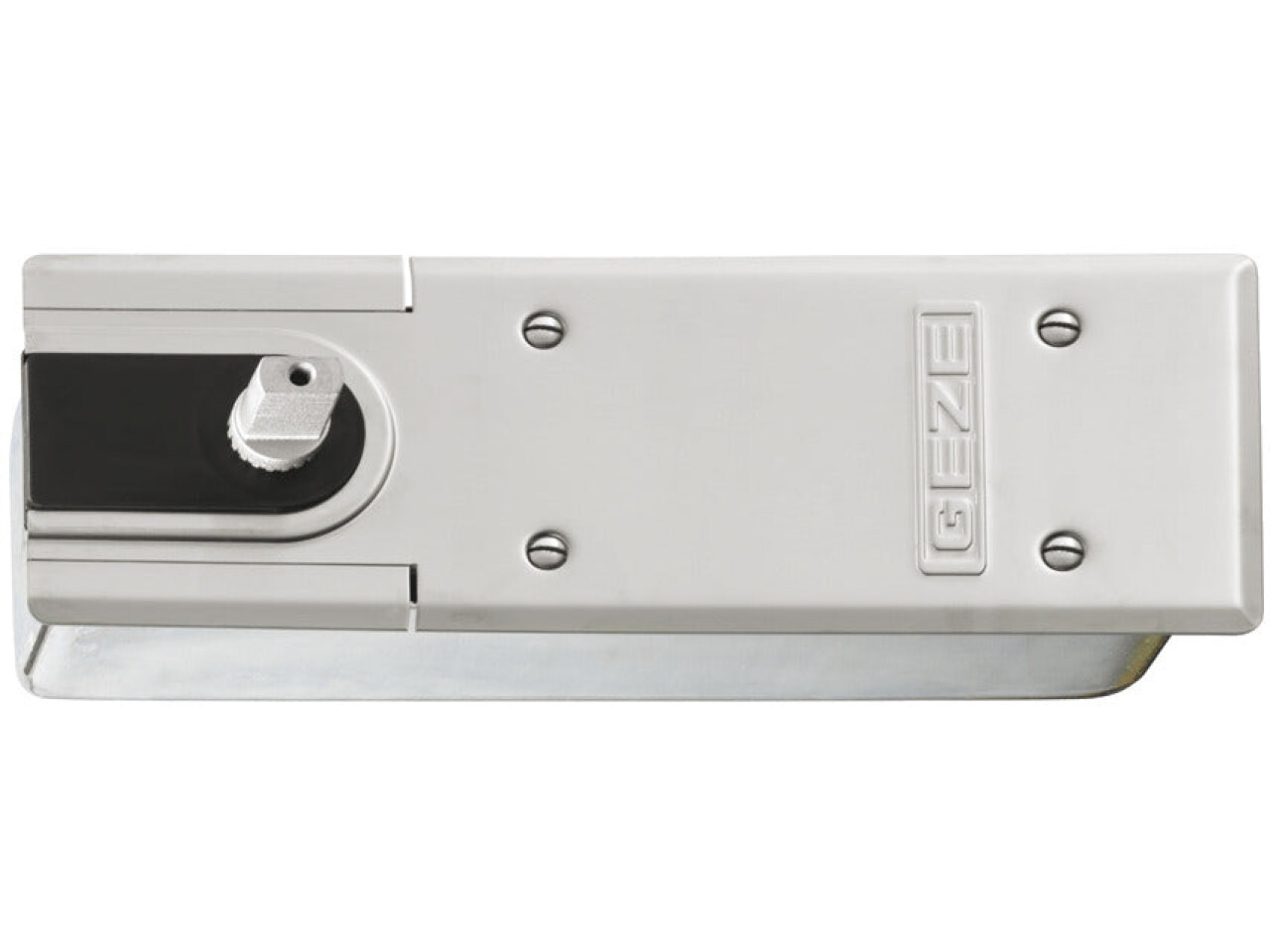

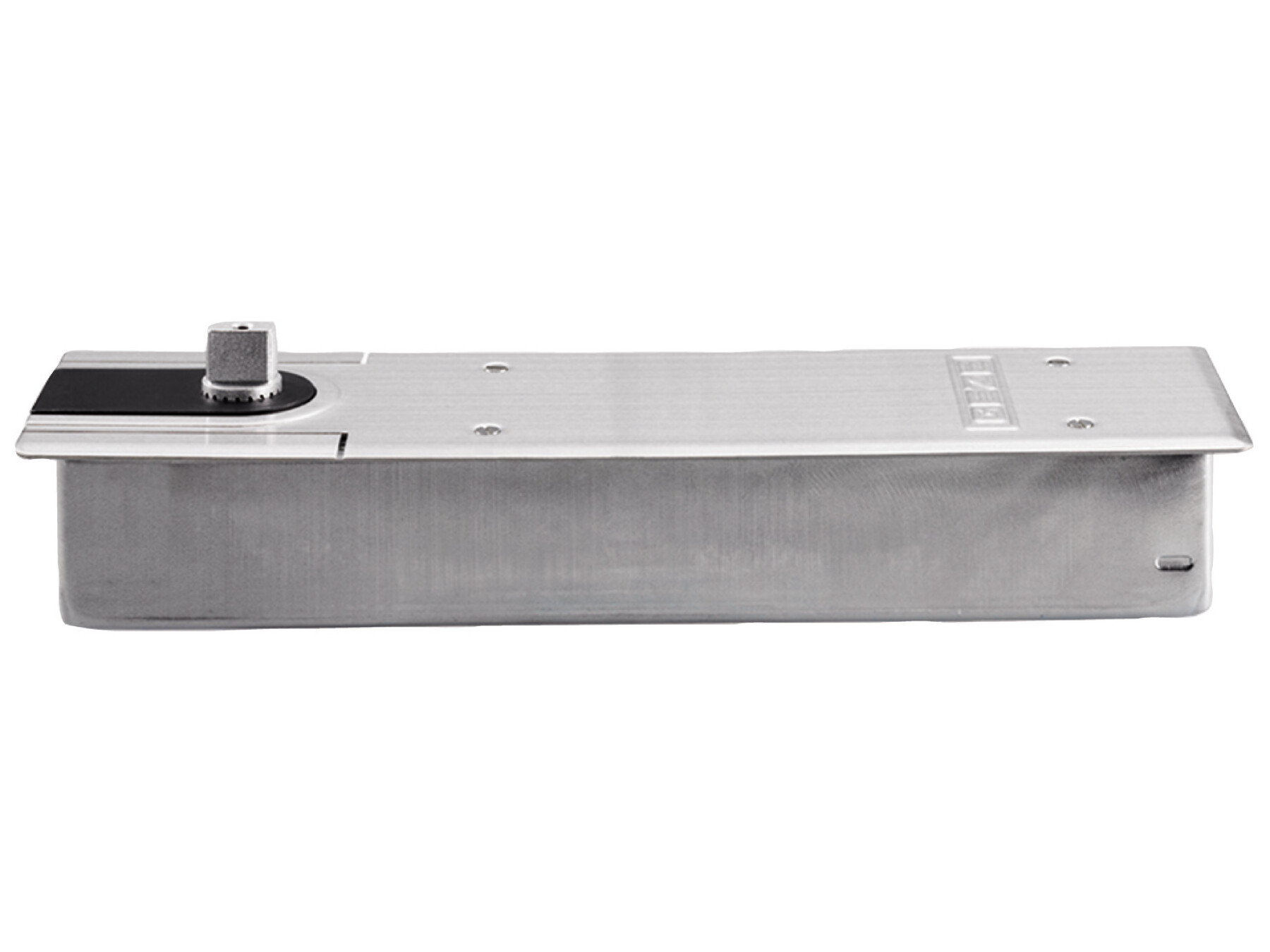

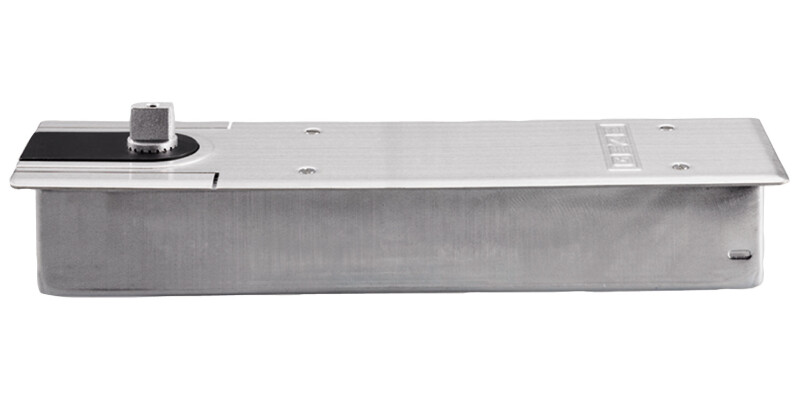

Cover plate note: Please order the cover plate separately (Cat. No. 932.10.130). Supplied with fixings.

Please order cover plate Cat. No. 932.10.130 separately.

Fixings
