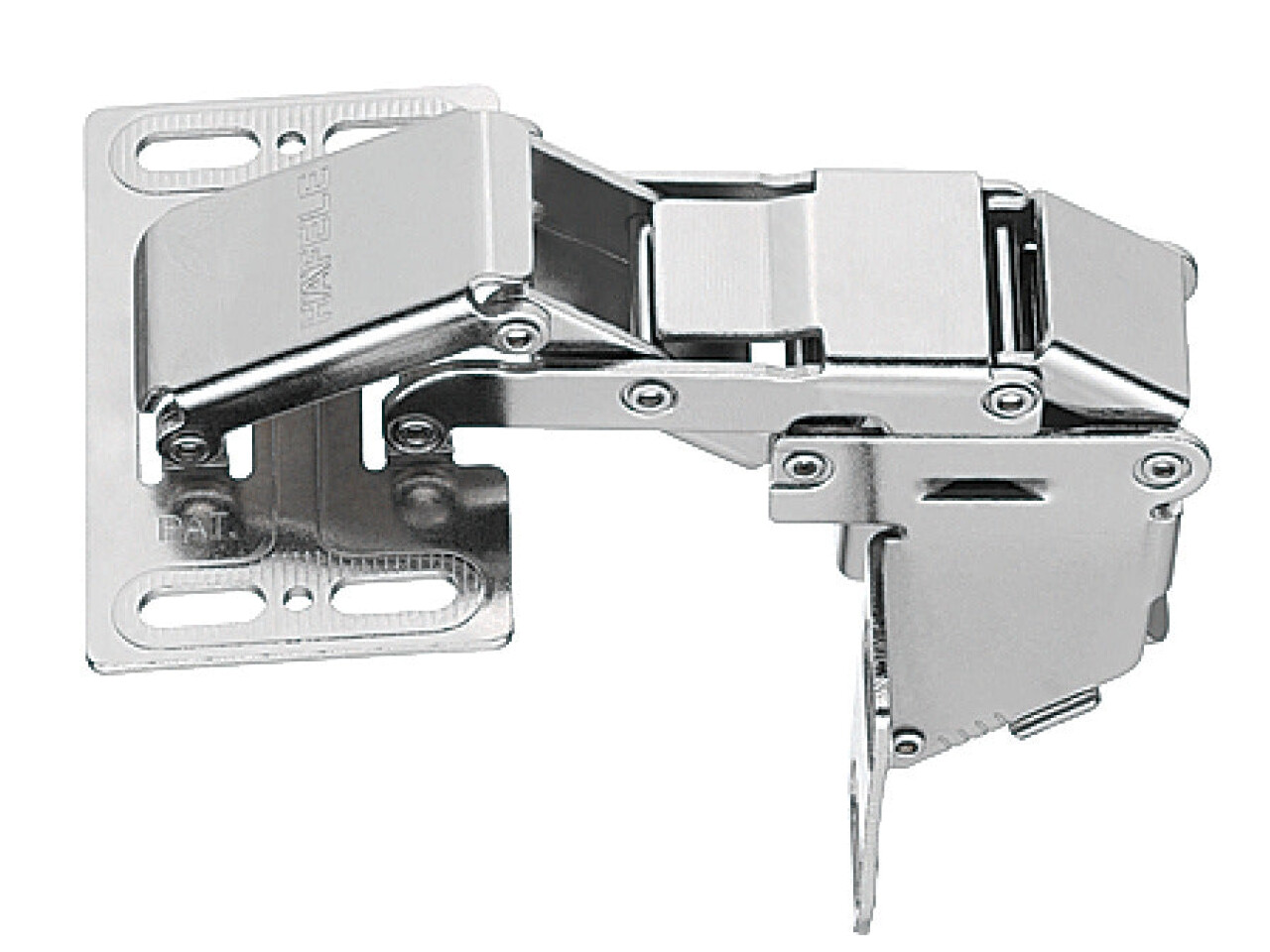

Swing Up Flap Hinge, for Mounting with Panel, Opening Angle 90�

Swing Up Flap Hinge, for Mounting with Panel, Opening Angle 90�

Part Number: 356.36.606

Caravan hinge for light flaps up to 2.1 kg, With soft closing mechanism

Price:

£3.31

Per Item

VAT excluded

Swing Up Flap Hinge, for Mounting with Panel, Opening Angle 90� (Product Part No: 356.36.606) is a reliable swing... Read More

Product Information

Product Details

Swing Up Flap Hinge, for Mounting with Panel, Opening Angle 90� (Product Part No: 356.36.606) is a reliable swing up flap hinge designed for smooth, controlled operation—ideal for caravans, light-duty cabinets and practical living or commercial furniture. If you’re fitting a flap that needs dependable support without heavy hardware, this Caravan hinge for light flaps up to 2.1 kg with soft closing mechanism delivers a premium feel every time.

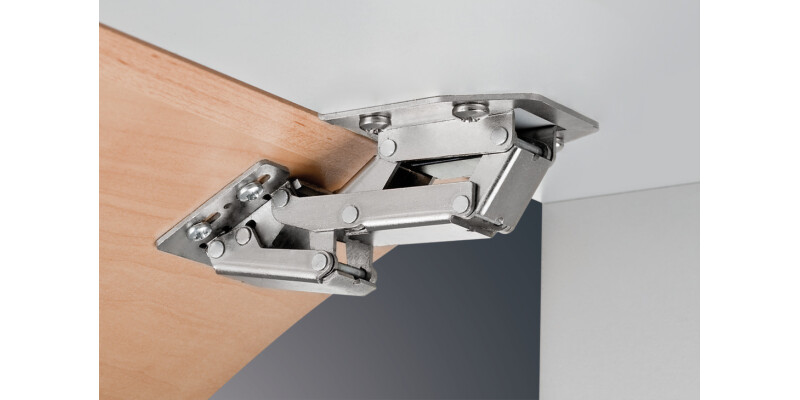

Built for lightweight flaps, this hinge is suitable for wood door and lid applications and provides a clean, professional look thanks to its nickel plated finish. The hinge opens to a generous 90°, making access easy while keeping the flap securely positioned during use.

Designed for specific dimensions, it’s a great fit for lid thickness of 15–16 mm and supports lid sizes up to ≤ 800 mm wide and ≤ 340 mm high. You also get side and height adjustment via slots, helping you fine-tune alignment for a neat, even result.

Installation is straightforward with screw fixing (model: CH 600). For ordering, please note: minimum 2 hinges are required per flap. Also, order Hospa Ø 4.0 mm pan head screws separately to complete your build.

Choose the Swing Up Flap Hinge, for Mounting with Panel, Opening Angle 90� and upgrade your cabinet hardware with smooth, soft-close performance and dependable support for light lids.

Specifications

Area of application

For lightweight flaps

For door material

Wood

Material

Steel

Colour/finish

nickel plated

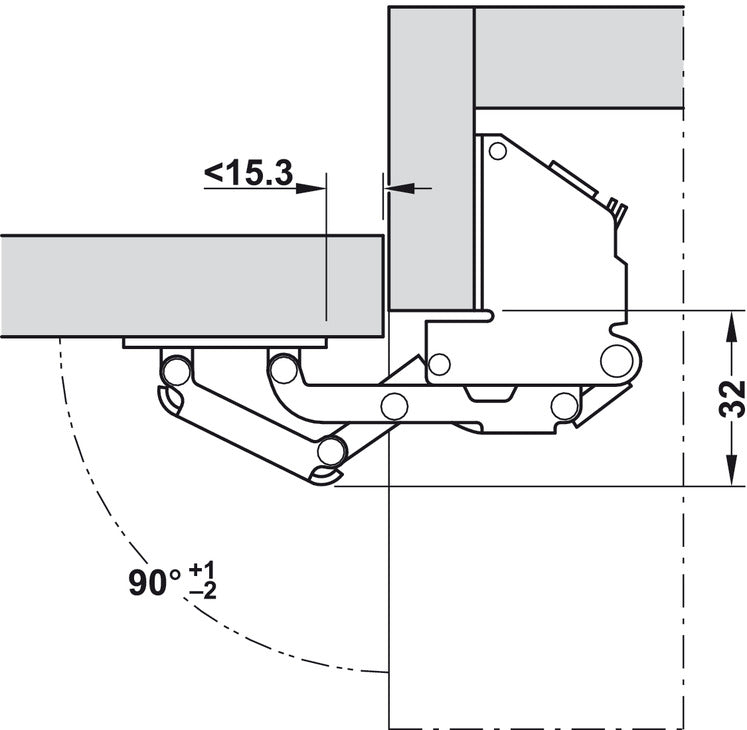

Opening angle

90°

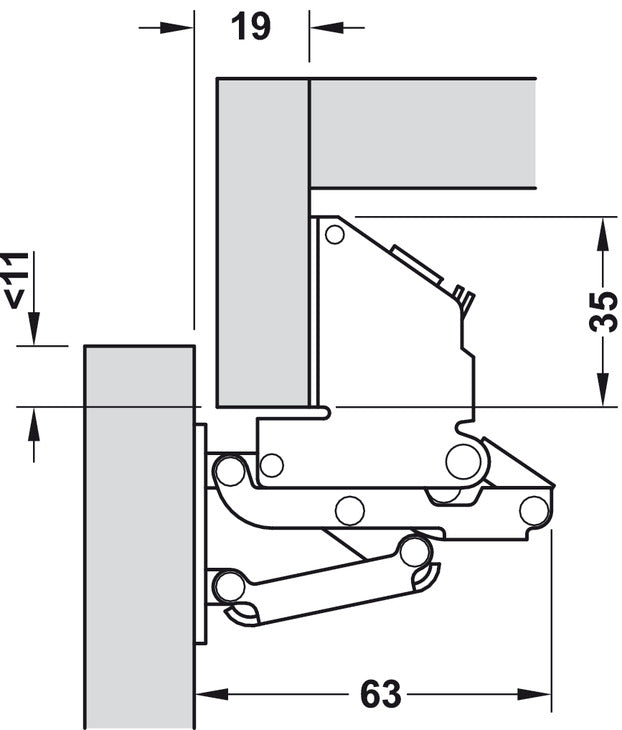

For lid thickness

15 – 16 mm

For lid width

≤ 800 mm

For lid height

≤340 mm

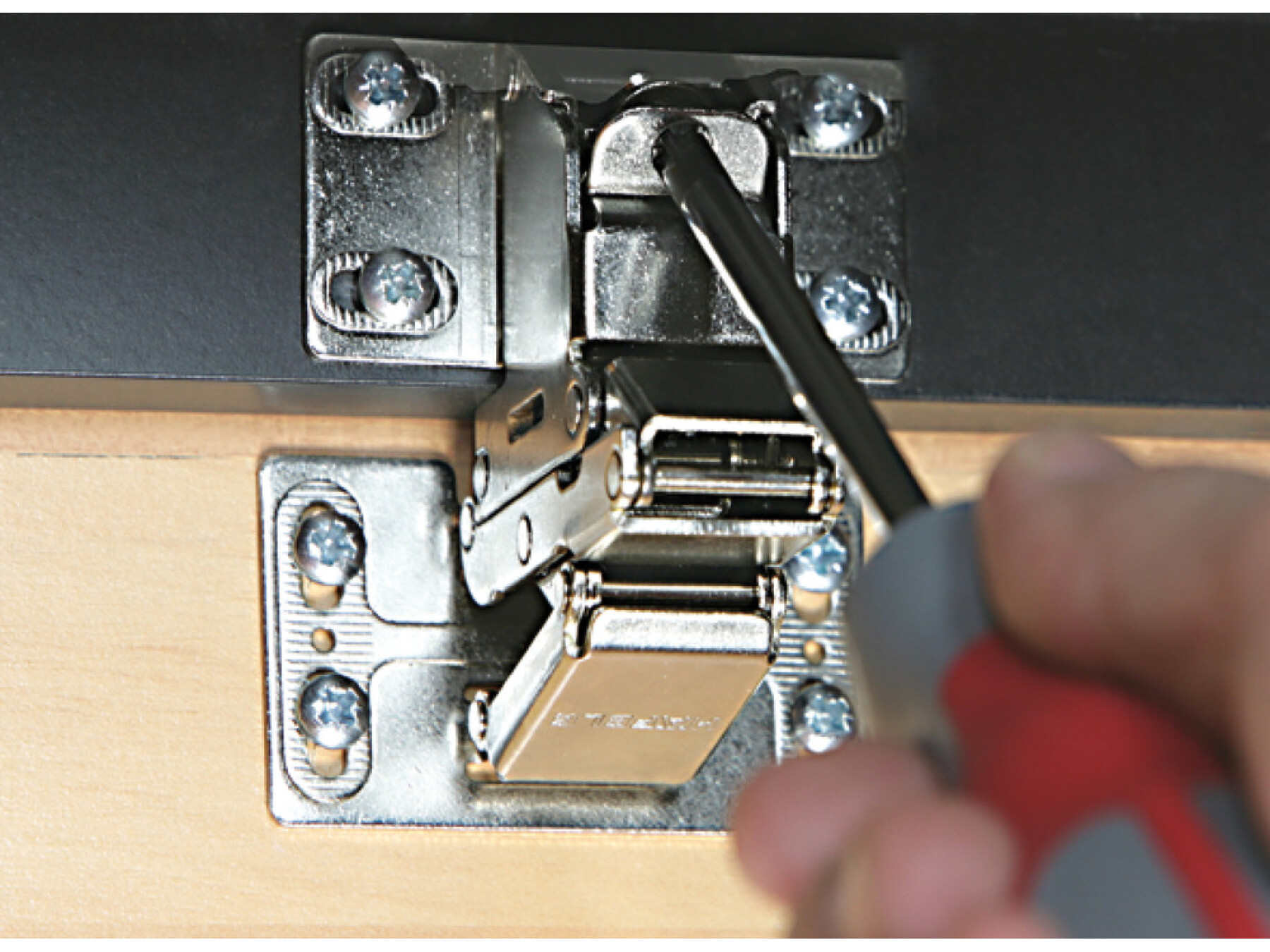

Adjustment facility

side and height adjustment via slots

Installation

for screw fixing

Model

CH 600

For lid weight

≤ 2.1 kg

Order reference

Minimum of 2 required per flap
Order Hospa Ø 4.0 mm pan head screws separately

FAQ

Product Details

Is this flap hinge suitable for caravan and other light duty applications?

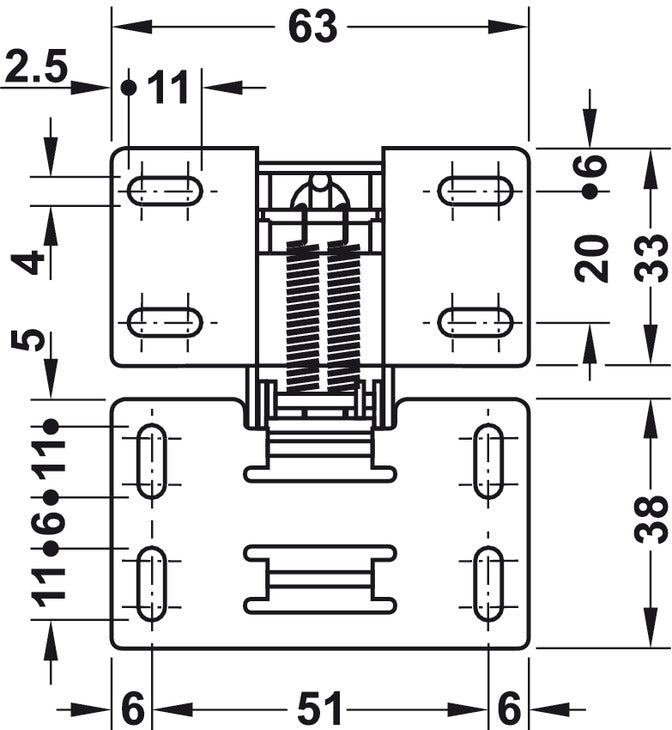

Yes. The Flap hinge nickel plated 63x58x20 SC (Part No: 356.36.606) is designed for lightweight flaps up to 2.1 kg, making it a practical choice for caravans and similar storage applications where a smooth, controlled lift is needed.

What soft closing features does this hinge provide?

It includes a soft closing mechanism, which helps the flap settle down more gently than a standard hinge. This can improve day to day use, particularly on cupboards and access panels that get opened frequently.

What flap size and lid thickness does it fit?

This model is intended for lids with a thickness of 15 to 16 mm. It is also suitable for flaps where the width is up to 800 mm and the height is up to 340 mm, assuming the total flap weight stays within the stated limit.

How wide is the opening angle?

The hinge offers an opening angle of 90 degrees. This is useful when you need a clear access range for packing items, cleaning, or performing routine checks.

Can I adjust the hinge once it is fitted?

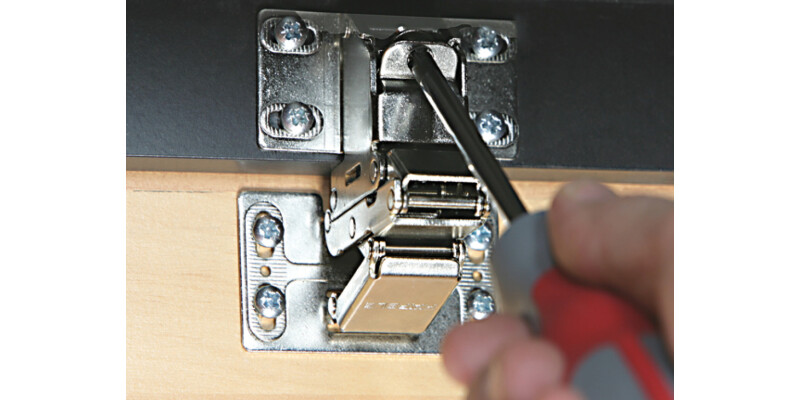

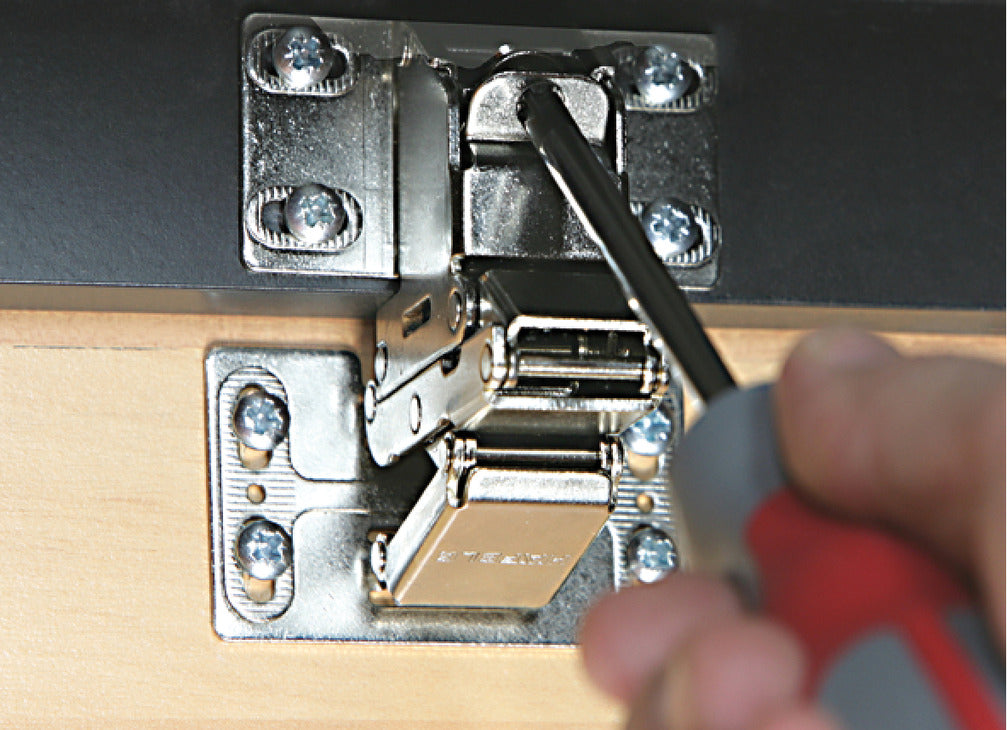

Yes. Adjustment is provided for side and height via slots, which helps you fine tune alignment after installation and can make final positioning easier.

How is it installed and what fixings are required?

Installation is for screw fixing. For ordering, you will need minimum 2 required per flap, and Hospa 4.0 mm pan head screws must be ordered separately if you do not already have the correct fixings.

Does the nickel plated finish suit indoor and living space use?

Yes. The nickel plated finish is commonly used on furniture hinges because it provides a clean, durable appearance that works well on wooden cabinet or flap doors, including in living and commercial spaces.
