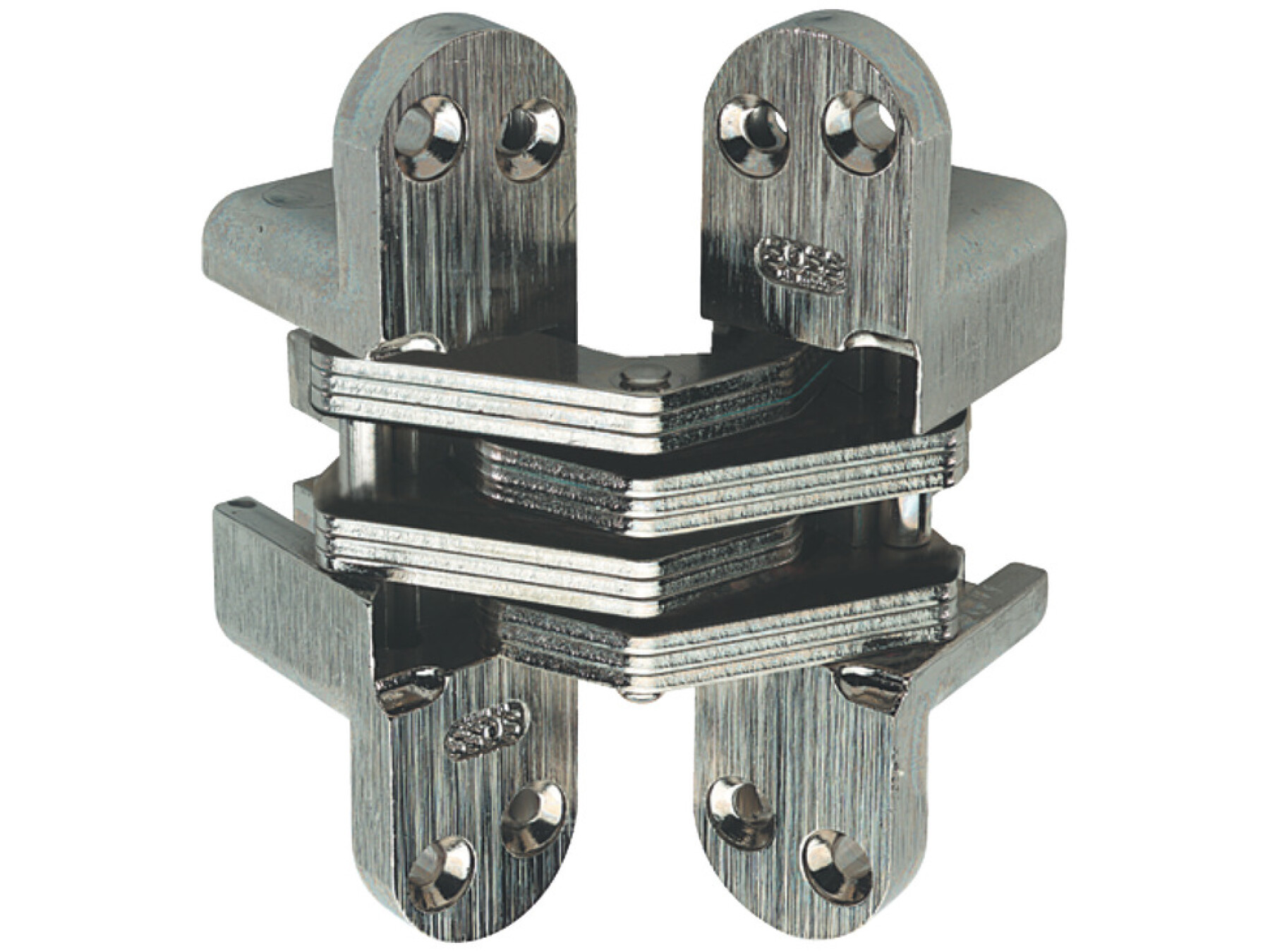

Soss Hinge, Concealed Mortice, Various Models

Product Details

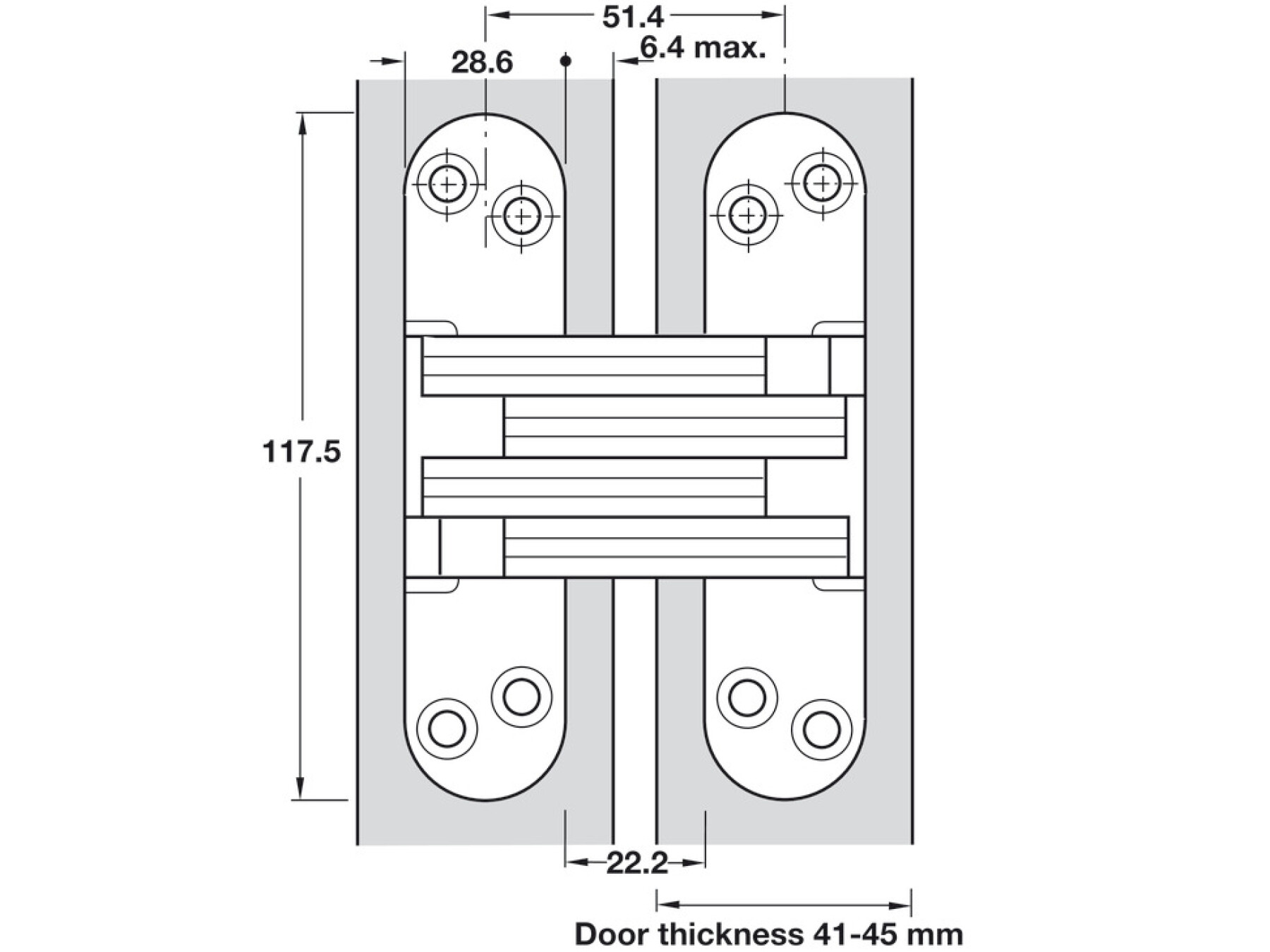

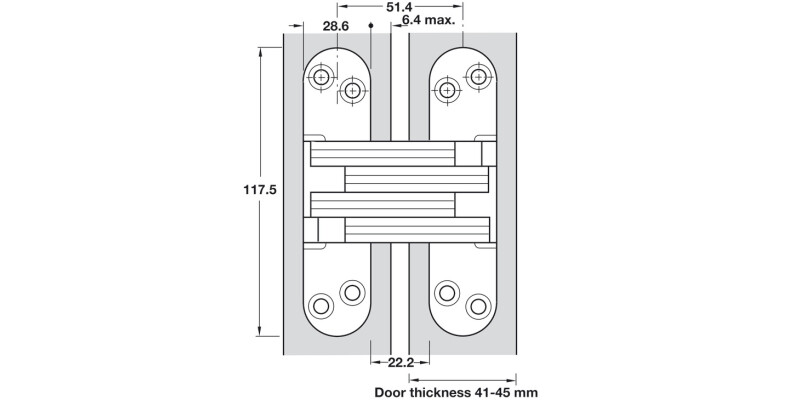

Will this Soss hinge fit my door thickness of 41 to 45 mm?

Yes. The 218 Soss Hinge is designed for concealed mounting on doors in the 41 to 45 mm range, helping you achieve a flush, clean finish. This model is suitable when you want the hinge hidden from view for a streamlined look.

Is the hinge suitable for left hand or right hand doors?

It supports both door hands. For DIN left and DIN right applications, you can use the correct orientation as indicated for DIN left and DIN right. If you are unsure about your door hand, check the way the door opens from the hinge side.

What materials are used in this hinge system?

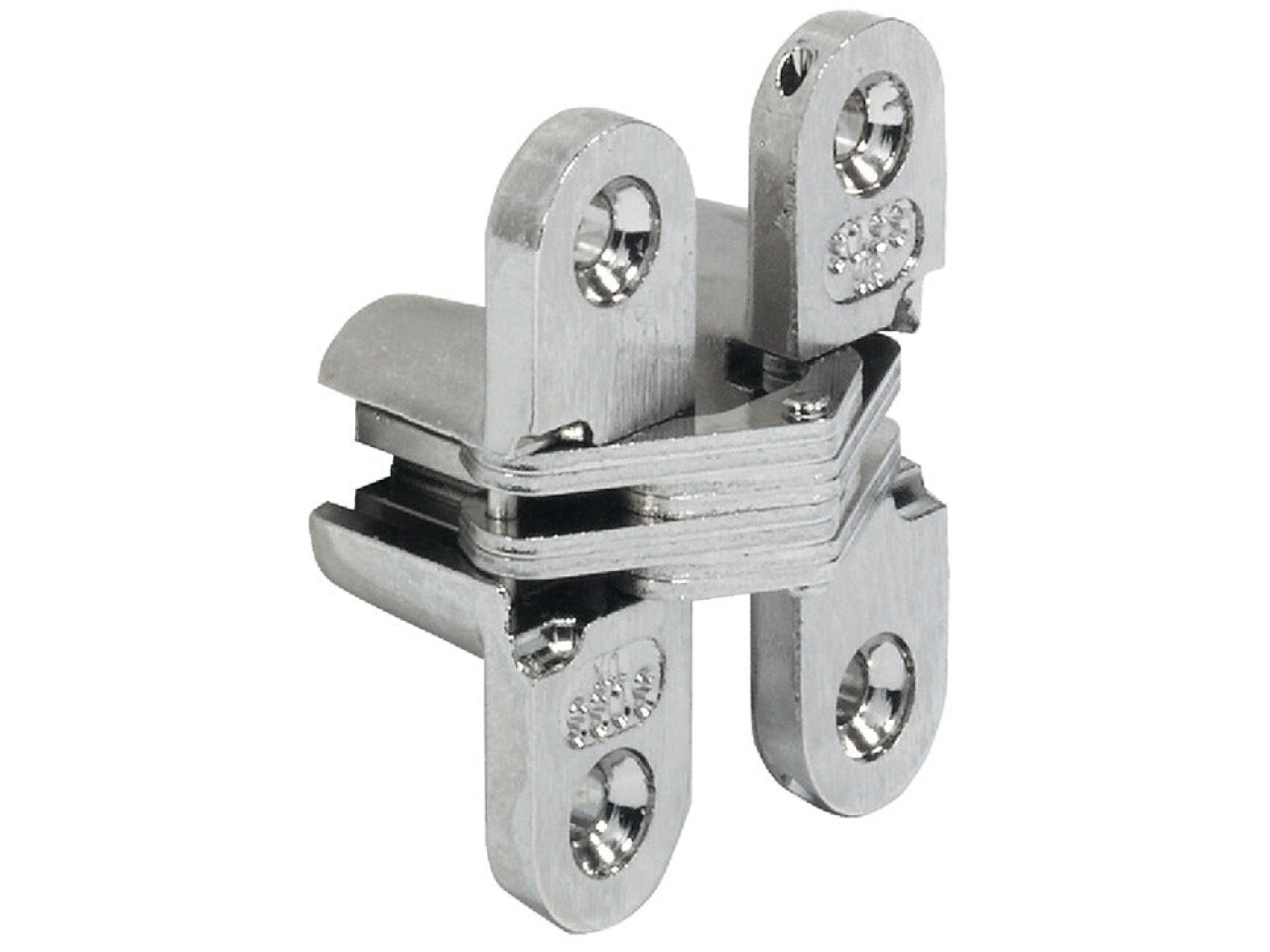

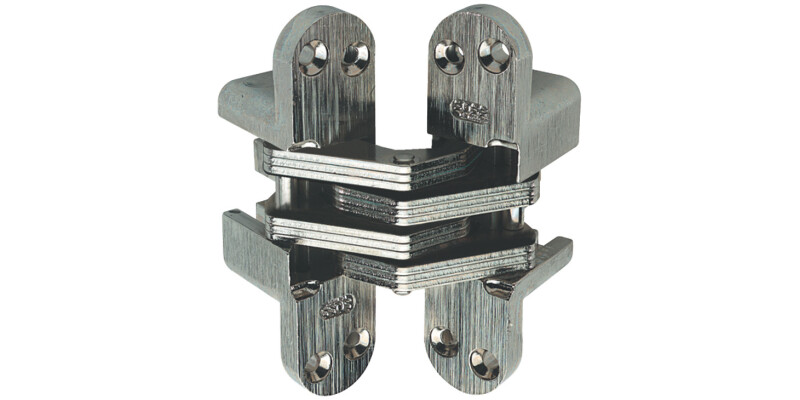

Zinc alloy body with nickel plated steel links. This combination helps provide strength at the hinge points while the nickel plating supports a durable, polished appearance. The zinc alloy body is used for the main housing of the concealed hinge.

What finish will the hinge be supplied in?

Nickel plated body finish. The visible hinge body finish is nickel plated, which is commonly chosen to match modern ironmongery styles and offers good resistance to everyday marks.

How wide can the door open with this hinge?

Up to 180 degrees. This opening angle makes it a good option where you want a full, unobstructed swing, such as in architectural interiors and concealed hinge installations.

Is it supplied with fixing screws, and what size are they?

Yes, fixing screws are included. Supplied with Ø 4.5 x 40 mm wood fixing screws for mounting, which helps make installation straightforward when fitting into a compatible door preparation.

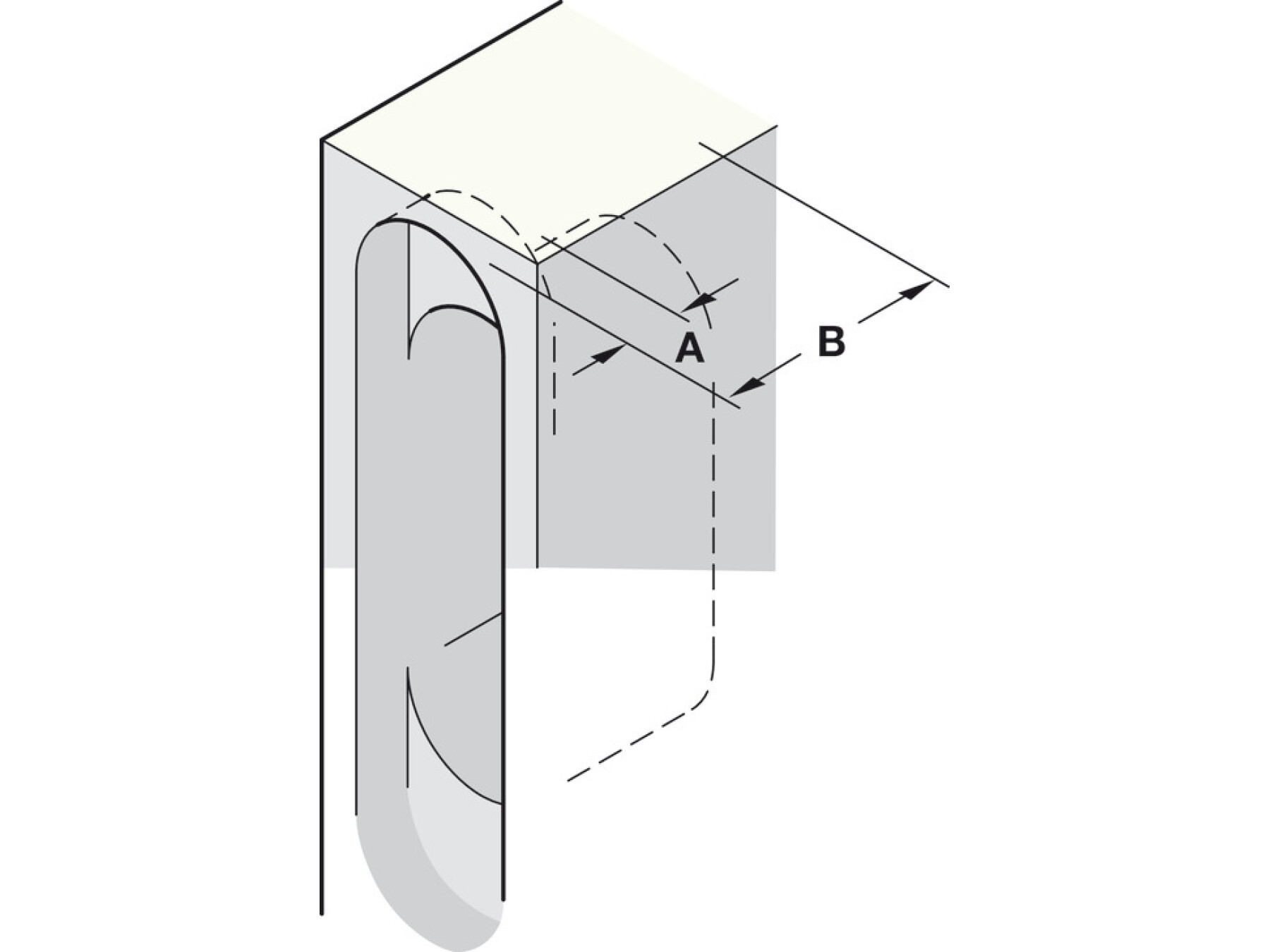

Where is this hinge intended to be used?

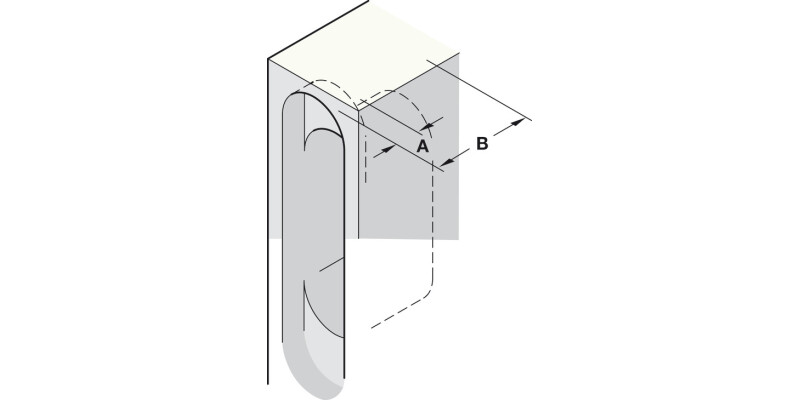

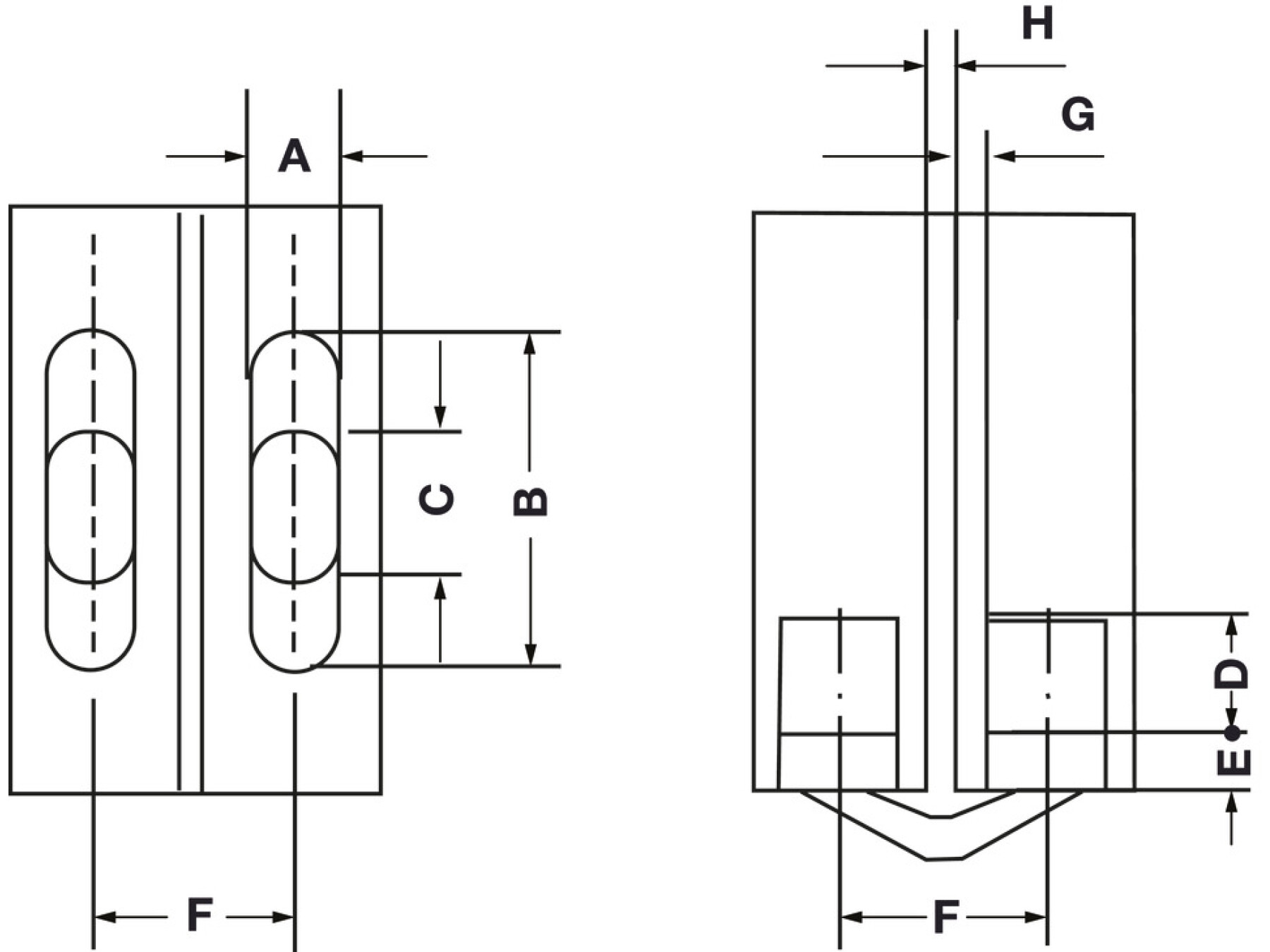

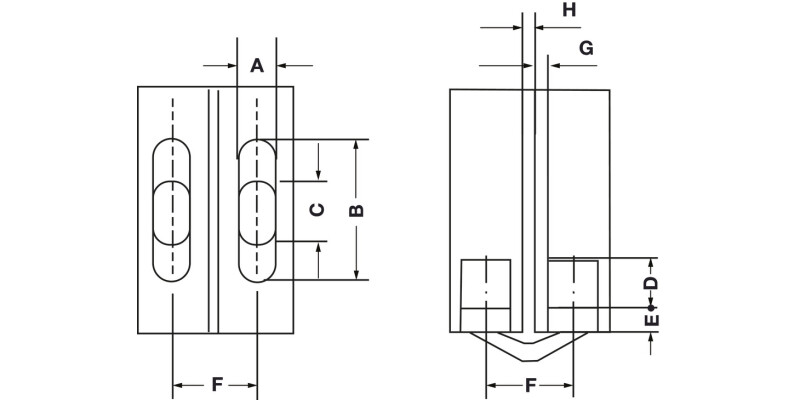

For concealed mounting. This Soss hinge is intended for installations where the hinge is fitted inside the door and frame, so only the door surface appears uninterrupted. It is aimed at architectural ironmongery projects that prioritise a discreet appearance.

What is the product part number and model reference?

Model 218, Product Part No 341.07.770. When ordering or checking compatibility with your existing hardware, use the part number to ensure you receive the correct variant for concealed hinge requirements.
