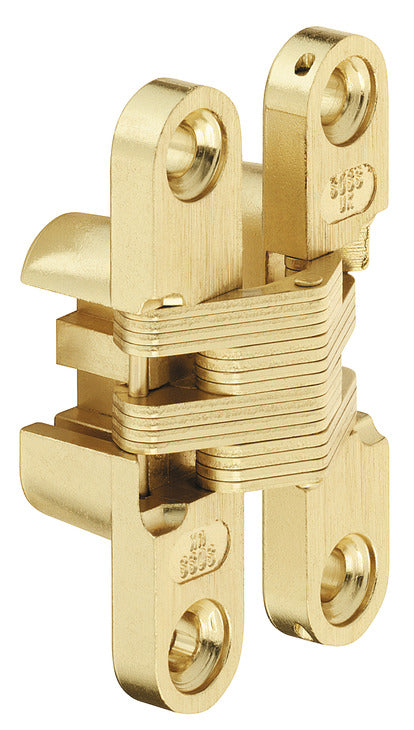

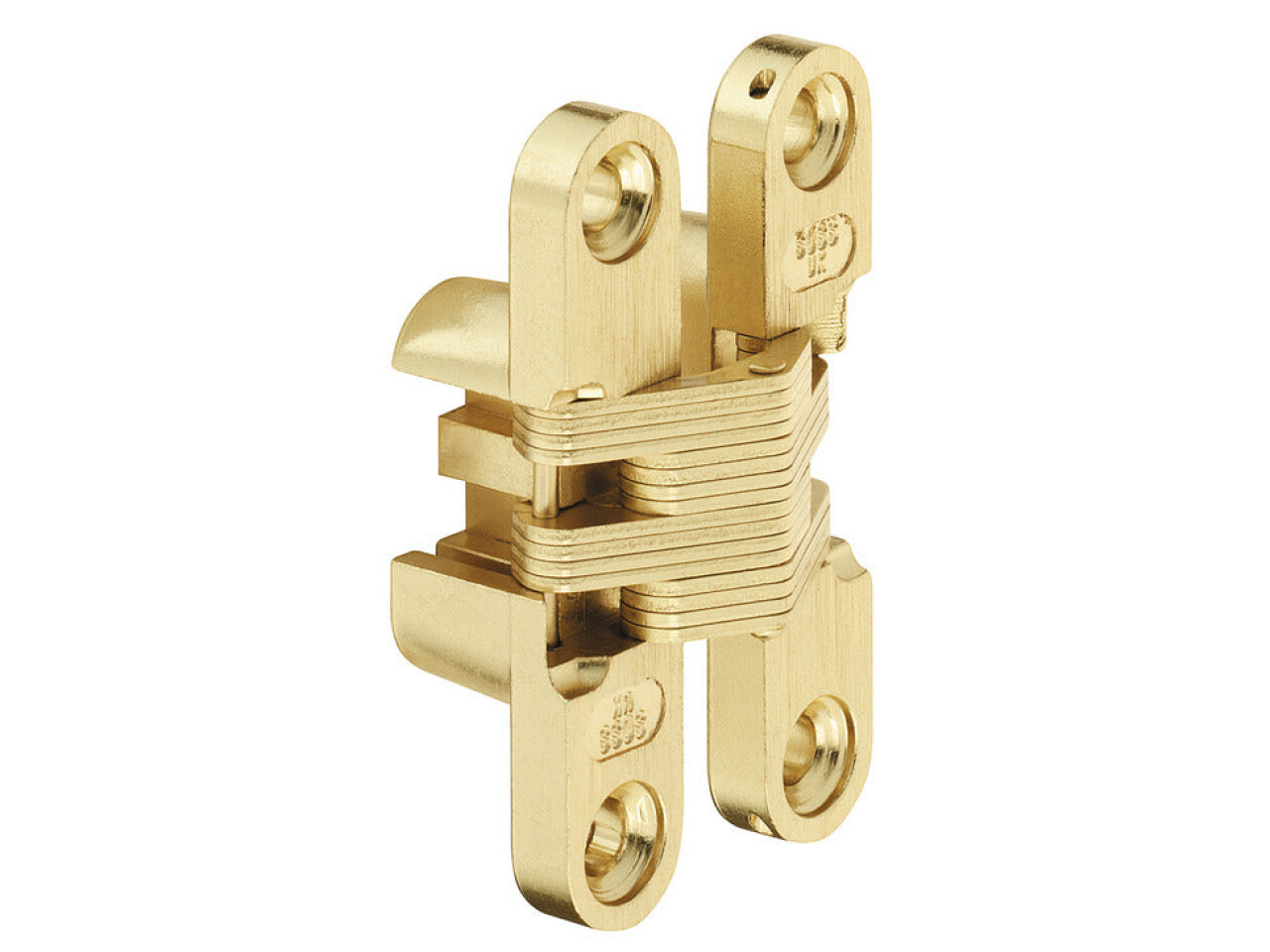

Soss Hinge, Concealed Mortice, Various Models

Product Details

Soss Hinge, Concealed Mortice, Various Models is a premium choice for architects, joiners, and discerning homeowners seeking smooth, concealed door performance with an elegant, architectural finish. Part of the trusted Soss model series, this hinge combines a zinc alloy body with brass plated steel links and a brass plated body finish—delivering durability, strength, and a refined look that suits modern interiors.

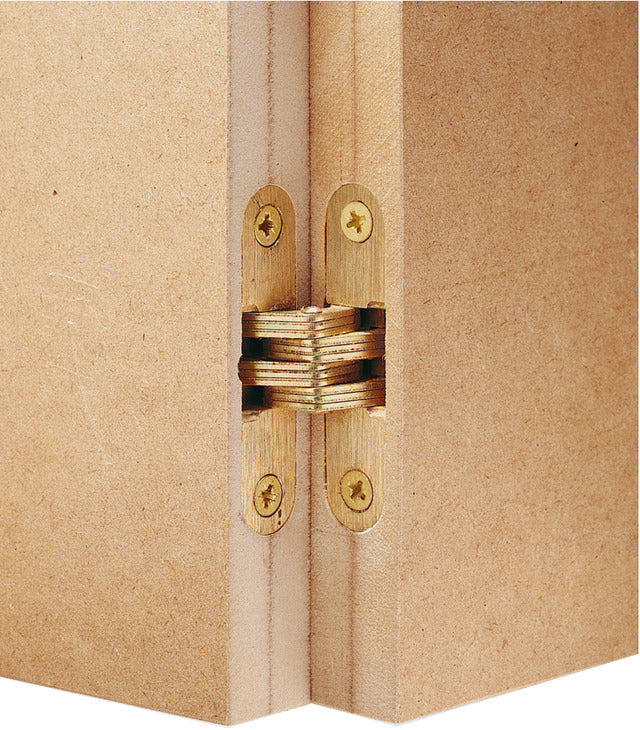

Designed for concealed mounting, the hinge helps maintain clean door lines by hiding the mechanism from view. With a generous 180° opening angle, it provides excellent usability—ideal for internal doors where full access and convenient operation matter.

Safety and compliance are supported with 1/2 hour fire rated performance, making this hinge a smart option for projects where fire resistance and long-term reliability are essential.

Material and build are engineered for dependable service: the hinge body is made from zinc alloy and the working components from steel, supported by brass plated elements for enhanced wear resistance and a premium surface finish.

Mounting is straightforward for DIN handed installations. Use this hinge appropriately for DIN left and DIN right configurations to achieve correct alignment and smooth action.

The hinge is supplied with fixings to help streamline installation. If you’re upgrading door hardware or specifying concealed architectural ironmongery, choose the Soss Hinge, Concealed Mortice, Various Models (Product Part No: 341.07.572) for a clean look, robust performance, and confident fire-rated capability.

Fixings
