Concealed Cup Hinge with Exposed Axle, 270� Nexis, with Ø 30 mm Cup, Full Overla

Product Details

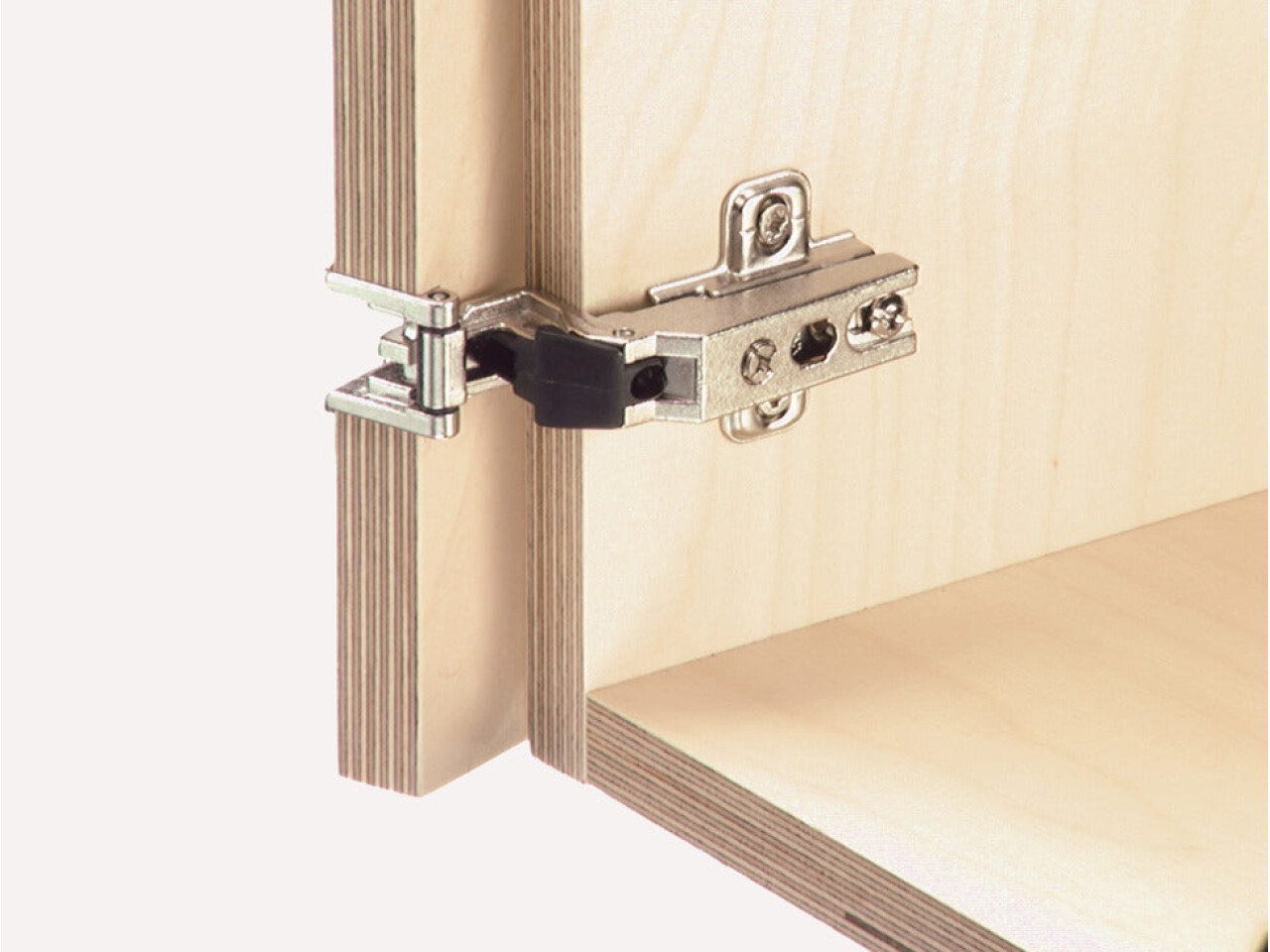

Concealed Cup Hinge with Exposed Axle, 270� Nexis, with Ø 30 mm Cup, Full Overla (Part No: 323.23.612) is a premium cabinet hinge engineered for smooth, reliable fold back door performance. Designed as a semi concealed, specially designed for fold back doors hinge, it delivers a clean, professional look while keeping hardware neatly hidden for an upgraded finish on your furniture or commercial fit-out.

Built for practicality, this Nexis hinge features a specially designed catch version to help secure positioning during use. The full overlay concealed hinge version ensures an accurate alignment and a streamlined appearance—ideal when you want doors to sit beautifully within the cabinet structure.

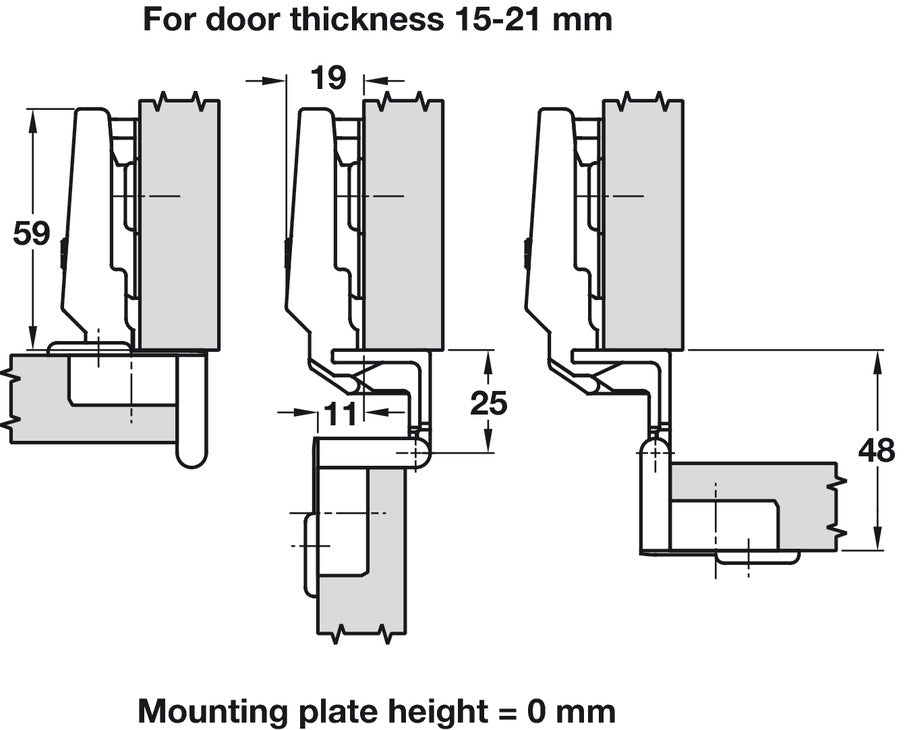

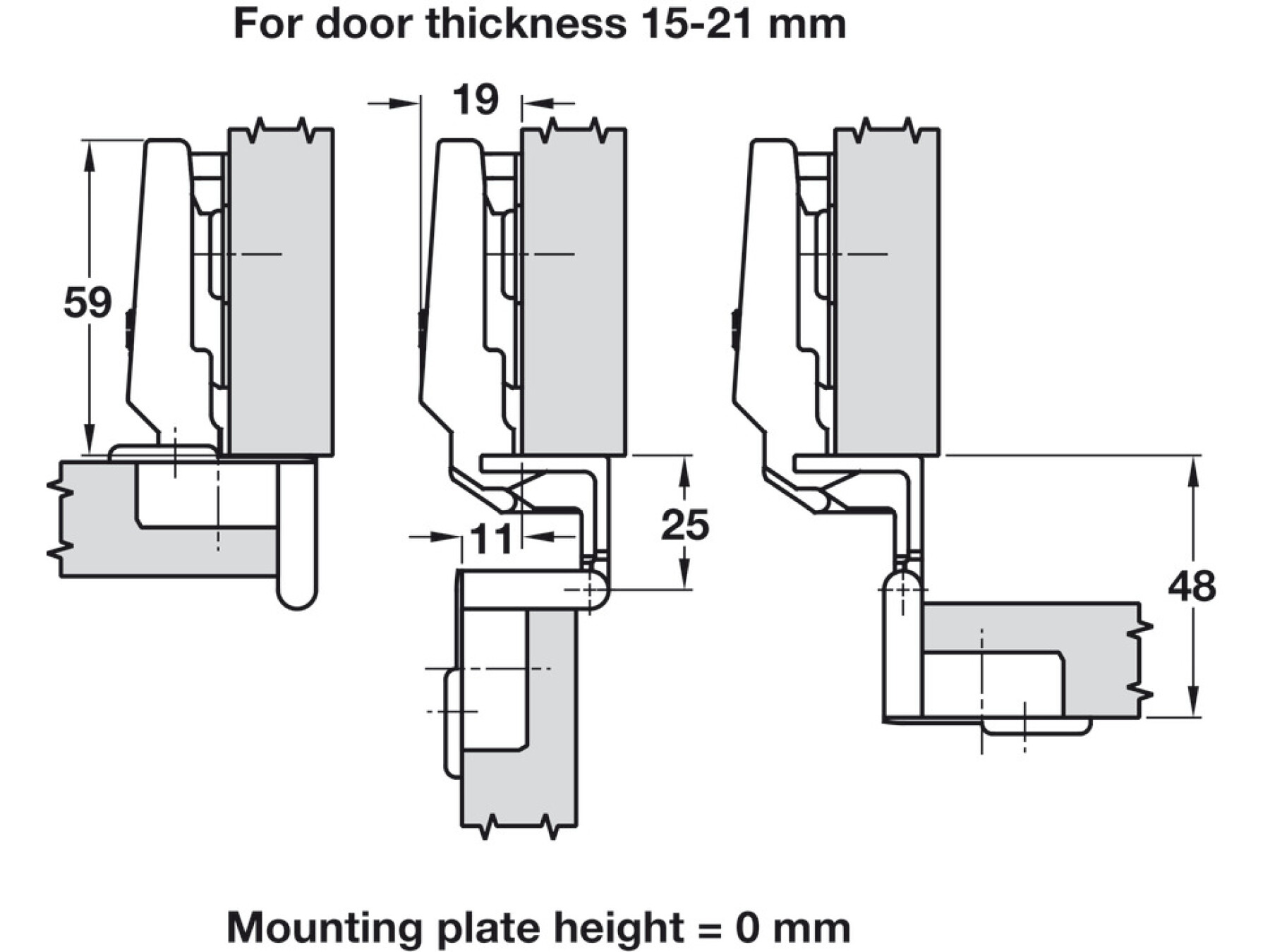

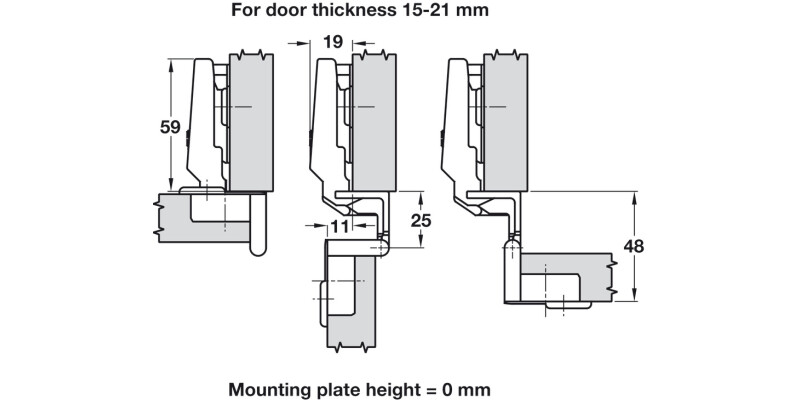

Whether you’re installing new cabinetry or upgrading existing units, the hinge is designed for 15–21mm door thickness with screw fixing cup for secure mounting. The cranked design supports the functionality of fold back applications, giving users a comfortable opening action and consistent movement.

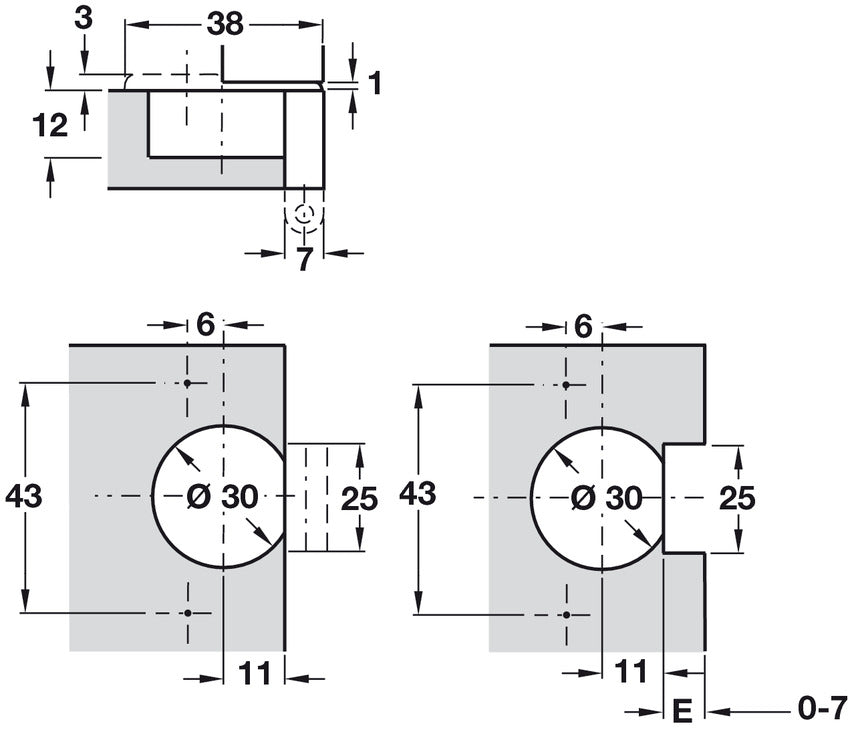

For installers and fabricators, assembly is made easier with cup drilling included (with cup drilling) and a drilling depth of 12.00mm. The hinge cup diameter is 30.00mm, with a precise 43/6 drilling pattern for dependable fit.

Crafted from zinc alloy and finished in nickel plated, the Nexis 270D ExAxle hinge is built to withstand everyday use while maintaining its refined appearance. Choose Nexis 270D for a durable, high-performing hinge solution—perfect for living and commercial cabinetry.
