Concealed Cup Hinge with Exposed Axle, 270° Nexis, with Ø 35 mm Cup, Full Overla

Product Details

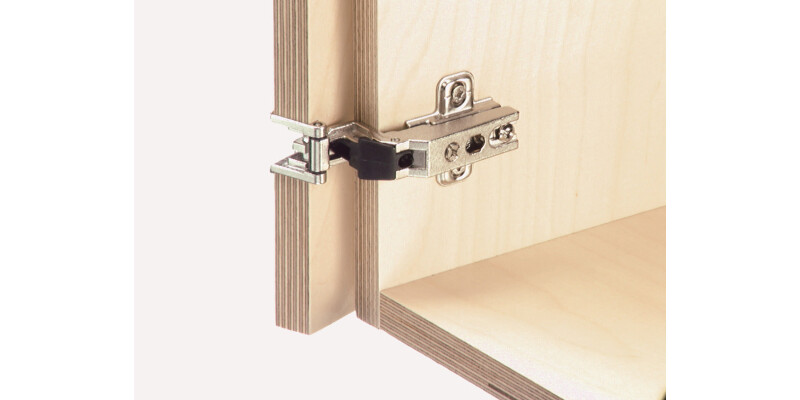

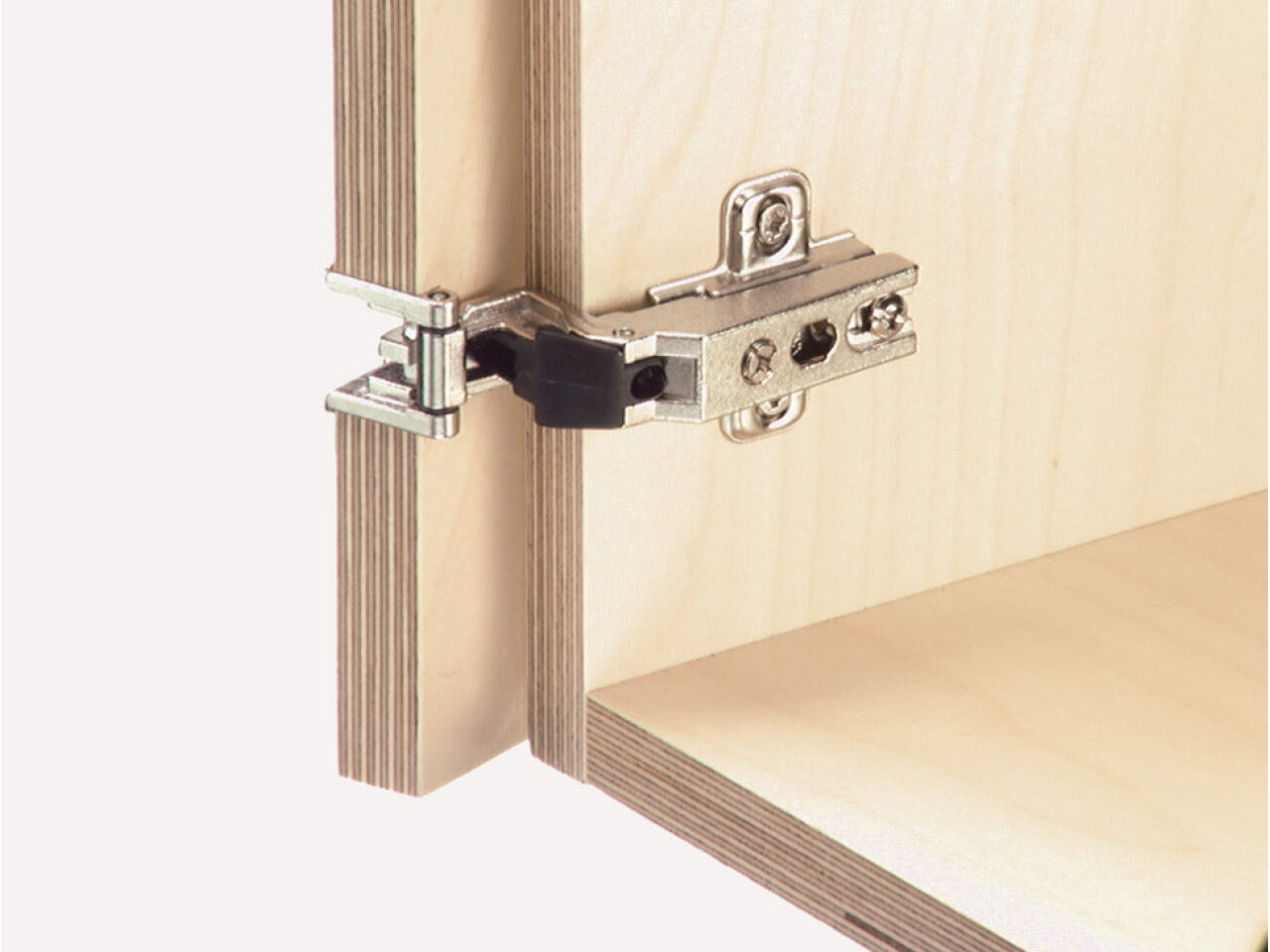

Concealed Cup Hinge with Exposed Axle, 270° Nexis, with Ø 35 mm Cup, Full Overla (Part No: 323.31.600) is a premium concealed cabinet hinge designed for smooth, reliable performance on fold-back doors. If you’re aiming for a clean, professional finish with strong functionality, this semi-concealed solution brings both style and durability to your furniture and commercial installations.

Built in zinc alloy with a nickel plated finish, the Nexis 270D ExAxle hinge offers dependable strength while blending neatly into your door design. The semi concealed layout and full overlay configuration create a refined look, helping your doors sit perfectly and close neatly every time.

This hinge is specifically made for fold back doors, featuring a cranked crank type for controlled movement. With an impressive 270° opening angle, it’s ideal for applications where you need wide access without compromising cabinet layout.

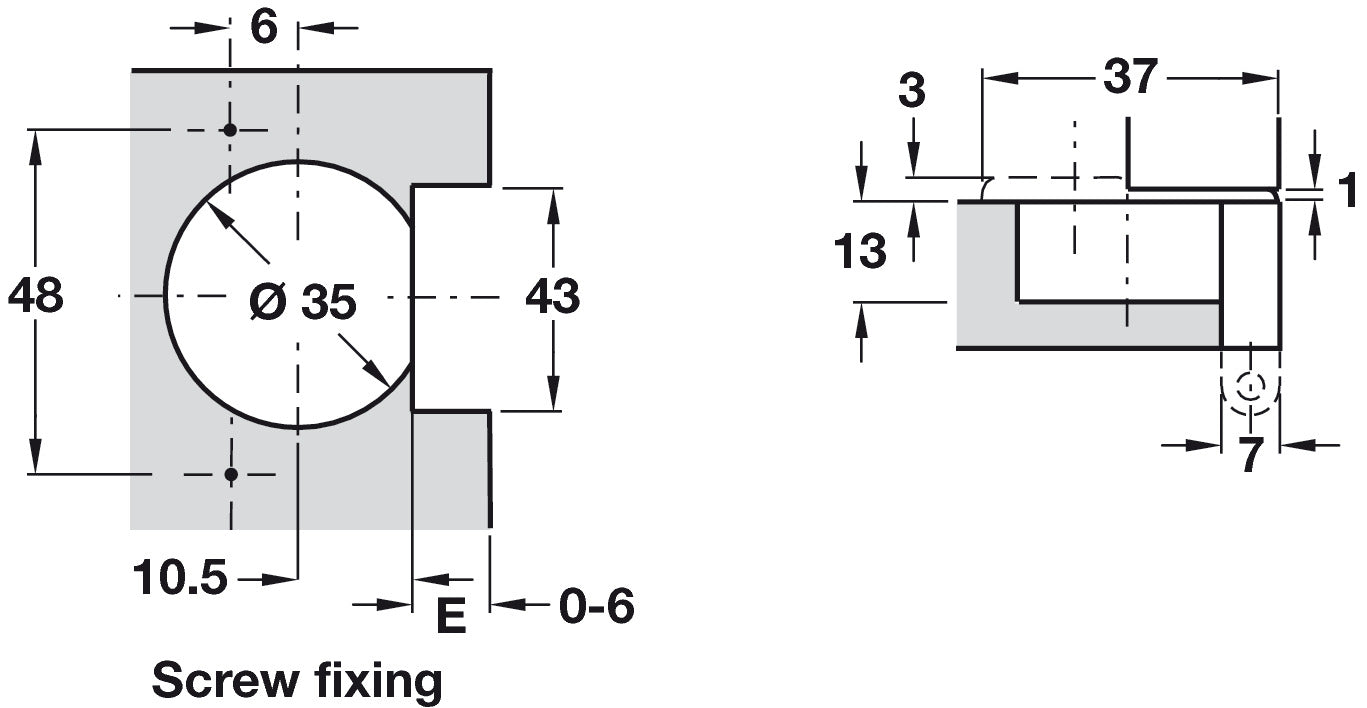

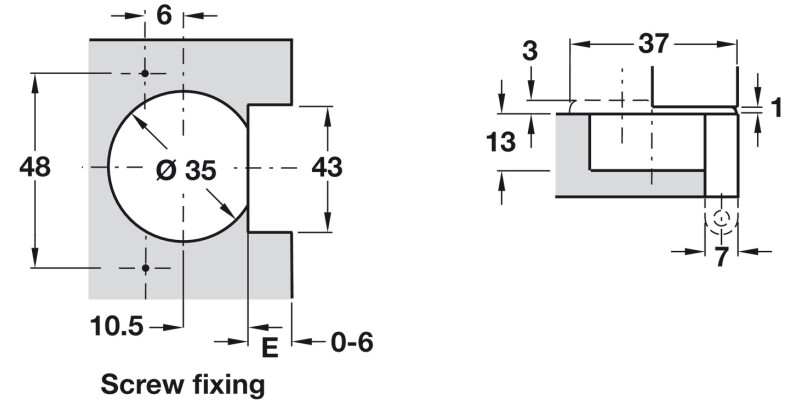

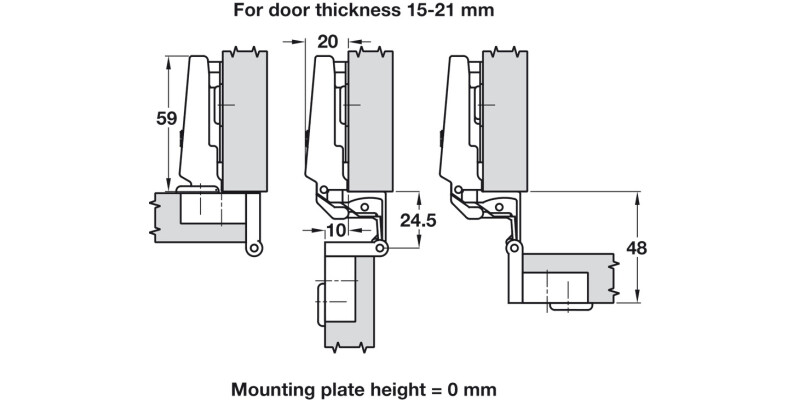

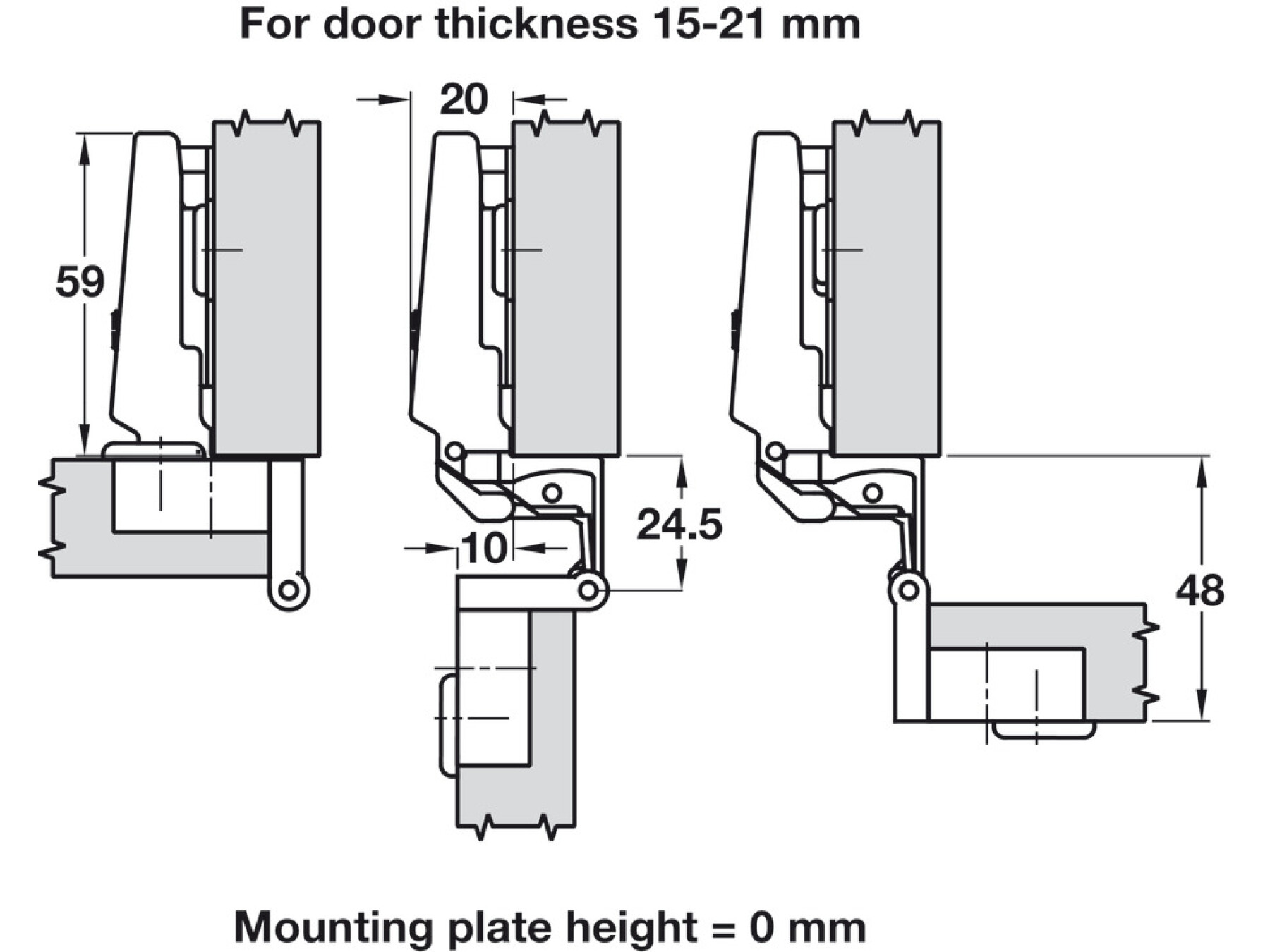

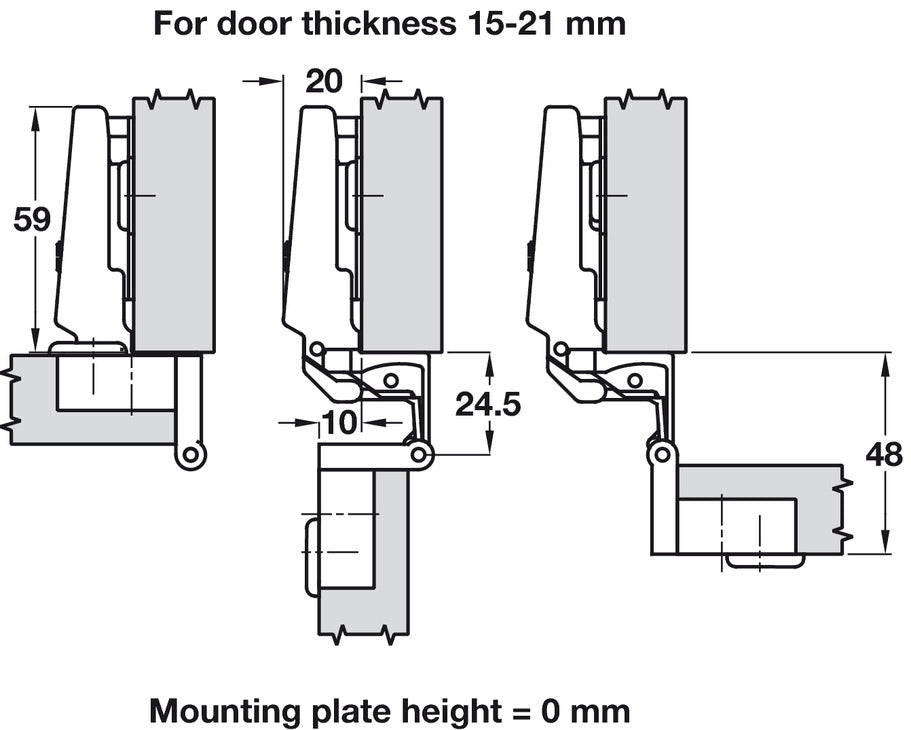

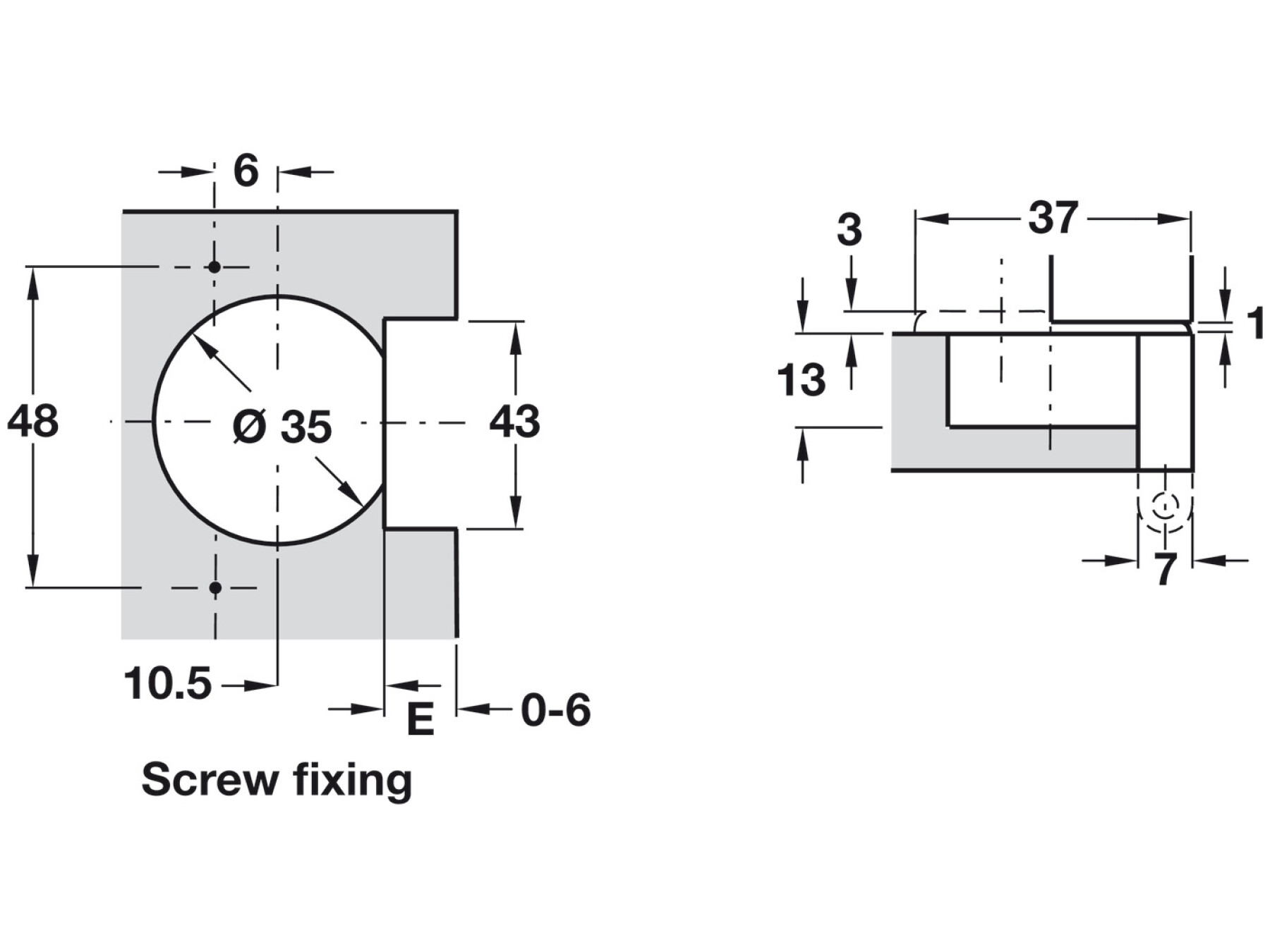

Designed for easy installation, the hinge comes with cup drilling and supports screw fixing for the cup. It’s suitable for door thicknesses of 15–21 mm, making it a versatile choice for many cabinet builds and retrofits. The hinge uses a 35 mm cup with a 13.00 mm cup drilling depth, and follows a 43/6 drilling pattern for accurate alignment.

Choose Concealed Cup Hinge with Exposed Axle, 270° Nexis, with Ø 35 mm Cup, Full Overla for smooth operation, concealed aesthetics, and dependable hardware performance—an excellent upgrade for living spaces and demanding commercial furniture needs.
