Concealed Shelf Support, Press-Fit, with Mounting Plate, for Installation into M

Product Details

Concealed Shelf Support, Press-Fit, with Mounting Plate, for Installation into M (Product Part No: 283.32.050) is a premium concealed shelf mounting solution designed for clean, professional results in both living and commercial settings. Ideal for installers and furniture makers who want a secure carry while keeping the bracket details hidden, this concealed shelf support is made for a shelf thickness of min. 22 mm and accommodates a 12 mm system fit.

Built from steel and finished with zinc plating, this shelf support offers strong durability with a neat, corrosion-resistant surface—perfect for everyday use and long-lasting shelf performance.

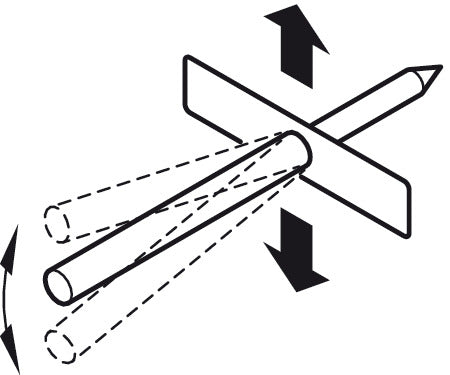

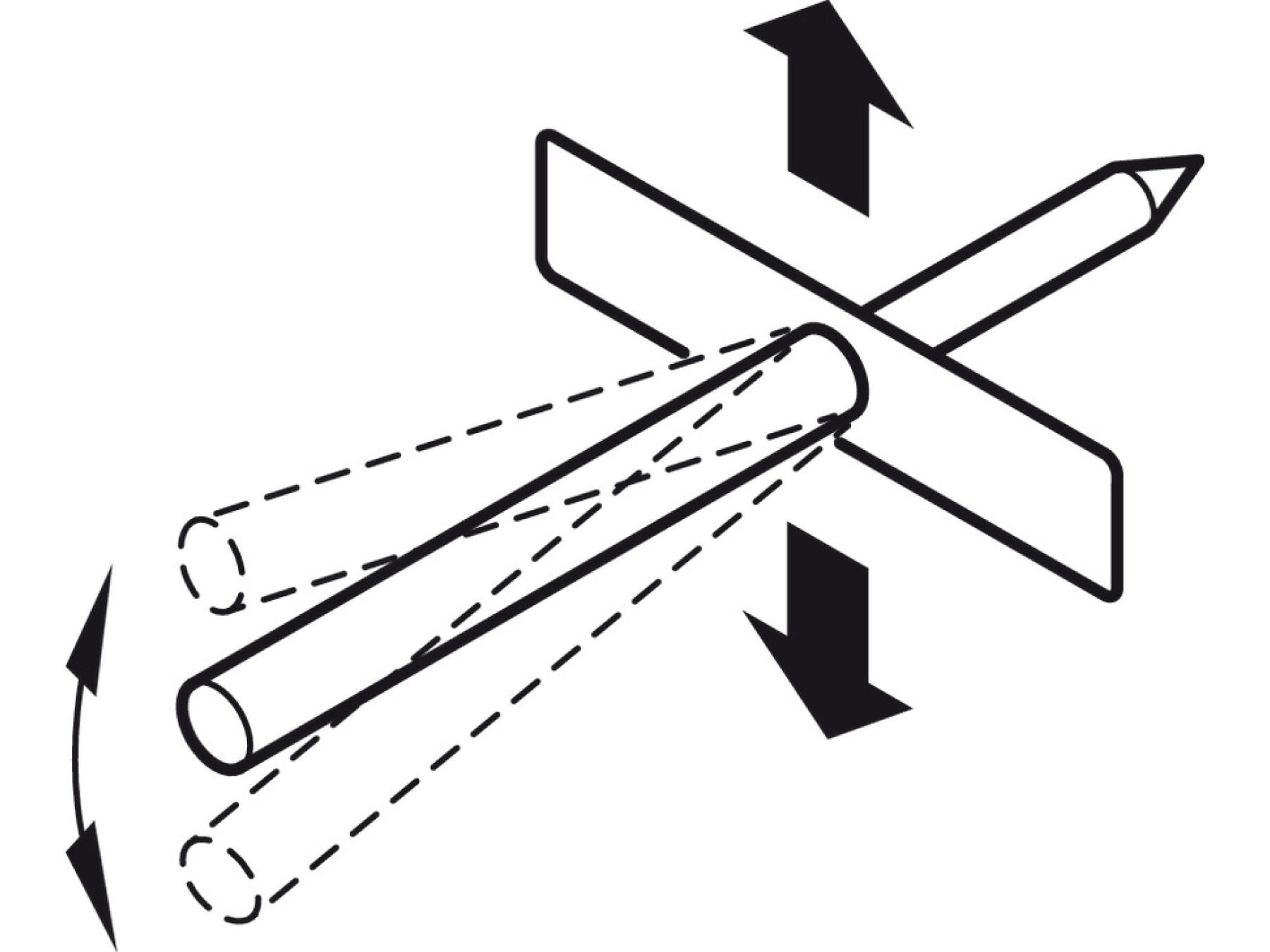

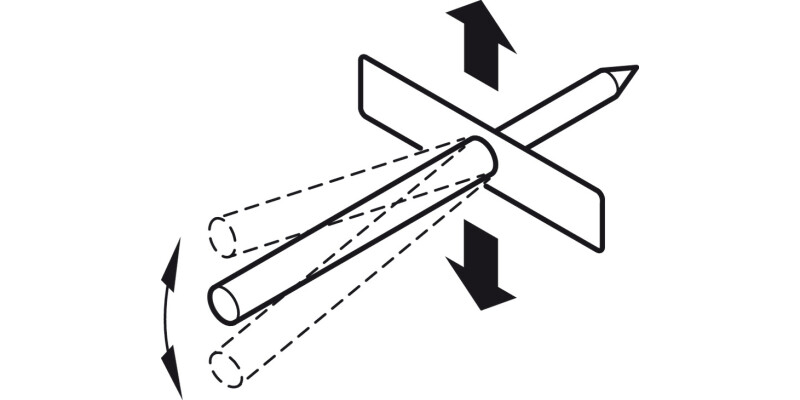

With its adjustment facility, you can fine-tune your installation quickly. Enjoy height and tilt adjustment using eccentric sleeves—no tools required—so achieving a level, aligned shelf is faster and more accurate.

This Concealed Shelf Support, Press-Fit, with Mounting Plate, for Installation into M is intended for concealed installation and comes in a practical version with screw-on plate and wall plug fixing, helping you achieve a stable wall attachment. For the best final assembly, please note the order reference: Ø 5.0 mm Hospa screws are required and must be ordered separately.

Supplied with everything you need to start: 1 supporting pin with mounting plate, 2 pre-mounted eccentric sleeves, and 1 S8 R80 Fisher wall plug. Choose this concealed shelf support for a tidy wall finish, dependable strength, and adjustable, showroom-quality alignment.

Ø 5.0 mm Hospa screws required, order separately

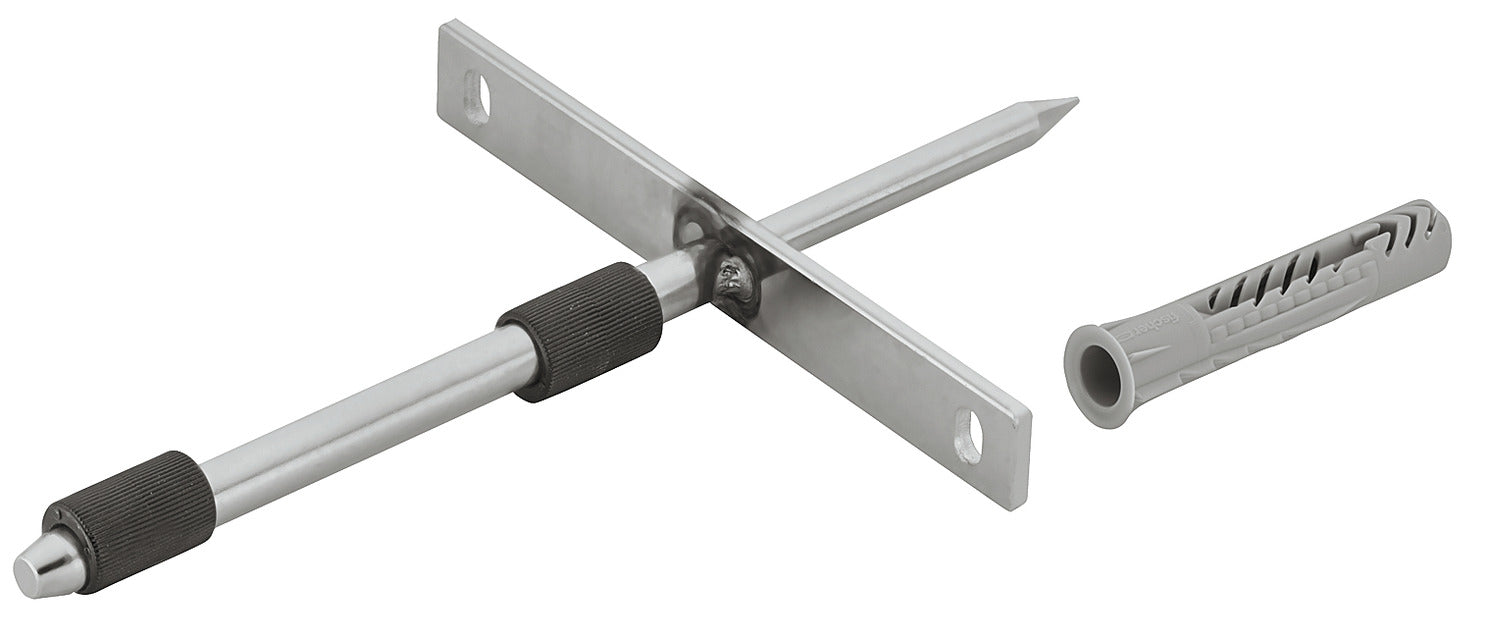

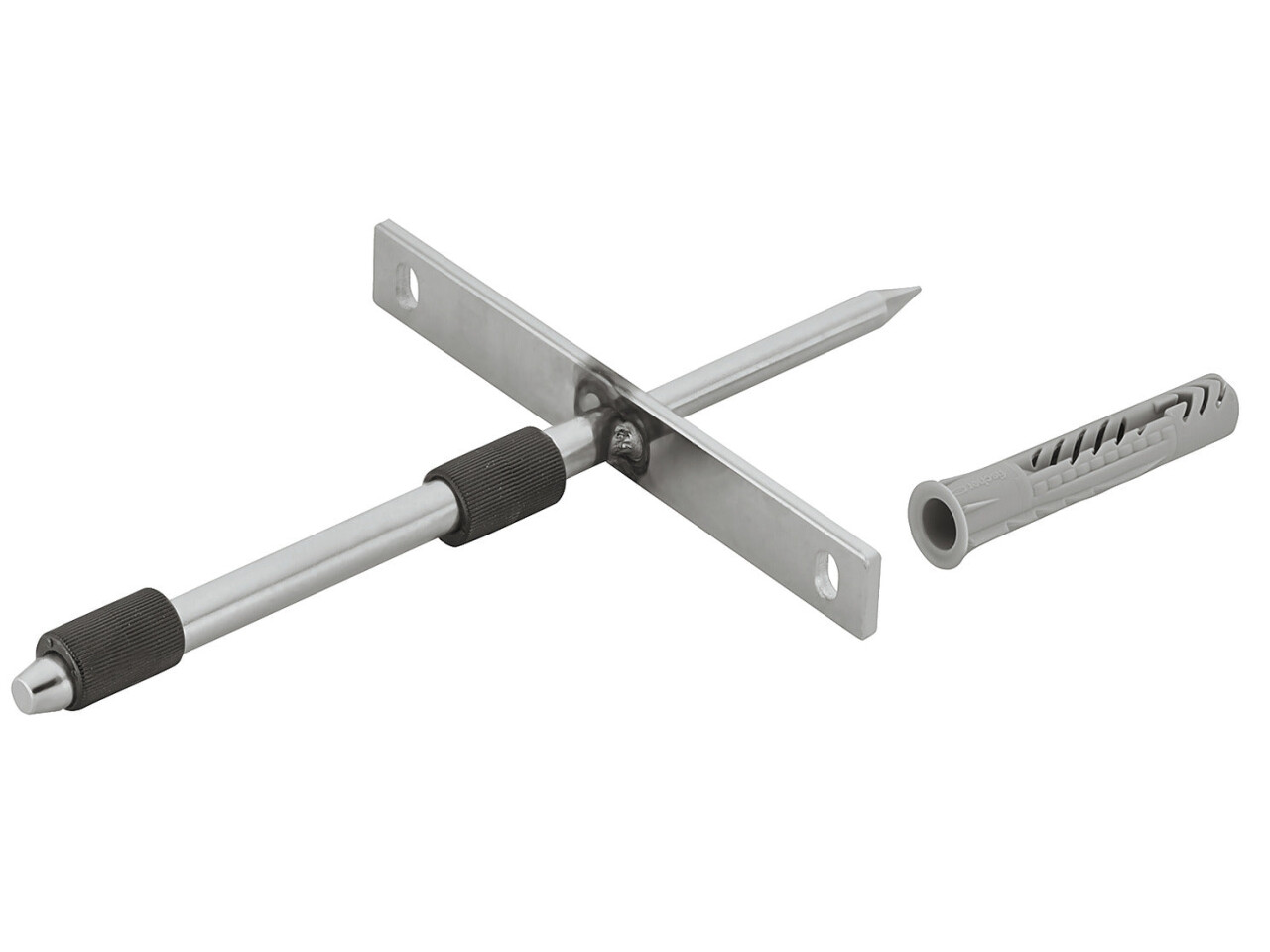

1 Supporting pin with mounting plate
2 Pre-mounted eccentric sleeves
1 S8 R80 Fisher wall plug
