Shelf Support, Plug in, for Ø 5 mm Hole with Twin Grooves (Product Part No: 282.24.730) is a reliable,... Read More

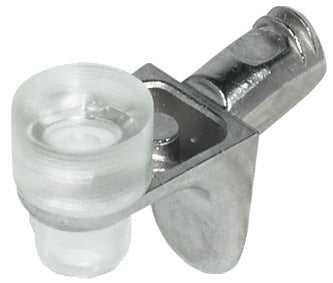

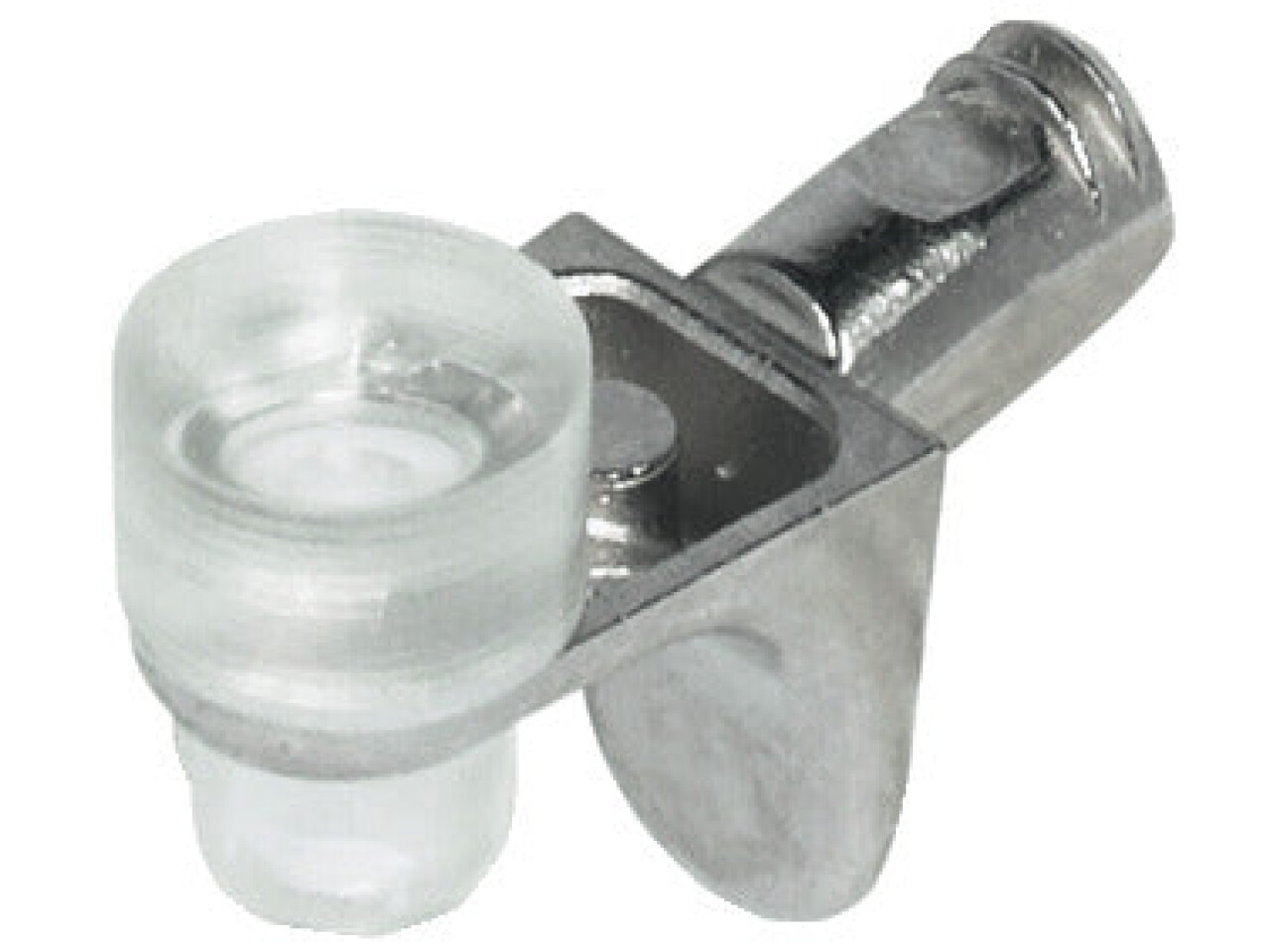

Shelf Support, Plug in, for Ø 5 mm Hole with Twin Grooves (Product Part No: 282.24.730) is a reliable, purpose-built shelf support designed specifically for glass shelves. If you’re fitting a sleek display unit, modern cabinet, or commercial shelving system, this nickel plated support helps create a clean, professional finish while keeping your shelving secure.
Featuring a refined nickel plated finish, the GLS glass shelf plug supports the look of contemporary furniture without drawing attention away from the glass. The insert fitting installation is straightforward, making it well-suited for both standard builds and refresh projects where precision matters.

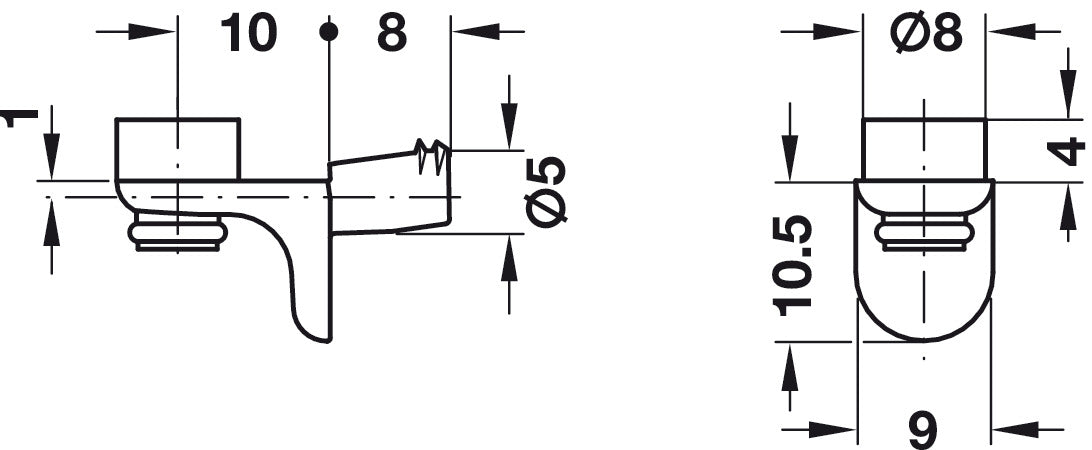

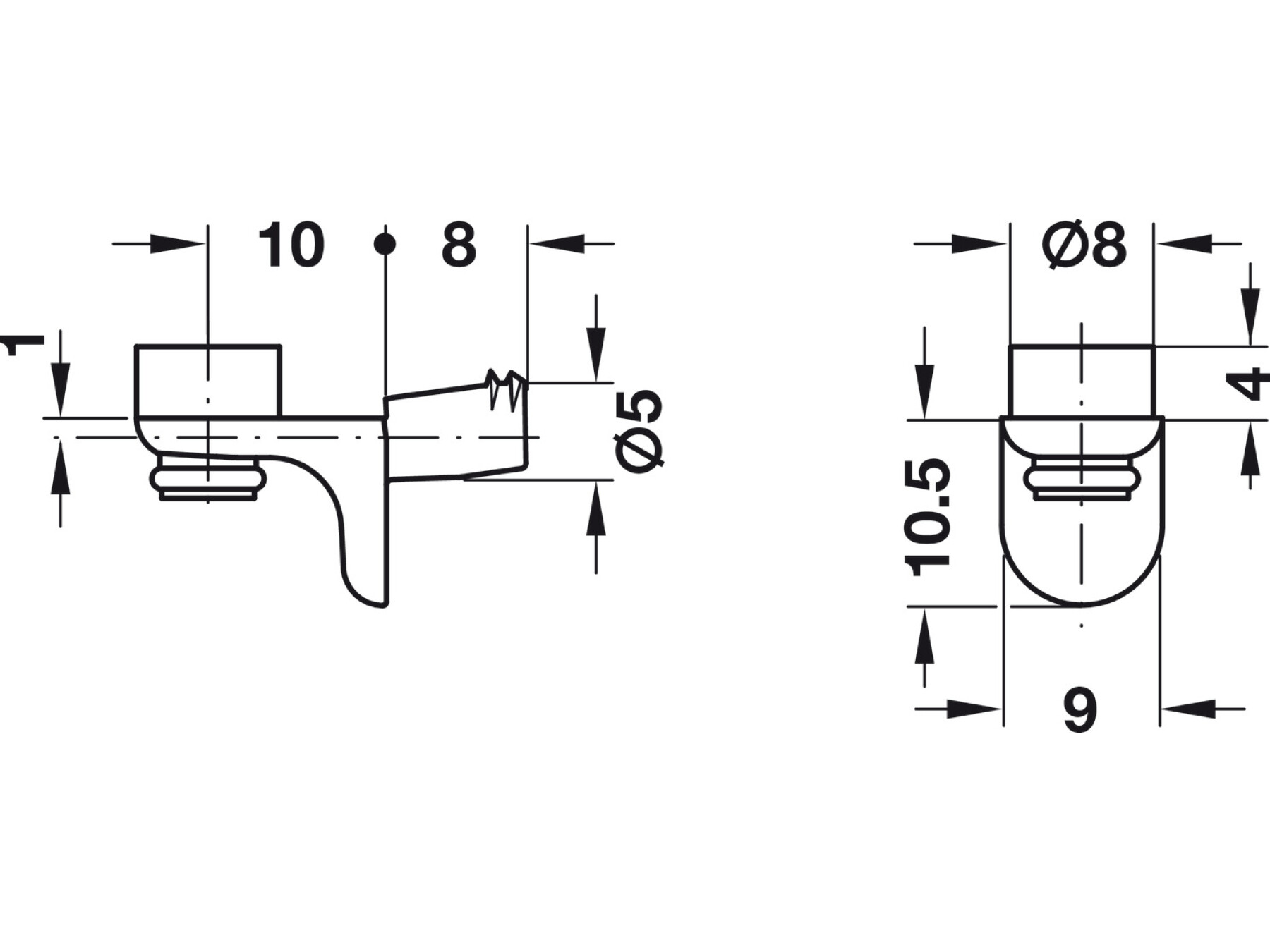

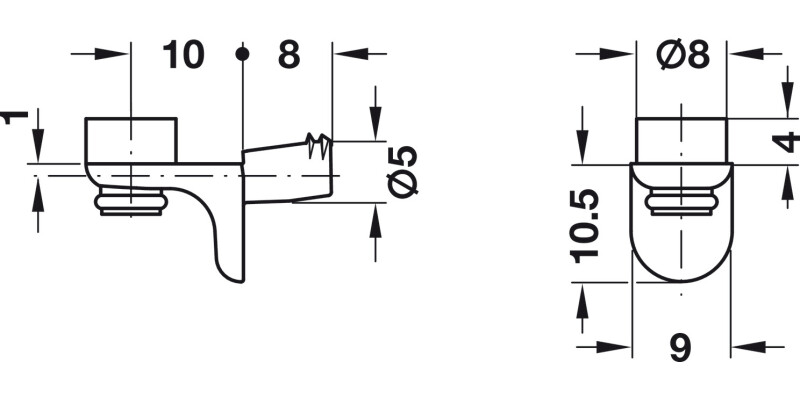

Built for dependable performance, this shelf support is made from Plastic/Zinc alloy and is designed for a 5.00 mm drill hole and support size. The pin length of 8.00 mm ensures a secure hold, while the twin grooves with plastic support help improve stability and alignment during fitting.
In terms of strength, each item is rated for a load bearing capacity of 6.25 kg. When used as intended with 4 shelf supports, the total load capacity reaches 25.00 kg. Load testing was carried out using an 1.7 kg impact plate in accordance with DIN EN 16337:2013-08, giving you confidence in everyday durability.
Choose the Shelf Support, Plug in, for Ø 5 mm Hole with Twin Grooves to complete your glass shelf installation with dependable support, a premium nickel finish, and confidently rated holding power.
With twin grooves, with plastic support
tested with 1.7 kg impact plate in accordance with DIN EN 16337:2013-08
This plug is designed for supporting glass shelves. It works as an insert fitting solution, helping you secure the shelf supports in the required drilled hole size.
Yes. This model is intended for a 5.00 mm drill hole diameter and also supports the matching 5.00 mm support size, making it suitable for systems where this clearance is required.
Installation is for insert fitting. The plug is inserted into the prepared hole, and the shelf support can then be used to hold the glass shelf securely. Using the specified hole diameter helps ensure a proper fit.
The visible finish is nickel plated. This is a popular choice for furniture and display builds where you want a clean, metallic look that coordinates with many nickel style fittings.
The load bearing capacity is 6.25 kg per item. For an installation using four shelf supports, the rated capacity is 25.00 kg. This information is based on testing using an impact plate in line with DIN EN 16337:2013-08.
Yes. The pin length is 8.00 mm. Checking the pin length helps you confirm compatibility with your shelf support layout and the thickness of the shelf support components.
This plug comes in a twin groove version and includes a plastic support. The twin groove design helps the fitting engage properly within the support system, which can improve stability during use.
The product part number for the Gls Shelf Support D5mm Plug ZA NP is 282.24.730. Using the part number helps ensure you receive the correct insert fitting for a 5 mm hole system.
