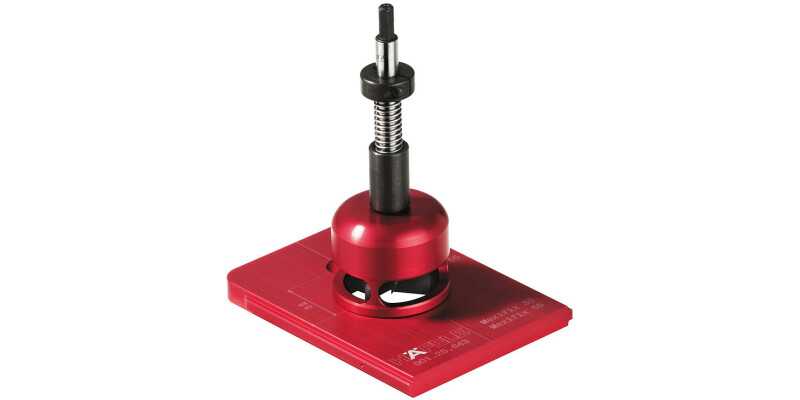

Red Jig Supplement for Maxifix

If no basic components of the Häfele Red Jig drilling jig are at hand, the basic jig with Cat. No.: 001.25.600 must also be ordered.

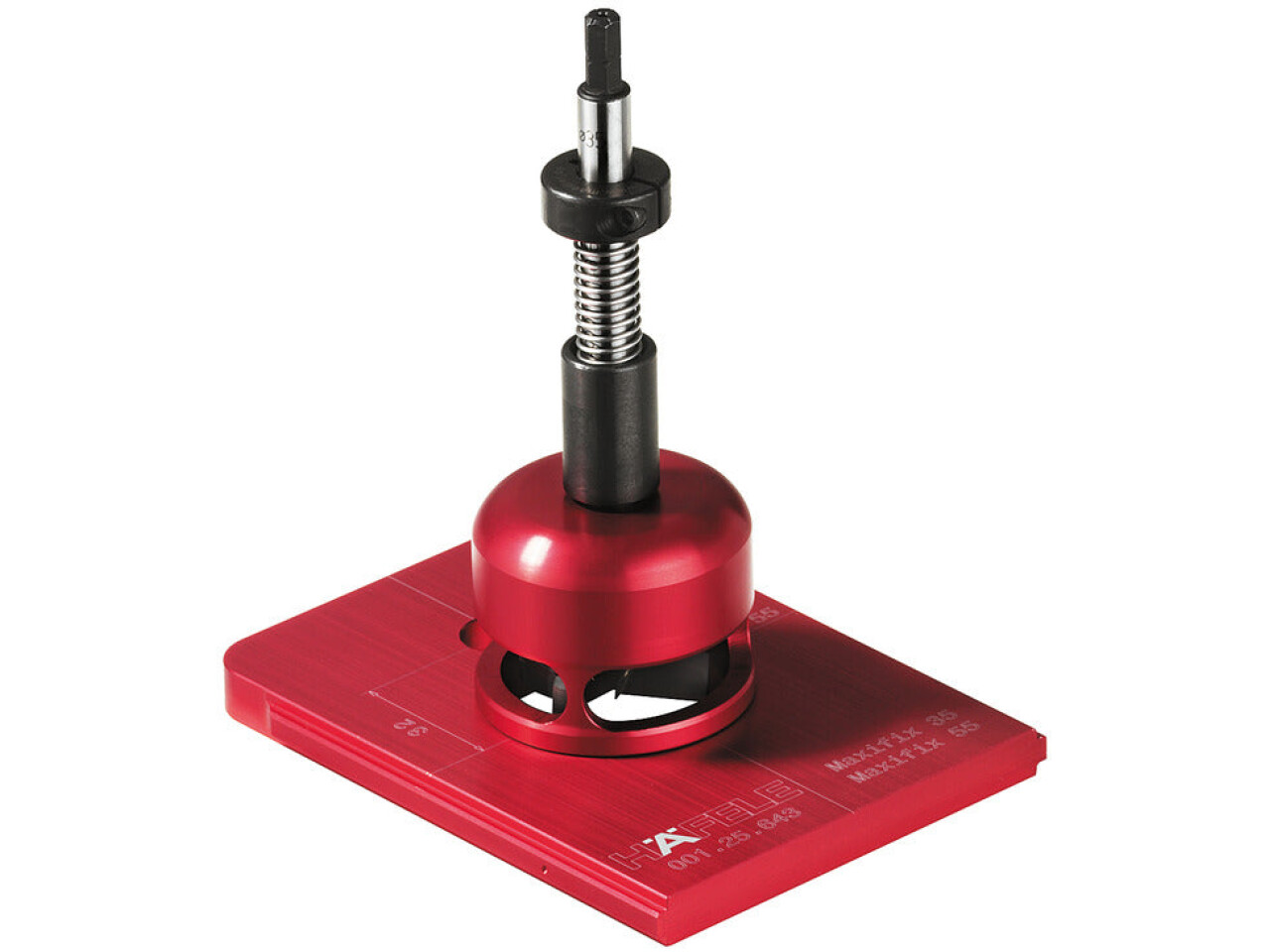

1x Maxifix drill guide, tightening distance adjustable from 55 to 35 mm (001.25.643)
1 depth gauge 48 with depth gauge, stop ring, spiral spring (001.25.772)
With multi-spur drill bit HM Ø 35 mm, RI (001.06.669)
1x drilling sleeve 10mm (001.25.761)

This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.

For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee

The Maxifix drill guide can be adjusted to suit other connectors, e.g. Häfele Ixconnect K 36/30, using the scale on the basic jig.
Please check hole diameter before use.
