Part No: 001.25.620
Drill Guide, for Hole Systems at 37/69 mm Intervals, Häfele Red Jig
£22.20
(excl. VAT)
Drill Guide, for Ø 35 mm Concealed Hinges, Häfele Red Jig
Part Number: 001.25.731
48/6 pattern
Price:
£49.11
Per Item
Red Jig Drill Guide–Hinge D3548/6.0mm (48/6 pattern) is the smart, precise way to set up consistent hinge... Read More
Product Information
Product Details

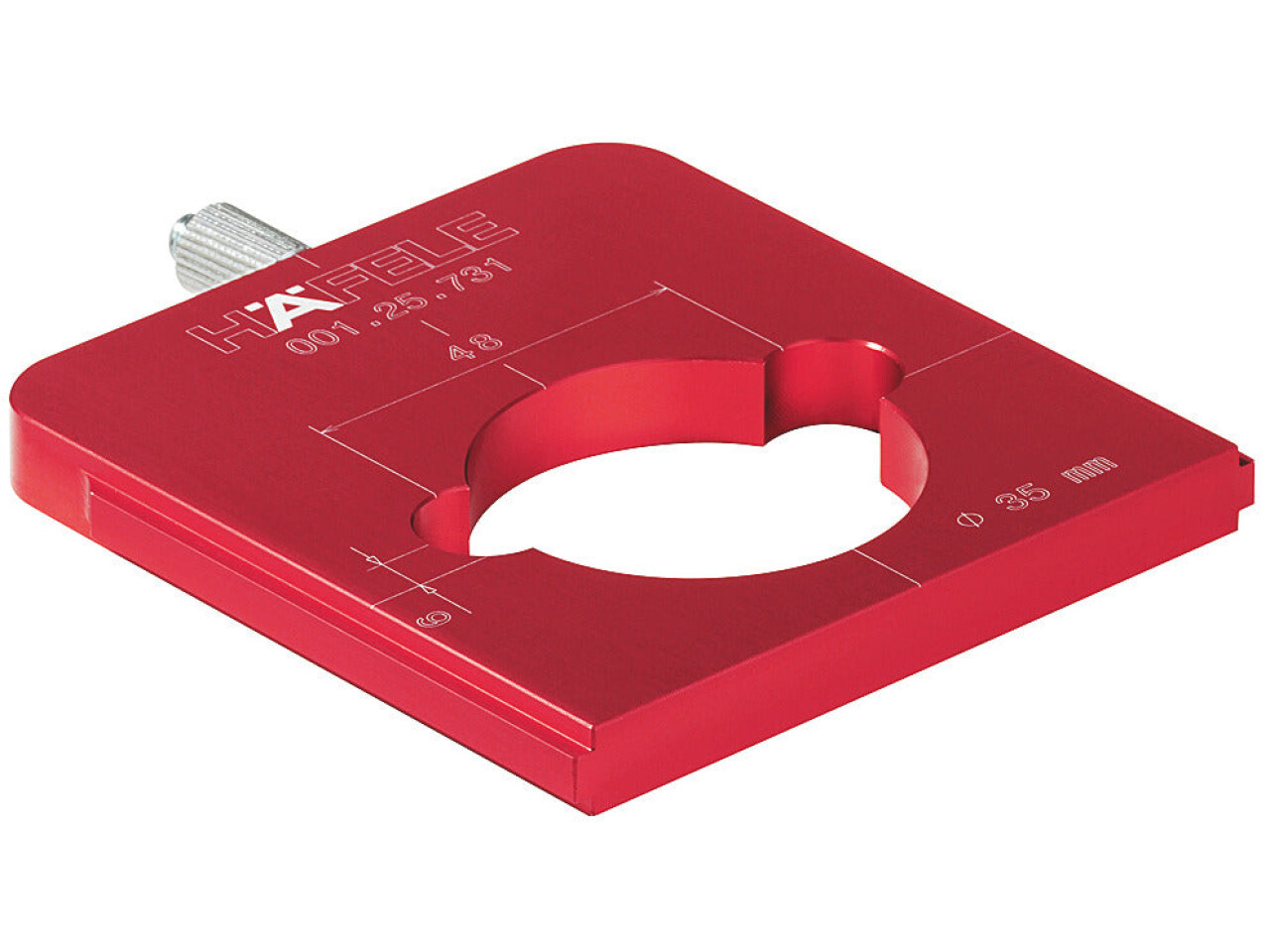

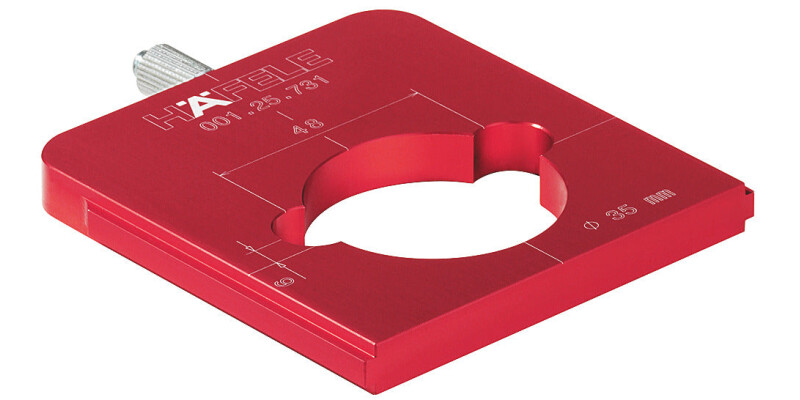

Red Jig Drill Guide–Hinge D3548/6.0mm (48/6 pattern) is the smart, precise way to set up consistent hinge drilling for Häfele Red Jig systems. If you’re working on cabinet doors and need dependable alignment every time, this drill guide helps you transfer measurements with confidence—so your results look clean, professional, and accurate.
Designed as a drill guide for Häfele Red Jig, this accessory is ideal for users who value repeatability in every project. Whether you’re a trade professional or a dedicated DIY maker, the 48/6 pattern makes it easier to stay on-spec while reducing guesswork and rework.
Built for durability and accuracy, the guide features aluminium construction. The red, anodized finish not only gives it a distinctive look but also supports long-lasting performance in day-to-day workshop use.
How to order: Please note that the basic Häfele Red Jig 001.25.600 must be ordered separately. Use this drill guide alongside the base jig to create the full drilling setup required for your hinge application.
Perfect for anyone assembling or upgrading furniture hardware workflows, the Red Jig Drill Guide–Hinge D3548/6.0mm helps streamline drilling while keeping your hinge positions consistent. Add Part No. 001.25.731 to your toolkit today and make accurate hinge installation faster from the first hole to the final fit.
Specifications
Area of application
Drill guide for Häfele Red Jig
Material
Aluminium
Colour/finish
Red, anodized
Order reference
Basic Häfele Red Jig 001.25.600 must be ordered separately
FAQ
Product Details
What is the Red Jig Drill Guide Hinge D3548 6.0mm used for?
This drill guide is designed for use with the Häfele Red Jig system
It helps you drill accurately for hinge applications so you can position holes consistently with less measuring and marking.
Does this item include the basic Häfele Red Jig?
No, the basic Häfele Red Jig must be ordered separately (order reference 001.25.600). This part is the drill guide component, intended to be used with the Red Jig base and compatible setup.
What does the 48/6 pattern mean?
The 48/6 pattern refers to the hole spacing pattern used by the Häfele Red Jig for hinge fitting. This guide is selected for applications that require that specific arrangement, helping you match the correct drilling positions for your hardware.
Which drill size does this guide suit?
It is intended for a 6.0 mm drill. Using the correct drill diameter helps ensure the guide sleeve aligns properly and you achieve the intended hole size for hinge components.
Is it suitable for repeat use on multiple doors and frames?
Yes, it is made to be reused as part of a drill guide system. Once you have the Red Jig set up and clamped correctly, this guide supports consistent drilling for repeat installations.
What material and finish should I expect?
The drill guide is made from aluminium with a red anodized finish. This combination is chosen for durability in workshop use and to help the guide withstand frequent handling.
How do I find the correct part number for ordering?
This product is part number 001.25.731. When placing an order, use the part number to ensure you receive the correct Red Jig drill guide specifically for the hinge setup and 6.0 mm drilling requirement.
