Part No: 001.25.832
Jig Supplement, for Concealed Hinges Ø 35mm, 45/9.5mm, Häfele Red Jig
£147.10
(excl. VAT)
Jig Supplement, for Concealed Hinges Ø 35mm, 48/6mm, Häfele Red Jig
Part Number: 001.25.831
Drill guide set, With drill guide and depth gauge
Price:
£147.10
Per Item
Jig Supplement, for Concealed Hinges Ø 35mm, 48/6mm, Häfele Red Jig is an aluminium drill guide set... Read More
Product Information
Product Details

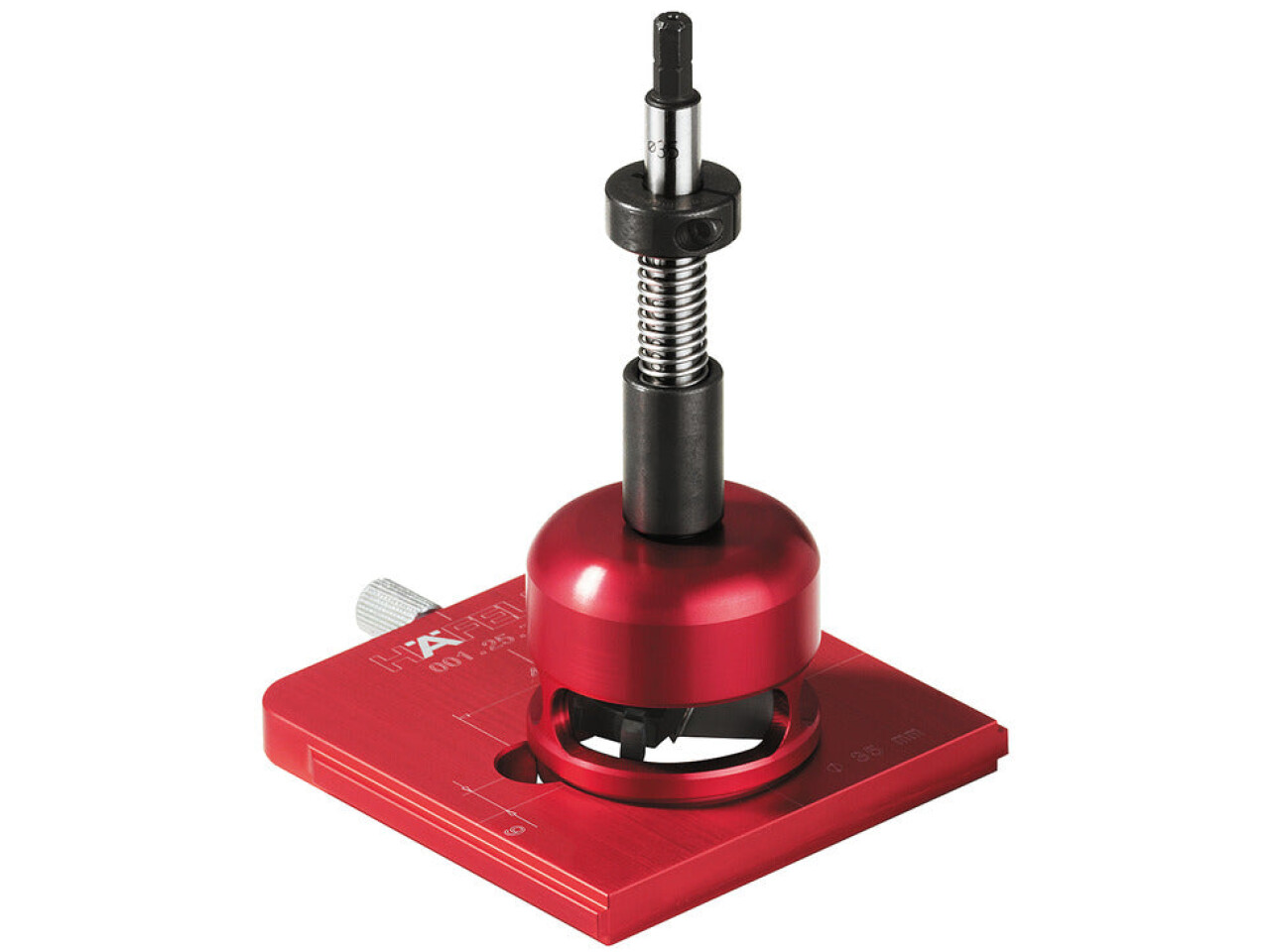

Jig Supplement, for Concealed Hinges Ø 35mm, 48/6mm, Häfele Red Jig is an aluminium drill guide set made for installers and carpenters who want clean, consistent results when fitting concealed hinges. Designed as an additional Häfele Red Jig option, this set combines a drill guide with a depth gauge to help you drill accurately every time—so your hinge cups sit perfectly and doors align smoothly.
Ideal for precision work, this Jig Supplement, for Concealed Hinges Ø 35mm, 48/6mm, Häfele Red Jig matches concealed hinge drilling requirements for a reliable drilling sequence. The system is suitable for concealed hinges 35 mm, with drilling dimensions of 48/6. If you’re aiming for professional-quality hinge installations, the accuracy of this drilling pattern helps reduce guesswork and improves repeatability across jobs.
Product subtitle: Drill guide set, With drill guide and depth gauge—so you get both guidance and depth control in one compact solution. The jig supports precise drilling of drill holes for concealed hinges Ø 35 mm, helping you achieve accurate positioning from the first hole to the final fit.
Specifications at a glance: The drill bit diameter is 35 mm, the drilling pattern is 48/6, and the body is aluminium in a red, anodized finish. Order reference notes that Red drilling jig and spare parts must be ordered separately as required, making this supplement the right choice when you’re expanding or maintaining your Red Jig setup.
Upgrade your workflow with the dependable control of the Jig Supplement, for Concealed Hinges Ø 35mm, 48/6mm, Häfele Red Jig and enjoy faster, neater concealed hinge installations.
Specifications
Suitable for

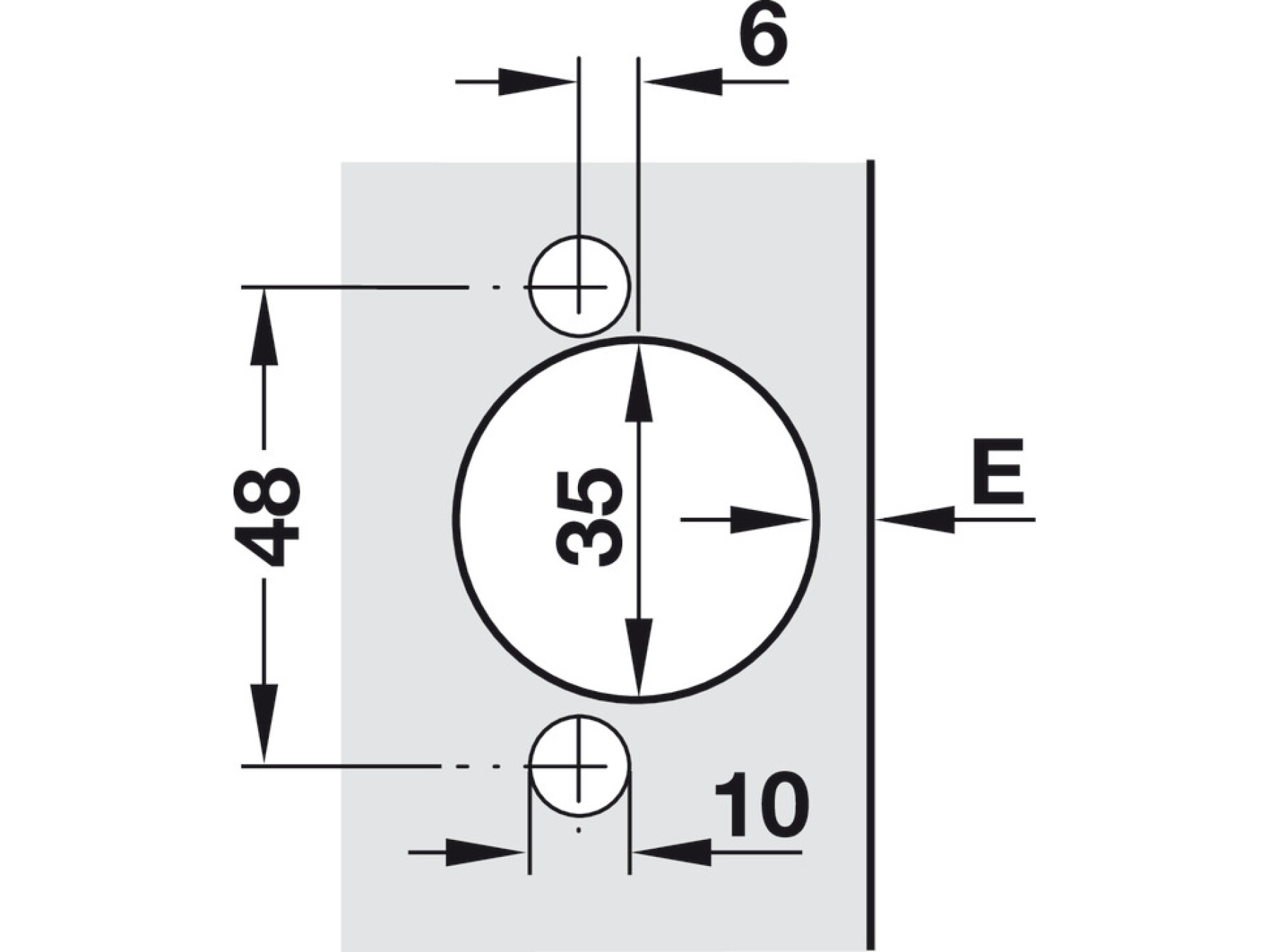

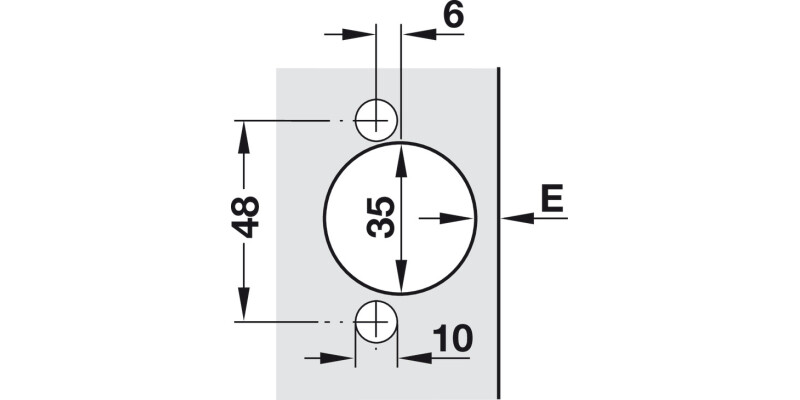

For concealed hinges 35 mm, drilling dim. 48/6
Version
Additional Häfele Red Jig for concealed hinges Ø 35 mm, drilling pattern 48/6
Area of application
For precise drilling of drill holes for concealed hinges Ø 35 mm
Drill bit Ø
35 mm
Drilling pattern
48/6
Material
Aluminium
Colour/finish
Red, anodized
Order reference
Red drilling jig and spare parts to be ordered separately as required
FAQ
Product Details
Will this Red Jig Supplement hinge drill guide work with concealed hinges?
Yes. This drill guide set is designed for concealed hinges with a 35 mm cup diameter, helping you position and drill accurately for the hinge fixing holes.
Which drilling pattern does the Red Jig Supplement Hinge D3548 support?
It supports the drilling pattern 48/6, matching the common layout used for 35 mm concealed hinge systems so you can drill the correct hole positions with less guesswork.
Does the set include everything needed to drill and set the hinge depth?
Yes. The kit includes a drill guide and a depth gauge, so you can drill to the right depth for consistent results across installations.
Can I use the drill guide with standard hole saw or drill bits?
It is intended for drilling with the appropriate size for the hinge system. This guide is specified for 35 mm hinge drilling, so you should use the correct drill bit size for the best fit and alignment.
How does the depth gauge help when fitting concealed hinges?
The depth gauge helps you control drilling depth, which is important for achieving a consistent hinge fit and avoiding issues such as hinge cups sitting too shallow or too deep.
What is the product part reference and how do I order the correct items?
You can use Product Part No: 001.25.831 when ordering. Please note that additional Red Jig drilling components and spare parts are ordered separately as required, so you can keep the system working for future installations.
Why is this drill guide set recommended for precise concealed hinge work?
It improves drilling accuracy by guiding the drill bit through the correct positions and supporting repeatable depth. This makes it easier to install 35 mm concealed hinges neatly and consistently, particularly when fitting multiple hinges.
