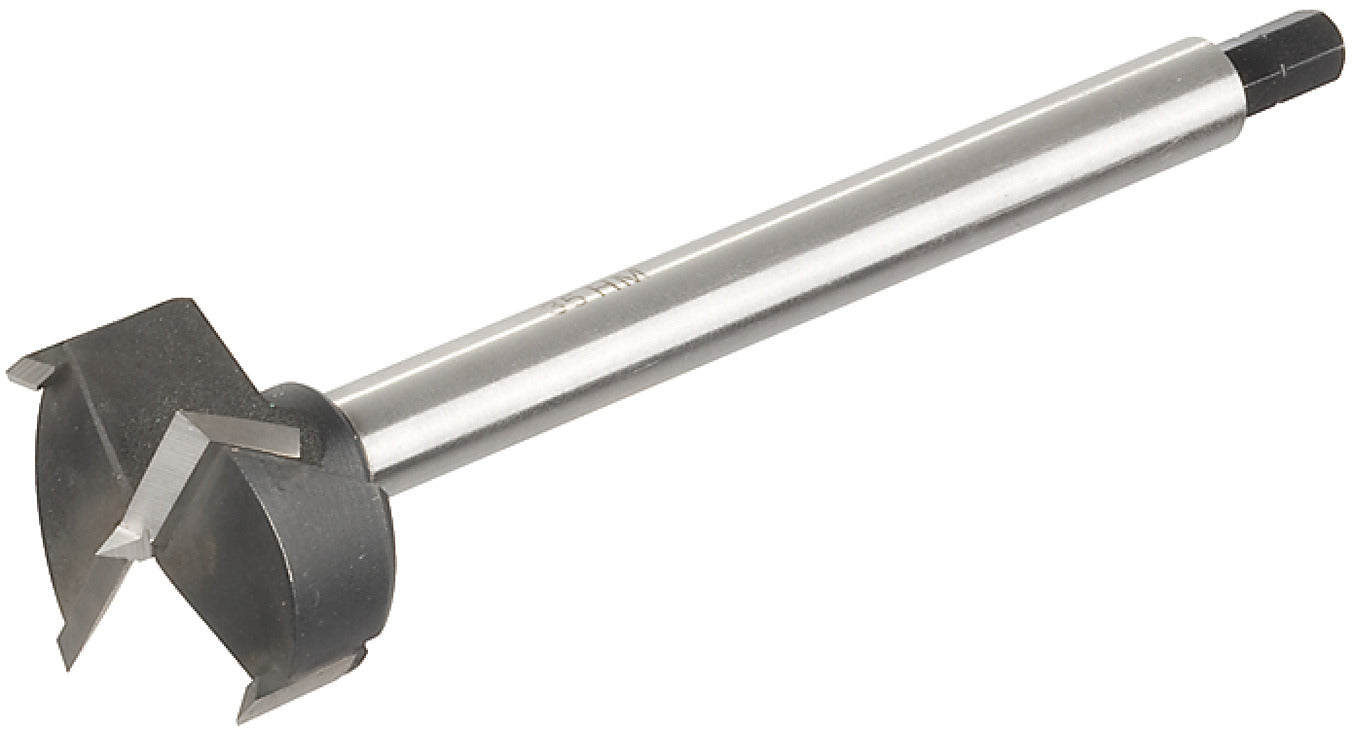

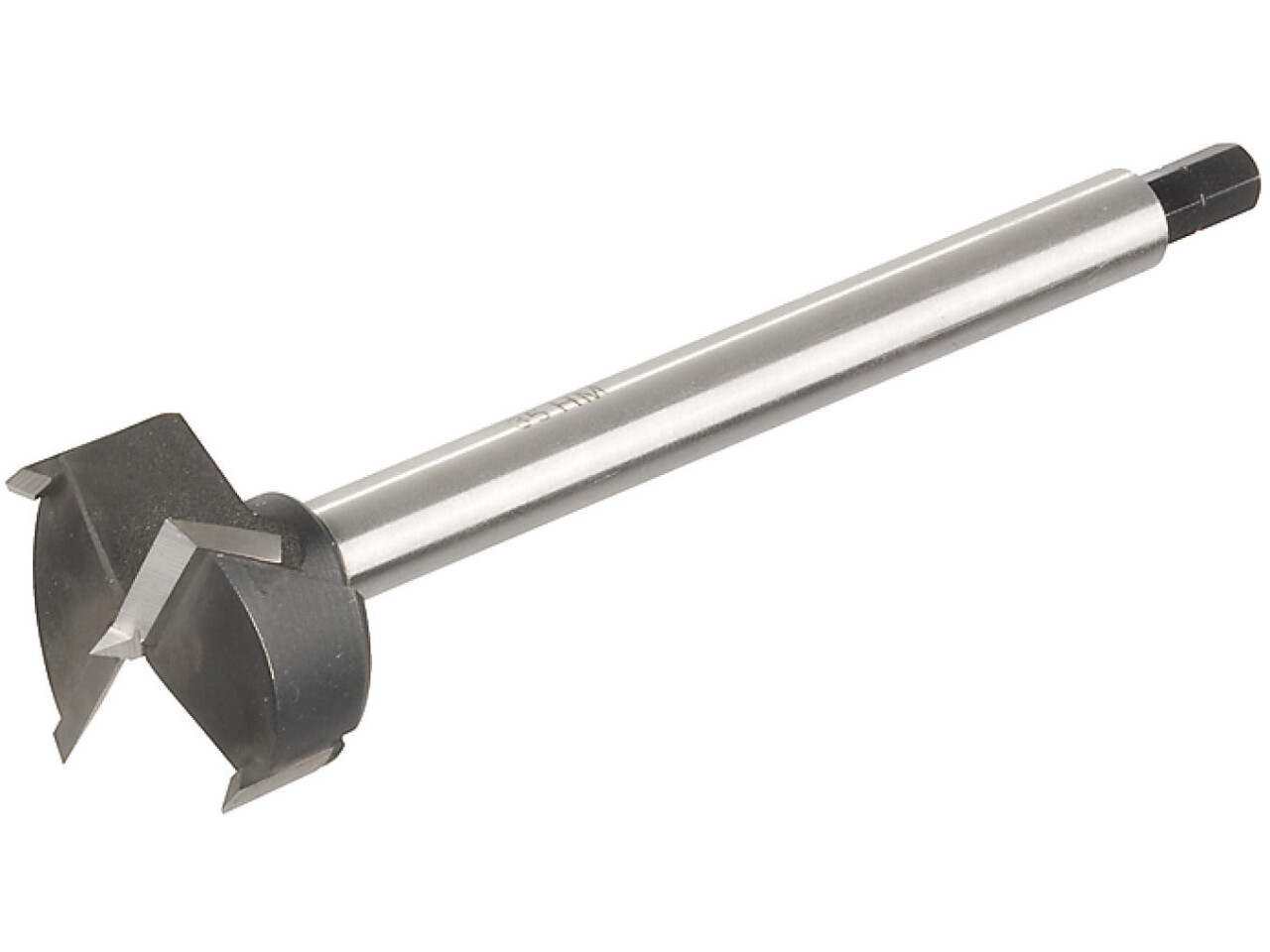

Drill Bit, Multi-Spur, HM, Häfele Red Jig

Product Details

Which depth gauges is this drill bit suitable for?

This Red Jig HM Multi Spur Drill Bit is designed for use with depth gauges 32 and 48, helping you drill to the correct depth with more consistent results. It is intended for depth gauge setups that match those sizes.

Is the bit diameter compatible with my jig settings?

The bit has a 35 mm diameter, which matches the product subtitle requirement for setups using a depth gauge with that drill size. If your jig calls for Ø 35 mm, this is the correct option for that requirement.

What drill chuck and shank size does it fit?

The bit uses a 10 mm shaft and a 1/4 inch hexagon chuck connection. This is commonly used for quick, secure holding in compatible drill and bit holders.

How long is the bit, and will it reach standard depths?

With a total length of 130 mm, this bit is made for controlled drilling when working with a depth gauge. The length is typically helpful where you want the bit to remain engaged and aligned through the full drilling process.

Can I use it for hard materials?

Yes. The bit is specified for hard metal. For best results, use appropriate drilling settings for the material you are working with and let the bit do the work without forcing it.

Do I need to buy any other Red Jig part as well?

For complete use, Basic Häfele Red Jig 001.25.600 must be ordered separately. This product is the drill bit component for that system, so make sure your jig base is in place before drilling.

What warranty or guarantee is included?

You can benefit from the Hafele Lifetime Guarantee of 25 years. It is designed to give long term confidence for users selecting Häfele Red Jig accessories for repeat drilling tasks.
