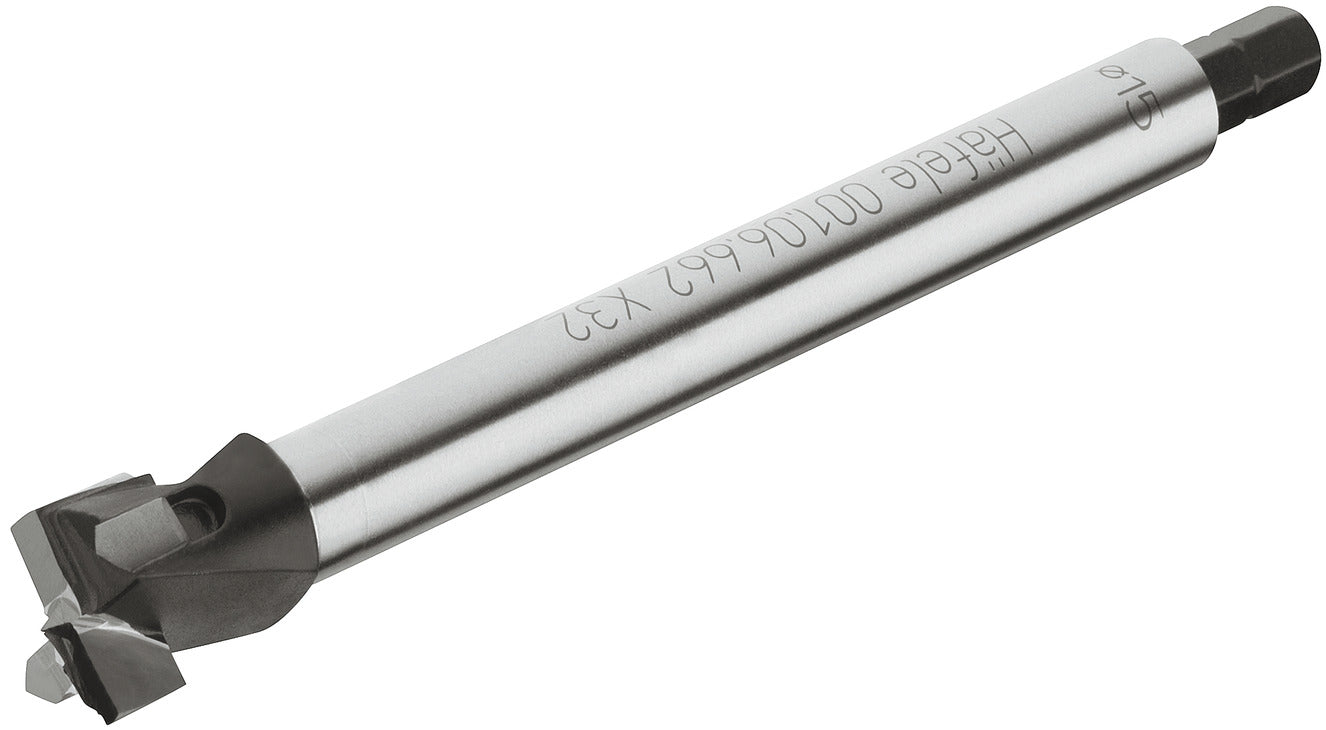

Drill Bit, Multi-Spur, HM, Häfele Red Jig

Product Details

Which depth gauges is the Red Jig HM Multi Spur Drill Bit D15mm compatible with?

This bit is designed for use with the Red Jig depth gauges 32 and 48 and is intended to match drilling requirements for those settings. If you are using a different depth gauge size, check that it is listed as compatible before buying.

What diameter hole will this drill bit create?

The bit is specified as Ø 15 mm, so it is suitable when you need a 15 mm diameter hole for your project. Using the correct diameter helps ensure the jig setup and fitted components work as intended.

Will this bit fit my drill, and what chuck size does it use?

It has a 1/4 inch hexagon shank, which is made for standard hex chucks commonly found on many drills and bit holders. If you are unsure, confirm your tool accepts 1/4 inch hex bits.

How long is the working reach of the bit?

The bit has a total length of 130 mm, giving reach for typical jig applications. This length is especially useful when drilling to a set depth using a guide.

What materials is it suitable for drilling?

The cutting edge is for hard metal applications. In practice, this makes it well suited to tasks where you want a cleaner cut and reliable performance through denser materials.

Is the product covered by a guarantee?

Yes. It includes a Häfele Lifetime Guarantee of 25 years. This is a strong reassurance when you want dependable drill bit performance for long term use.

Do I need to purchase any other Red Jig parts first?

For the full system, Basic Häfele Red Jig 001.25.600 must be ordered separately. This drill bit is an accessory, so make sure your main jig and depth gauge components are already in place before drilling.
