Hook Bolt Mortise Lock, Backset 22 mm, Symo 3000

Hook Bolt Mortise Lock, Backset 22 mm, Symo 3000

Name: Hook Bolt Mortise Lock, Backset 22 mm, Symo 3000
SKU: 230.36.600
Price: 4.59 GBP
Availability: InStock

Part Number: 230.36.600

For combination with Symo cylinder removable core, Right hand

Price:

£4.59

Per Item

VAT excluded

Hook Bolt Mortise Lock, Backset 22 mm, Symo 3000 (Product Part No: 230.36.600) is a premium locking solution... Read More

Product Information

Product Details

Hook Bolt Mortise Lock, Backset 22 mm, Symo 3000 (Product Part No: 230.36.600) is a premium locking solution designed for quality cabinet and furniture applications. Built for smooth, reliable security, this right-hand mortice hook bolt lock is the ideal choice when you’re pairing your hardware with a Symo cylinder removable core (inserted from the front on site).

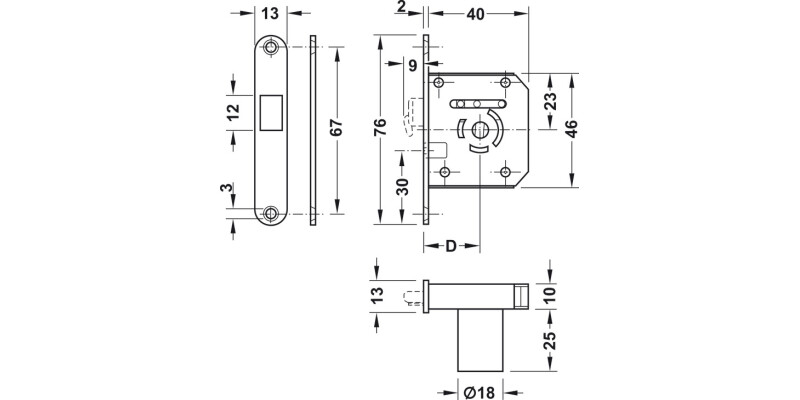

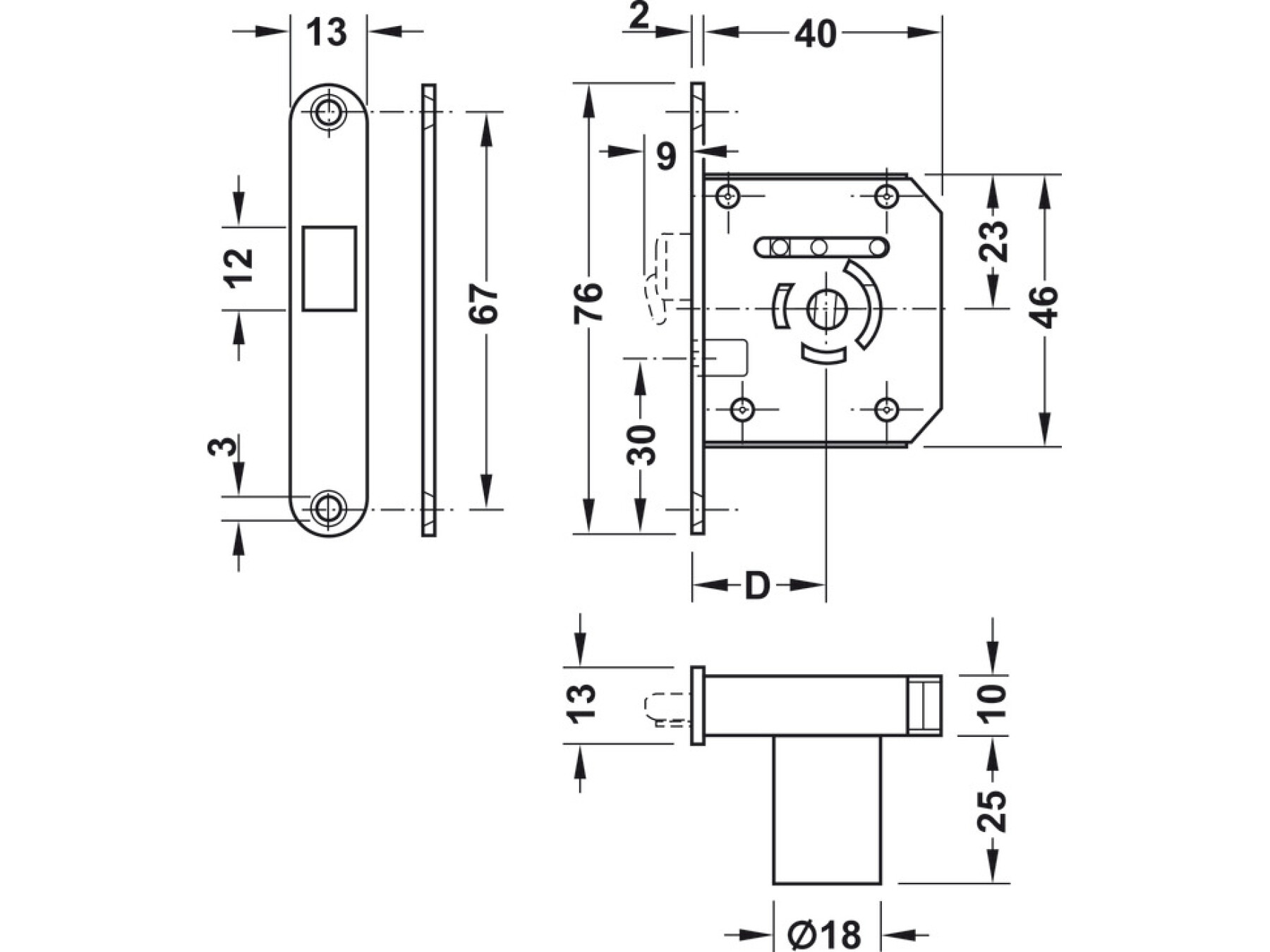

Engineered with precision, the lock features a 22mm forend type and a matching 22mm backset, ensuring compatibility and a clean, professional fit. Its right-hand mounting makes it suitable for doors and access points configured for RH operation, helping you complete installations accurately and efficiently.

Constructed from zinc alloy and finished in a durable nickel plated surface, this hook bolt mortice lock offers a strong balance of strength and attractive appearance. The cylinder housing is 24mm long, and the lock is prepared for a round cylinder to support a secure, streamlined cylinder fit.

Designed for front-on-site cylinder core insertion, it’s well suited to installers and projects that require flexible, tidy assembly. The installation direction and functionality align with the right-hand specification, making it straightforward to integrate into compatible Symo systems.

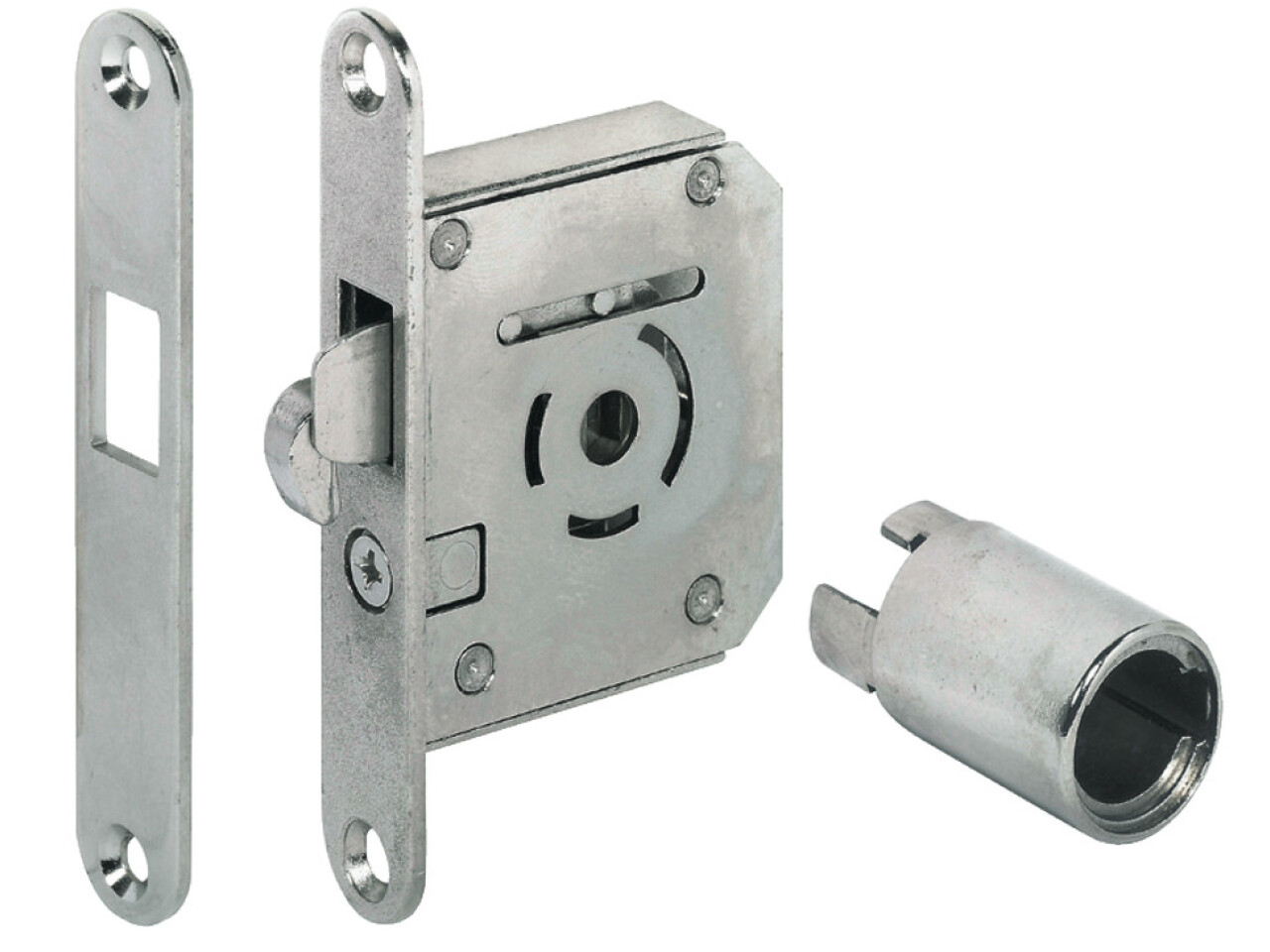

What’s included: 1 hook bolt mortice lock, 1 cylinder housing, and 1 striking plate.

If you’re upgrading cabinet security with a dependable hook bolt mortice lock, choose Hook Bolt Mortise Lock, Backset 22 mm, Symo 3000 for a high-quality finish, precise fit, and confidence in everyday use.

Specifications

Forend Type

22.00 mm

Mounting

Right

Backset D

22.00 mm

Area of application

For cylinder cores that are inserted from the front on site

Material

Zinc alloy

Colour/finish

Nickel plated

Cylinder shape

prepared for round cylinder

Cylinder housing length

24.00 mm

Installation

Right

with key

Supplied with

1 hook bolt mortice lock
1 cylinder housing
1 striking plate

FAQ

Product Details

Is this Symo3000 hook bolt mortice lock suitable for right hand doors?

This model is right hand, designed to suit the opening and operating direction of a right hand cabinet or door. If you are matching parts for an existing lock, check the handedness before installation.

Can I use a Symo cylinder removable core with this lock?

Yes, this lock is intended for combination with Symo cylinder removable core. It is set up for use where the cylinder core is inserted from the front on site, making it convenient for replacement or rekeying when needed.

What mounting and backset measurements does it use?

The lock is built with a 22 mm forend type and a 22 mm backset. These measurements affect the fit into the prepared door or drawer edge, so it is important to confirm compatibility with your existing mortice or cut out.

What is included in the box, and do I need extra parts?

The product is supplied with 1 hook bolt mortice lock, 1 cylinder housing, and 1 striking plate. It does not include a key for the cylinder housing, so if your project requires key operation you will need a suitable Symo cylinder core.

What finish should I expect and will it resist everyday wear?

This lock has a nickel plated finish and is made from zinc alloy. For typical cabinet and furniture use, the nickel plated surface helps with everyday durability and a clean appearance.

Is the cylinder opening prepared for a round cylinder?

Yes. The cylinder shape is prepared for a round cylinder, with a cylinder housing length of 24 mm. This helps ensure the cylinder core sits correctly in the housing for smooth operation.
