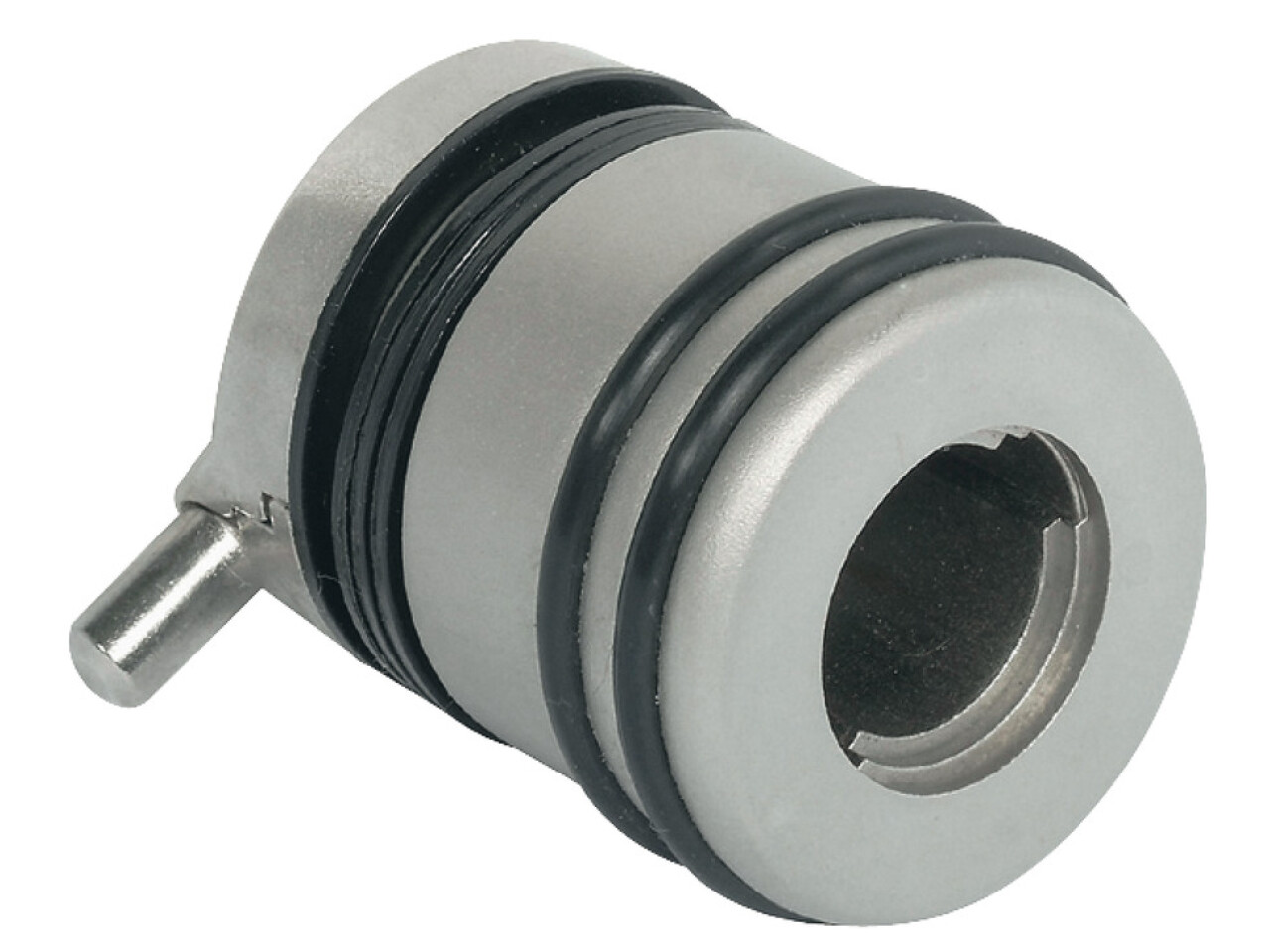

Glass Door Lock, for Hinged Doors, for Glass Thickness 4-6 mm, Symo 3000

Product Details

Is the Symo3000 glass door lock compatible with Symo cylinders using a removable core?

Yes. This lock is designed for combination with a Symo cylinder removable core, making it suitable for systems that use the Symo core style. If you already have a compatible Symo removable core, this lock can be matched to complete the glass door locking function.

What glass thickness is this lock suitable for?

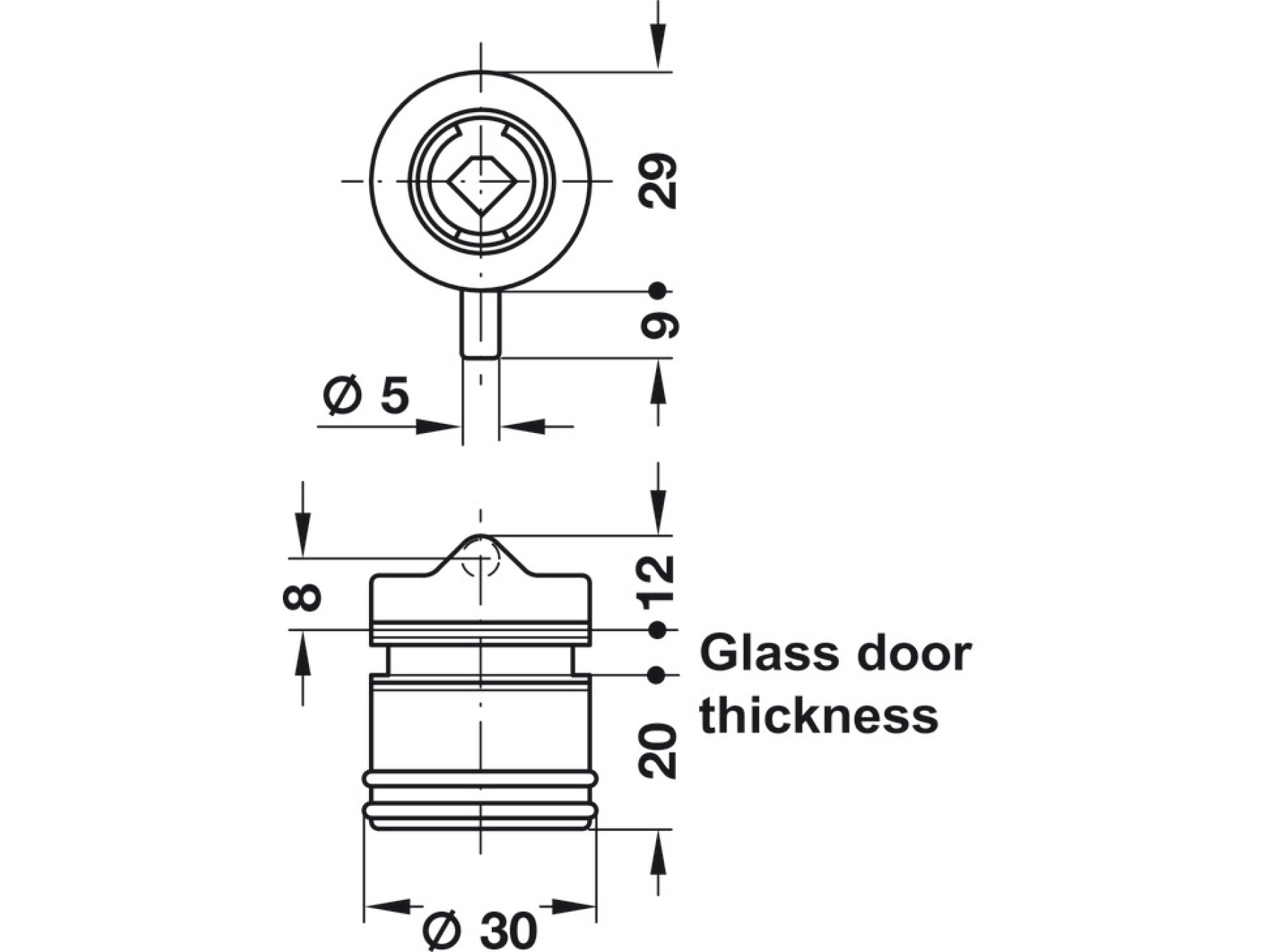

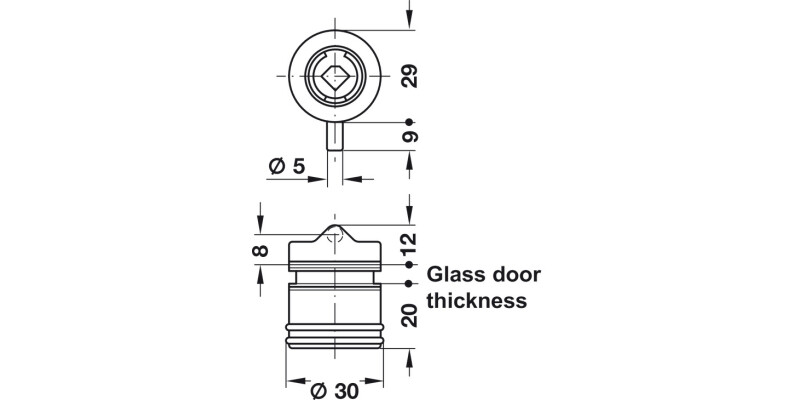

It is suitable for glass thicknesses of 4 to 6 mm. Before installation, please check the thickness of the glass panel to ensure the lock will fit securely and operate as intended.

Can this lock be used with laminated glass?

No. This product is not suitable for laminated glass. If your glass is laminated, you will need a different lock solution designed for that type of glazing.

How is the lock mounted and in which direction does the key turn?

It is installed as a glass door lock for hinged doors, and it is noted for a key turn to the left with the drawer version mounting style. This means you should plan the locking operation and handle orientation so the key direction matches your intended use.

Is the cylinder prepared for a specific cylinder shape?

Yes. The lock is prepared for a round cylinder. Make sure the cylinder you use matches the round cylinder preparation so the lock core fits properly and turns smoothly.

What is included in the box?

The package includes one glass door lock for hinged doors, three rubber disks, and two threaded screws. These items are intended to support straightforward fitting to the glass door setup.

What finish options are available for this lock?

This model is available in a matt nickel plated finish and may also be supplied in other common plated finishes such as nickel plated polished or brass plated polished depending on your selection. Choosing the right finish helps it match your furniture hardware.
