Straightening Fitting Set, for Wooden Doors

Product Details

Straightening Fitting Set, for Wooden Doors. is the ideal finishing solution for sliding and folding door systems in furniture applications. Designed as part of a reliable Sliding & Folding Door Gear for Furniture range, this Straightening Fitting Set (Part No: 406.99.615) helps keep doors aligned for smooth, confident movement—especially at heights up to 2650 mm.

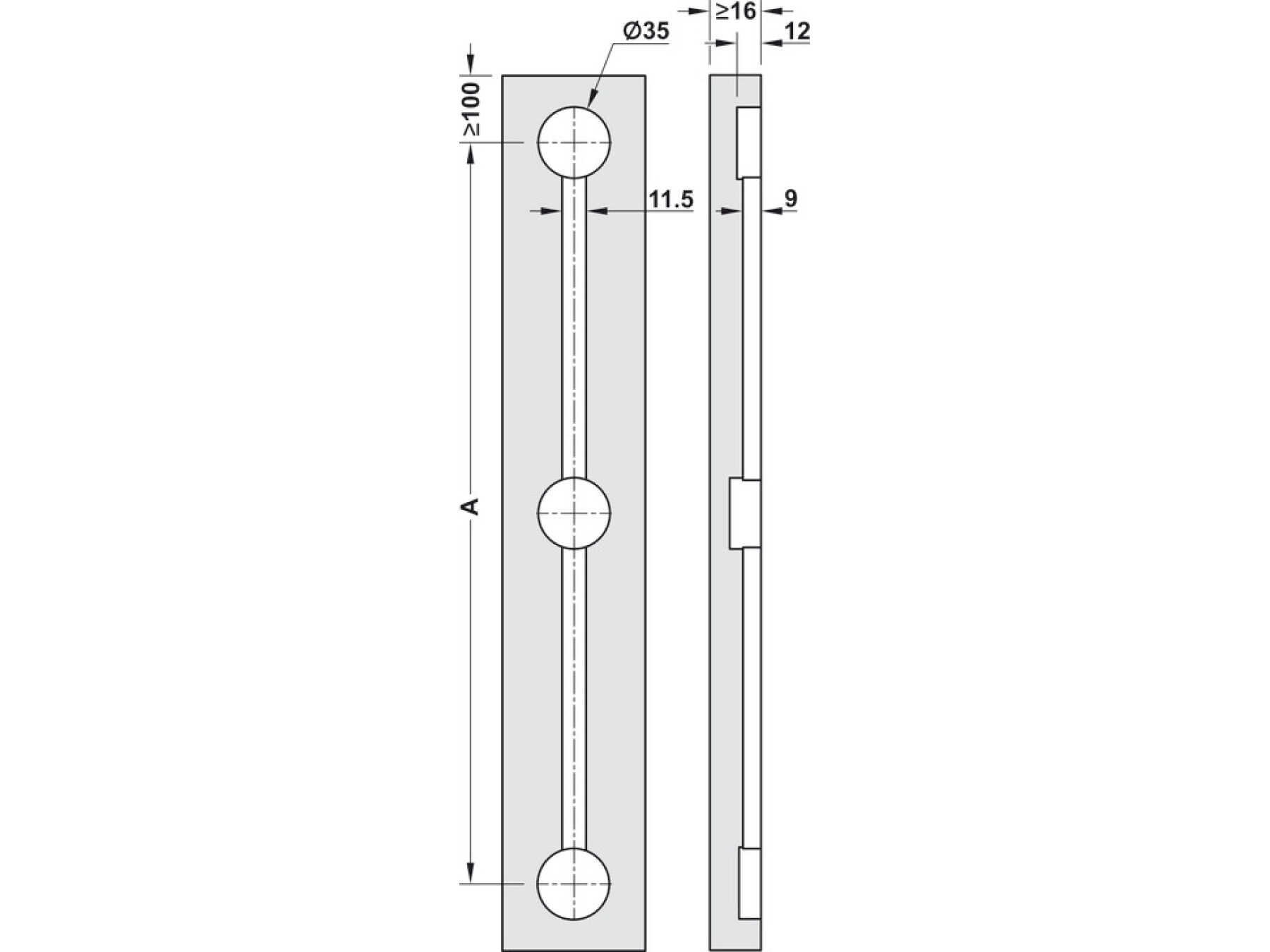

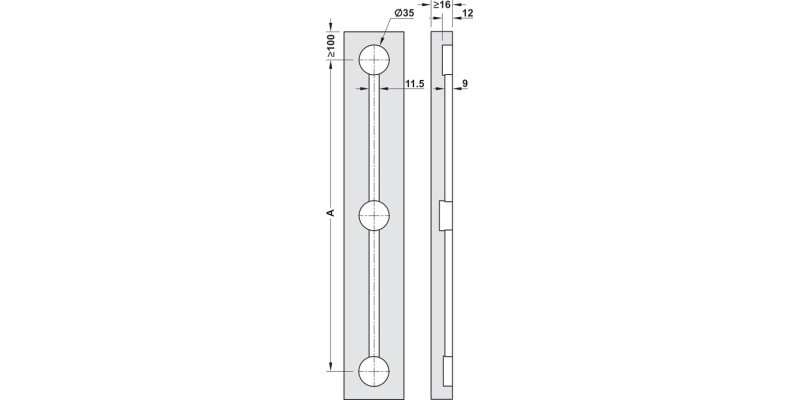

This straightening gear is made for boards with a minimum thickness of 16 mm and supports door dimensions up to 2650 mm. With dimension A: 2248 mm, it’s well suited for a wide range of wardrobe and cabinet installations where precise alignment matters.

Finished in a sophisticated grey look, the system features a grey trim strip with nickel-plated components for a durable, premium appearance. The threaded bar is made from steel, while the tensioner uses a zinc alloy and the trim strip is plastic—a combination built for everyday performance.

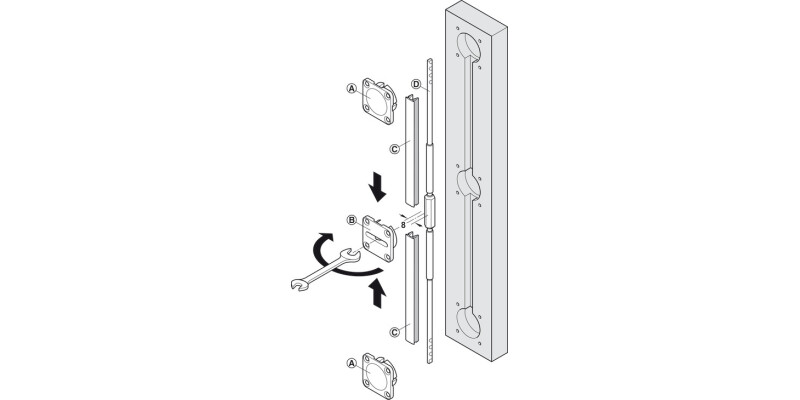

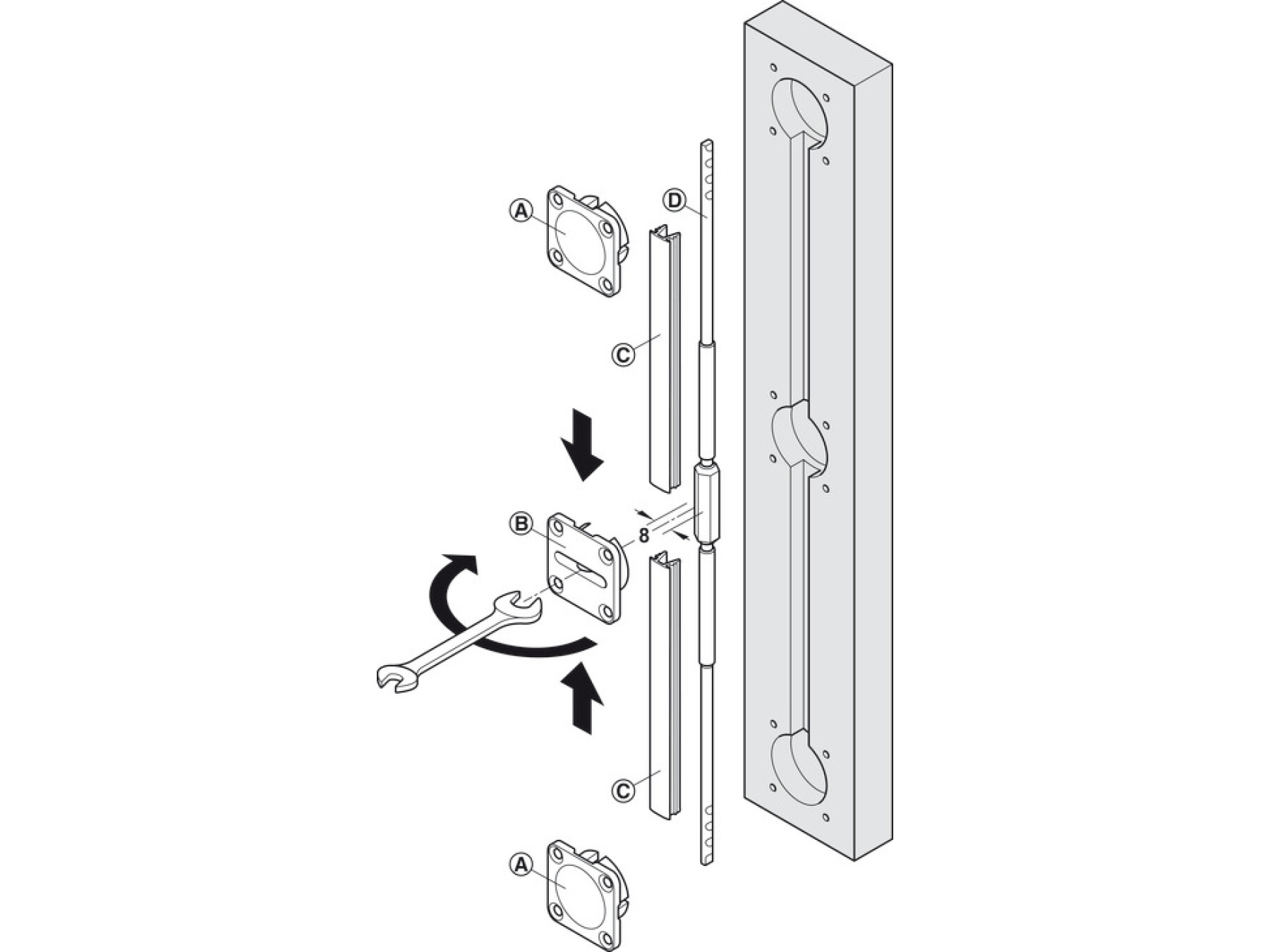

Installation is straightforward: the set is intended for recess mounting and screw fixing. Fine-tuning is easy thanks to adjustment via a pre-mounted hexagonal nut using an SW 8 open-ended spanner.

You also benefit from the Hafele Lifetime Guarantee (10 years). Each purchase includes 1 set of 2 straightening fittings with all individual components, plus the required open-ended spanner—so you can complete your setup efficiently and with confidence.

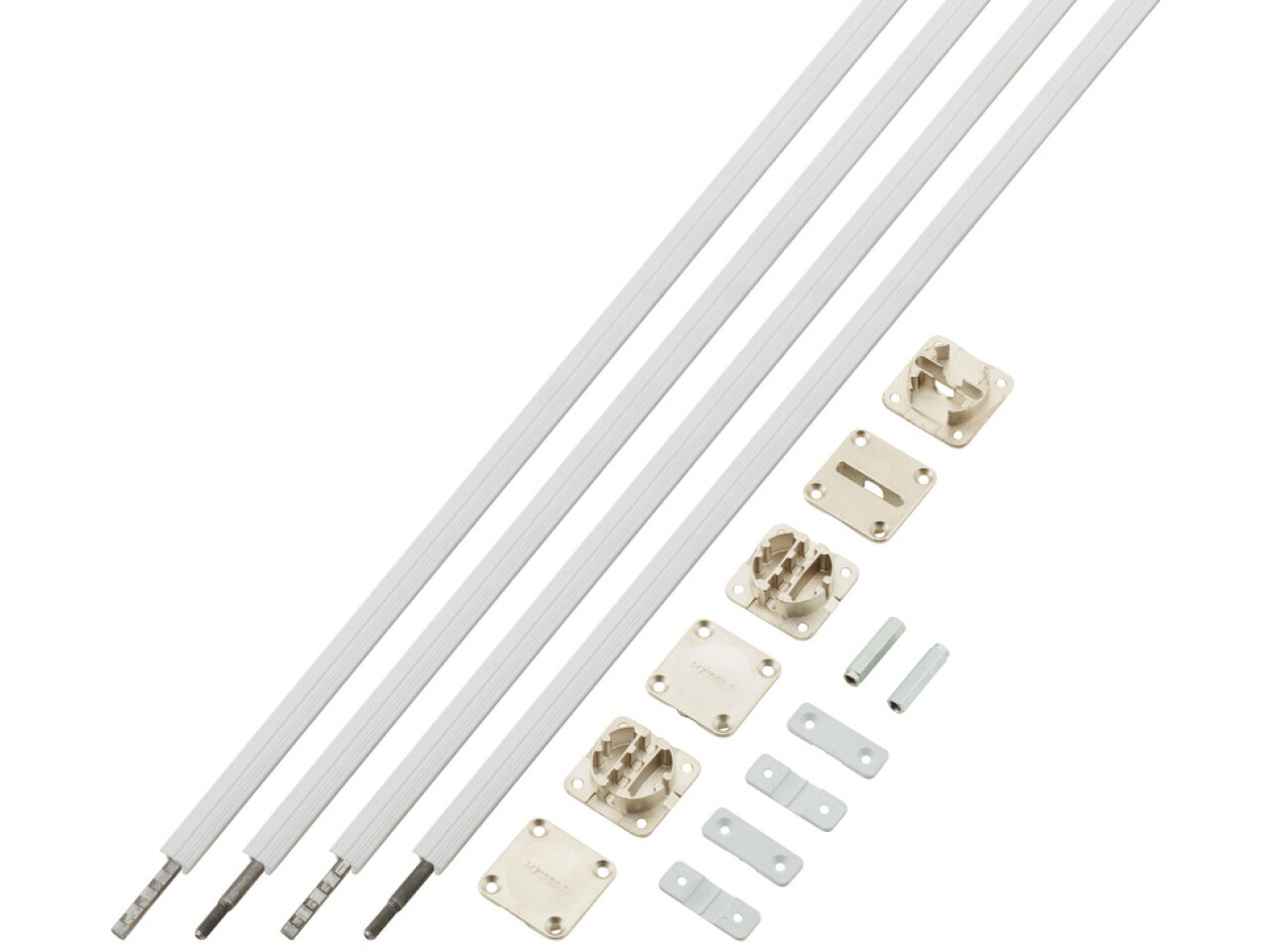

1 set consists of 2 straightening fittings including all individual components and open-ended spanner
