Fitting Set, for Folding Cabinet Doors, Slido F-Fold61 25/50A

Product Details

Fitting Set, for Folding Cabinet Doors, Slido F-Fold61 25/50A (Product Part No: 409.36.040) is a heavy-duty top hung fitting designed to deliver smooth, reliable performance for sliding & folding doors. If you’re planning a premium, space-saving door system, this Top hung system, With adjustable panel to panel hinge without cover cap solution gives you the precision and strength you need—especially for left-hand configurations.

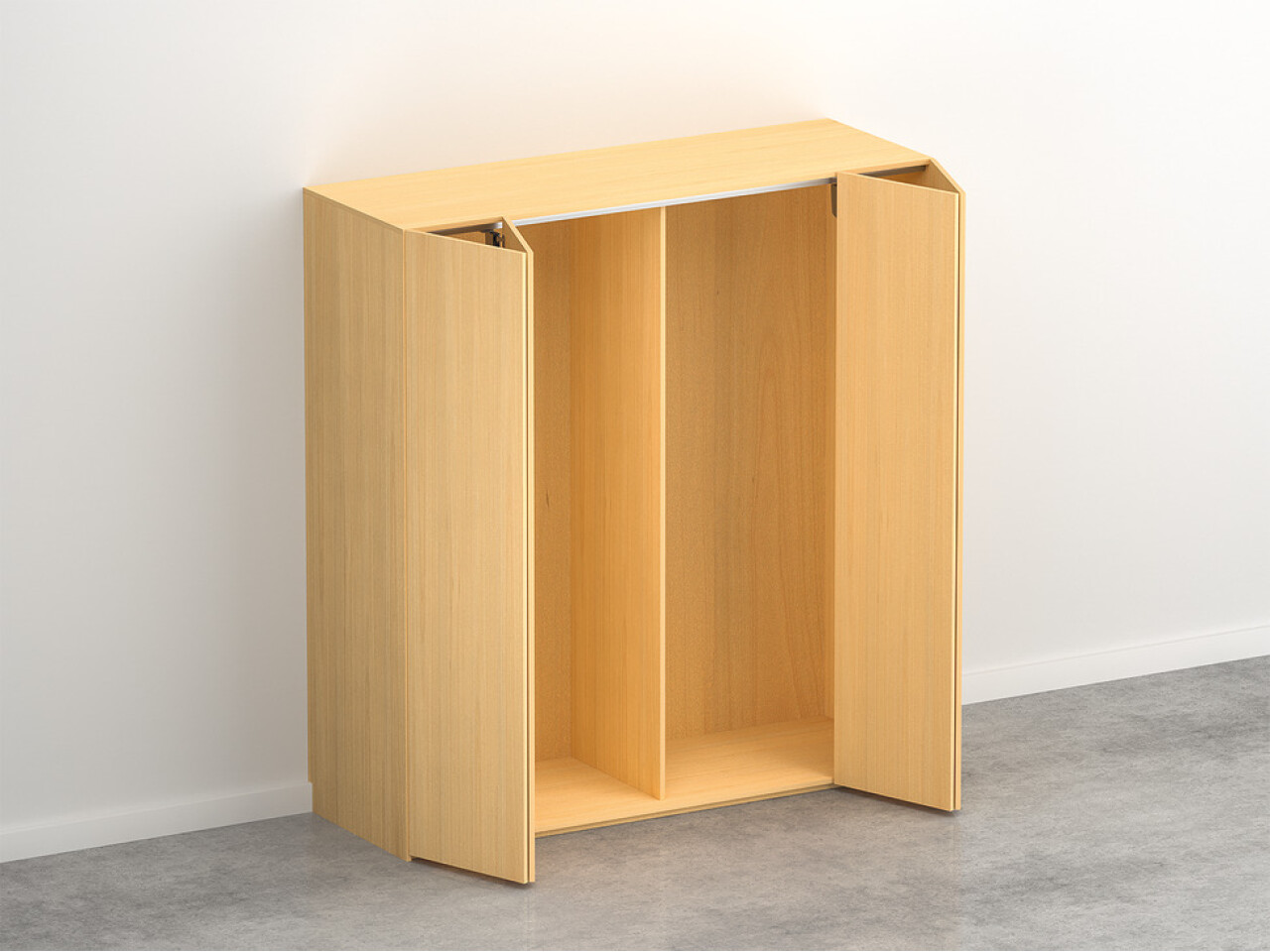

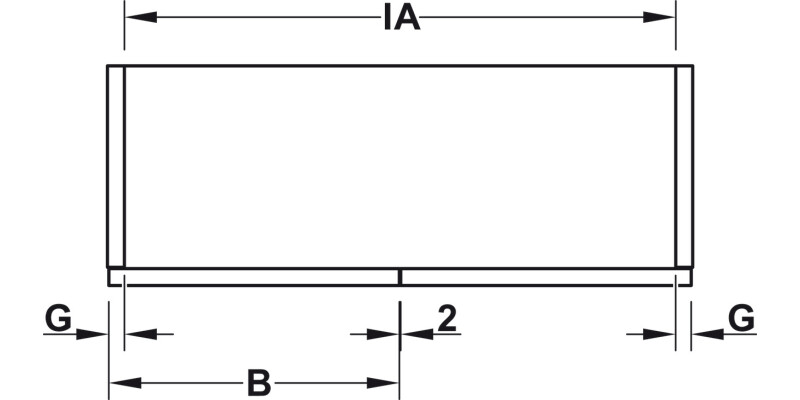

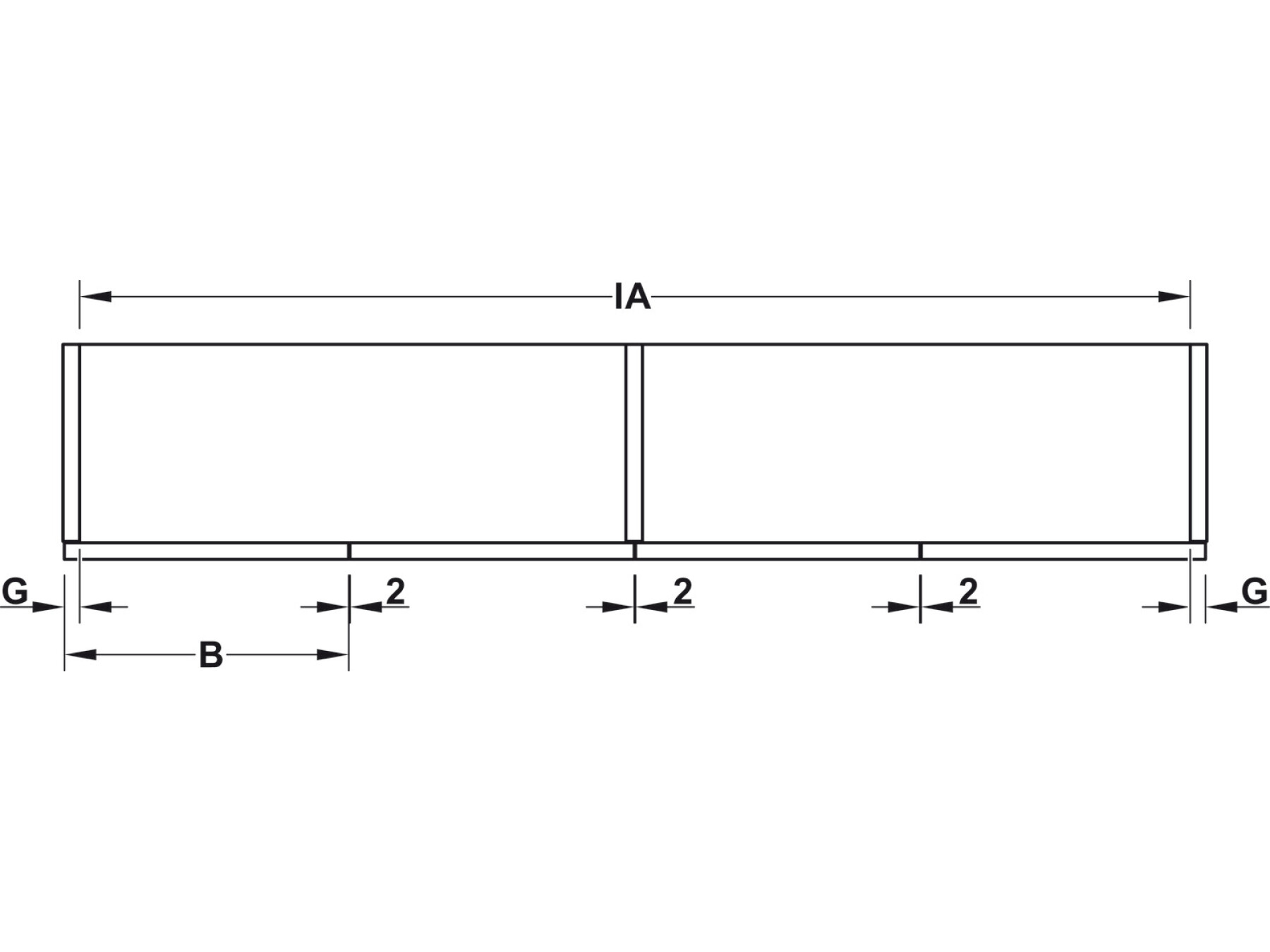

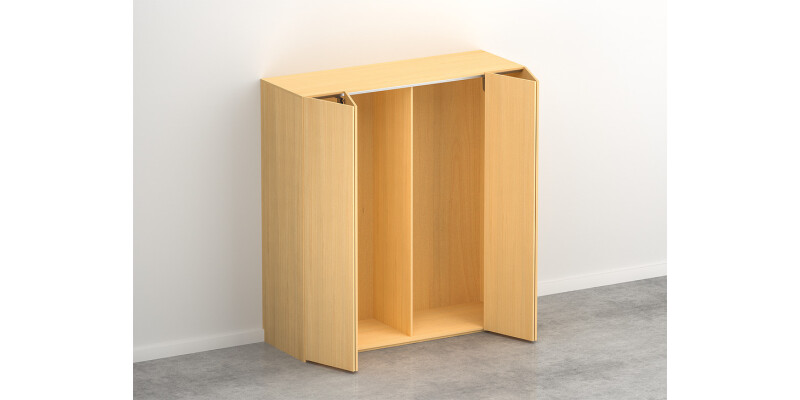

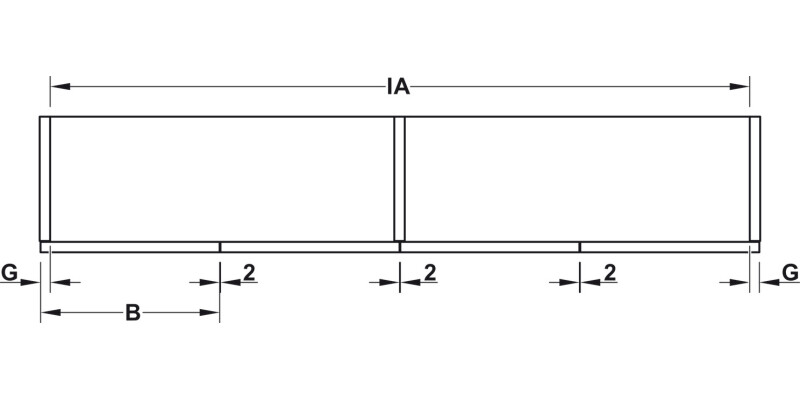

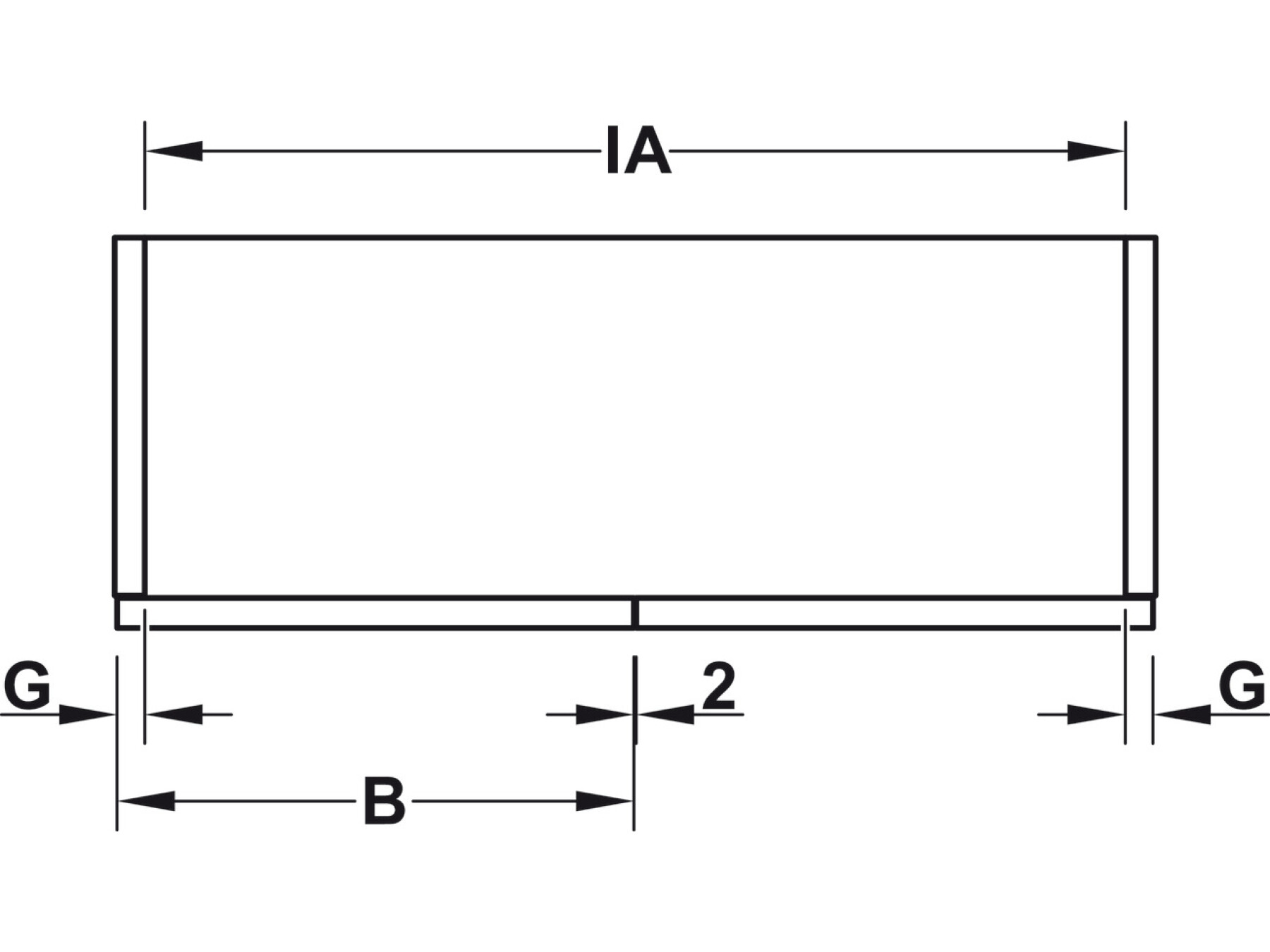

This set is built for overlay cabinet doors and works beautifully with wood and aluminium frame panels. It’s suitable for door thicknesses of ≥ 16 mm, with a door weight rating of 12.5/25 kg per door (or 25/50 kg per pair of doors). For width guidance, it supports up to 550 mm (25 kg) or 600 mm (50 kg), helping you design with confidence.

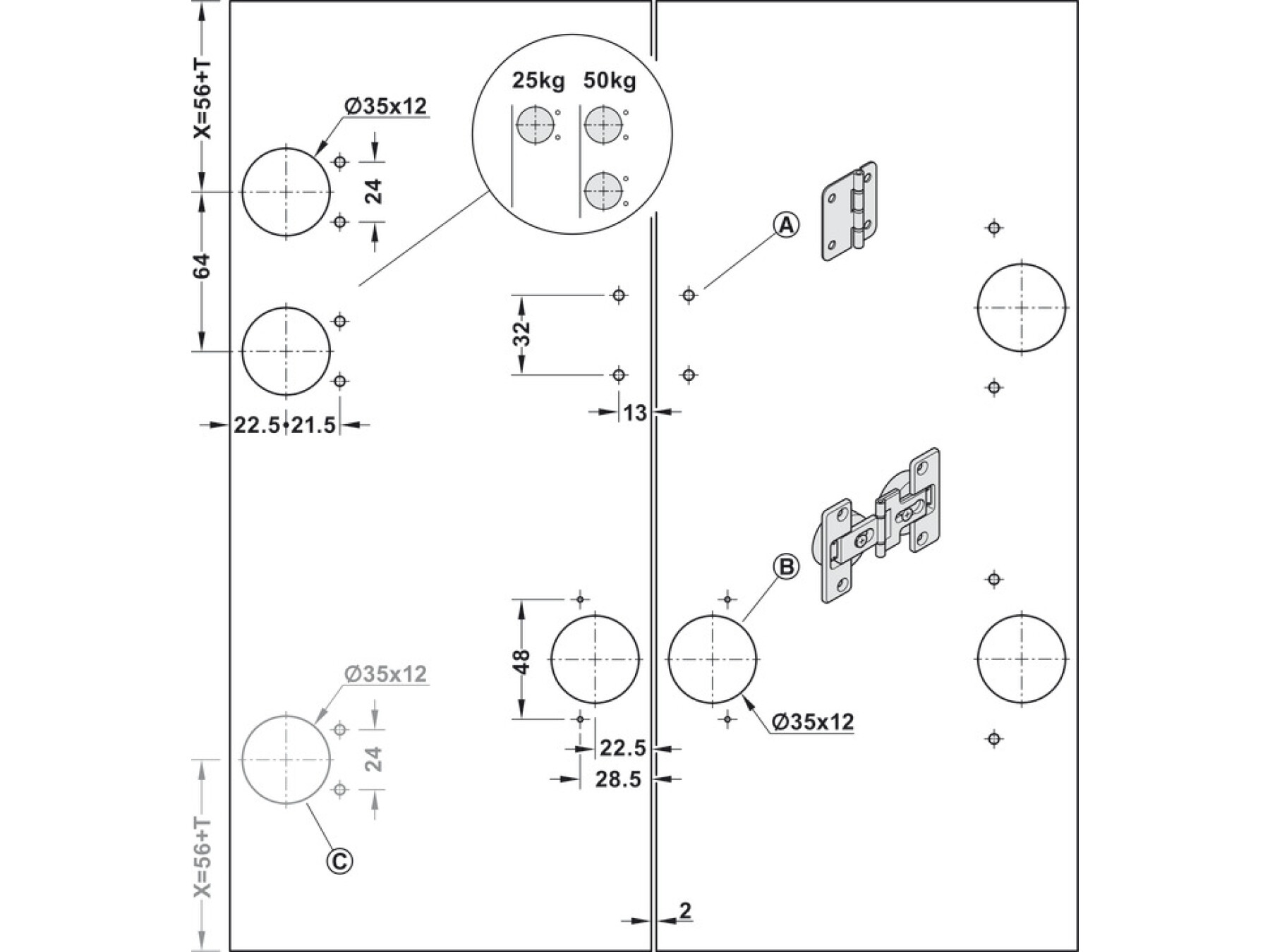

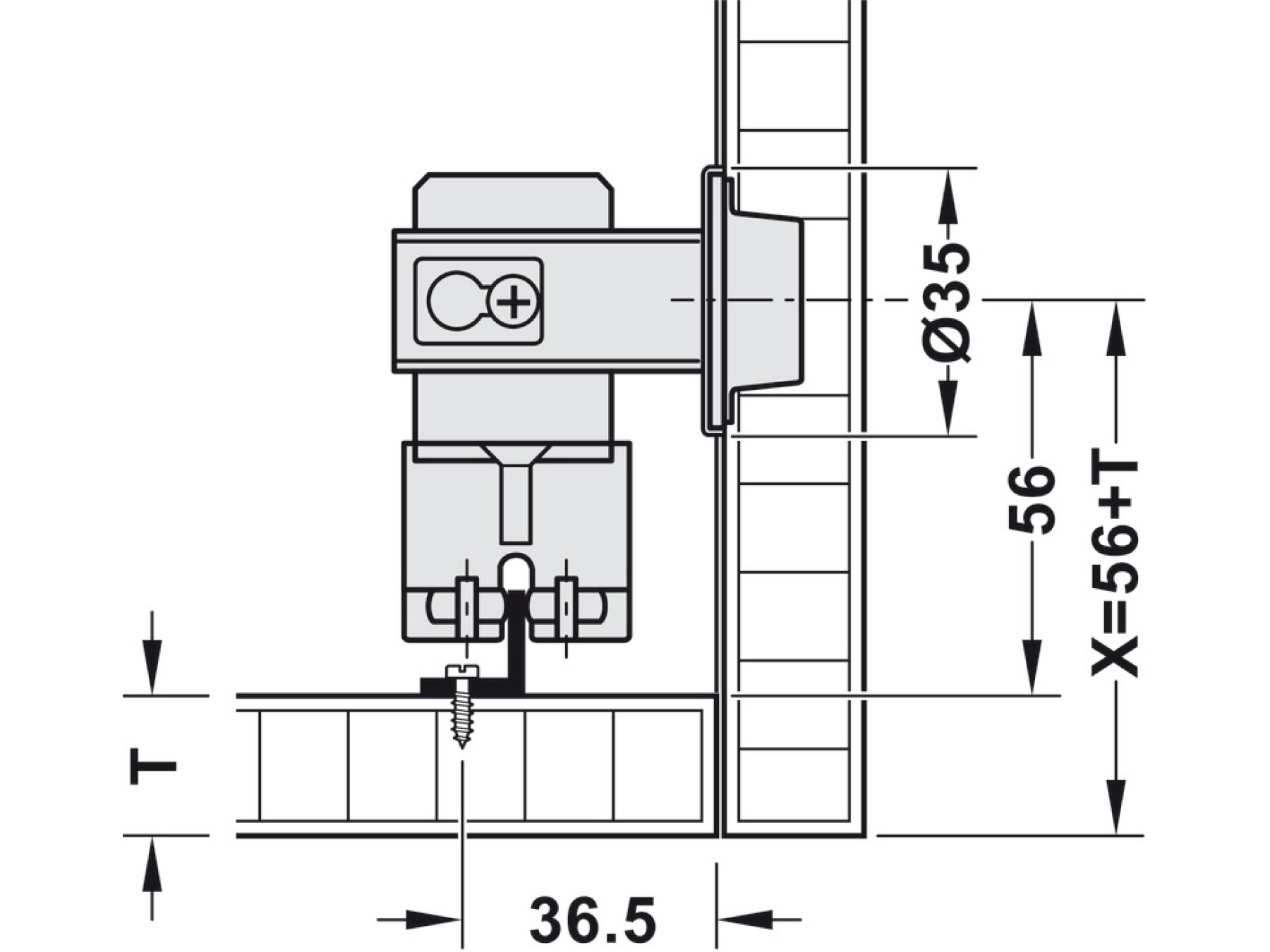

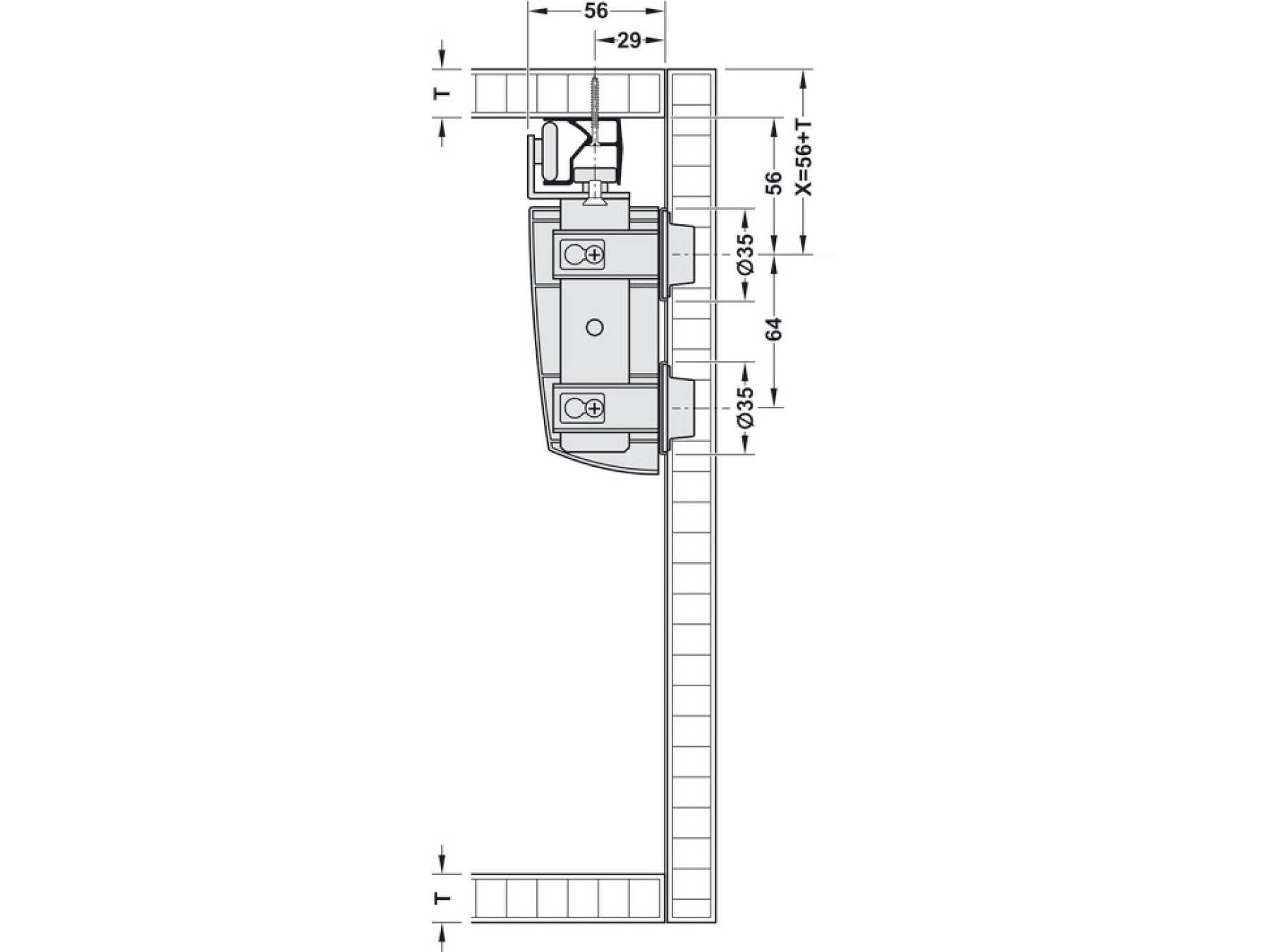

What makes the F-Fold61 hinge set stand out is its adjustability: panel alignment can be tuned via the hinges—no cover cap required—so you achieve an accurate, professional finish. The running gear uses 4 plastic rollers and is guided by ball bearings for effortless movement.

Set note: The set is supplied without tracks and without running tracks or concealed hinges for side attachment. Included are 1 running gear with 2 concealed hinges for the left door plus 4 adjustable concealed hinges.

Enjoy peace of mind with the Hafele Lifetime Guarantee (10 years). Choose the Fitting Set, for Folding Cabinet Doors, Slido F-Fold61 25/50A to upgrade your folding door hardware with durability, control, and smooth operation.

Running tracks and concealed hinges for attachment at the side are not included in the set.

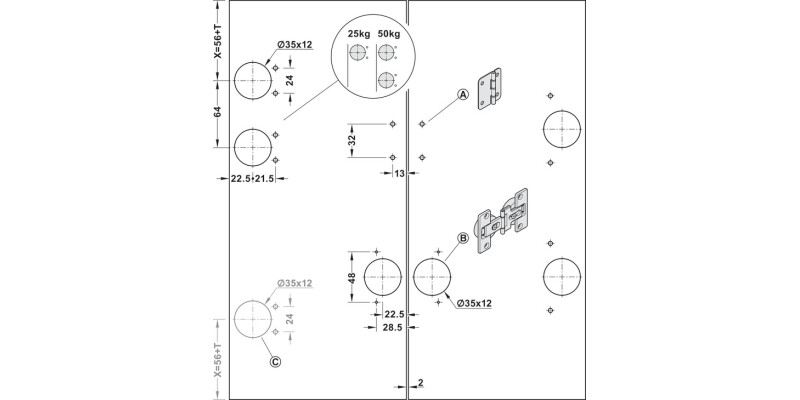

1 running gear with 2 concealed hinges for left door
4 adjustable concealed hinges
