Fitting Set, for Folding Cabinet Doors, Slido F-Fold61 25/50A

Product Details

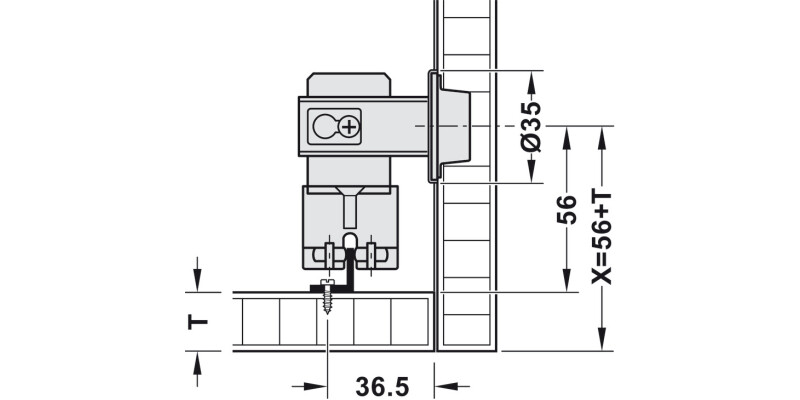

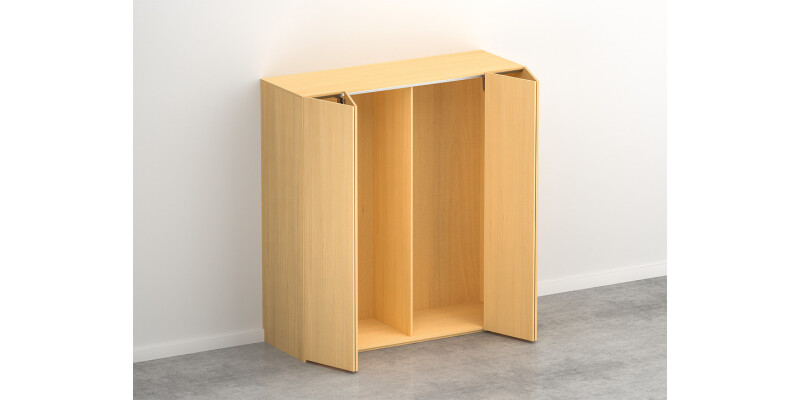

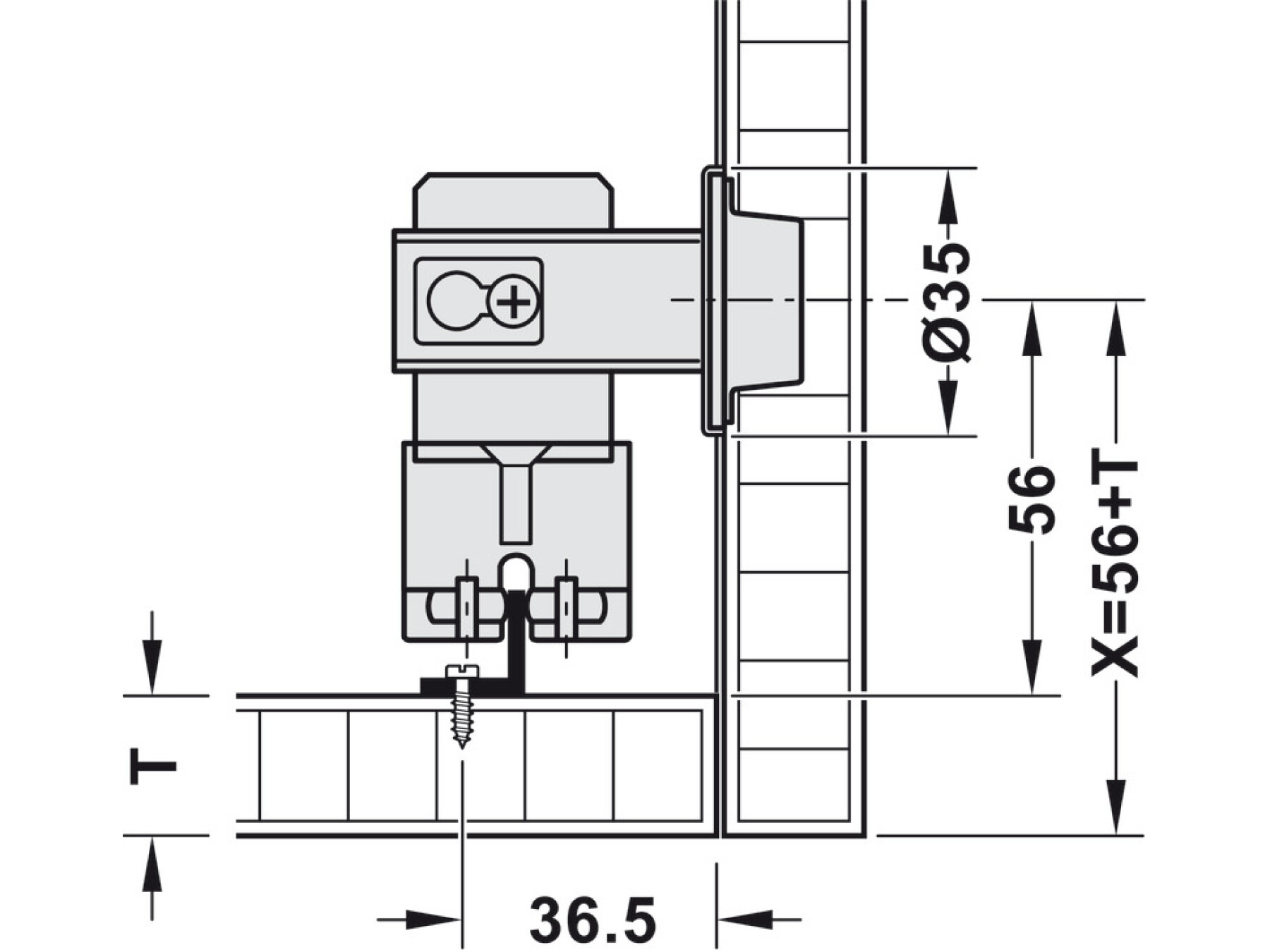

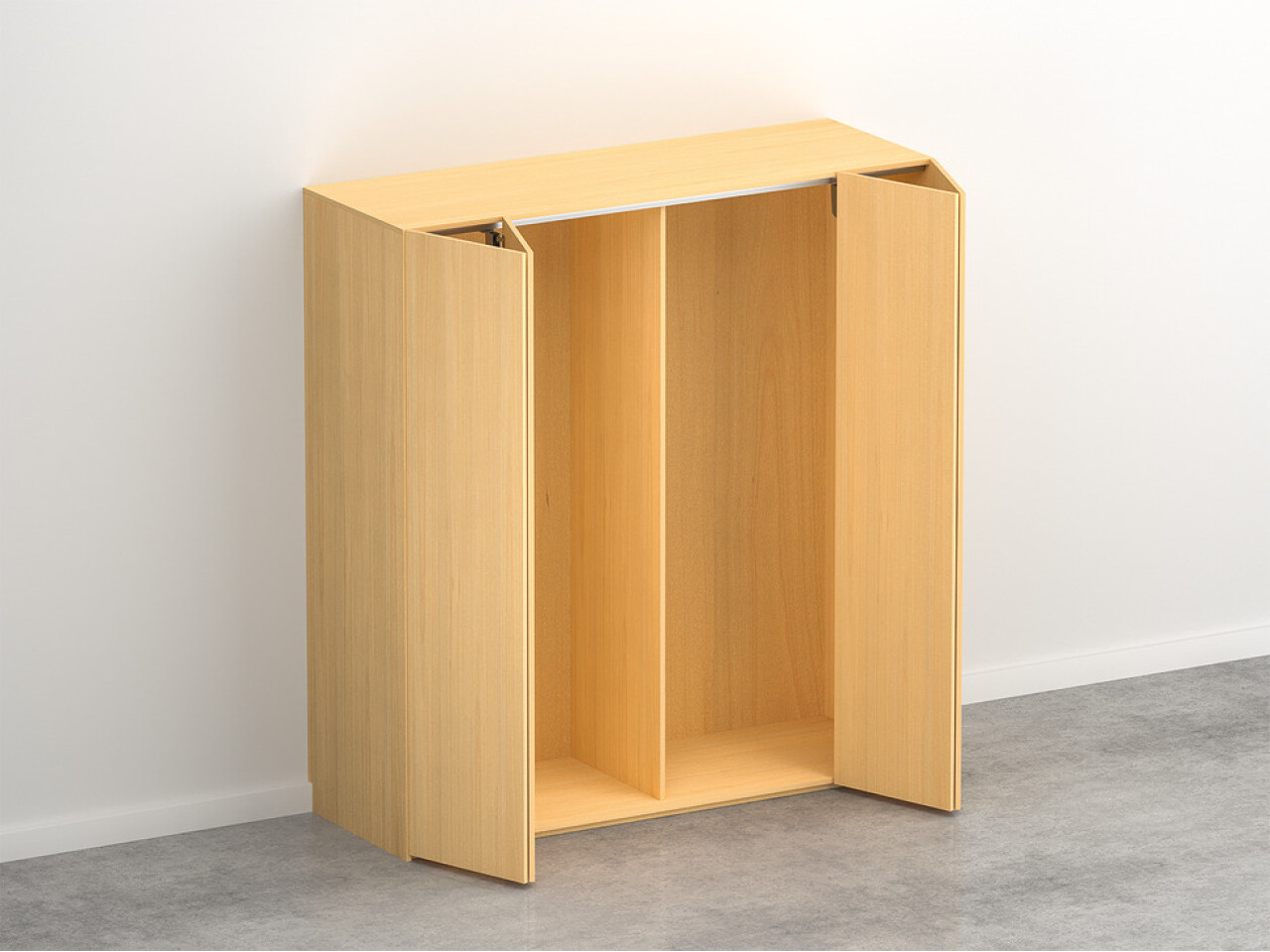

Fitting Set, for Folding Cabinet Doors, Slido F-Fold61 25/50A (Part No: 409.36.046) is a heavy-duty, top-hung hinge solution designed for sliding and folding door applications where smooth movement and solid performance matter. Built for paired door systems in the Fold 25/50 range, this left-hand fitting helps you create a reliable folding action for overlay cabinet doors—ideal for wardrobes, storage units, and space-saving interior installations.

With a top hung system and an adjustable panel-to-panel hinge featuring a white cover cap, the Slido F-Fold61 keeps alignment looking neat while making on-site fine-tuning easier. It supports door weights up to 50 kg per pair of doors, making it a dependable choice for substantial wooden or aluminium framed panels.

This set is designed for doors with a thickness of ≥16 mm. For safe, stable operation, the recommended maximum door width is 600 mm for the 50 kg configuration. The running gear uses 4 plastic rollers and is guided by ball bearings to deliver controlled, effortless travel.

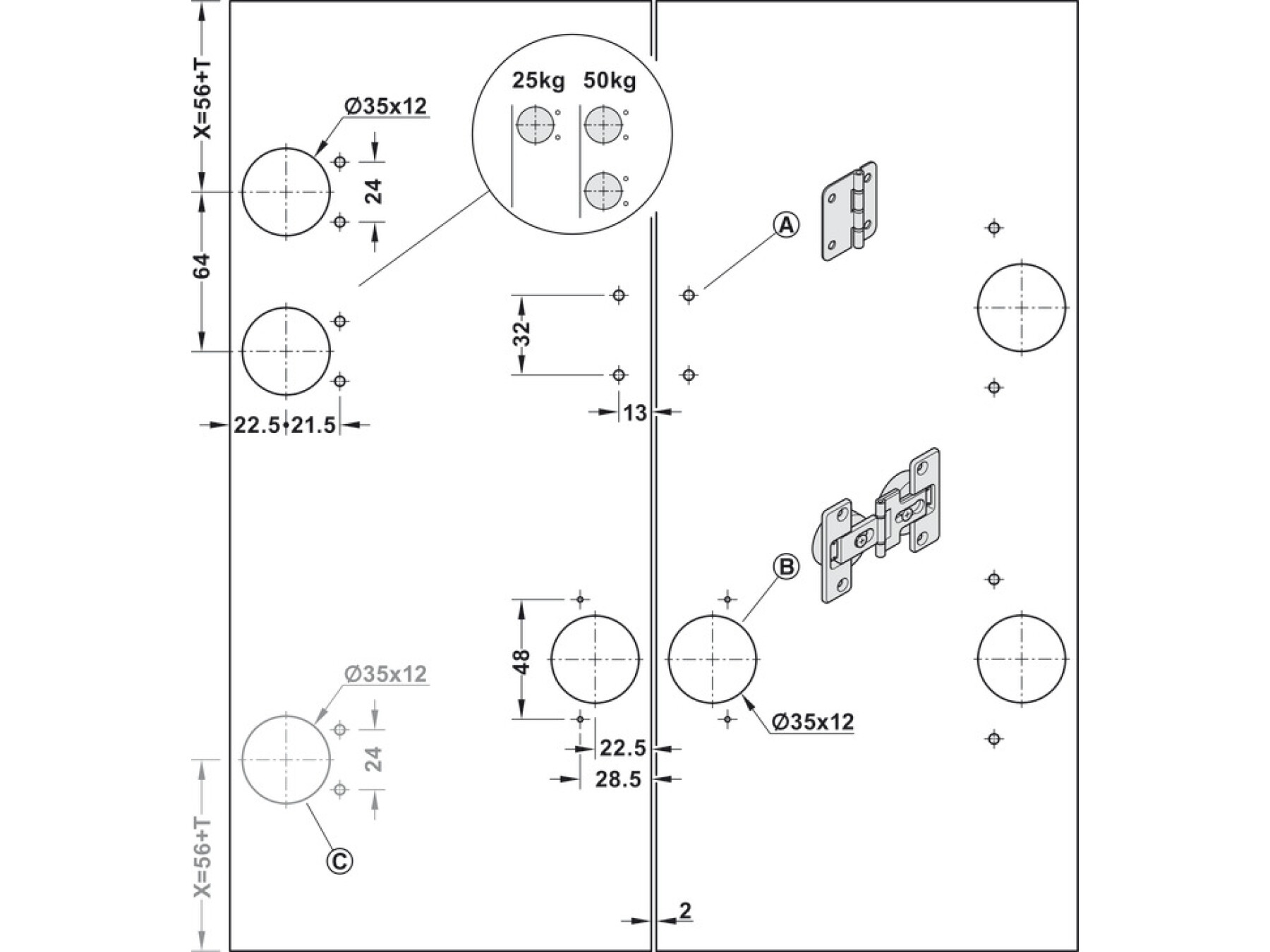

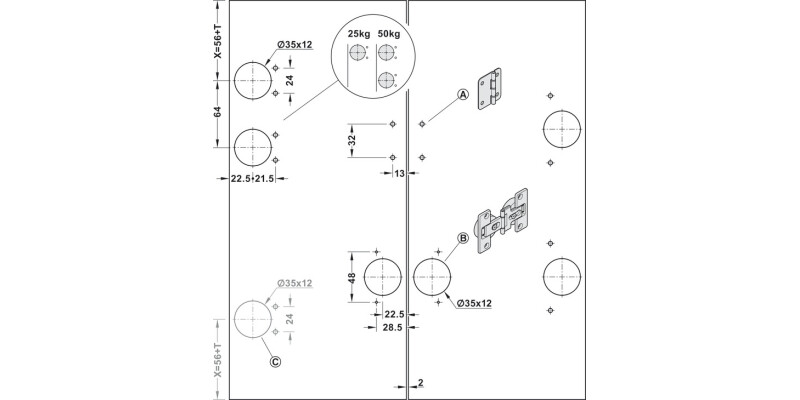

What’s included: 1 running gear with 2 concealed hinges for a left door, 4 adjustable concealed hinges, and 1 cover cap. Please note that running tracks and concealed hinges for side attachment are not included—these must be sourced separately to complete the installation.

Choose Fitting Set, for Folding Cabinet Doors, Slido F-Fold61 25/50A for a premium, heavy-duty folding result—backed by a Hafele Lifetime Guarantee (10 years). Upgrade your sliding and folding door hardware today.

Running tracks and concealed hinges for attachment at the side are not included in the set.

1 running gear with 2 concealed hinges for left door
4 adjustable concealed hinges
1 cover cap
