Fitting Set, for Folding Cabinet Doors, Slido F-Fold61 25/50A

Product Details

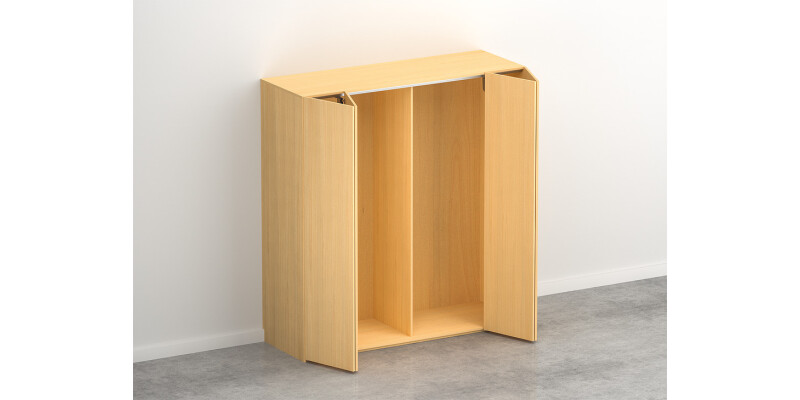

Fitting Set, for Folding Cabinet Doors, Slido F-Fold61 25/50A. (Part No: 409.36.038) is a heavy-duty solution designed for smooth, reliable sliding and folding door operation—ideal for overlay cabinet doors where performance and control matter. Built for a top hung system, this set includes an adjustable panel-to-panel hinge with no cover cap, making it a clean, professional choice for modern interior joinery.

Rated for up to 25 kg per door (equivalent to 25/50 kg per pair of doors), the Fold 25/50 running gear is engineered to handle demanding everyday use. It suits doors made from wood or aluminium frame, with a compatible door thickness of ≥ 16 mm. For optimal fit, the door width supports up to max 550 mm at 25 kg load.

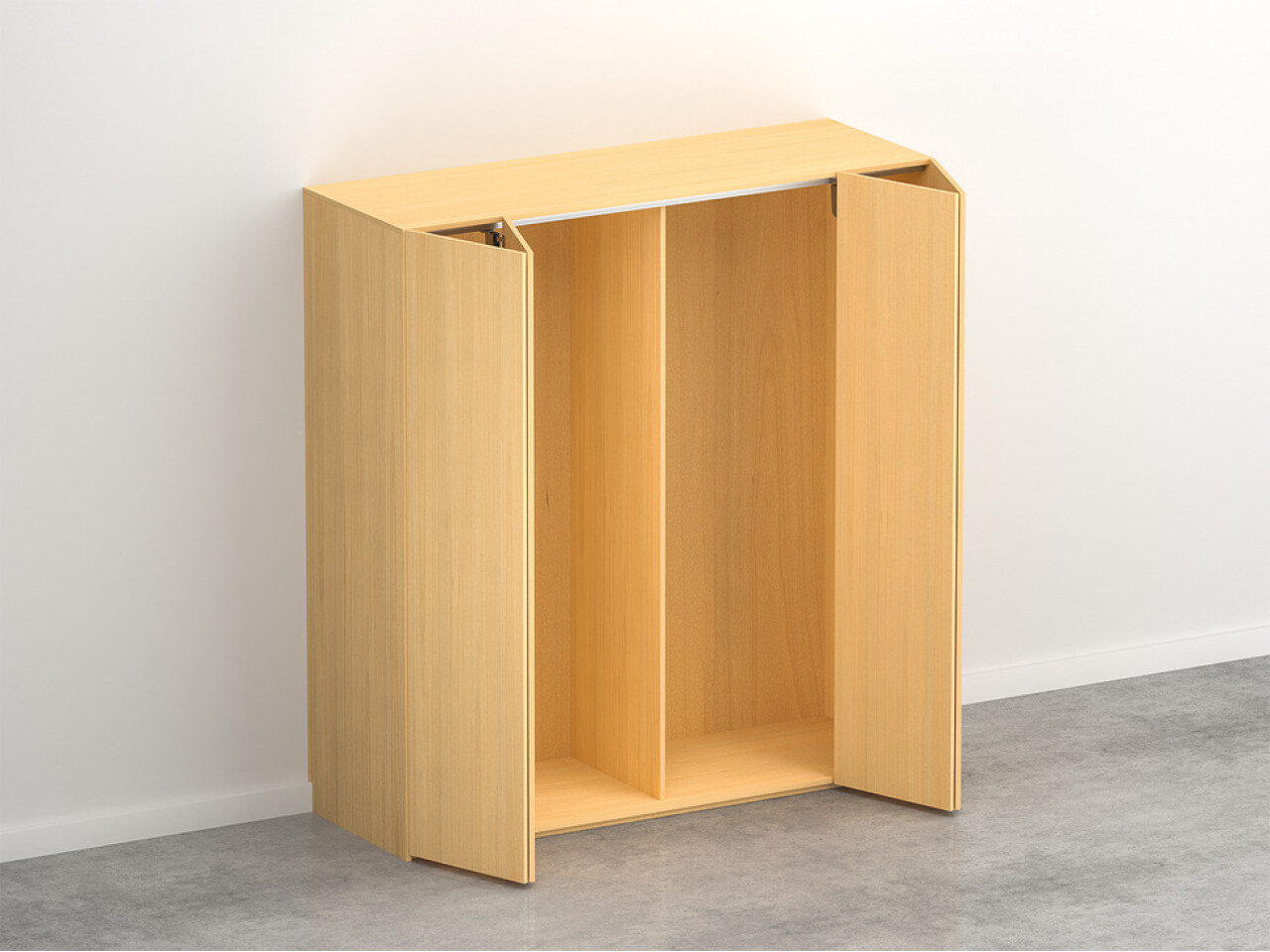

Inside, the system runs on 4 plastic rollers with ball bearing guidance for consistent movement and reduced friction. Fine-tuning is simple: you can achieve the right alignment adjustable via hinges, with door adjustment carried out through the hinges themselves. Supplied for left installation, it’s made for overlay cabinet door applications.

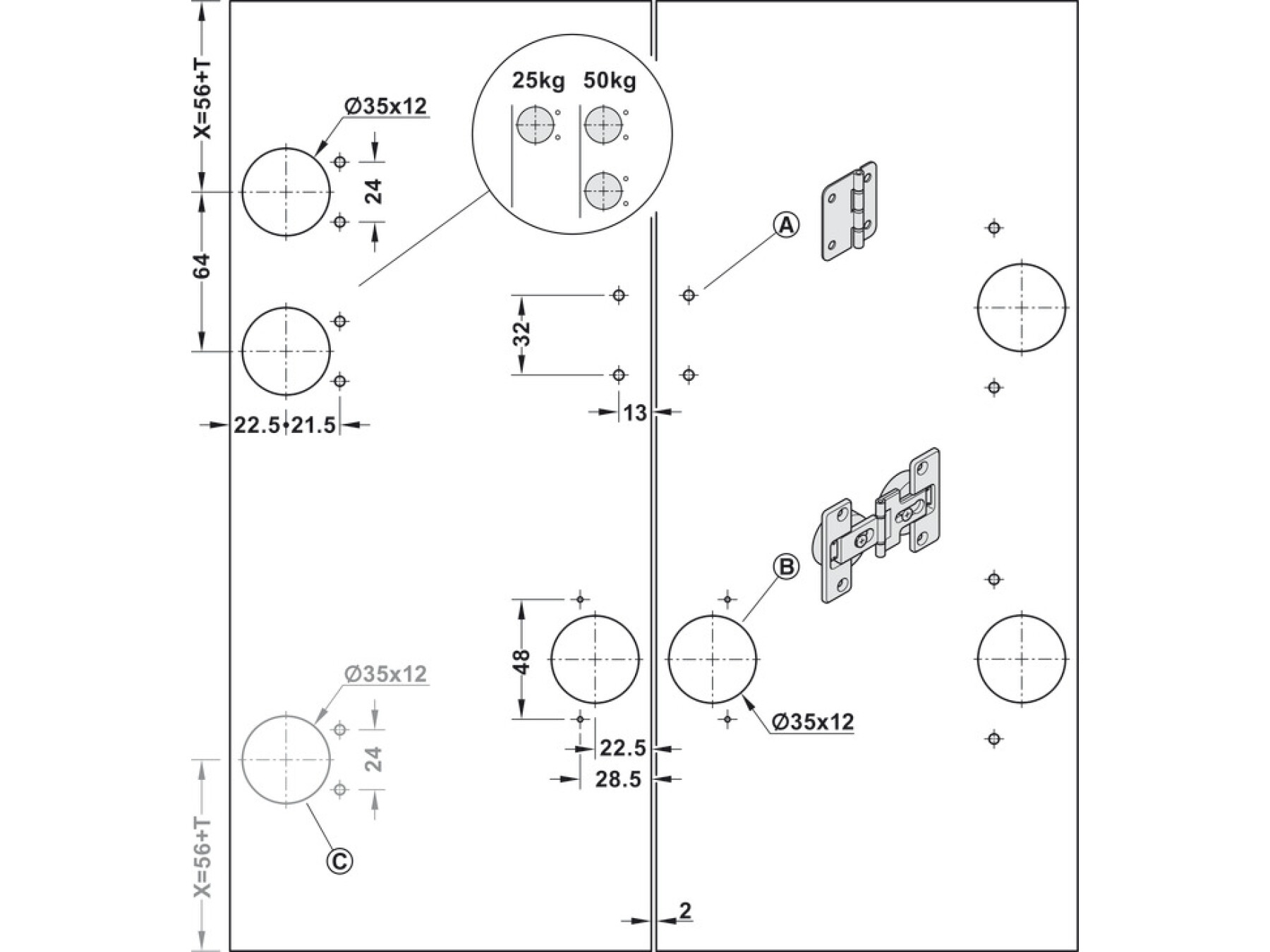

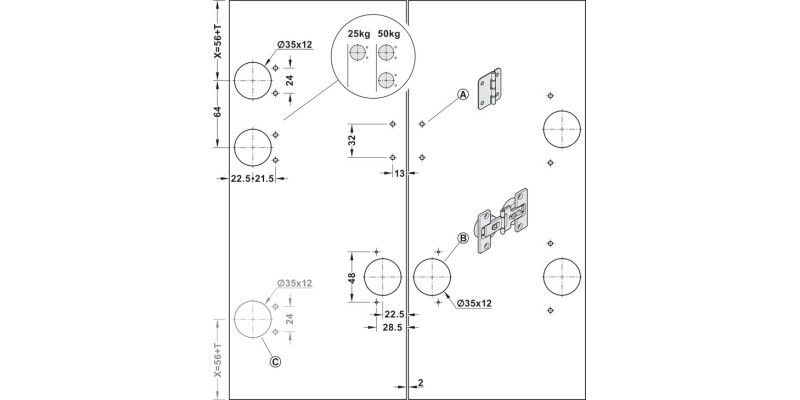

What’s included: 1 running gear with 1 concealed hinge for the left door, plus 4 adjustable concealed hinges. Please note that running tracks and concealed hinges for side attachment are not included in this set.

Choose Slido quality with a Hafele Lifetime Guarantee (10 years)—upgrade your sliding & folding door hardware with confidence.

Running tracks and concealed hinges for attachment at the side are not included in the set.

1 running gear with 1 concealed hinge for left door
4 adjustable concealed hinges
