Fitting Set, for Folding Cabinet Doors, Slido F-Fold61 25/50A

Product Details

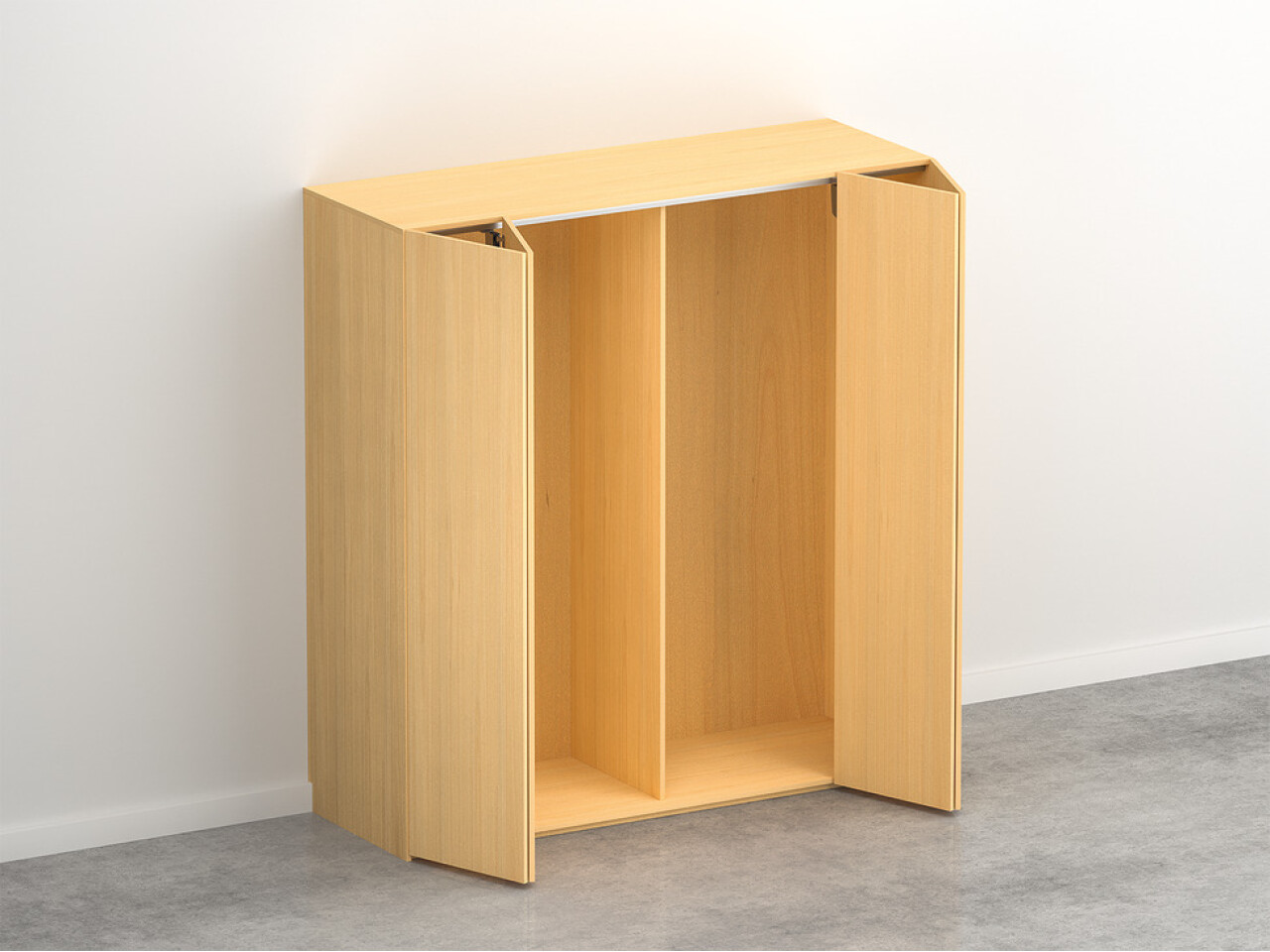

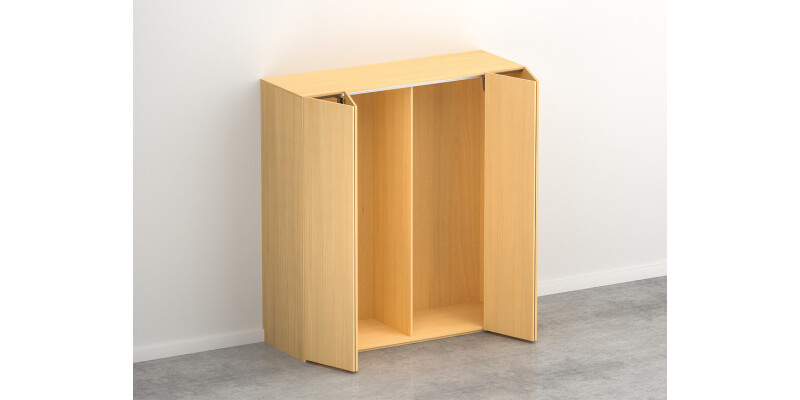

Fitting Set, for Folding Cabinet Doors, Slido F-Fold61 25/50A (Part No. 409.36.045) is built for smooth, confident movement in heavy-duty sliding and folding door systems. Designed as part of a top hung solution, this right-hand hinge set helps you create a reliable fold-and-slide performance—ideal for overlay cabinet doors where stability and clean alignment matter.

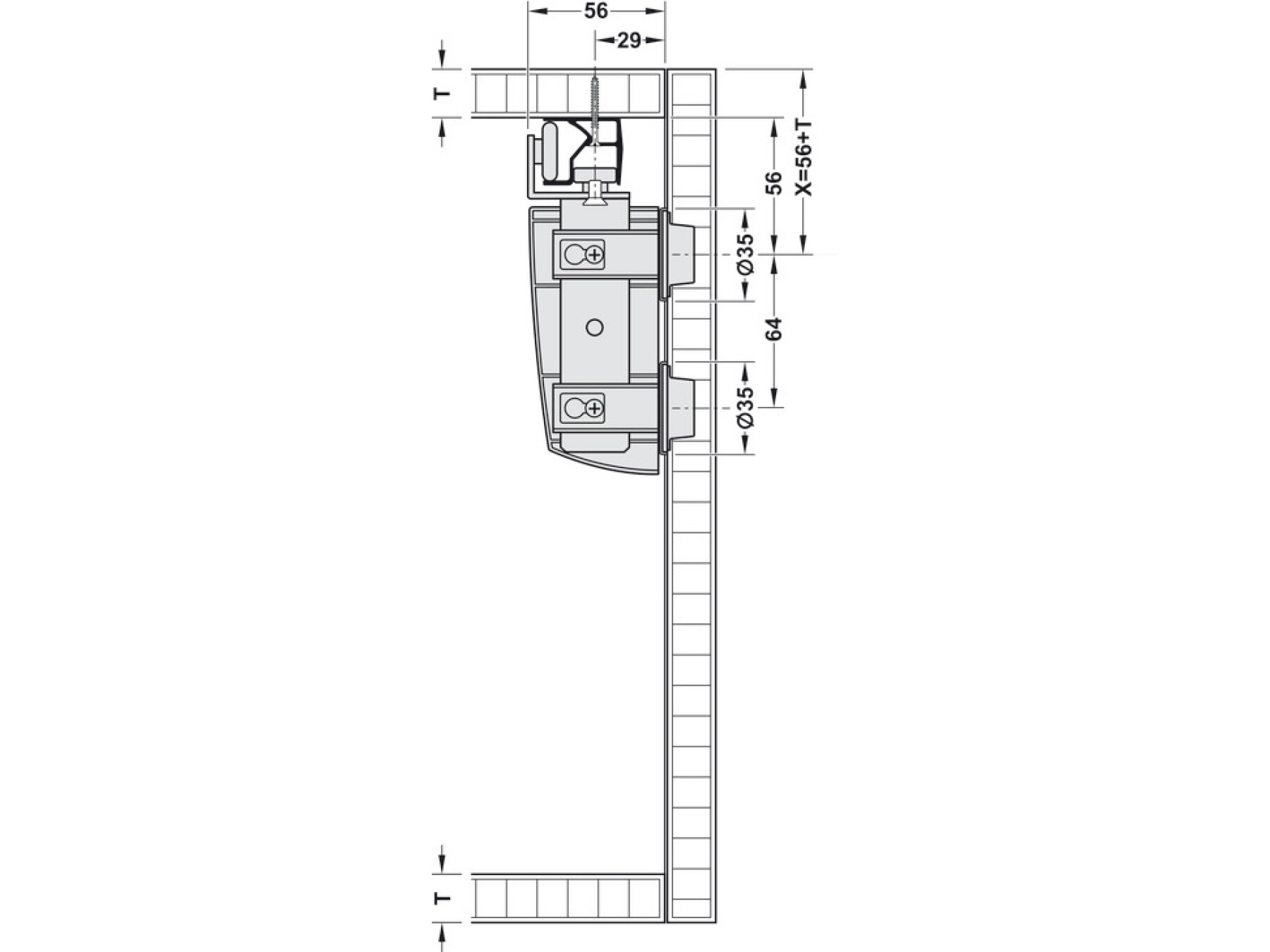

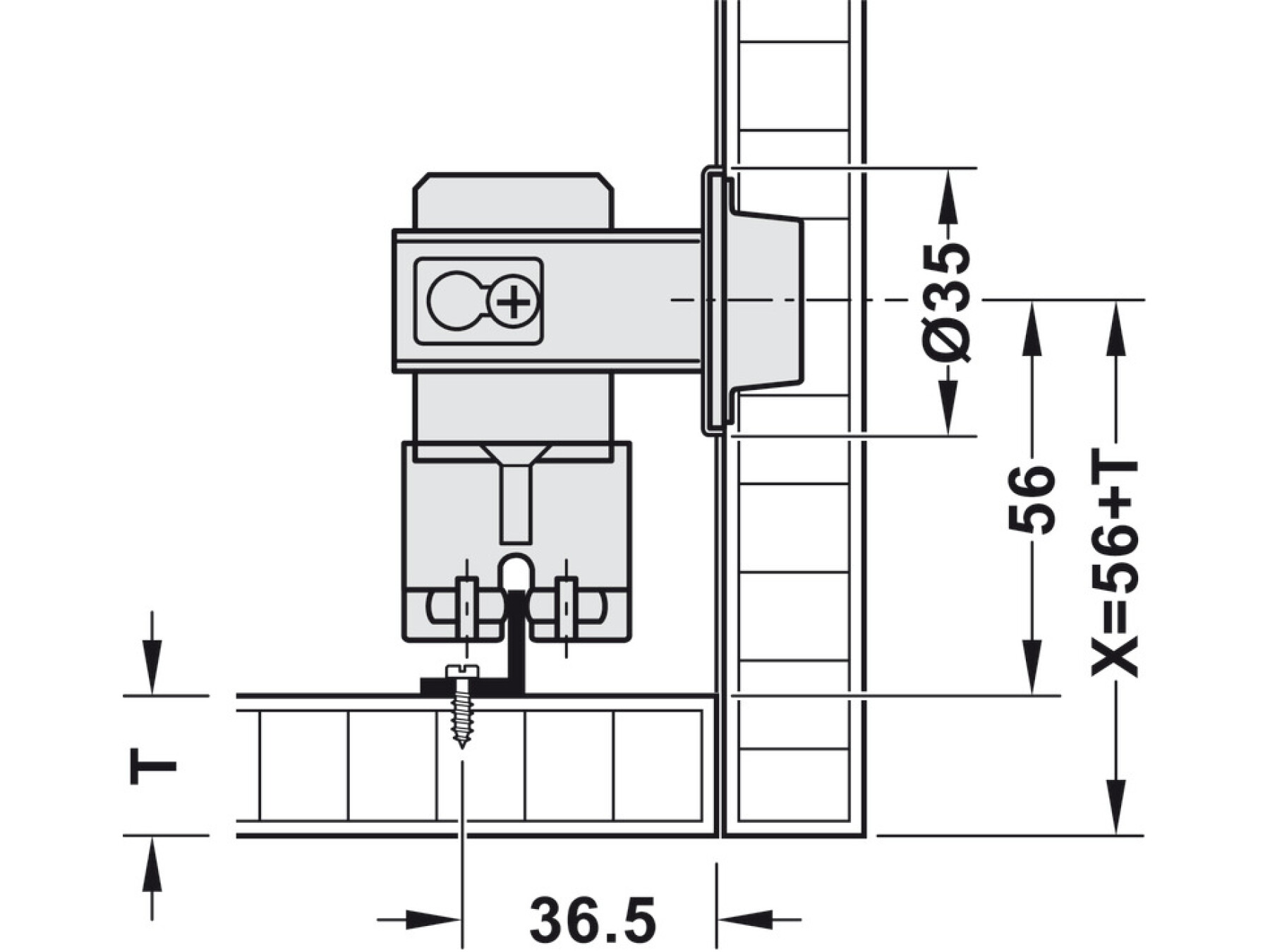

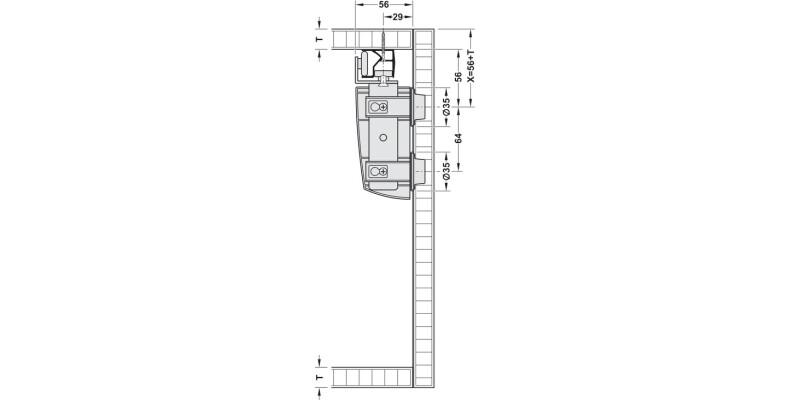

Top hung system with adjustable panel-to-panel hinge lets you fine-tune the connection between door panels. A neat white cover cap provides a professional finish and helps conceal the hinge area for a tidy, modern look. With a door weight capacity of 25 kg per door (up to 50 kg per pair), this system supports substantial panels without compromising on usability.

Engineered for practical installation and long-term durability, the set is suitable for door thicknesses of ≥ 16 mm and works with wood and aluminium frame doors. For optimal results, door width guidance is max 550 mm at the 25 kg rating. The running gear uses 4 plastic rollers and is guided by ball bearings for controlled, low-friction operation.

Hafele Lifetime Guarantee (10 years) adds peace of mind, supported by a product series made for Fold 25/50 applications. Supplied with the running gear and concealed right-door hinge, 4 adjustable concealed hinges, and a cover cap.

Note: Running tracks and concealed hinges for side attachment are not included in this set—so it’s the perfect choice to complete your heavy-duty sliding & folding hardware setup.

Running tracks and concealed hinges for attachment at the side are not included in the set.

1 running gear with 1 concealed hinge for right door

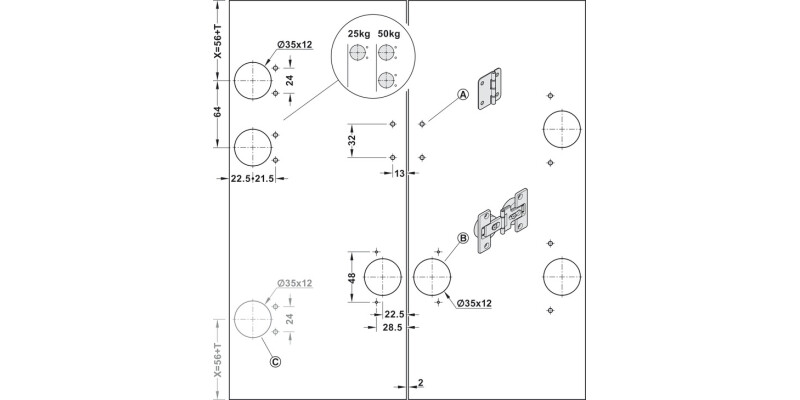

4 adjustable concealed hinges
1 cover cap
