Fitting Set, for Folding Cabinet Doors, Slido F-Fold61 25/50A

Product Details

Is the Slido F Fold61 25A Adj Hinge suitable for sliding and folding door applications?

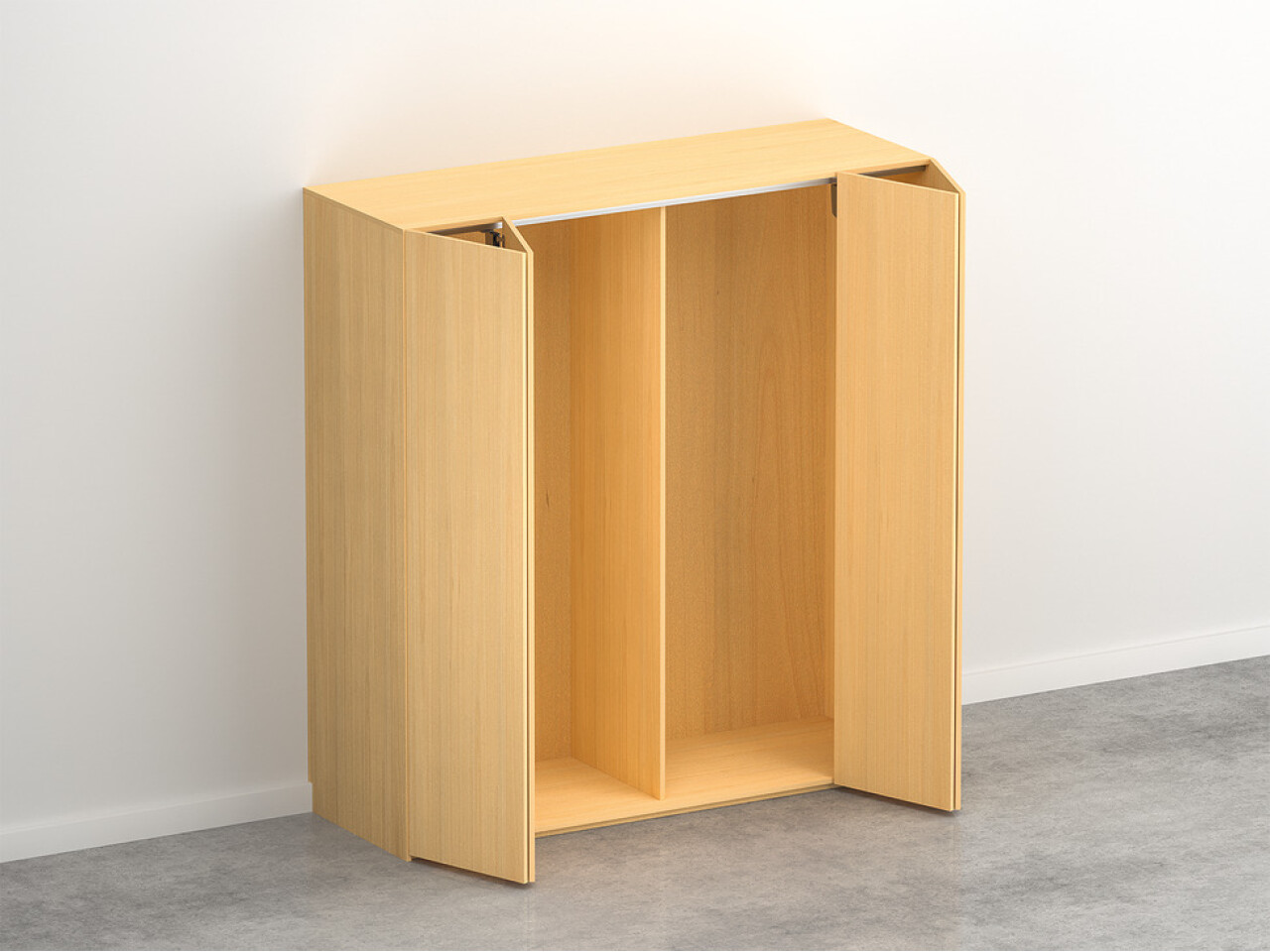

Yes. This hardware is designed for heavy duty sliding and folding door systems and works as a top hung arrangement. It is intended for overlay cabinet doors and helps support smooth fold and slide movement.

What door weight and door width can this hinge system support?

For 25 kg doors, the maximum door width is 550 mm. The system is also noted for use up to 50 kg per pair of doors, with a maximum door width of 600 mm for that higher weight setting.

What door thickness is compatible with this set?

This set is suitable for doors with a thickness of 16 mm or more. If your door is thinner than this, it may not align correctly with the intended hinge adjustment and mounting requirements.

What is included in the box, and what needs to be ordered separately?

The set includes one running gear with one concealed hinge for a left door, four adjustable concealed hinges, and one white cover cap. Running tracks and concealed hinges for side attachment are not included, so you will need to source the compatible track and any additional parts required for your installation.

Can I fine tune the door alignment after installation?

Yes. The system provides adjustment via the hinges so you can fine tune the door movement and alignment. This is especially useful when fitting folding door hardware to ensure consistent gaps and smooth operation.

How is the left hand configuration confirmed for this model?

This version is specified as left hand for the door configuration, supplied with one concealed hinge for the left door plus a cover cap to finish the visible area neatly.

What warranty or guarantee does Hafele provide with this product?

Hafele Lifetime Guarantee applies, with a stated coverage of 10 years. This is a helpful assurance for customers selecting heavy duty door gear for long term use.

Will this hardware work with common door materials used in cabinet applications?

It is intended for overlay cabinet doors made from wood or aluminium frame. If your door is built from another material, it is worth checking compatibility to ensure the hinges and adjustments perform as expected.
